Wireless Door Lock Control System (W/O Smart Key System): Location

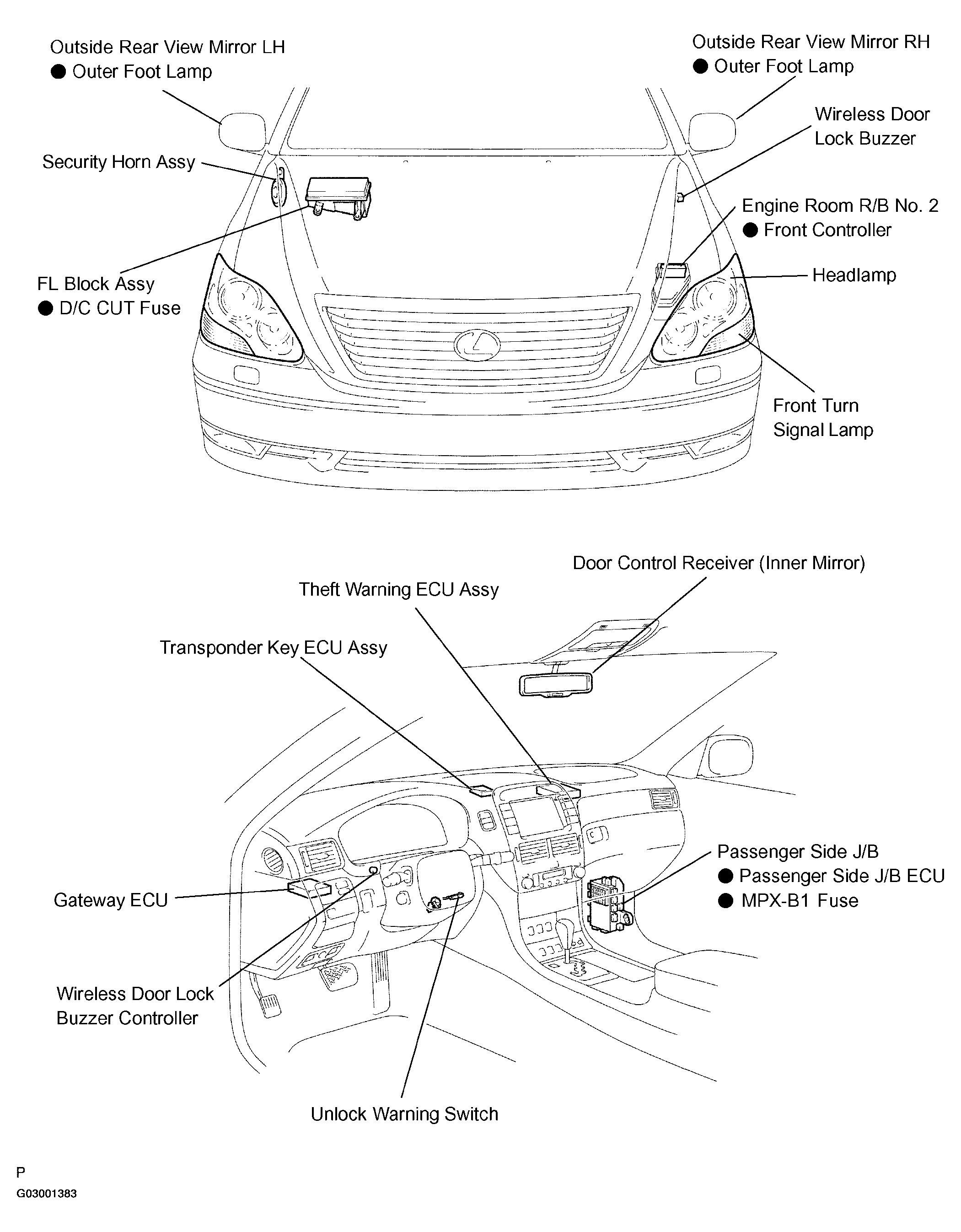

Fig 1: Identifying Wireless Door Lock Control System Components Location (W/O Smart Key System) (1 Of 2)
G03001383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

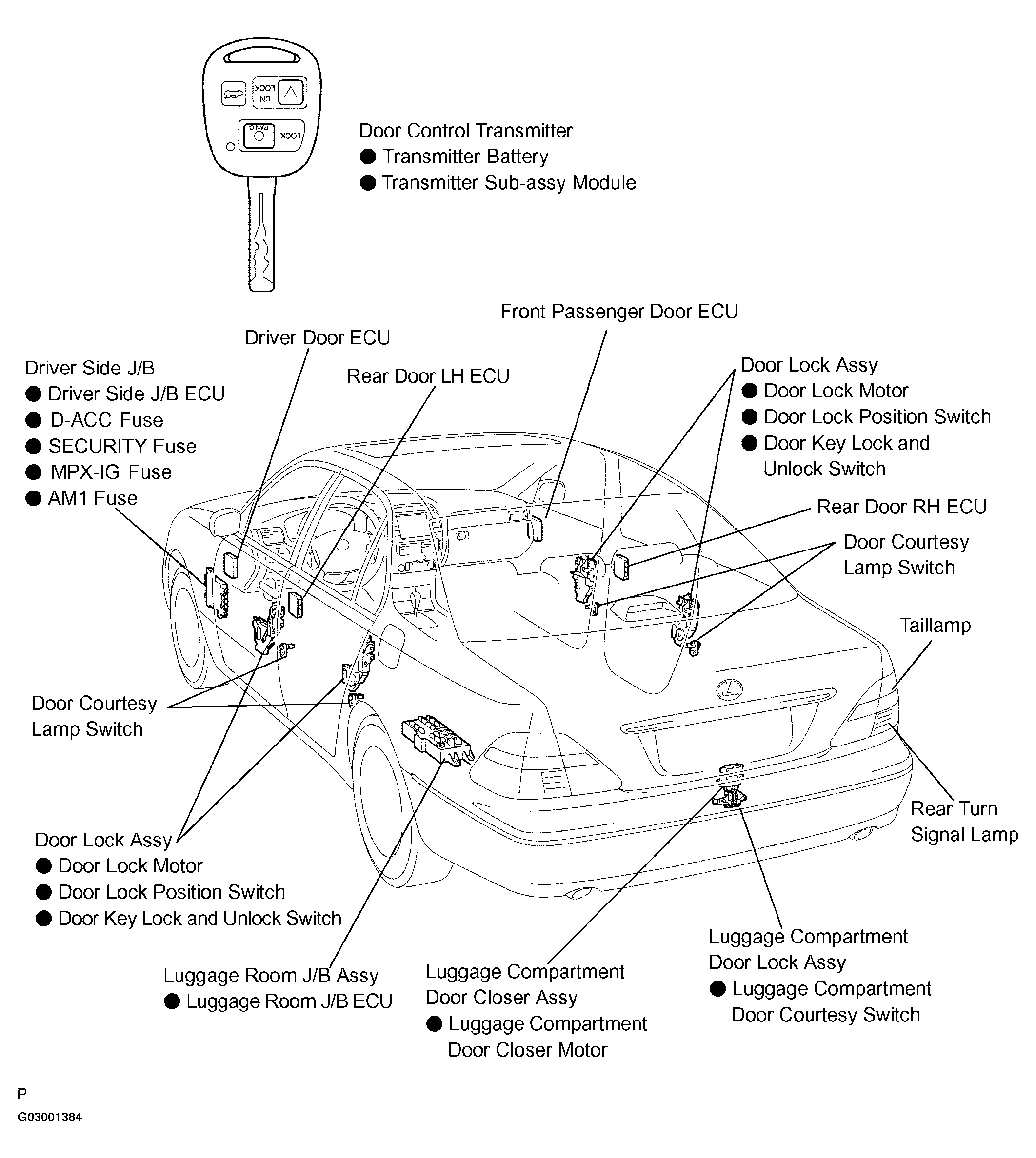

Fig 2: Identifying Wireless Door Lock Control System Components Location (W/O Smart Key System) (2 Of 2)
G03001384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
