Smart Key System - Diagnostics
>>
System Diagram
>>
Communication line
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Communication line

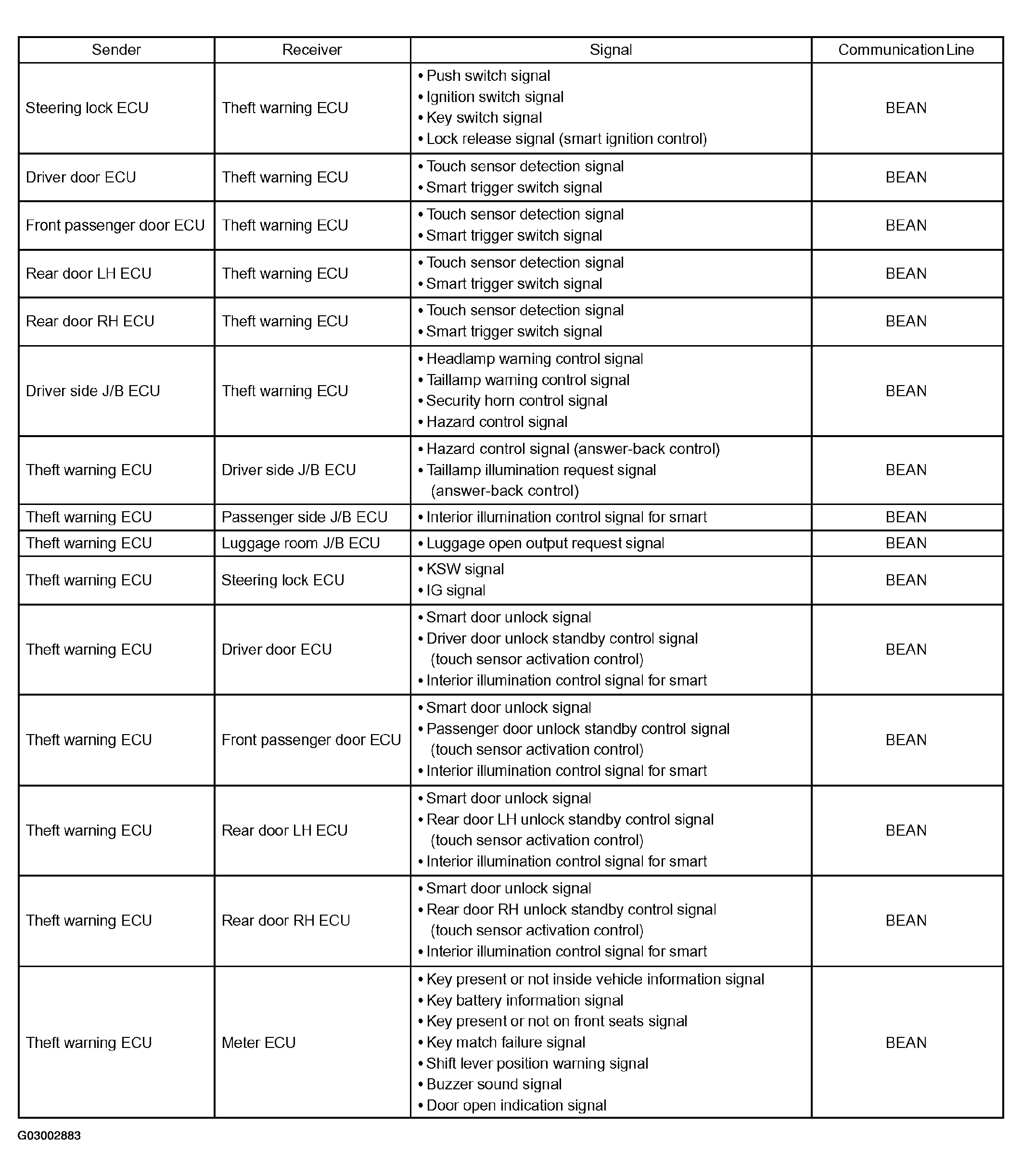

Fig 1: Communication Line Description Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
