DTC Check/Clear

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Read the DTCs by following the prompts on the tester screen.

HINT:

Please refer to the hand-held tester operator's manual for further details.

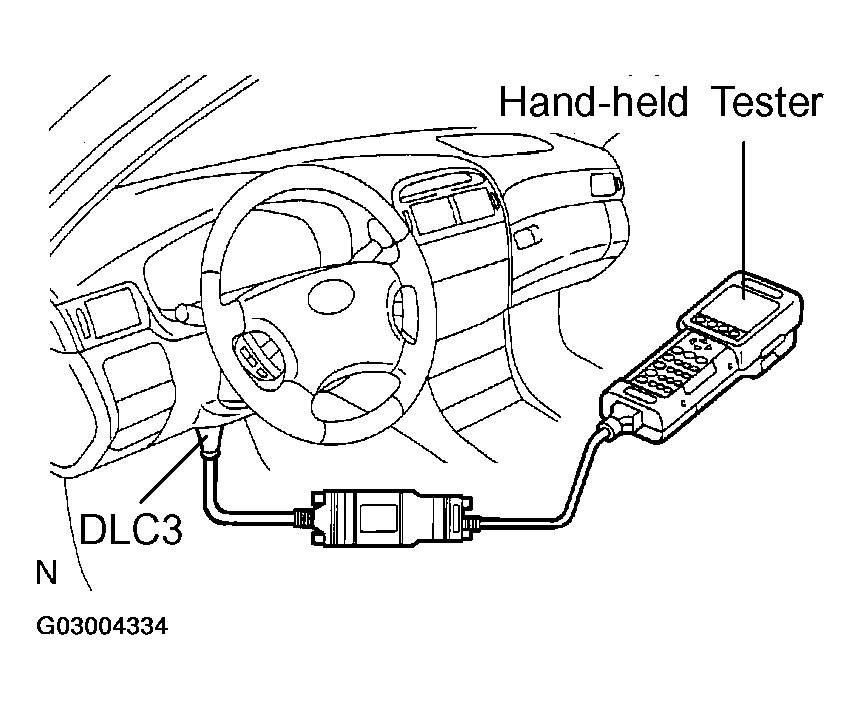

Fig 1: Connecting Hand-Held Tester To DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. The DTCs can be erased by operating the hand-held tester.

HINT:

Please refer to the hand-held tester operator's manual for further details.
