Fuse Block: Locations

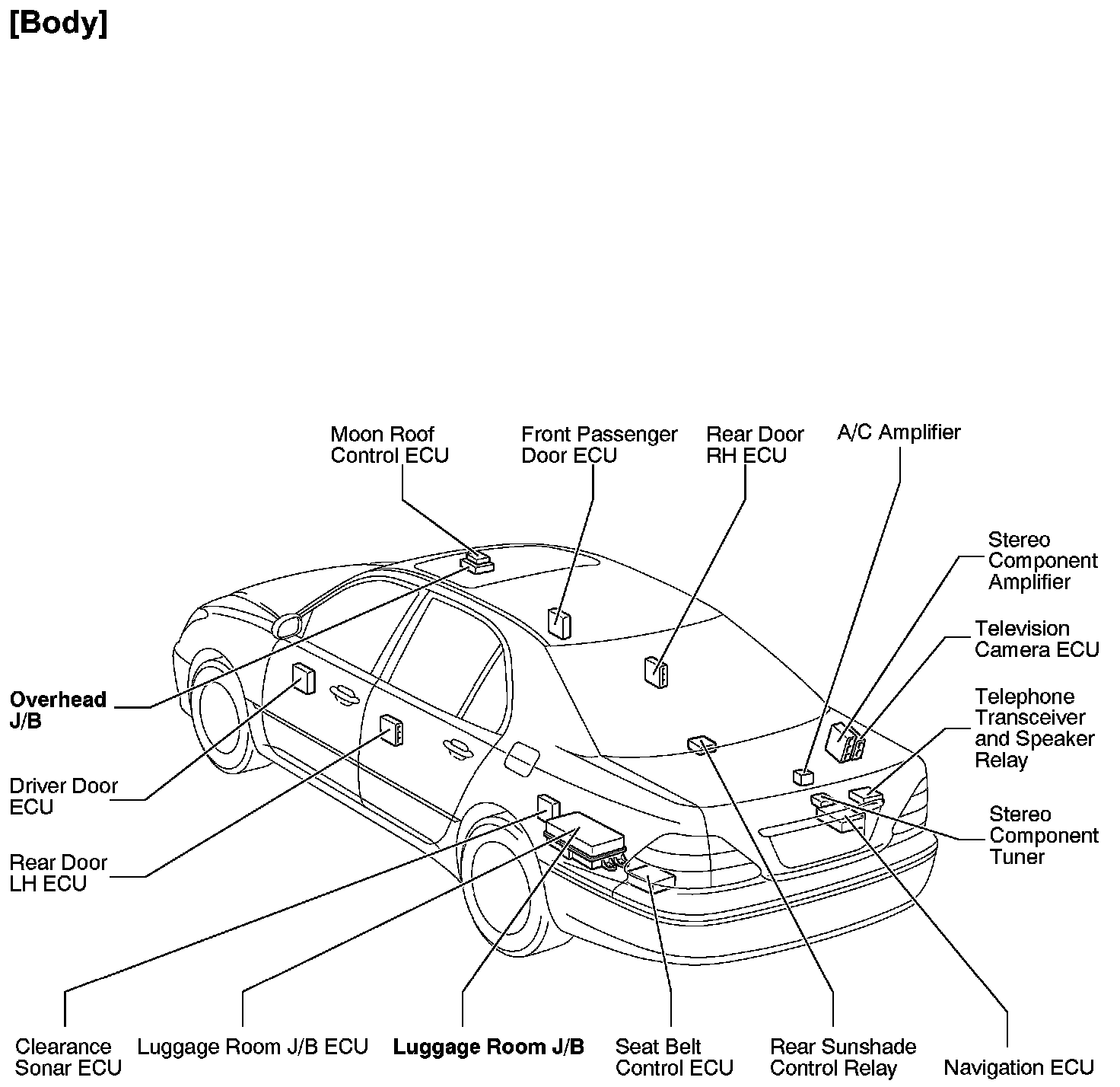

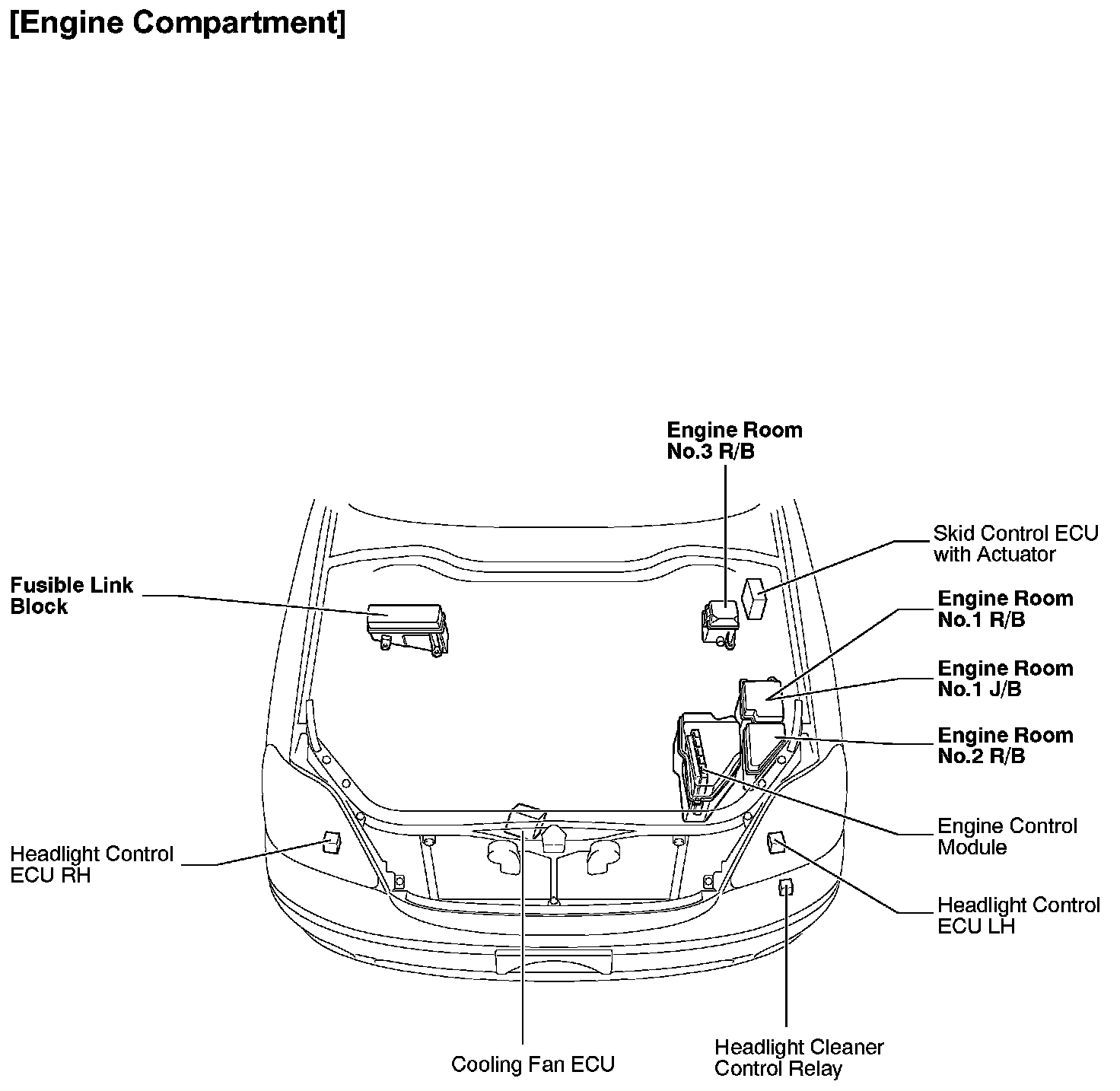

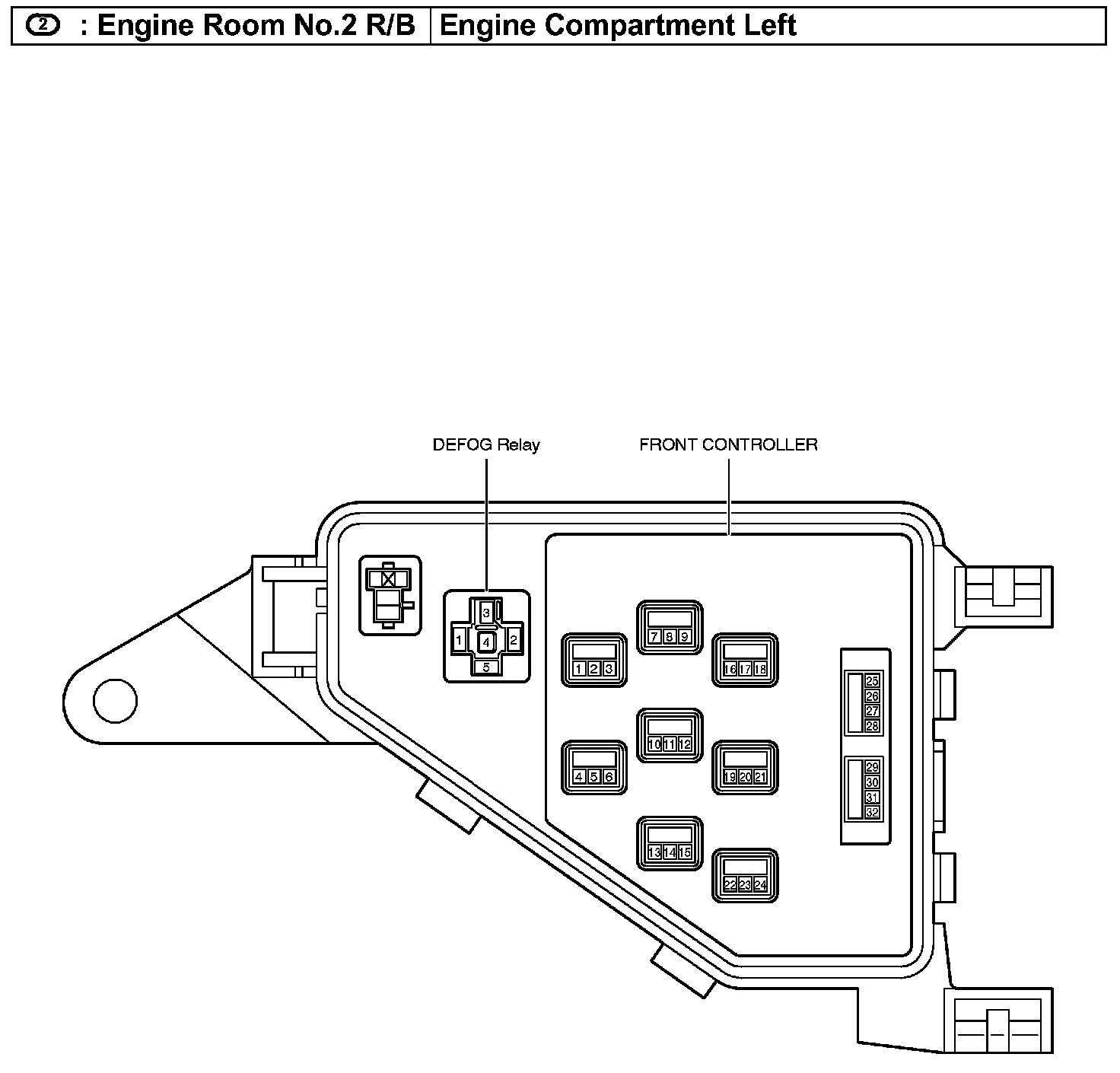

Relay Box Locations























Relay & Fuse Locations

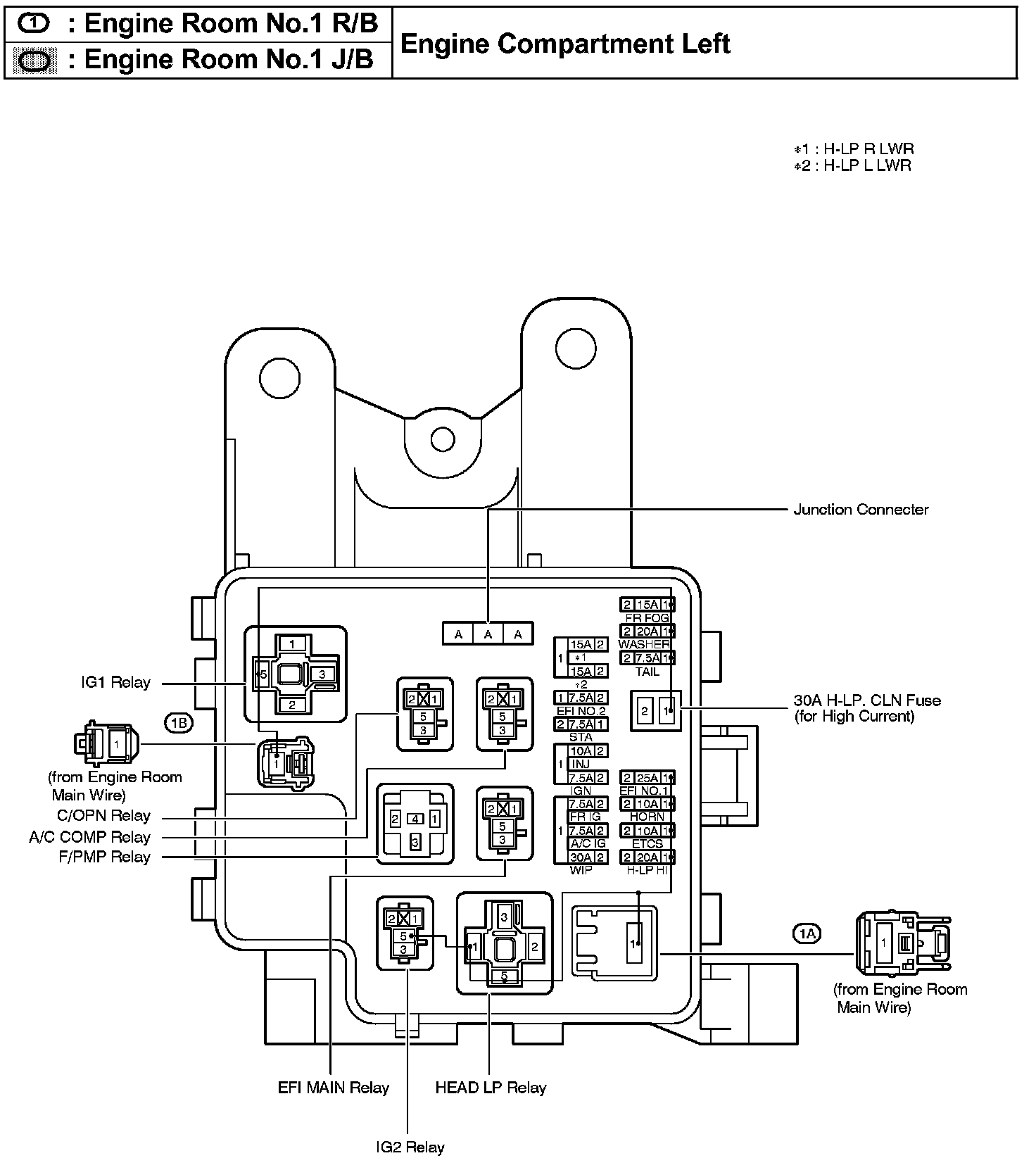

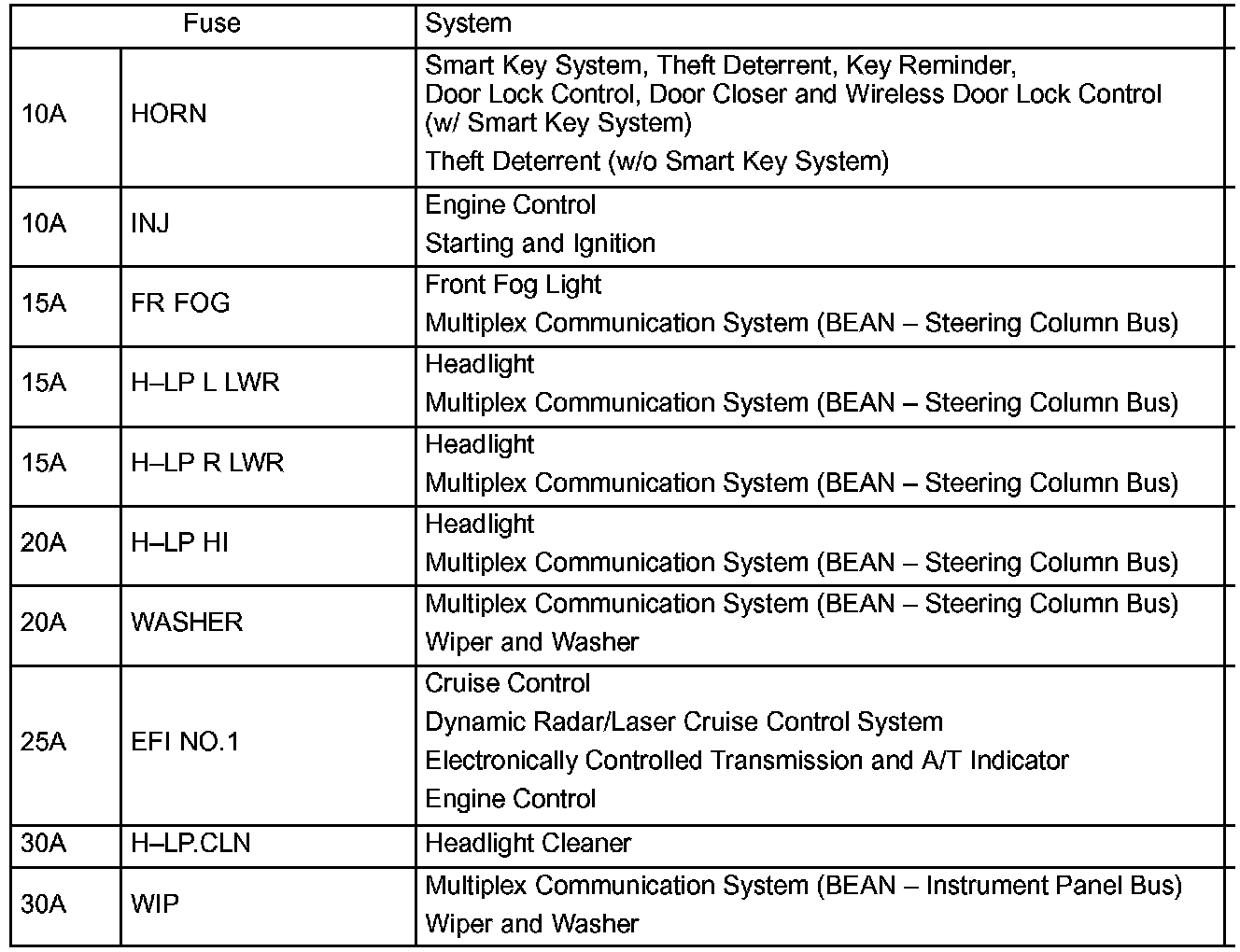

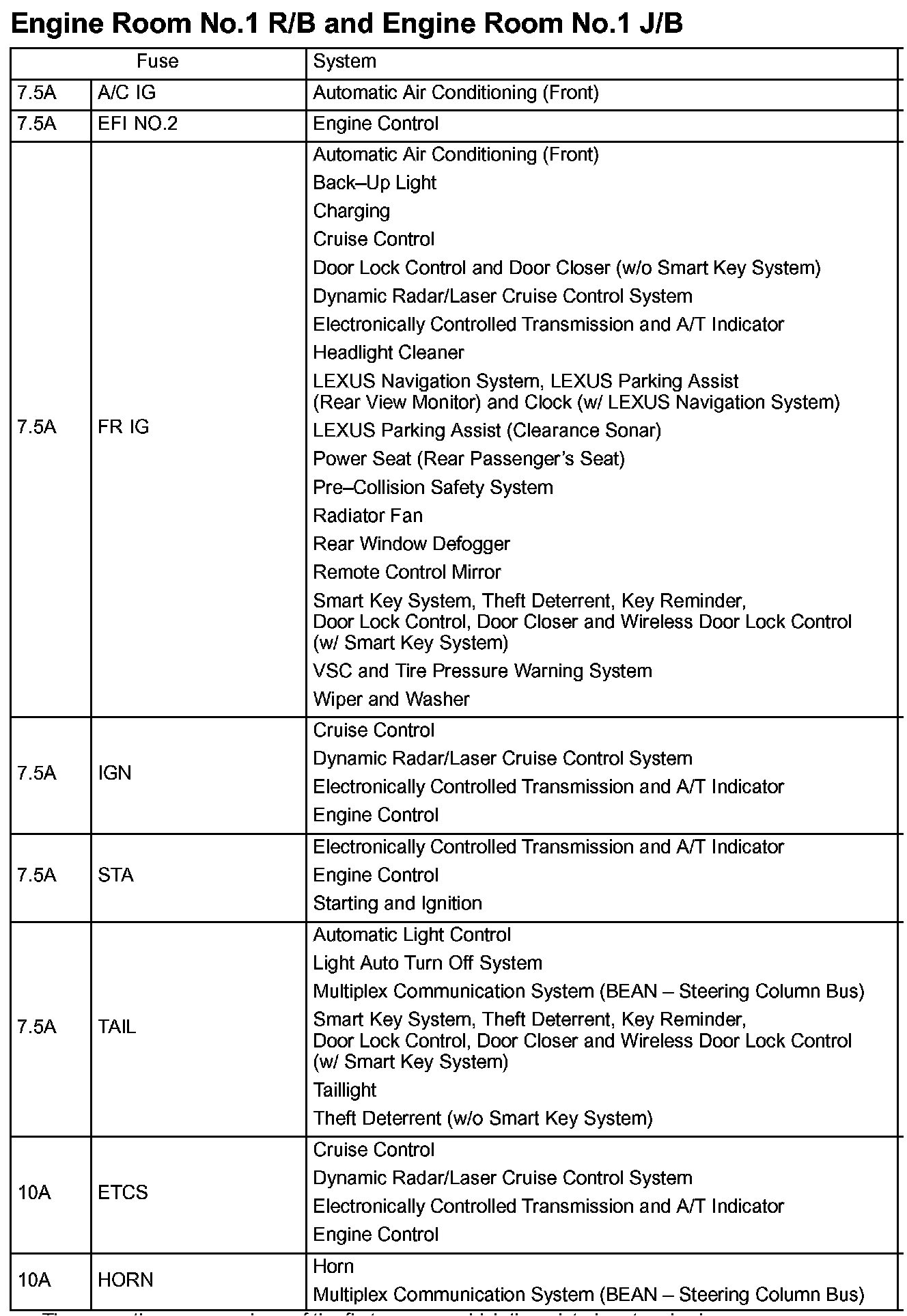

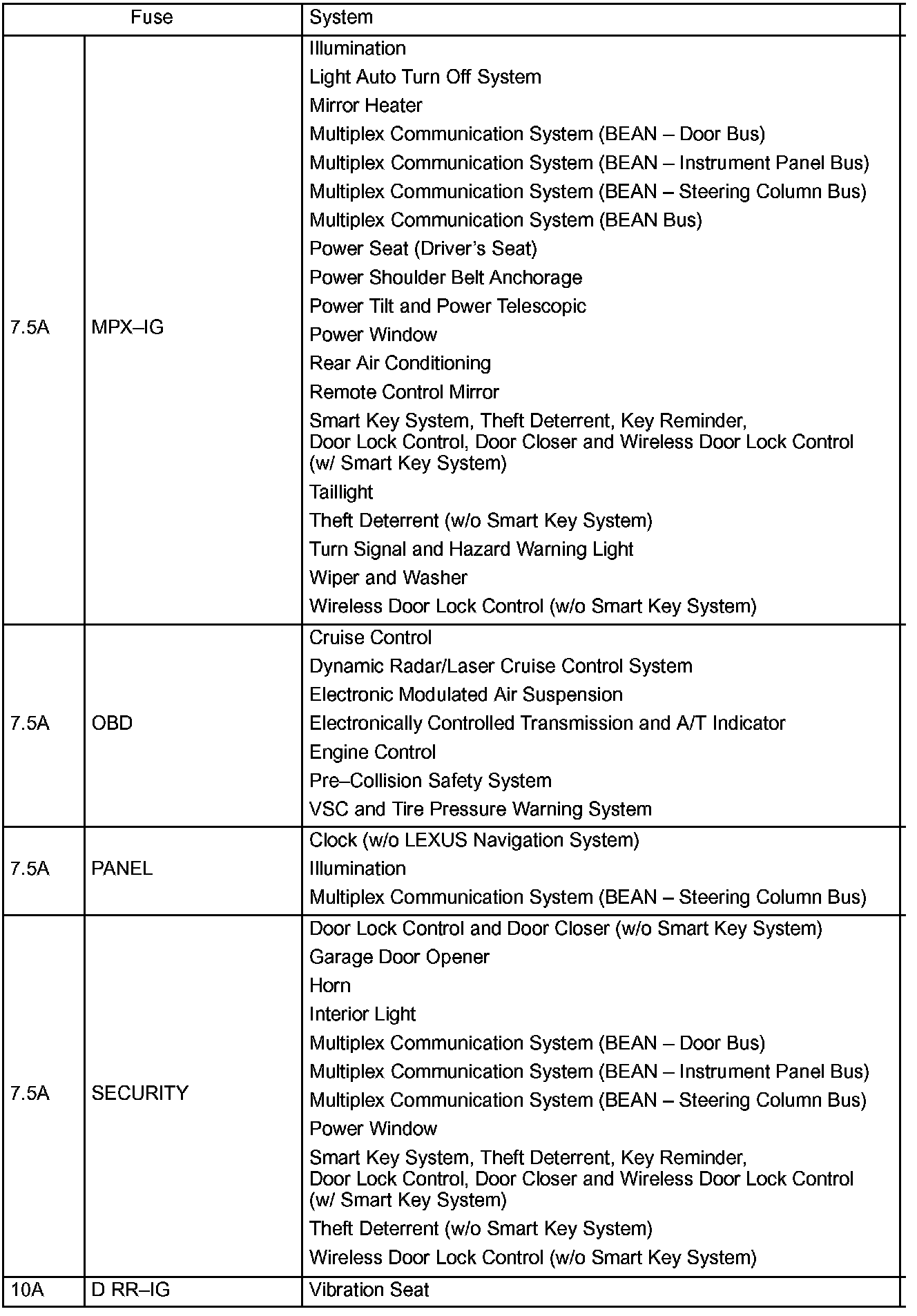

Engine Room Fuse ID

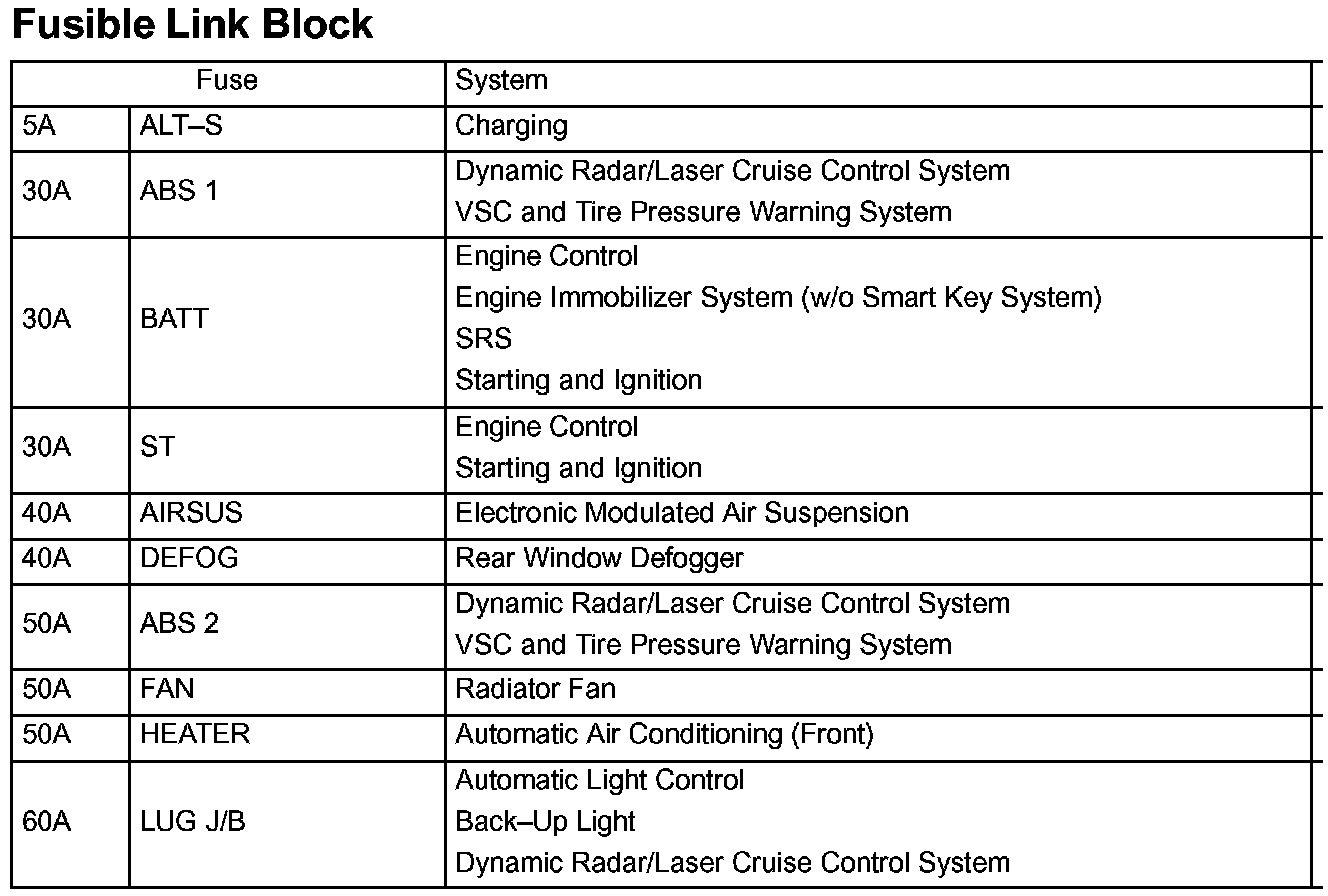

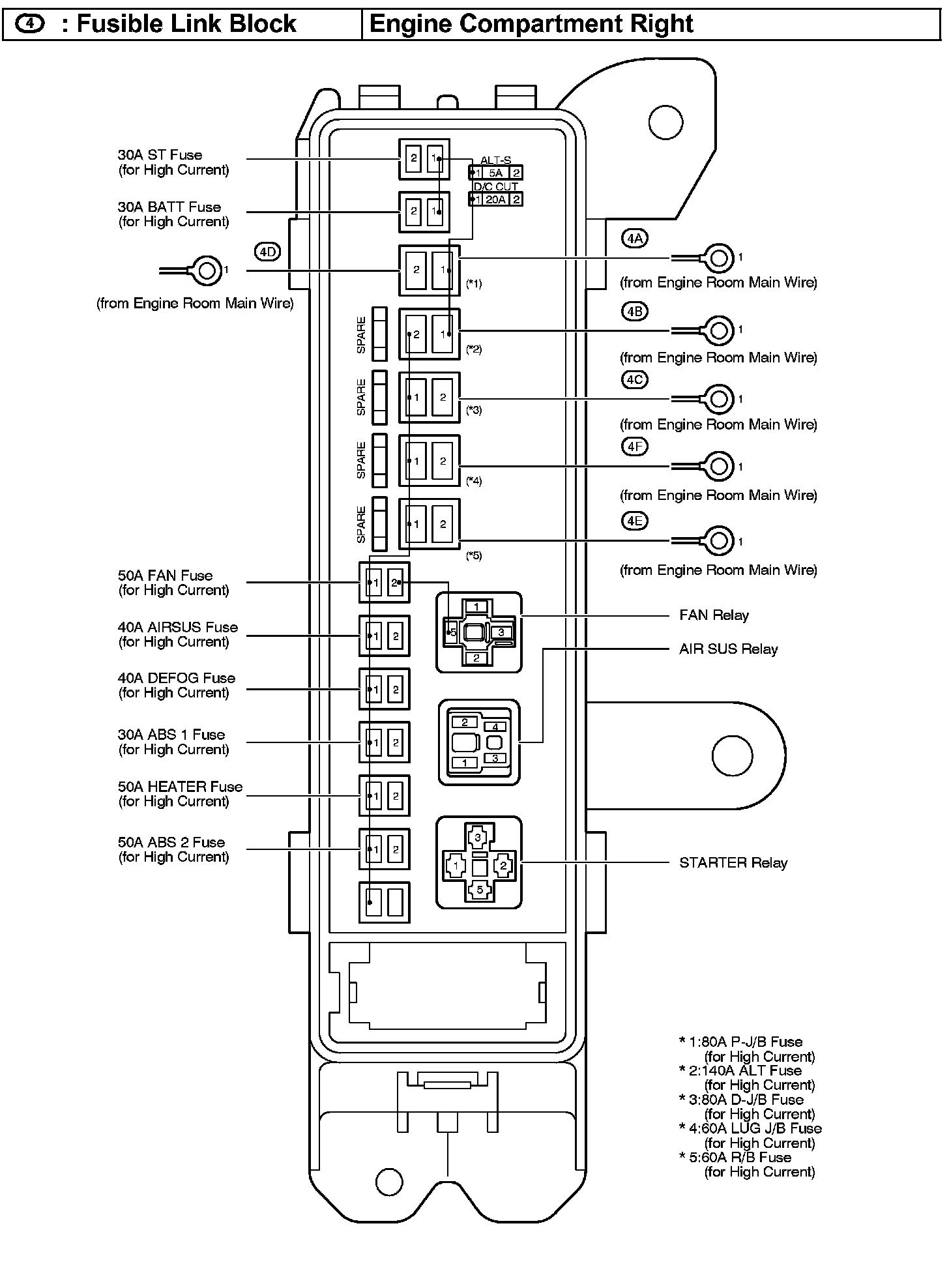

Fusible Linkl Block

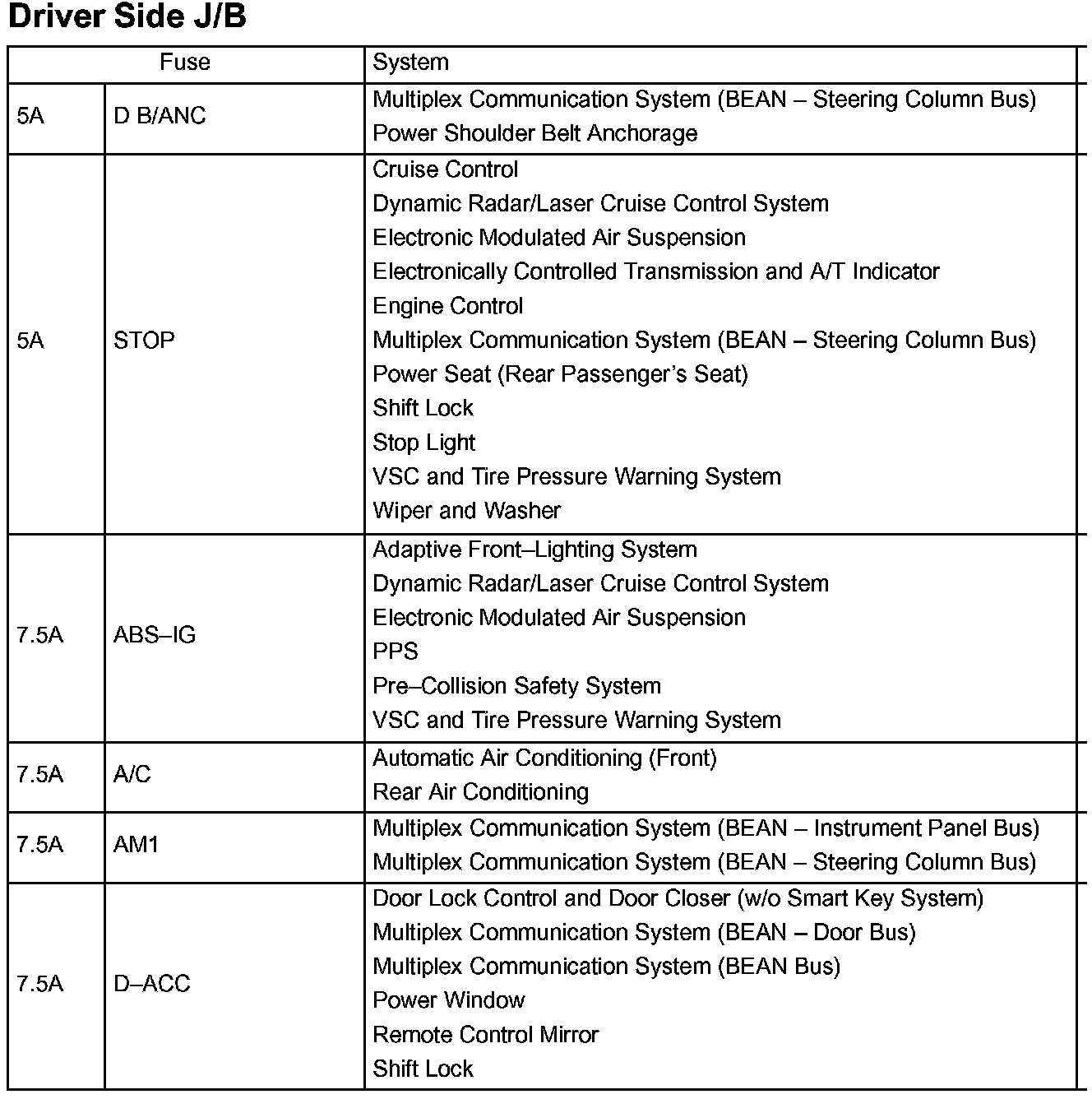

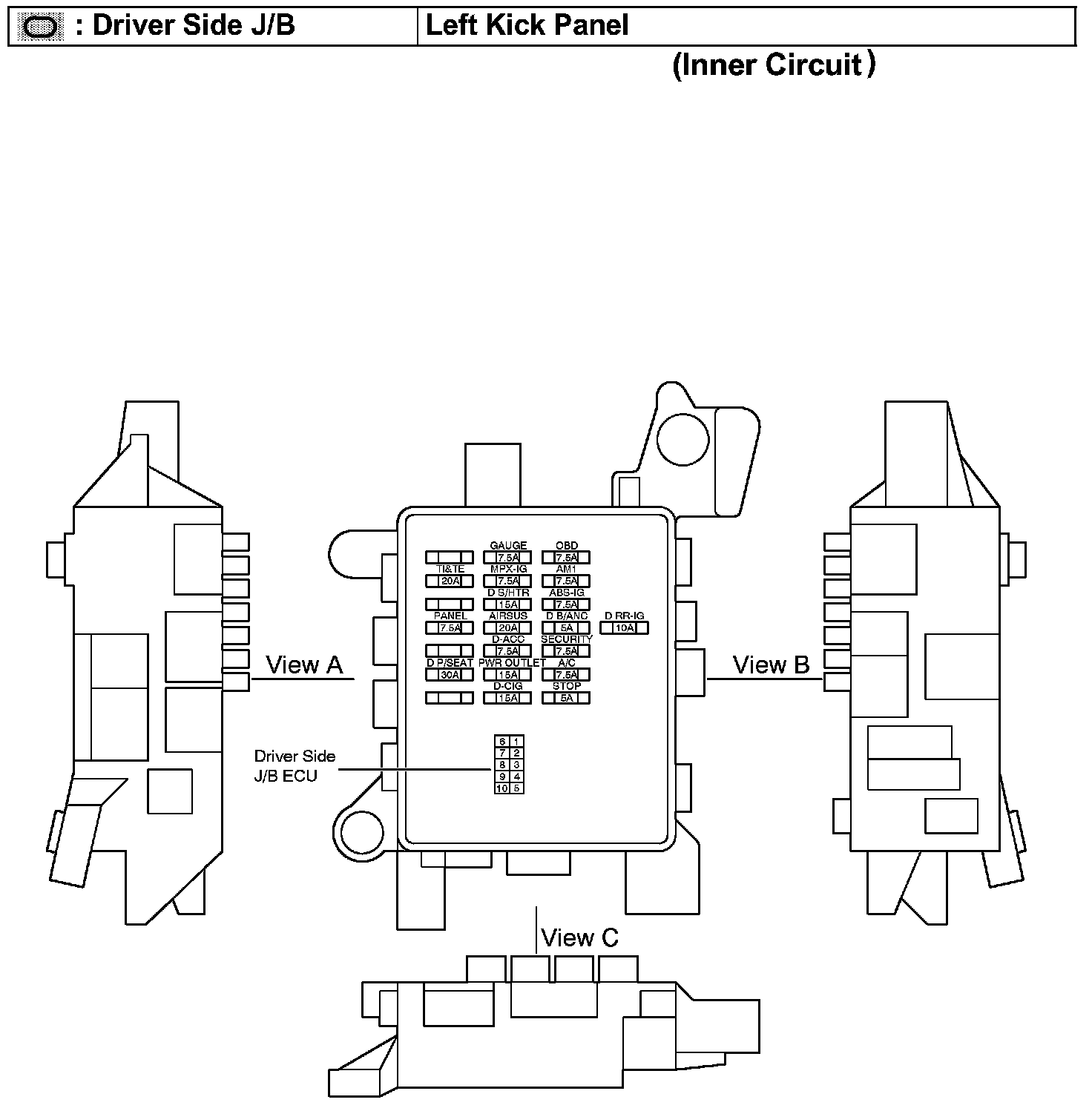

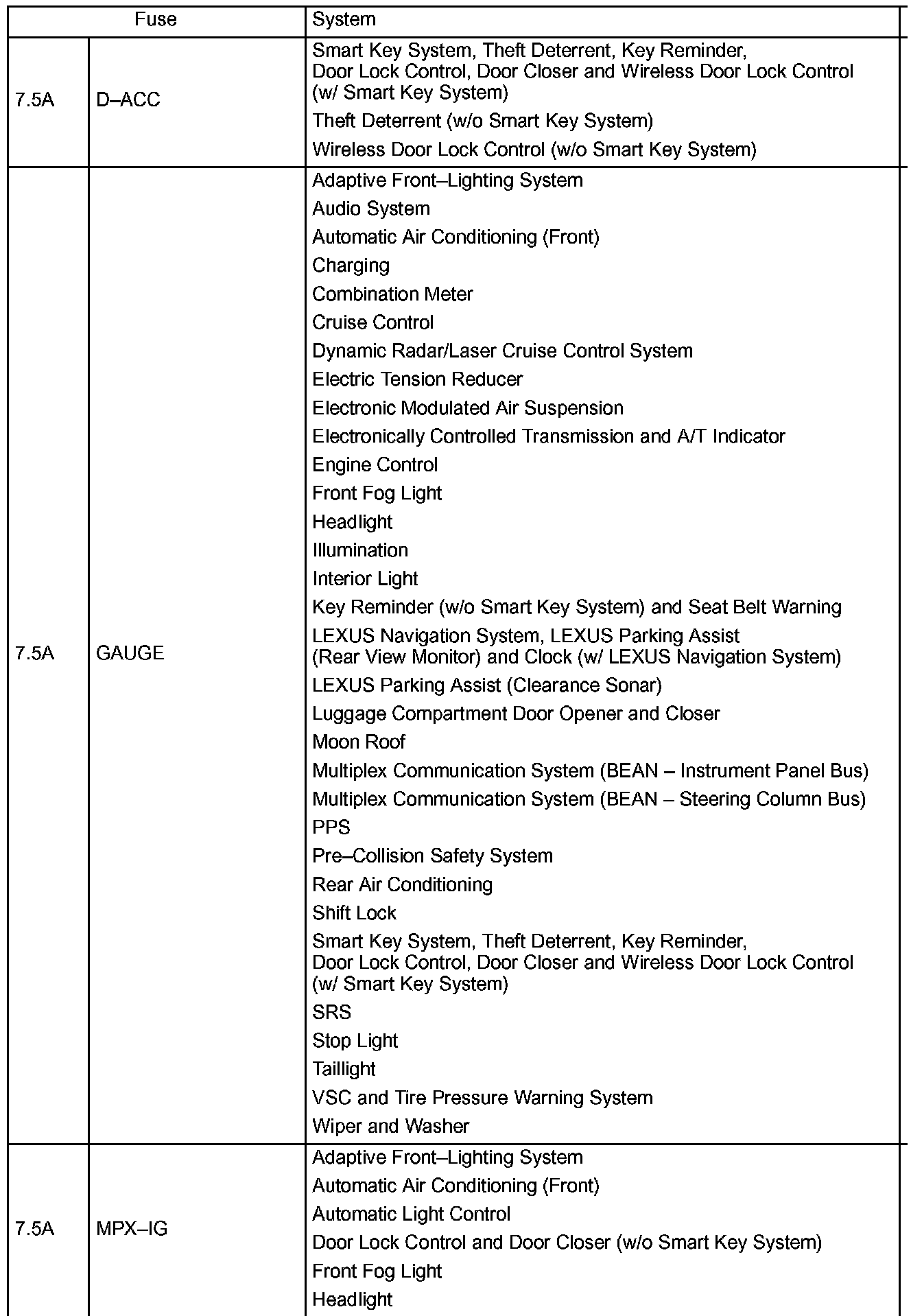

Driver Side J/B Fuse ID

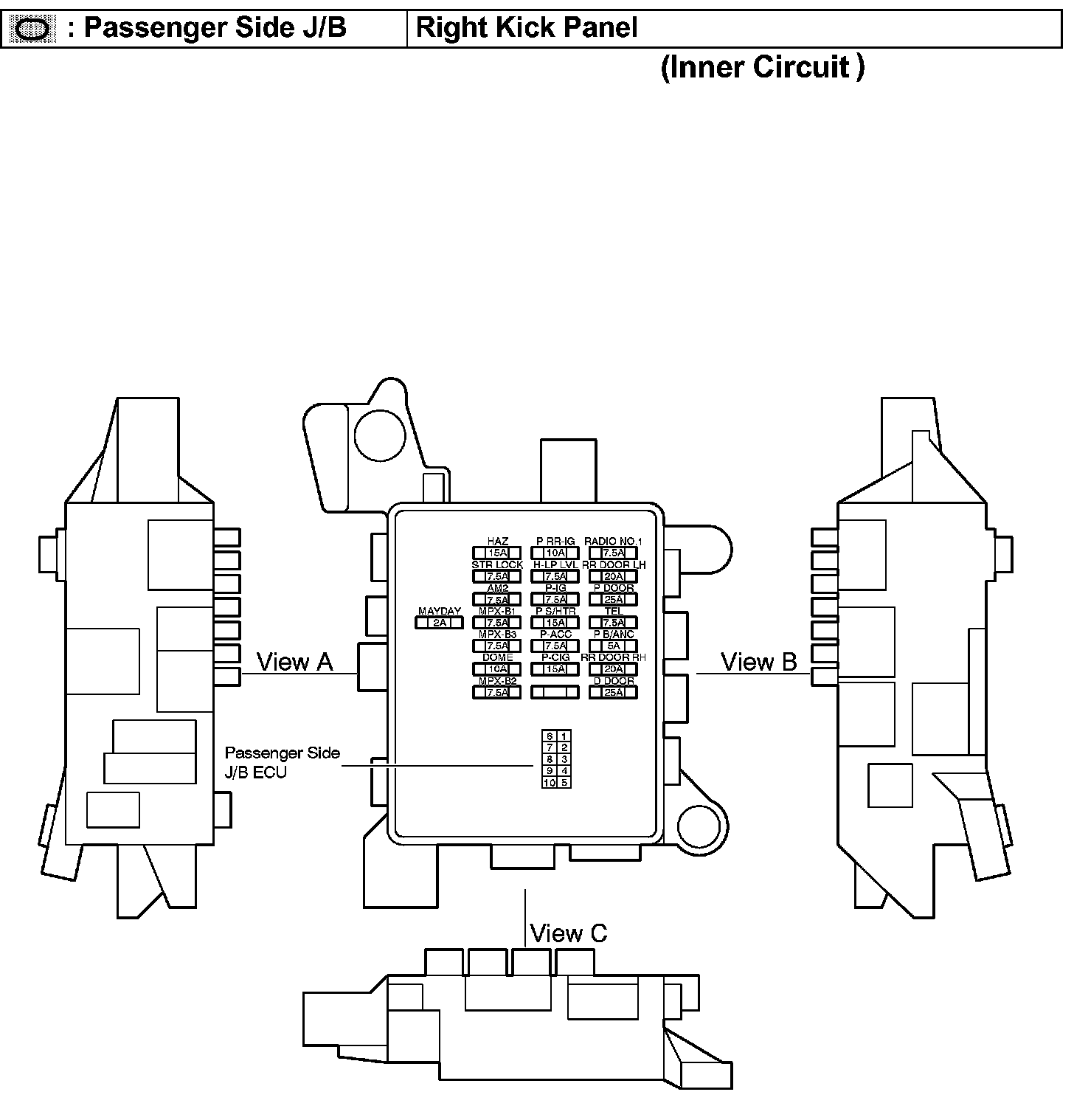

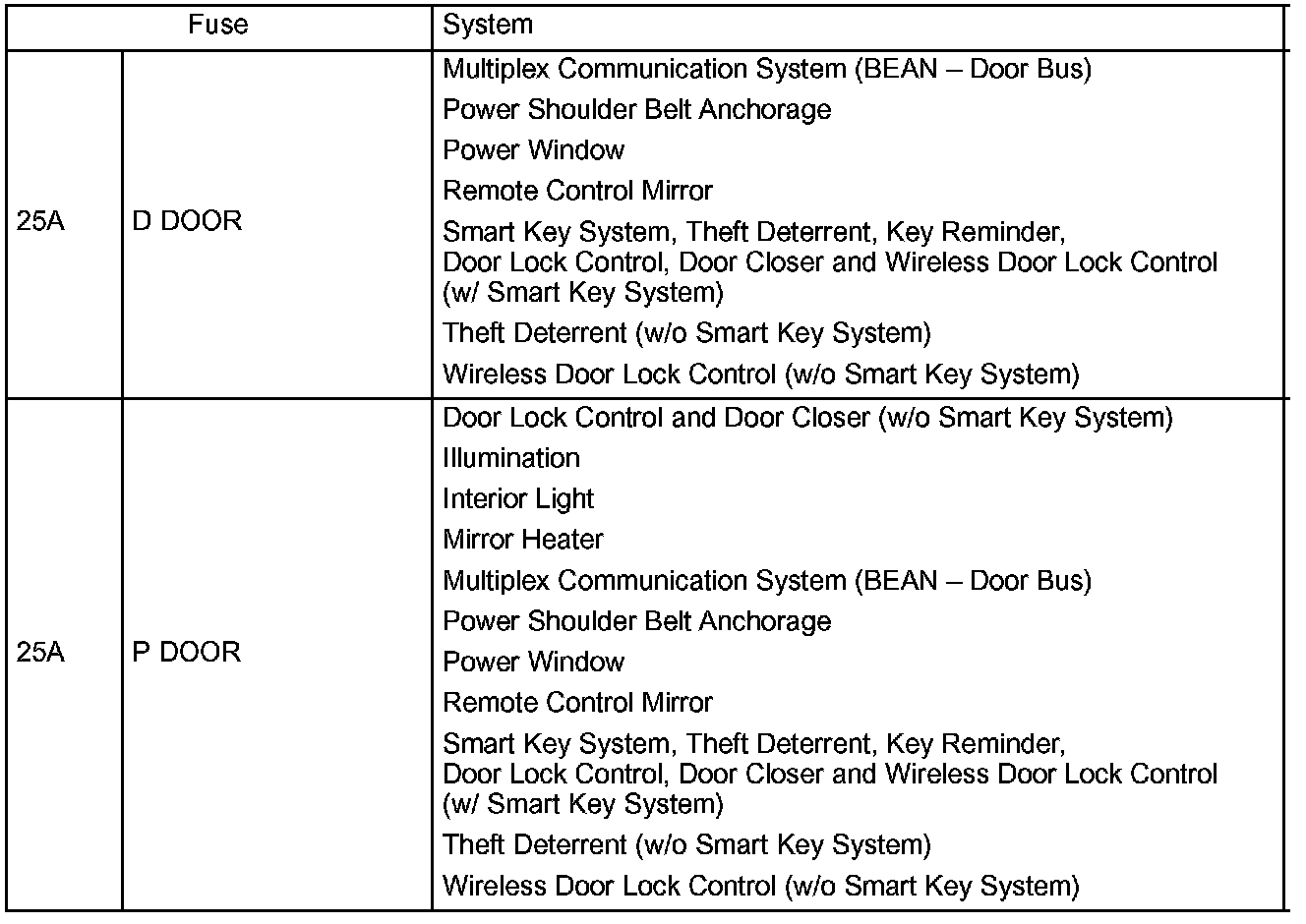

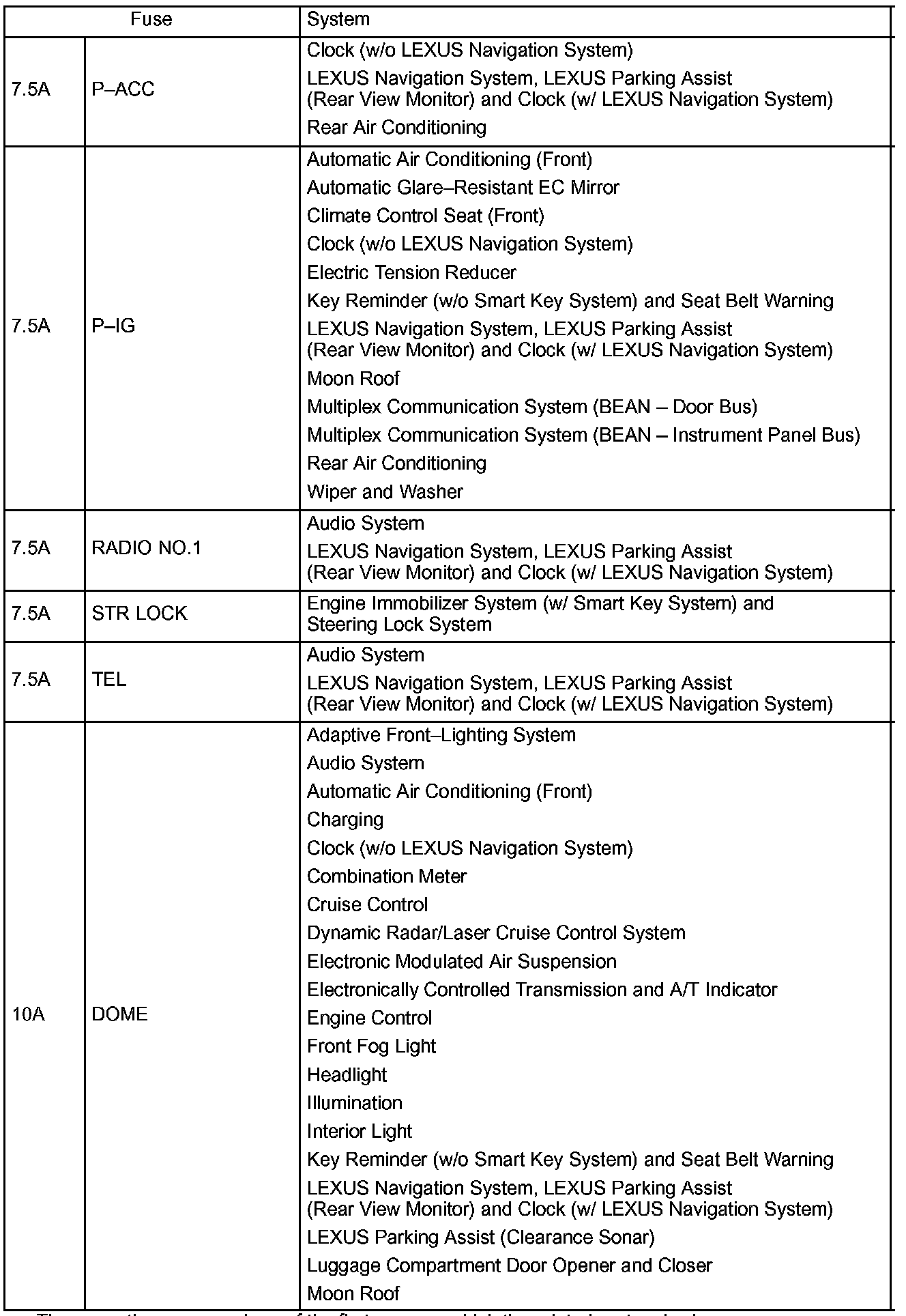

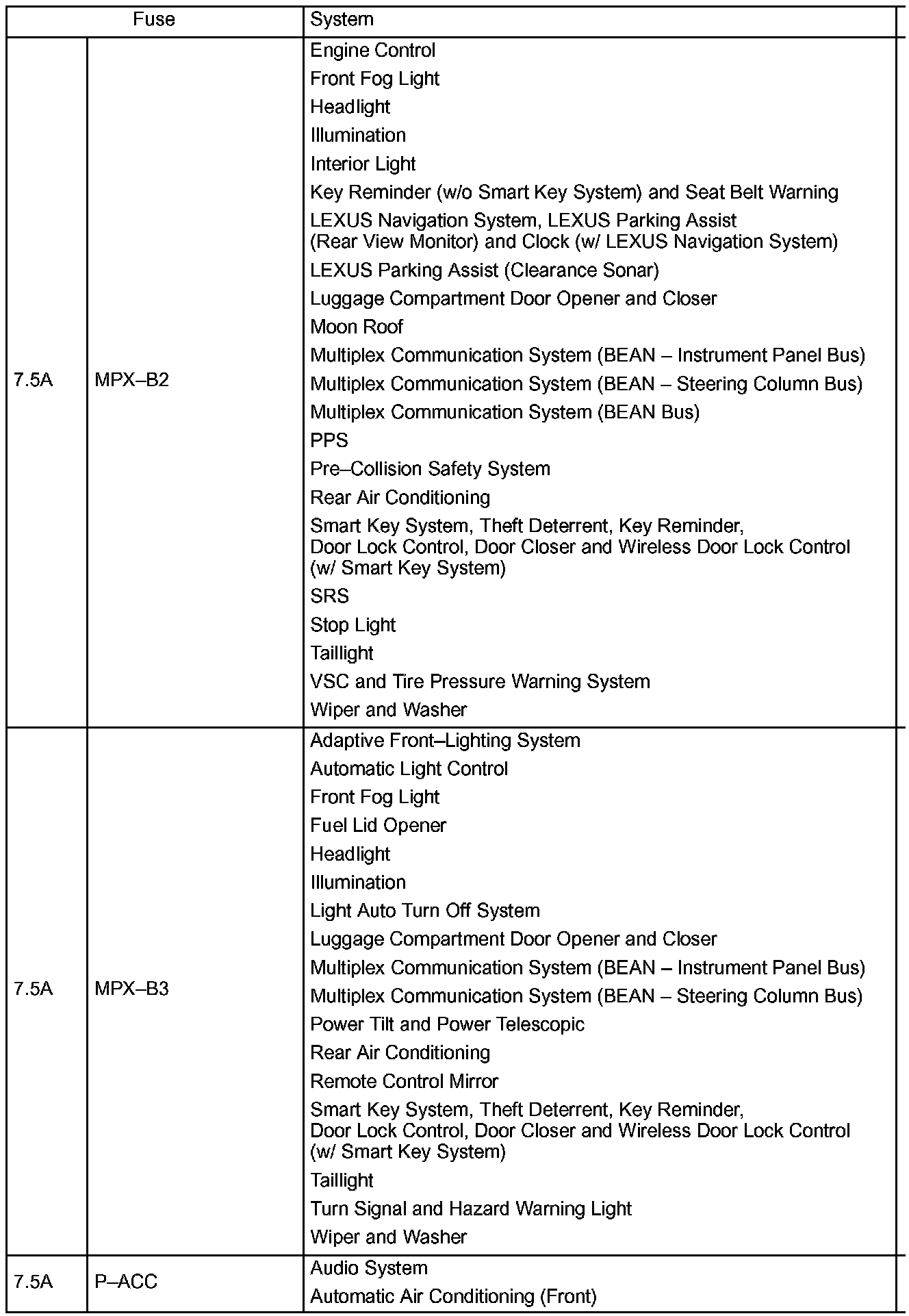

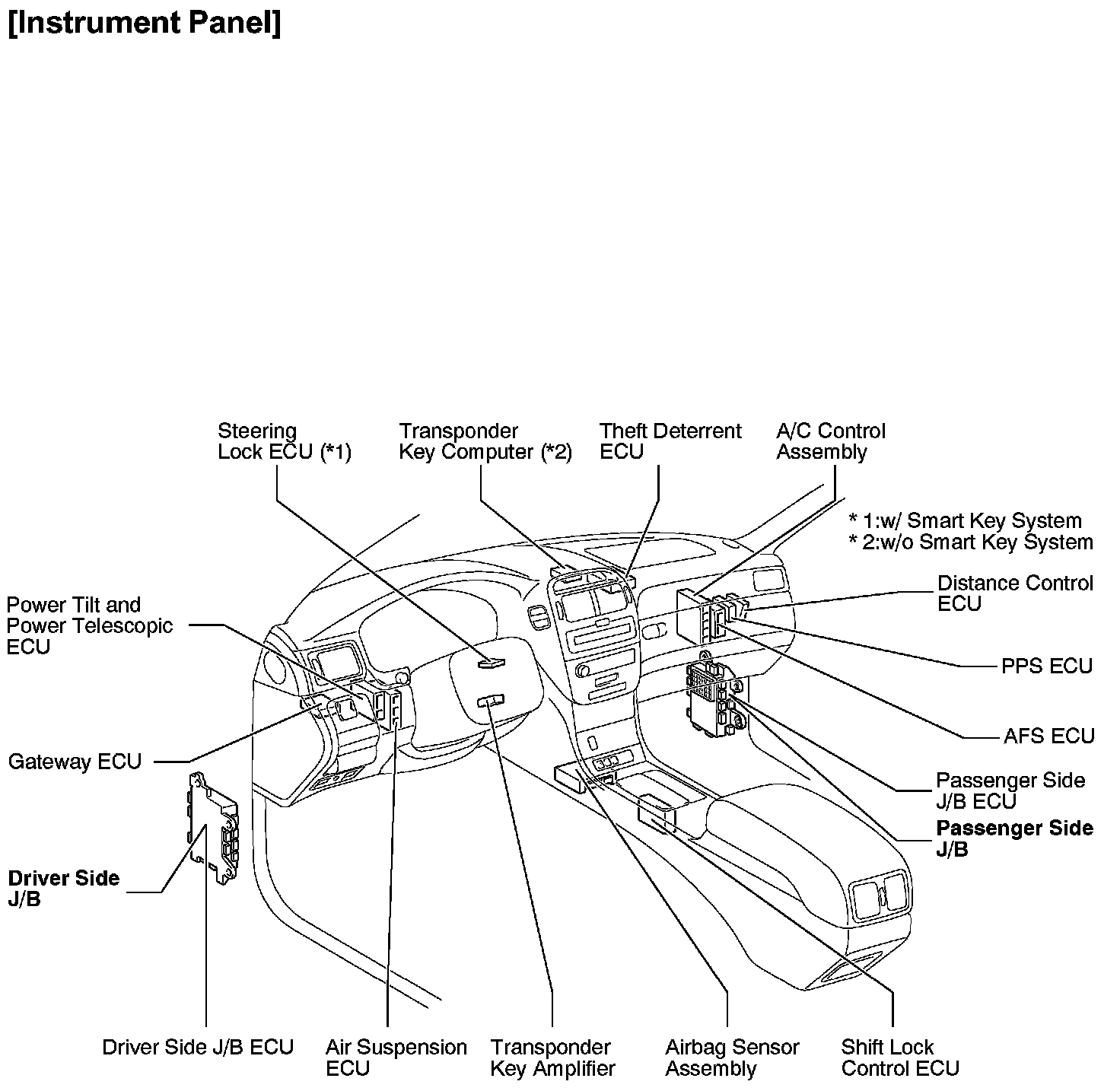

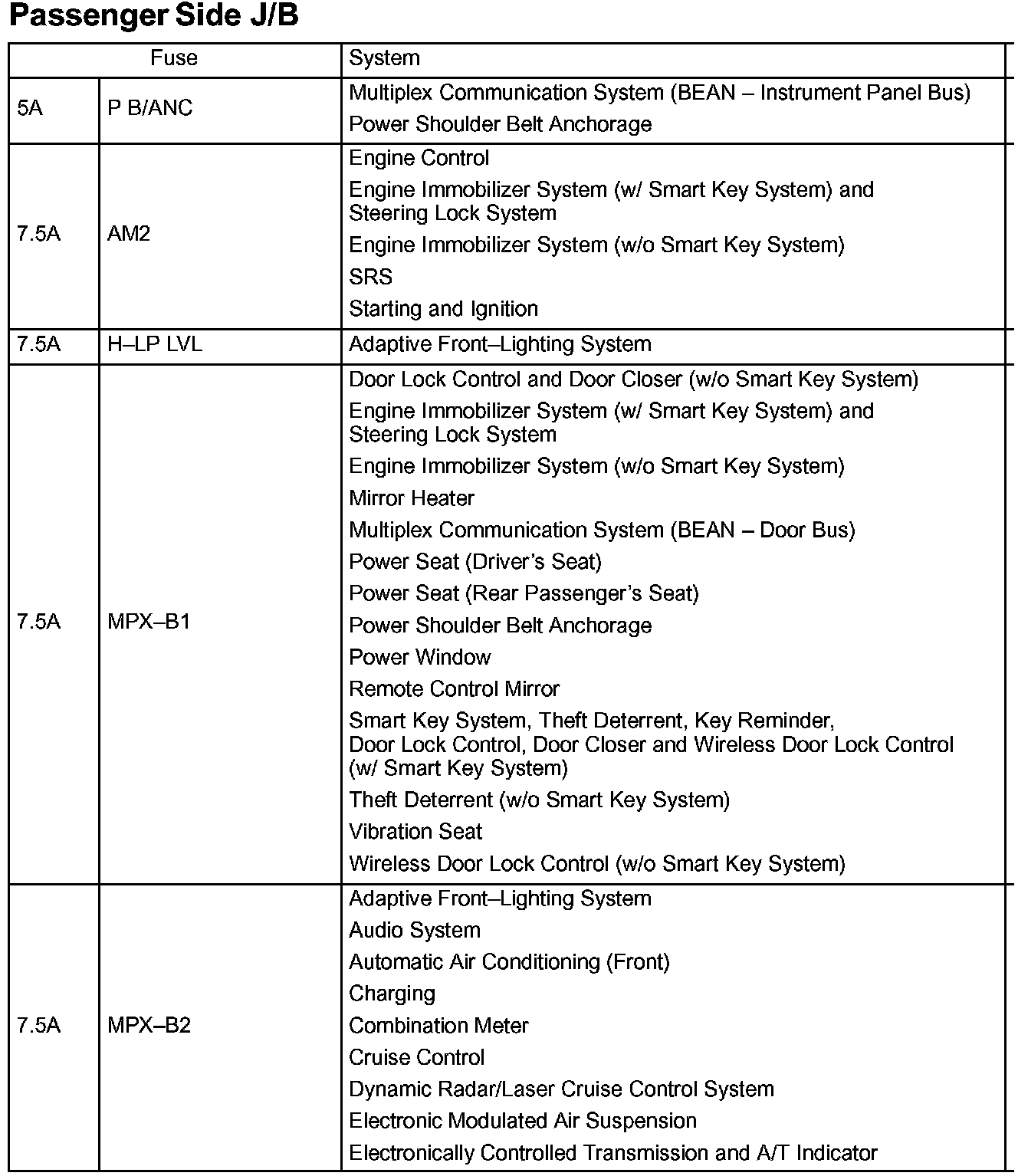

Passenger Side J/B Fuse ID

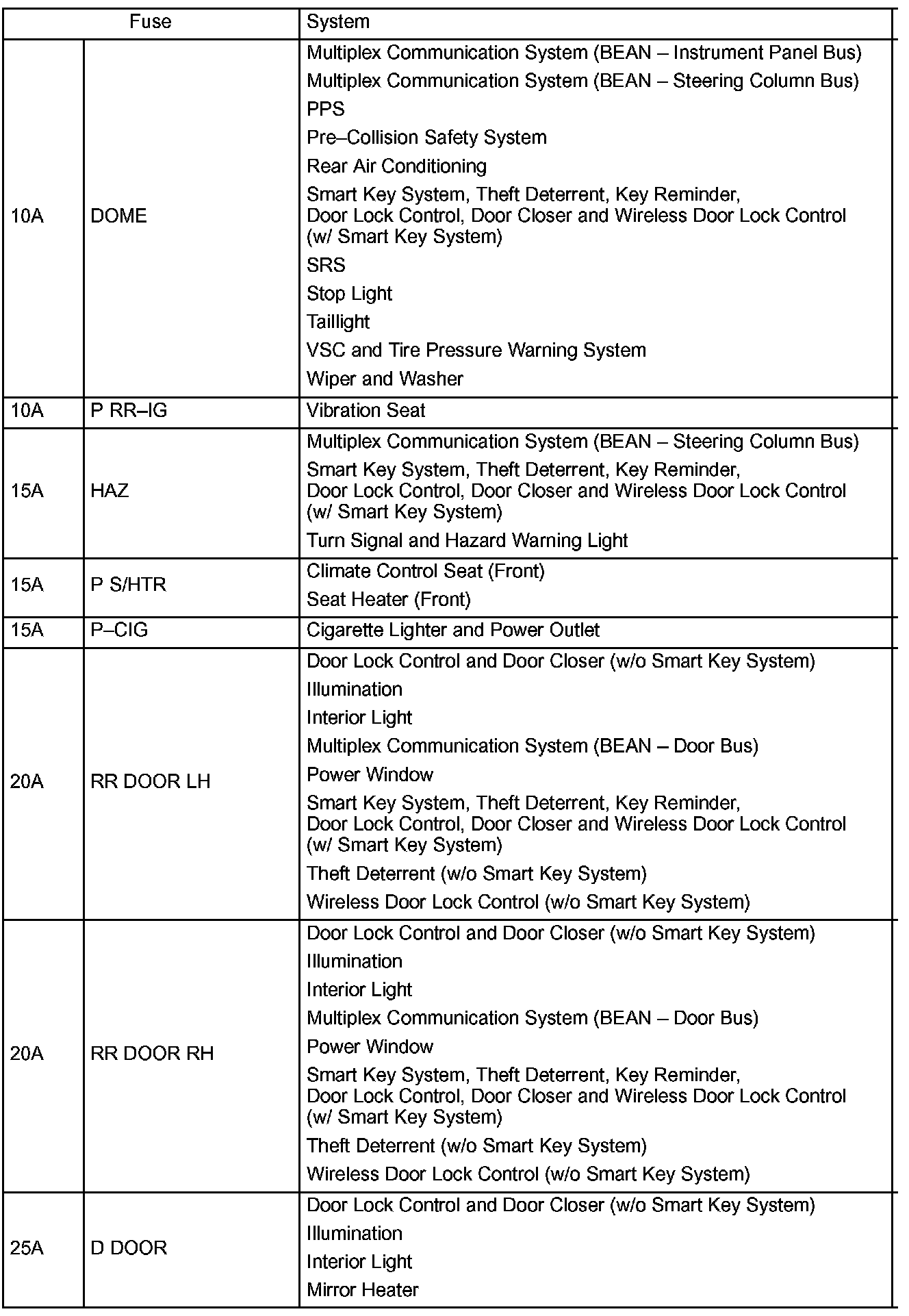

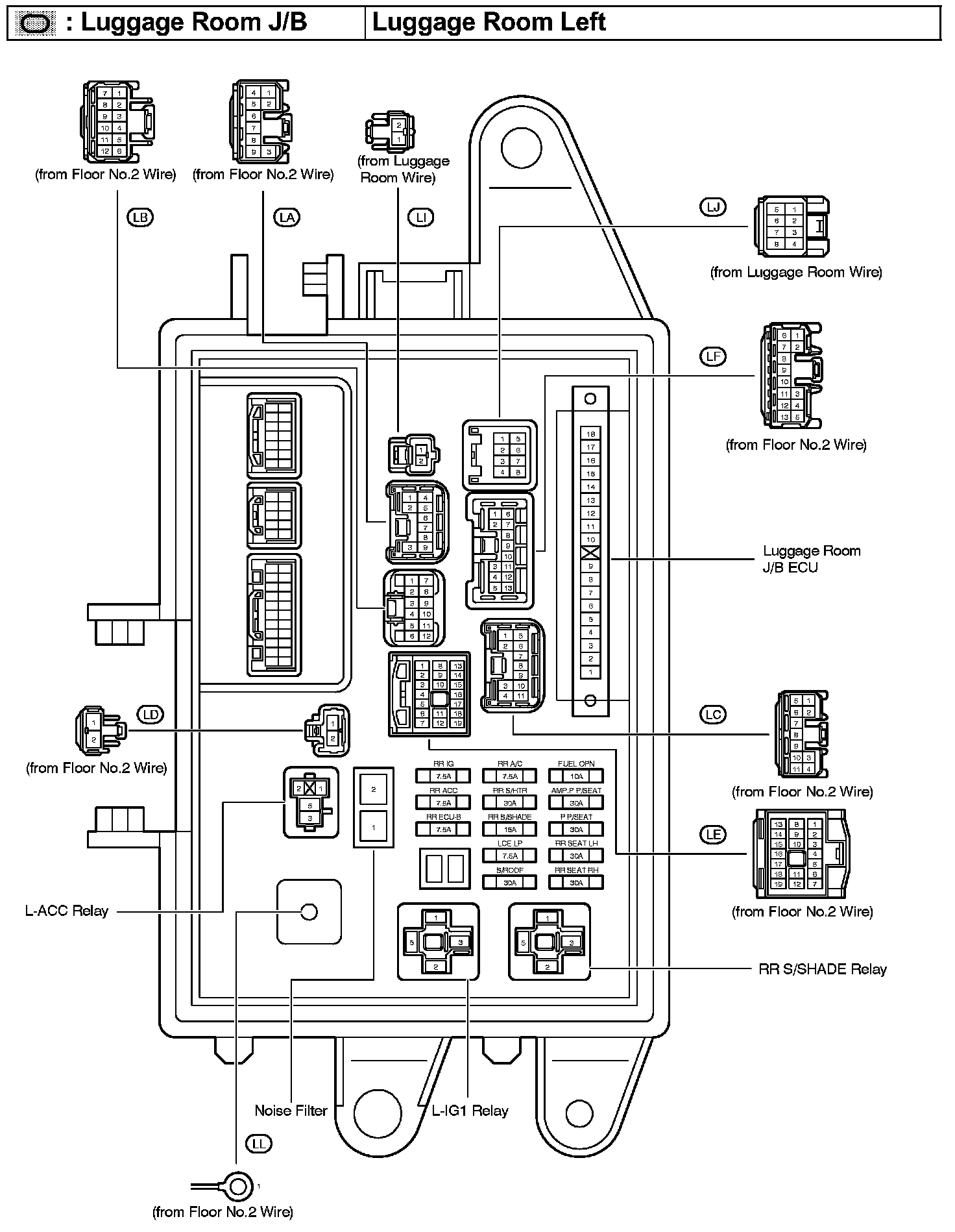

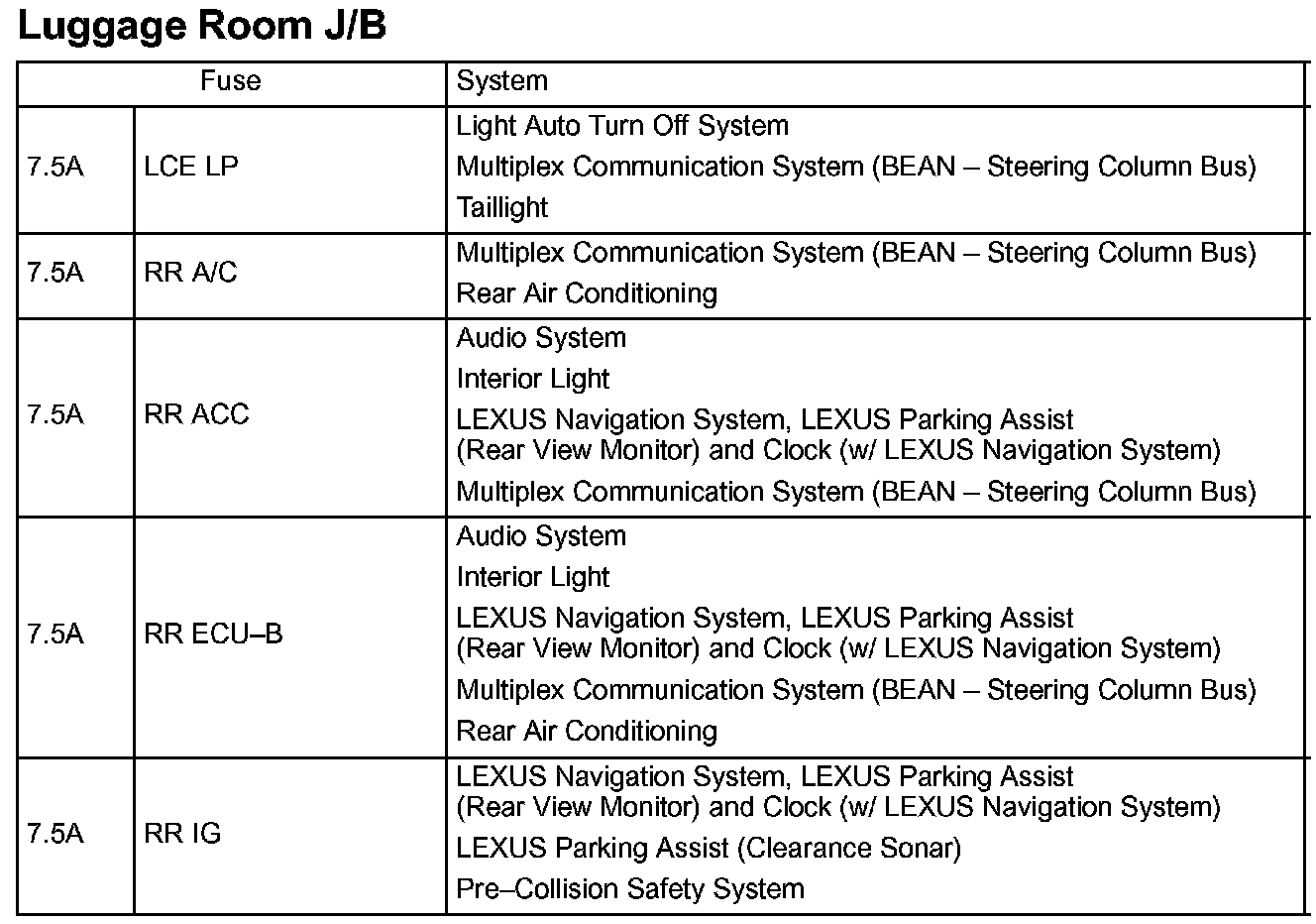

Luggage Room J/B Fuse ID
