Heater Core
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Heater Core

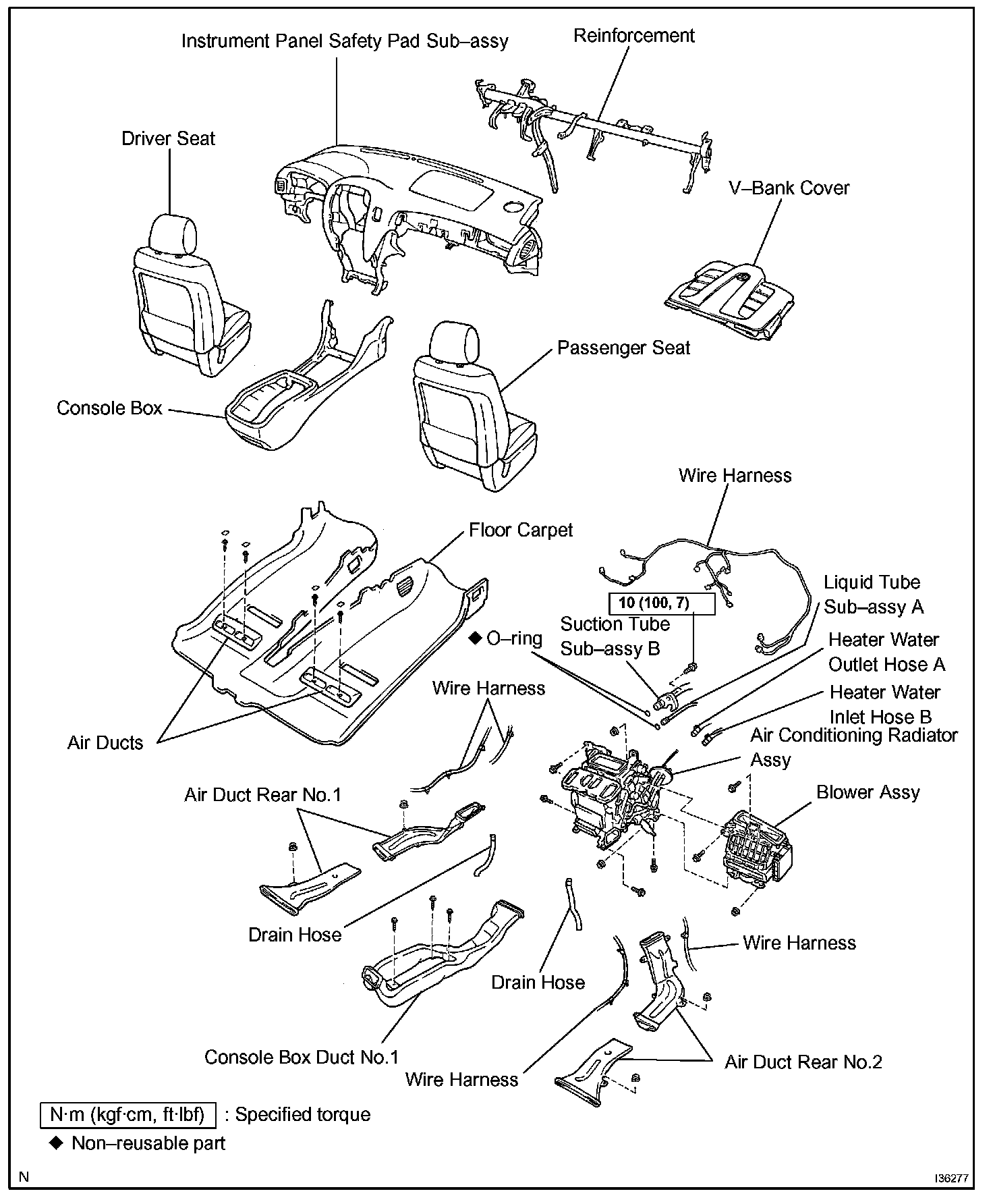

Air Conditioning Radiator Assy Part 1:

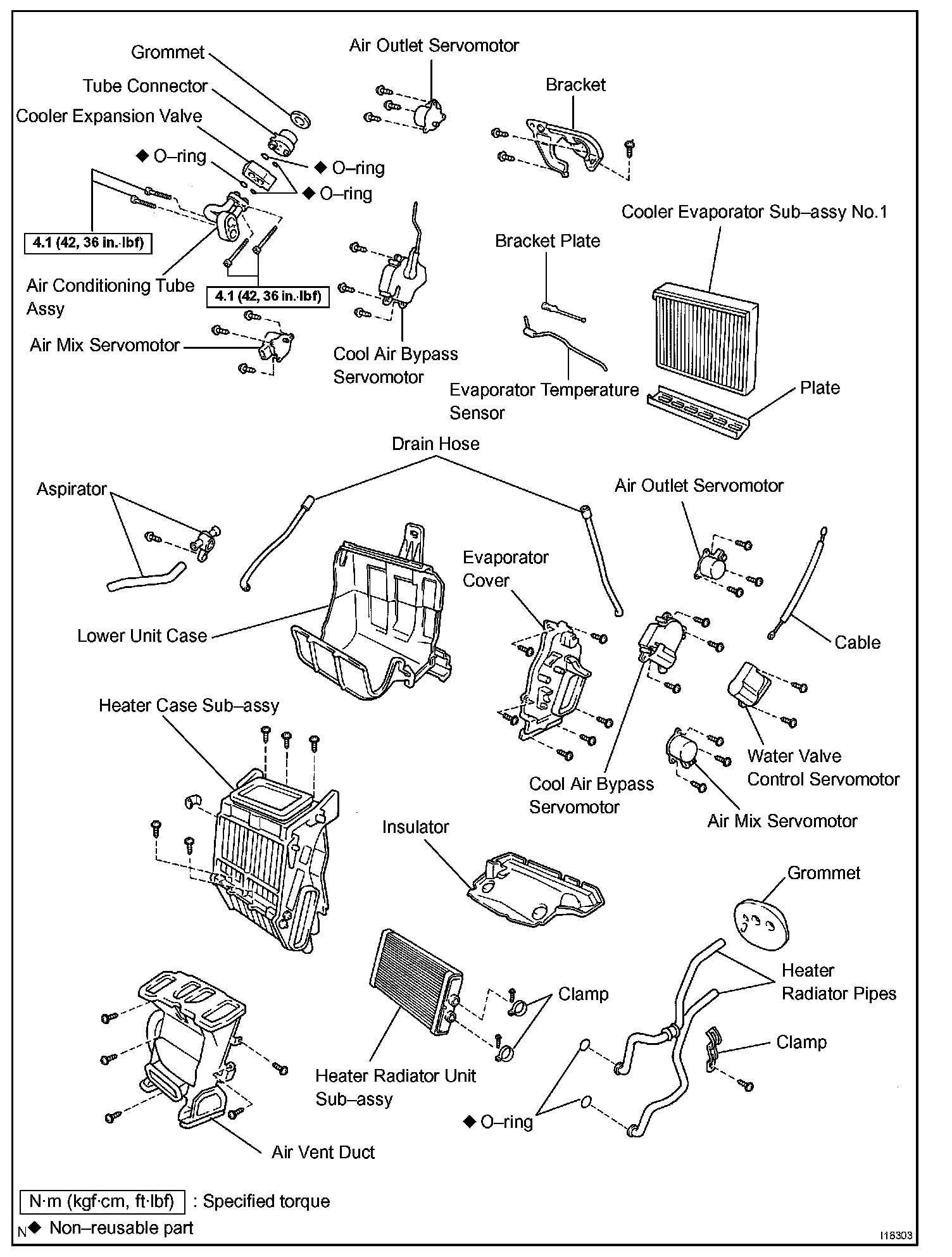

Air Conditioning Radiator Assy Part 2:
