Repair Procedures

HINT:

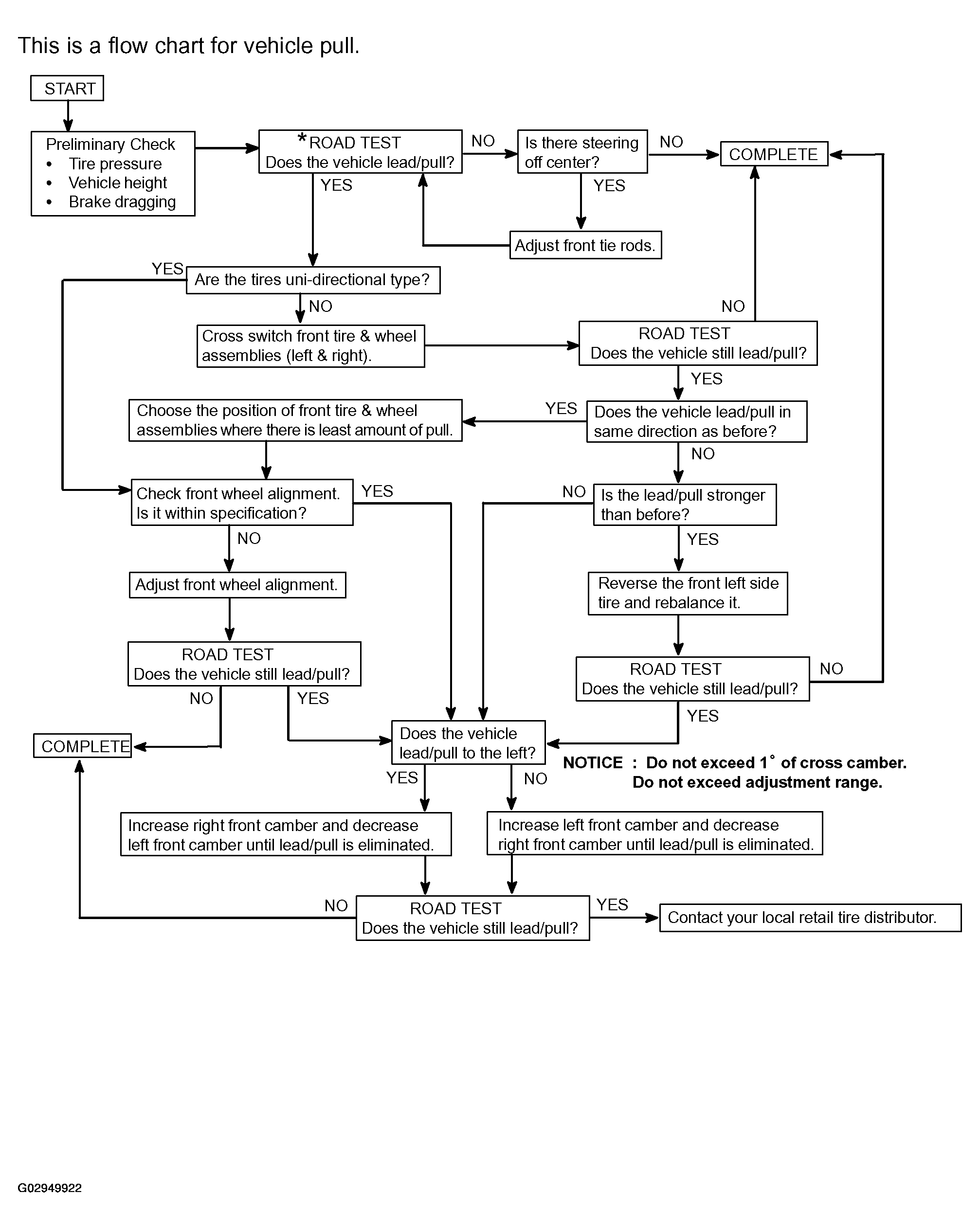

This is a flow chart for vehicle pull.

Fig 1: Vehicle Pull Repair Flow Chart
G02949922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
