Toe Control Link: Components

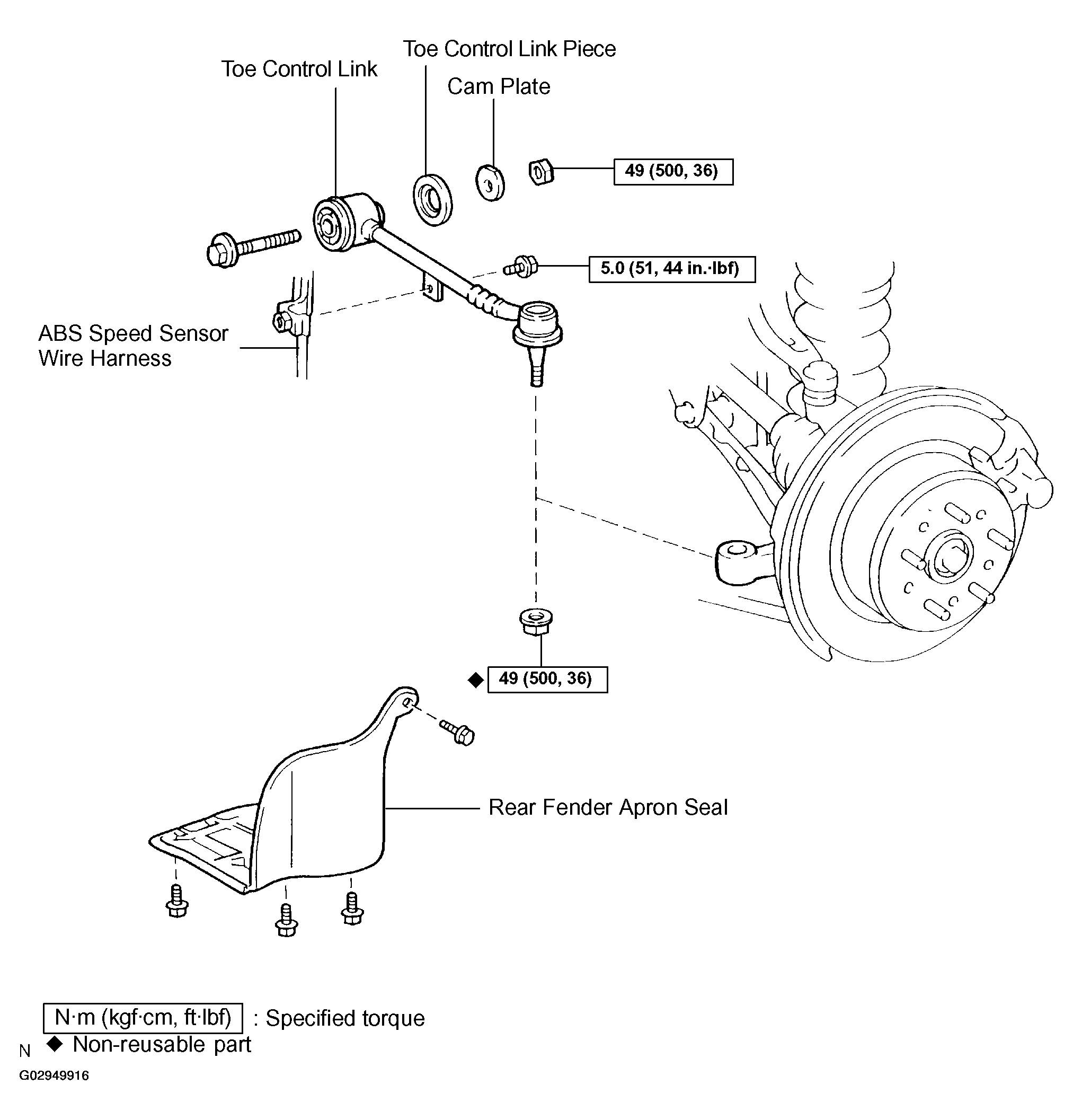

Fig 1: Toe Control Link Replacement Components With Torque Specifications
G02949916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
