Seat Belt (Sedan): Components

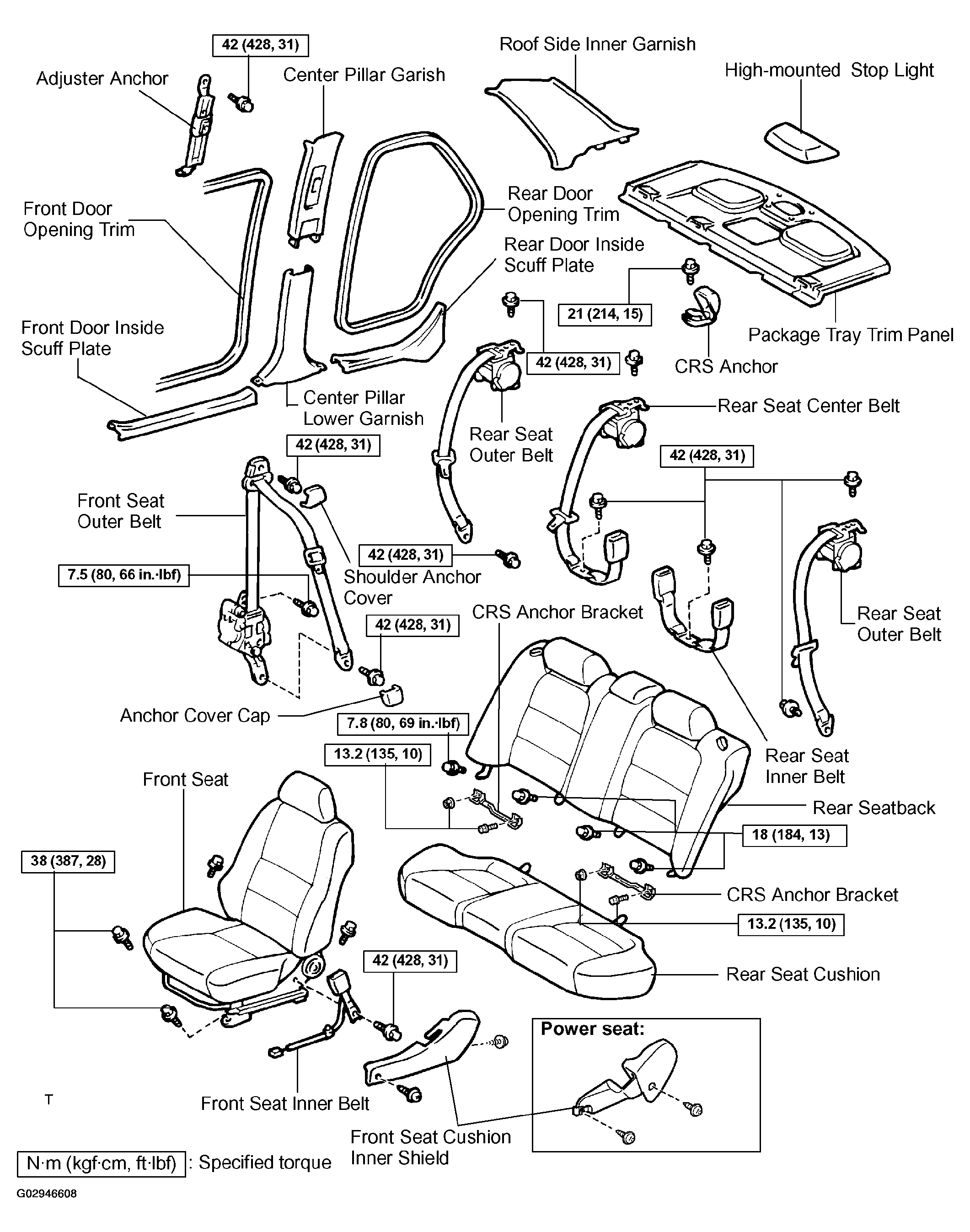

Fig 1: Identifying Component Location Of Seat Belt (Sedan)
G02946608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
