Front Seat (Manual Adjuster Type): Components

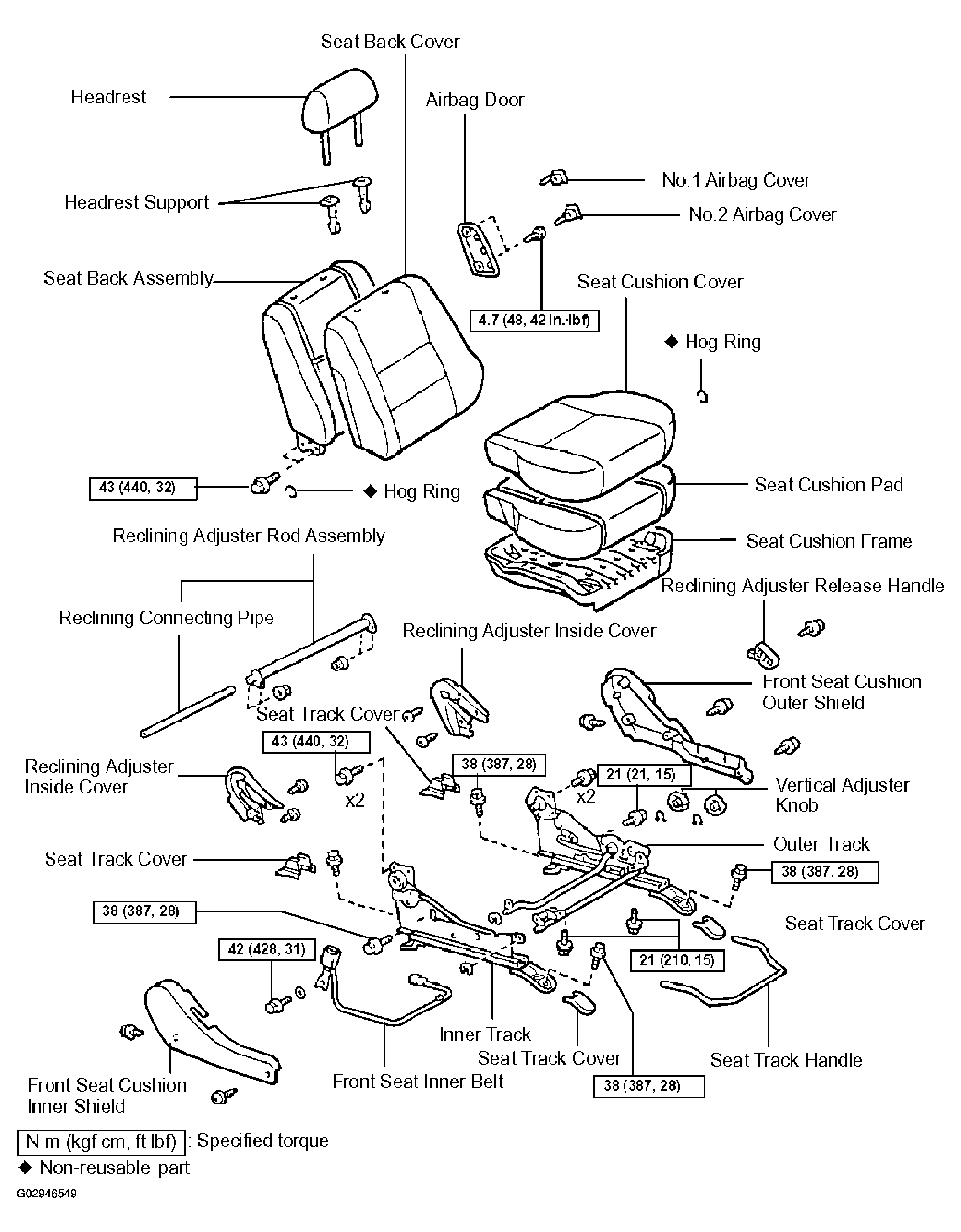

Fig 1: Identifying Front Seat Components And Replacements (Manual Adjuster Type - 1 Of 2)
G02946549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

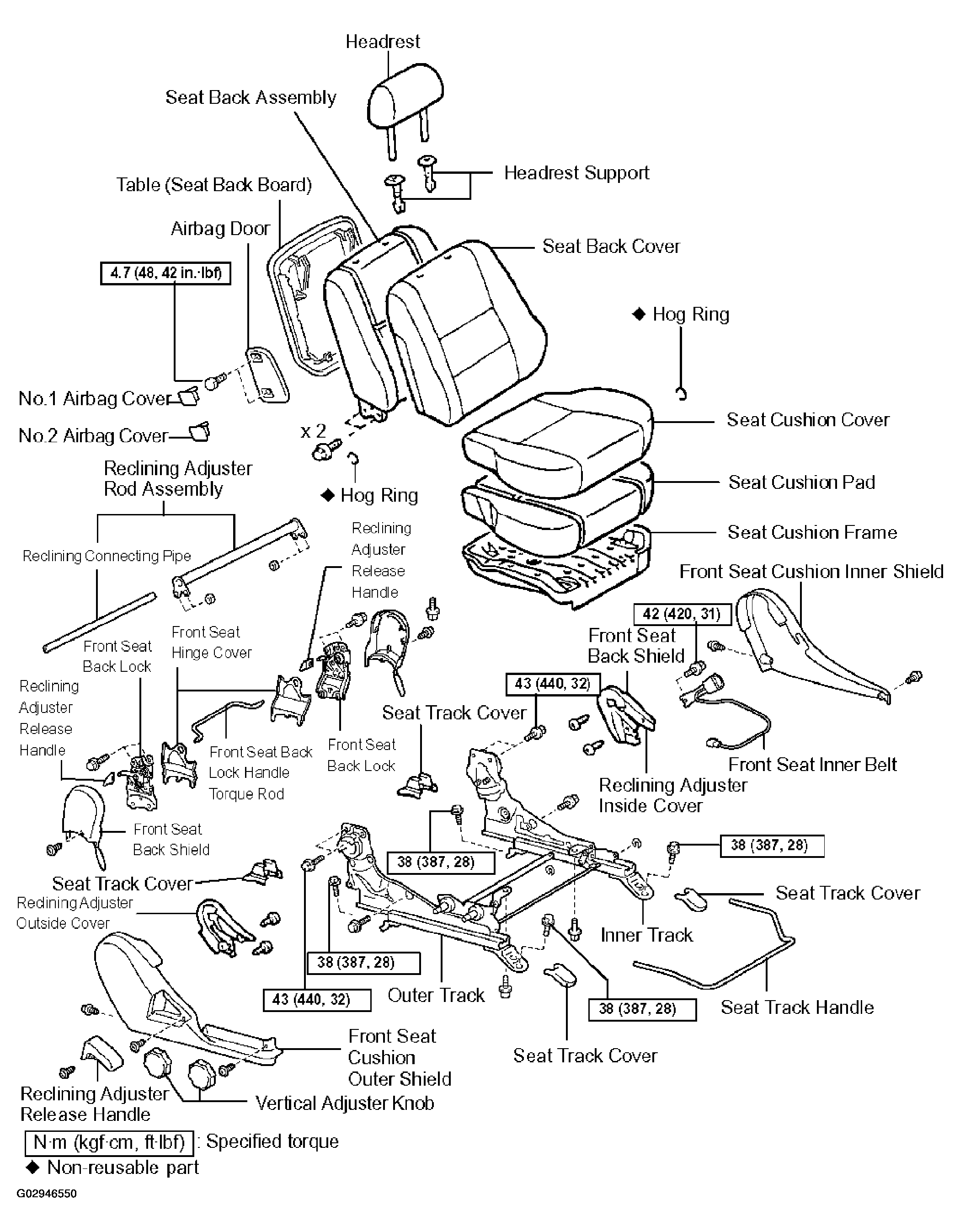

Fig 2: Identifying Front Seat Components And Replacements (Manual Adjuster Type - 2 Of 2)
G02946550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
