Generator ASSY (2UZ-FE): Components

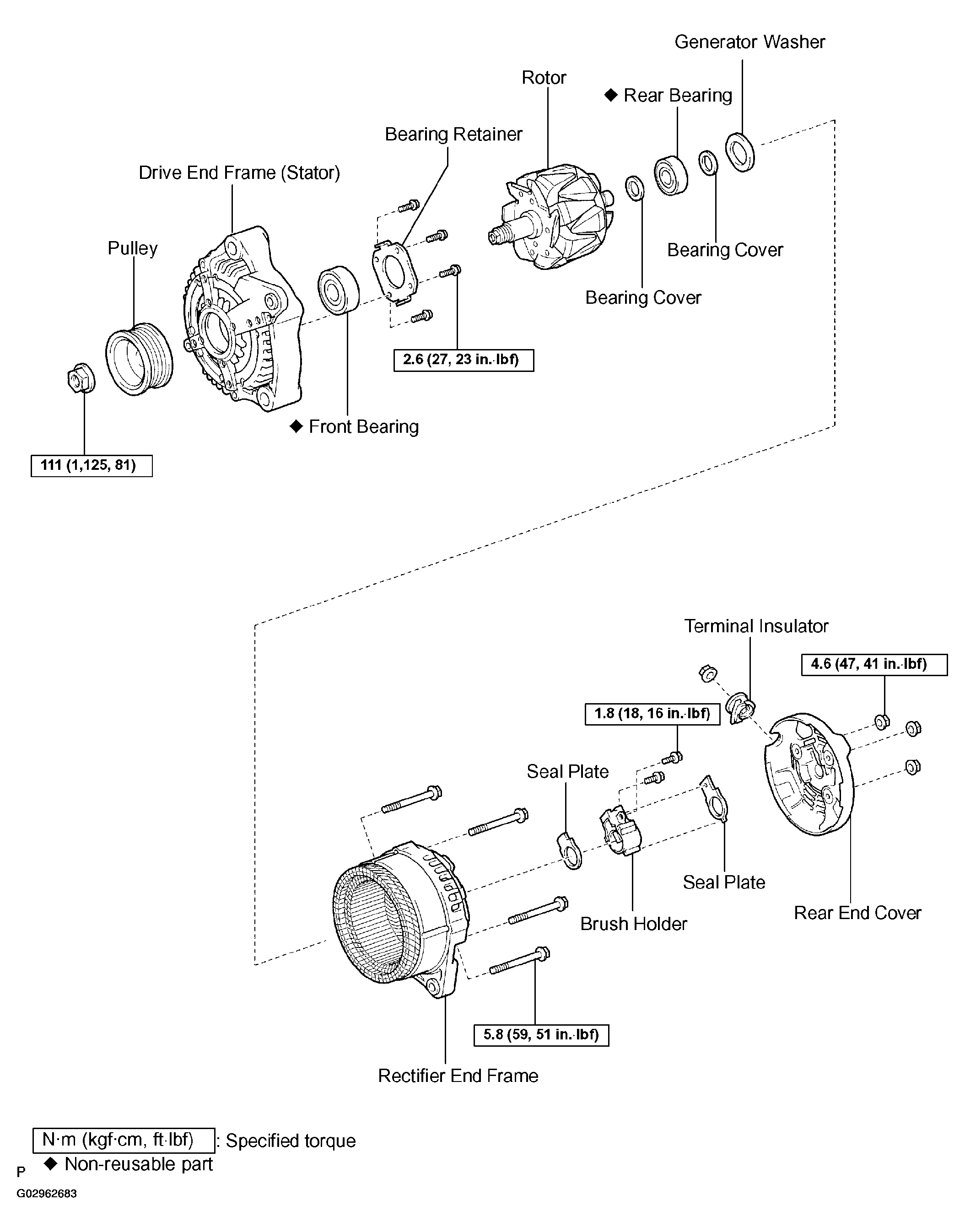

Fig 1: Identifying Generator Assy Components & Replacements (2UZ-FE)
G02962683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
