Power Source Circuit: Wiring Diagram

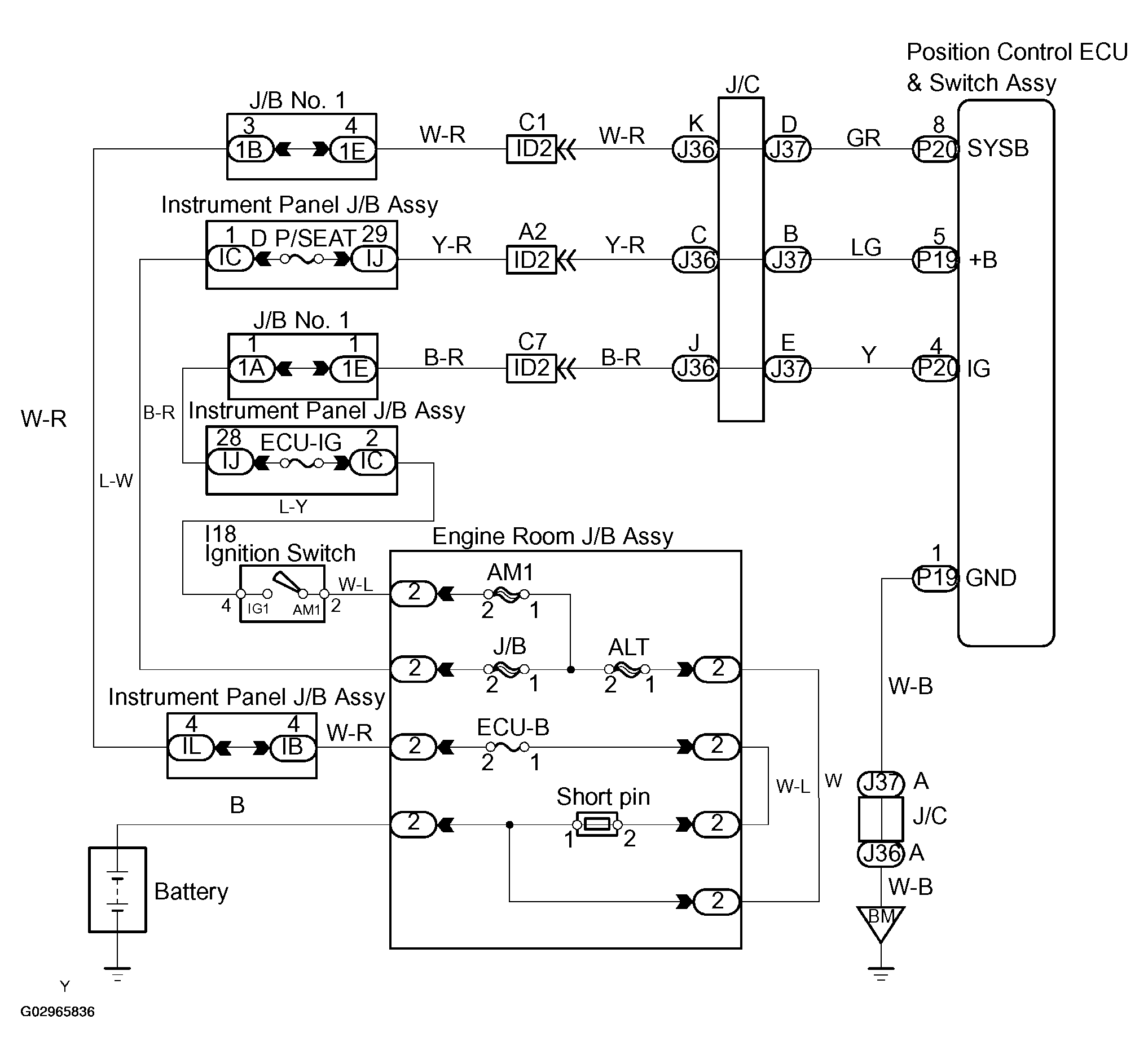

Fig 1: Power Source Circuit Wiring Diagram
G02965836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
