Service Data

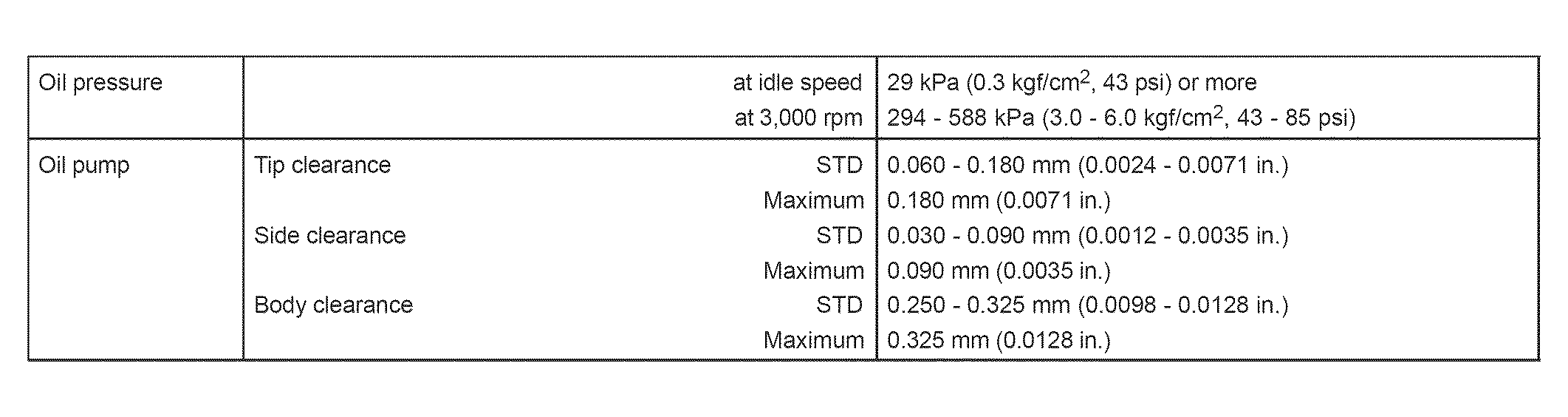

Fig 1: Lubrication System Service Specification Chart (3UZ-FE)
G02984101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
