Power Source Circuit: Wiring Diagram

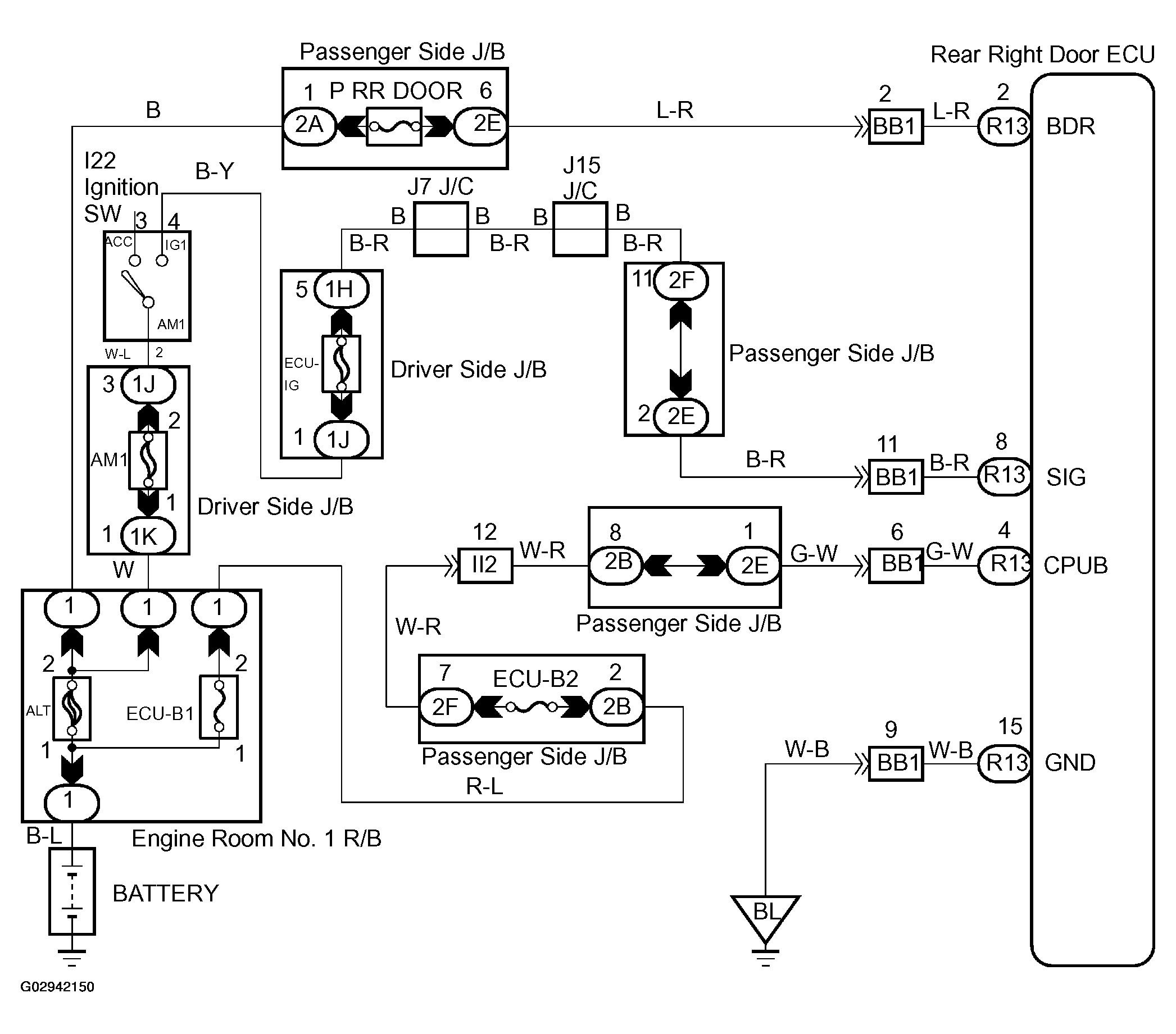

Fig 1: Rear Right Door Control System Circuit Wiring Diagram
G02942150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
