Fuse Block

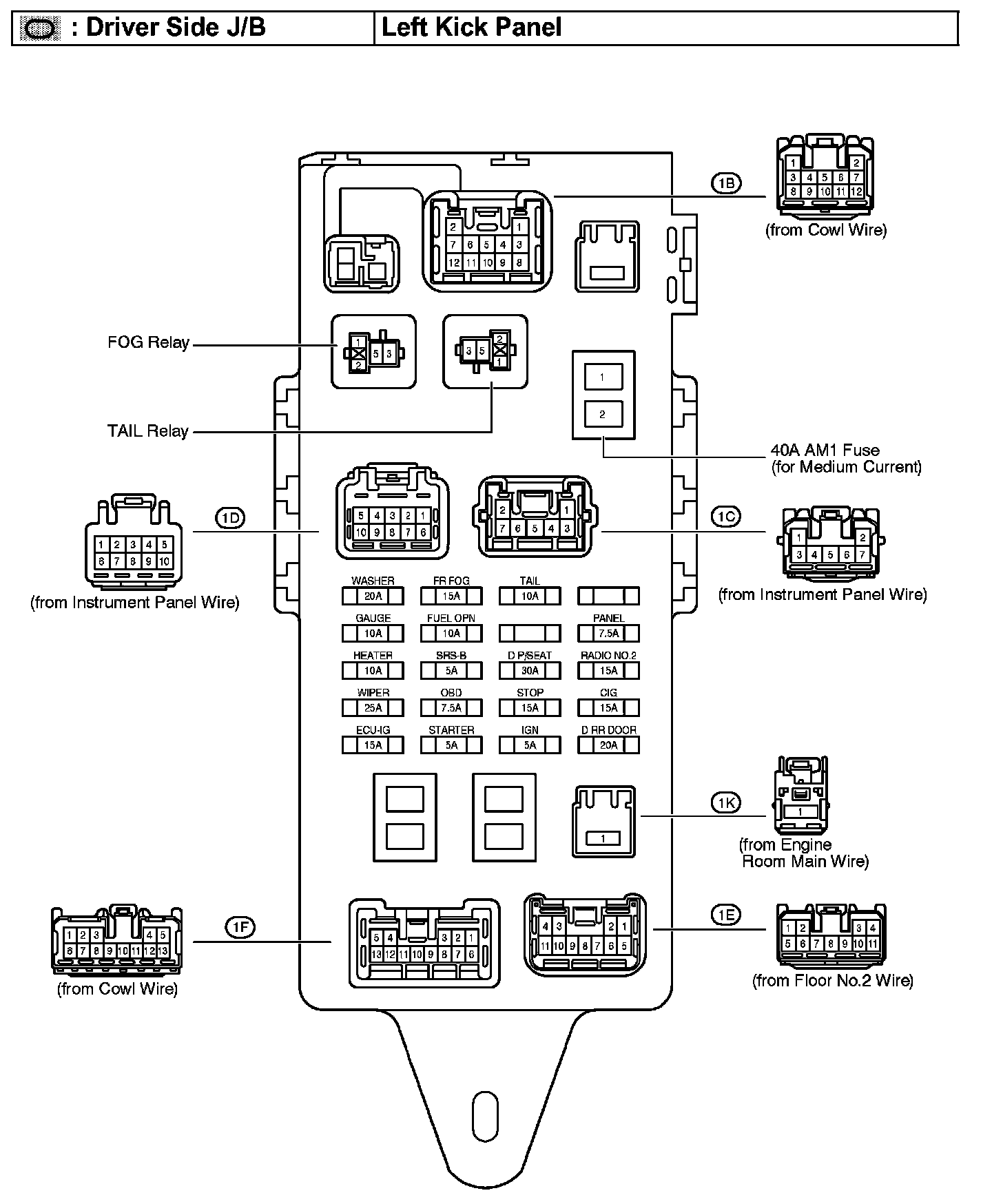

Driver Side J/B - Left Kick Panel:

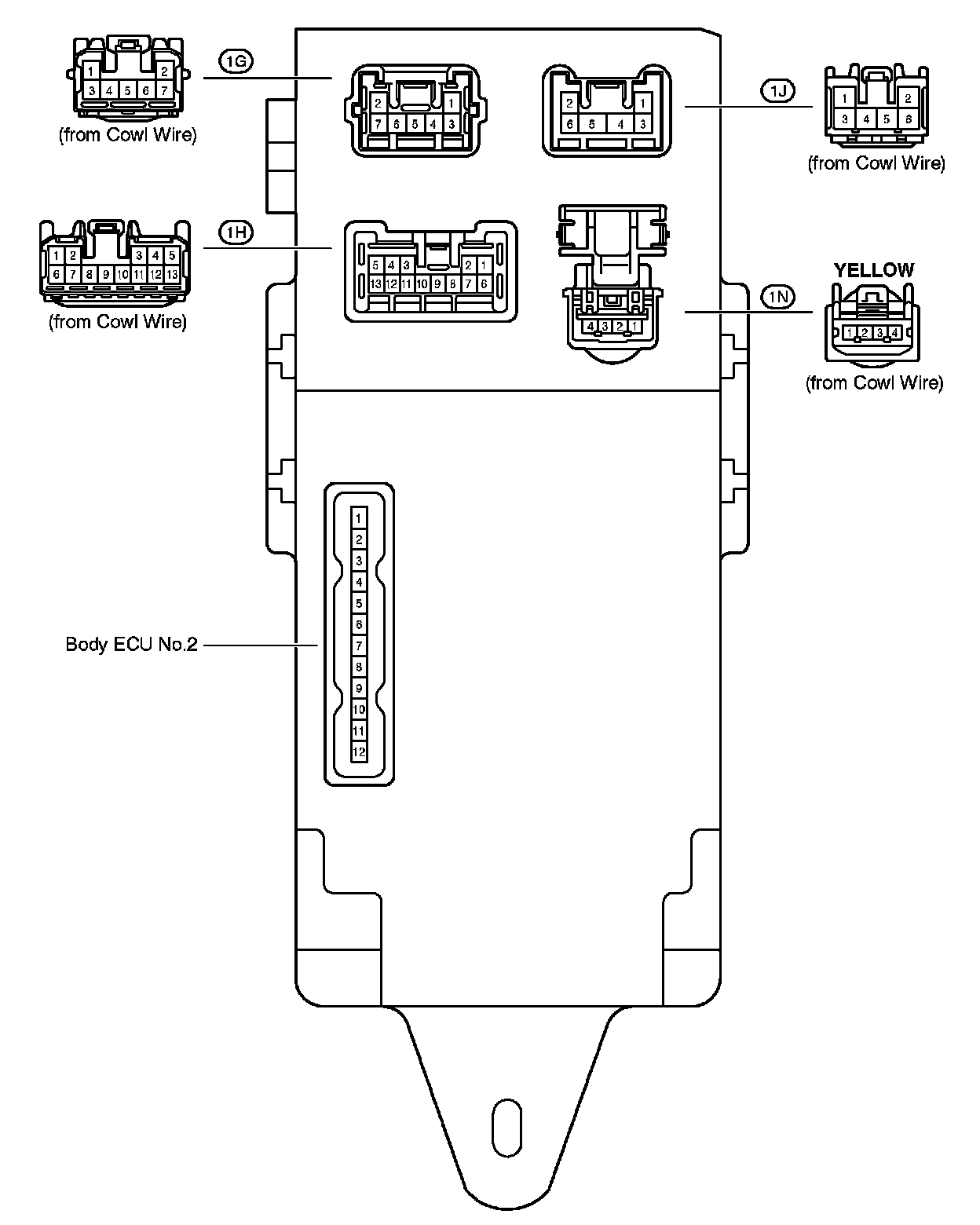

Driver Side J/B - Left Kick Panel:

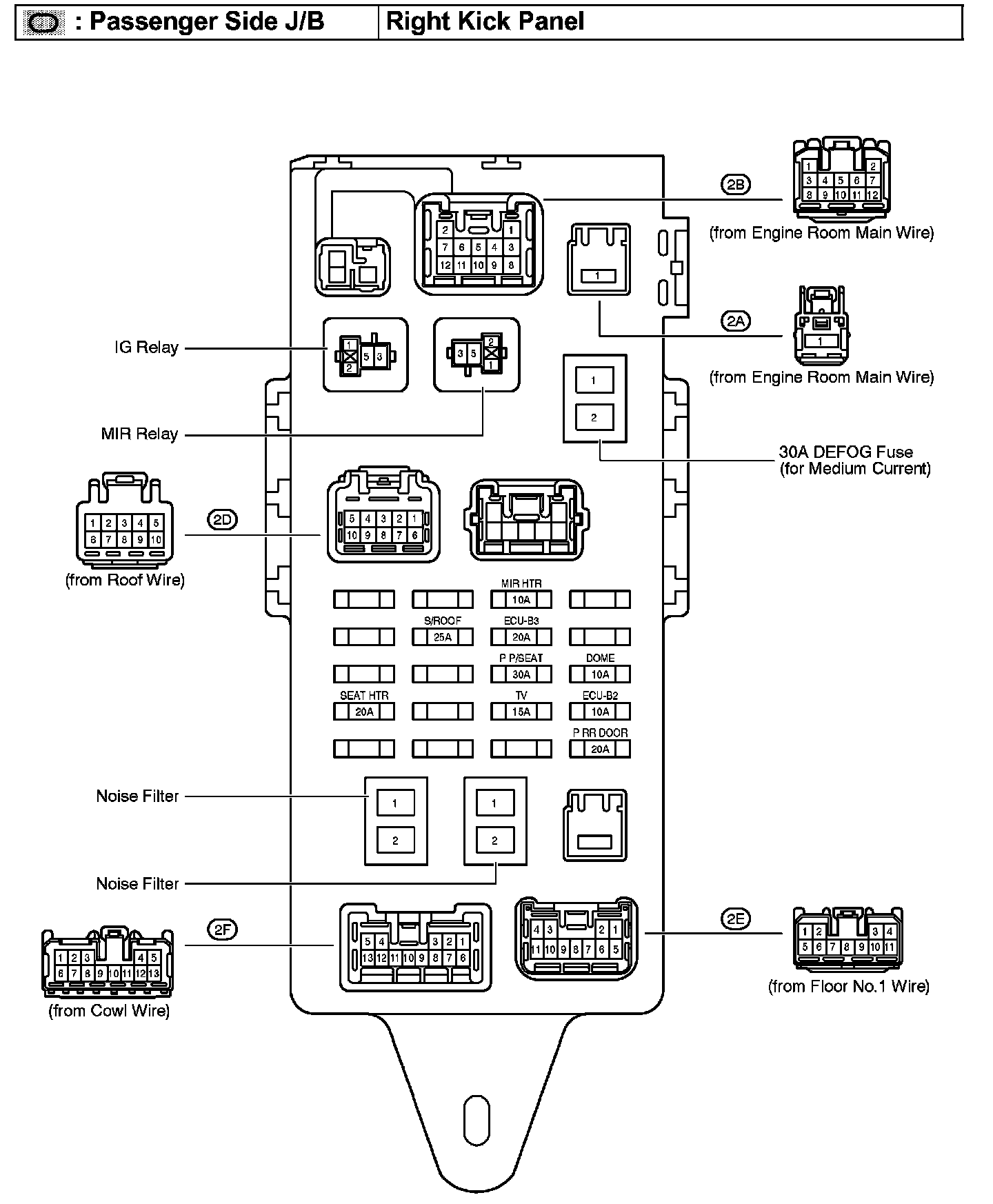

Passenger Side J/B - Right Kick Panel:



Passenger Side J/B - Right Kick Panel:



Instrument Panel J/B - Instrument Panel Reinforcement Center:



Instrument Panel J/B - Instrument Panel Reinforcement Center:
