Windshield Wiper Switch ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STEERING COLUMN COVER (See OVERHAUL )
REMOVE WINDSHIELD WIPER SWITCH ASSY
1. Disconnect the connector.
2. Using a screwdriver, disengage the claw and pull out the windshield wiper switch assy.
NOTE: The claw will be broken if pressed hard.

HINT:

Tape up the screwdriver tip before use.

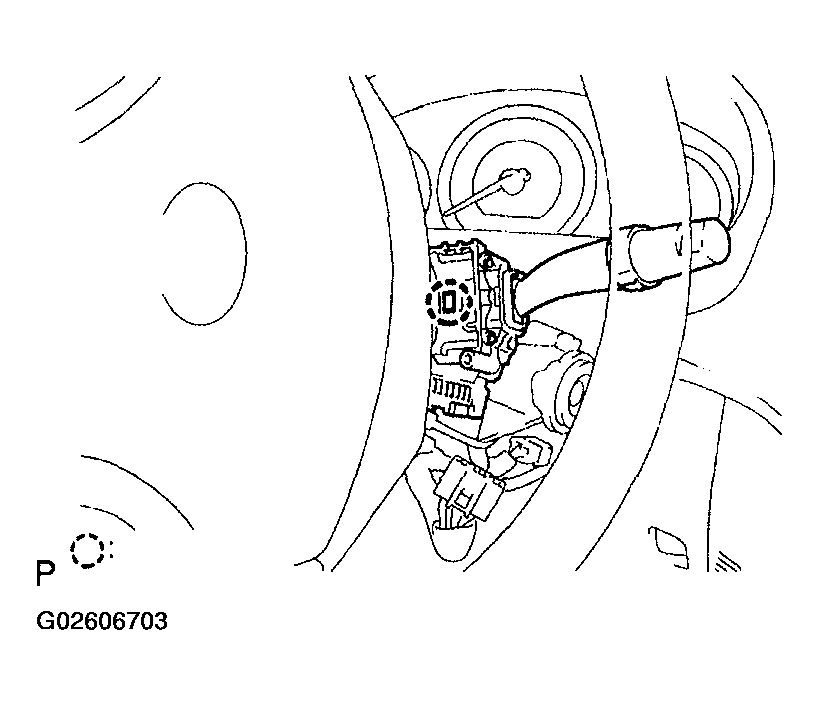

Fig 1: Removing Windshield Wiper Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
