Inspection Procedure
- INSPECT POWER SEAT MOTOR ASSY
- Inspect the power seat motor (see INSPECTION ).
NG: REPLACE POWER SEAT MOTOR ASSY (SEE OVERHAUL )
OK: Go To Next Step.
- CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH - POWER SEAT MOTOR ASSY)

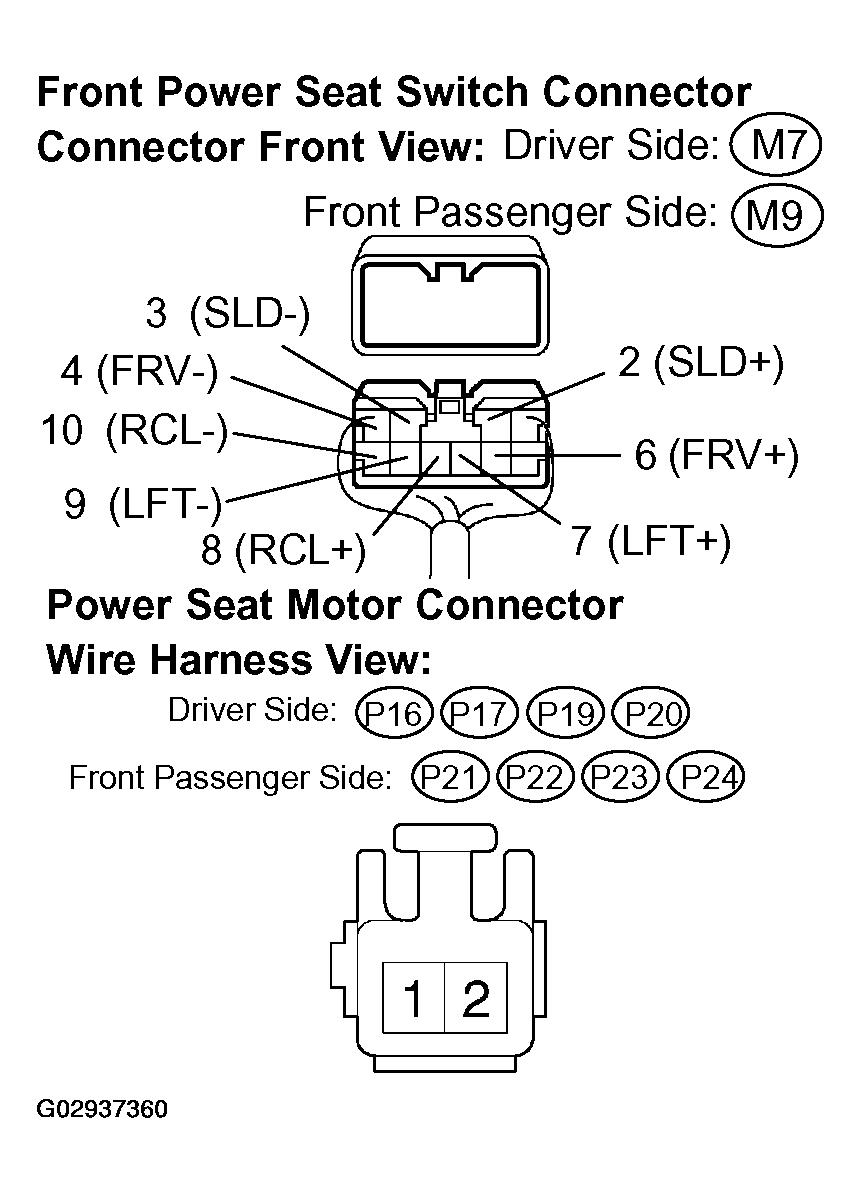

- Disconnect the power seat motor connectors and front power seat switch connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
Driver Side:
CHECKING RESISTANCETester Connection Specified Condition M7-3 (SLD-) - P20-2 Below 1 Ω M7-2 (SLD+) - P20-1 Below 1 Ω M7-4 (FRV-) - P16-2 Below 1 Ω M7-6 (FRV+) - P16-1 Below 1 Ω M7-9 (LFT-) - P17-1 Below 1 Ω M7-7 (LFT+) - P17-2 Below 1 Ω M7-10 (RCL-) - P19-1 Below 1 Ω M7-8 (RCL+) - P19-2 Below 1 Ω M7-2 (SLD+) - Body ground 10 kΩ or higher M7-3 (SLD-) - Body ground 10 kΩ or higher M7-4 (FRV-) - Body ground 10 kΩ or higher M7-6 (FRV+) - Body ground 10 kΩ or higher M7-7 (LFT+) - Body ground 10 kΩ or higher M7-8 (RCL+) - Body ground 10 kΩ or higher M7-9 (LFT-) - Body ground 10 kΩ or higher M7-10 (RCL-) - Body ground 10 kΩ or higher Front Passenger Side:
CHECKING RESISTANCETester Connection Specified Condition M9-3 (SLD-) - P24-1 Below 1 Ω M9-2 (SLD+) - P24-2 Below 1 Ω M9-4 (FRV-) - P21-1 Below 1 Ω M9-6 (FRV+) - P21-2 Below 1 Ω M9-9 (LFT-) - P22-2 Below 1 Ω M9-7 (LFT+) - P22-1 Below 1 Ω M9-10 (RCL-) - P23-1 Below 1 Ω M9-8 (RCL+) - P23-2 Below 1 Ω M9-2 (SLD+) - Body ground 10 kΩ or higher M9-3 (SLD-) - Body ground 10 kΩ or higher M9-4 (FRV-) - Body ground 10 kΩ or higher M9-6 (FRV+) - Body ground 10 kΩ or higher M9-7 (LFT+) - Body ground 10 kΩ or higher M9-8 (RCL+) - Body ground 10 kΩ or higher M9-9 (LFT-) - Body ground 10 kΩ or higher M9-10 (RCL-) - Body ground 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
