Front Power Seat Control System (W/Memory) - Diagnostics
>>
Memory Switch Circuit
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Memory Switch Circuit: Wiring Diagram

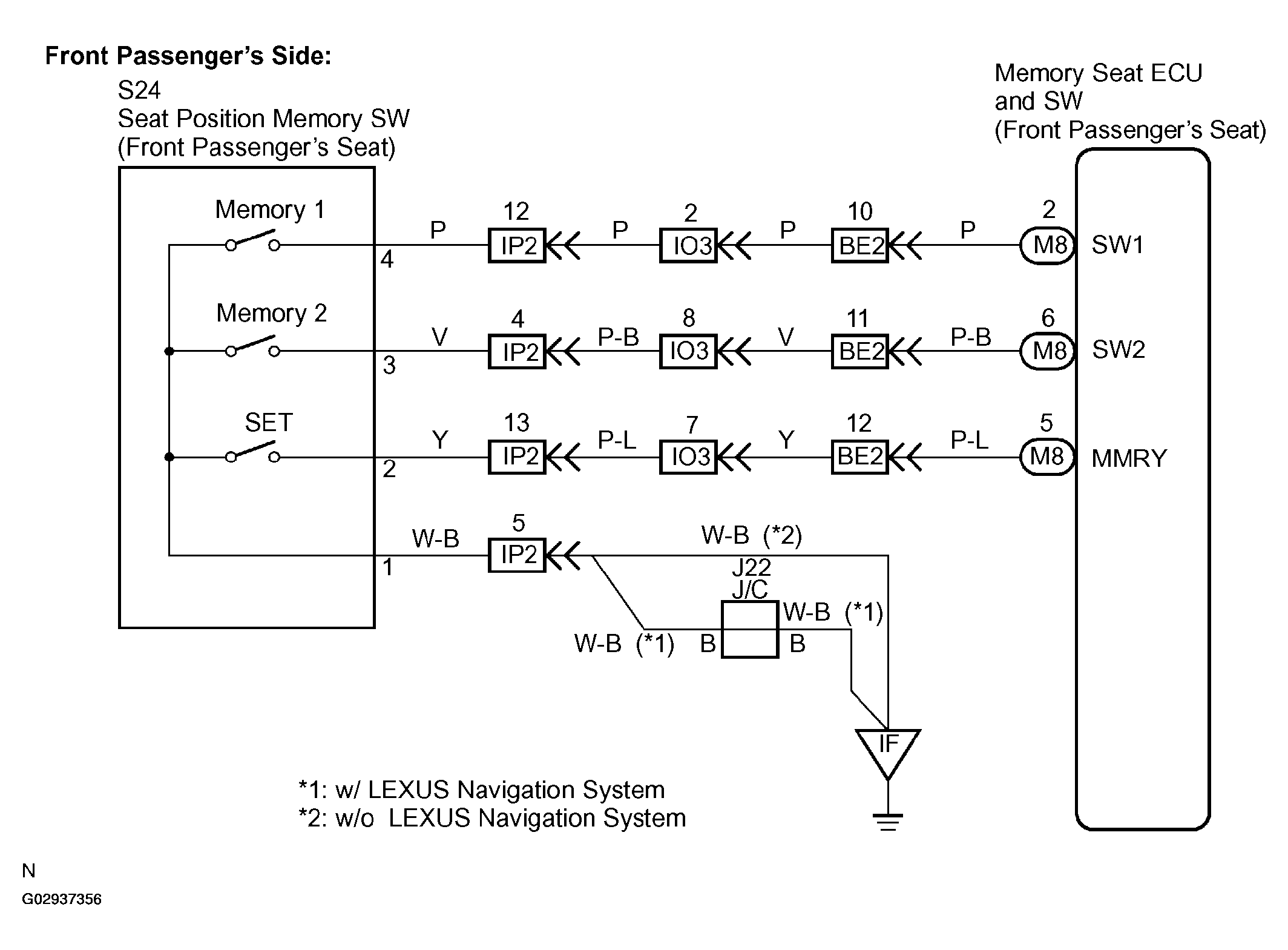

Fig 1: Memory Switch Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

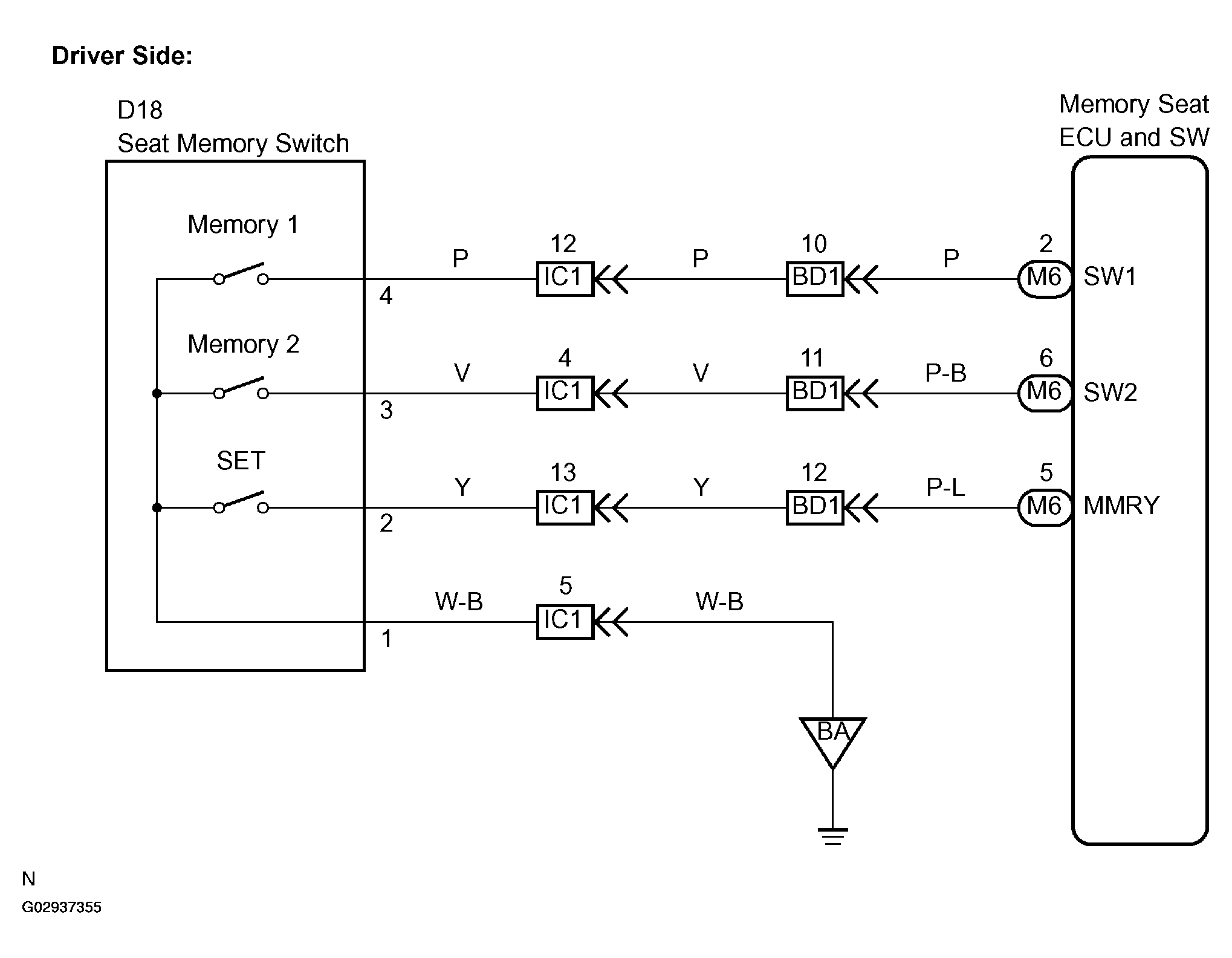

Fig 2: Memory Switch Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
