Front Power Seat Control System (W/Memory) - Diagnostics: Location

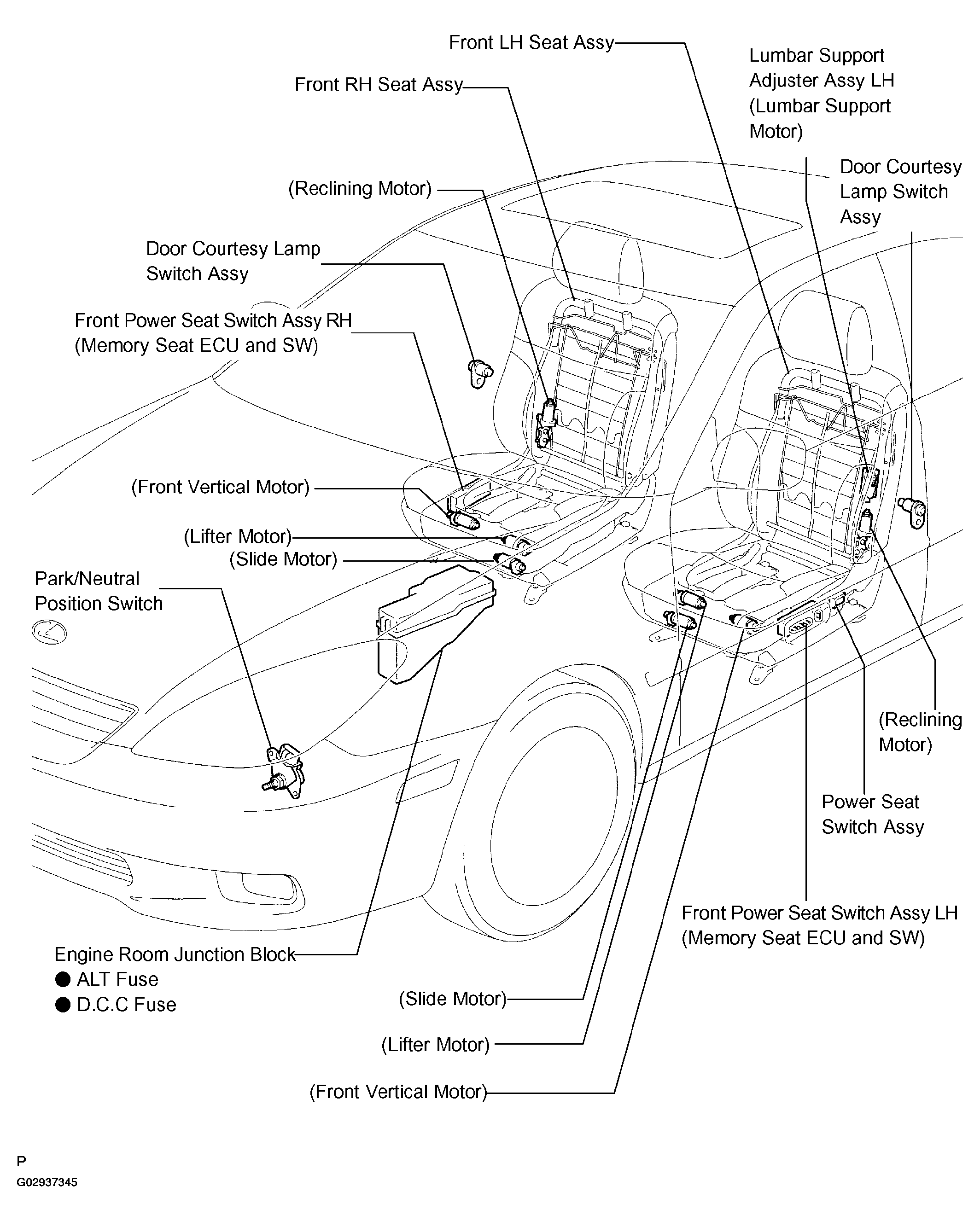

Fig 1: Identifying Front Power Seat Control System Components (1 Of 2)
G02937345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

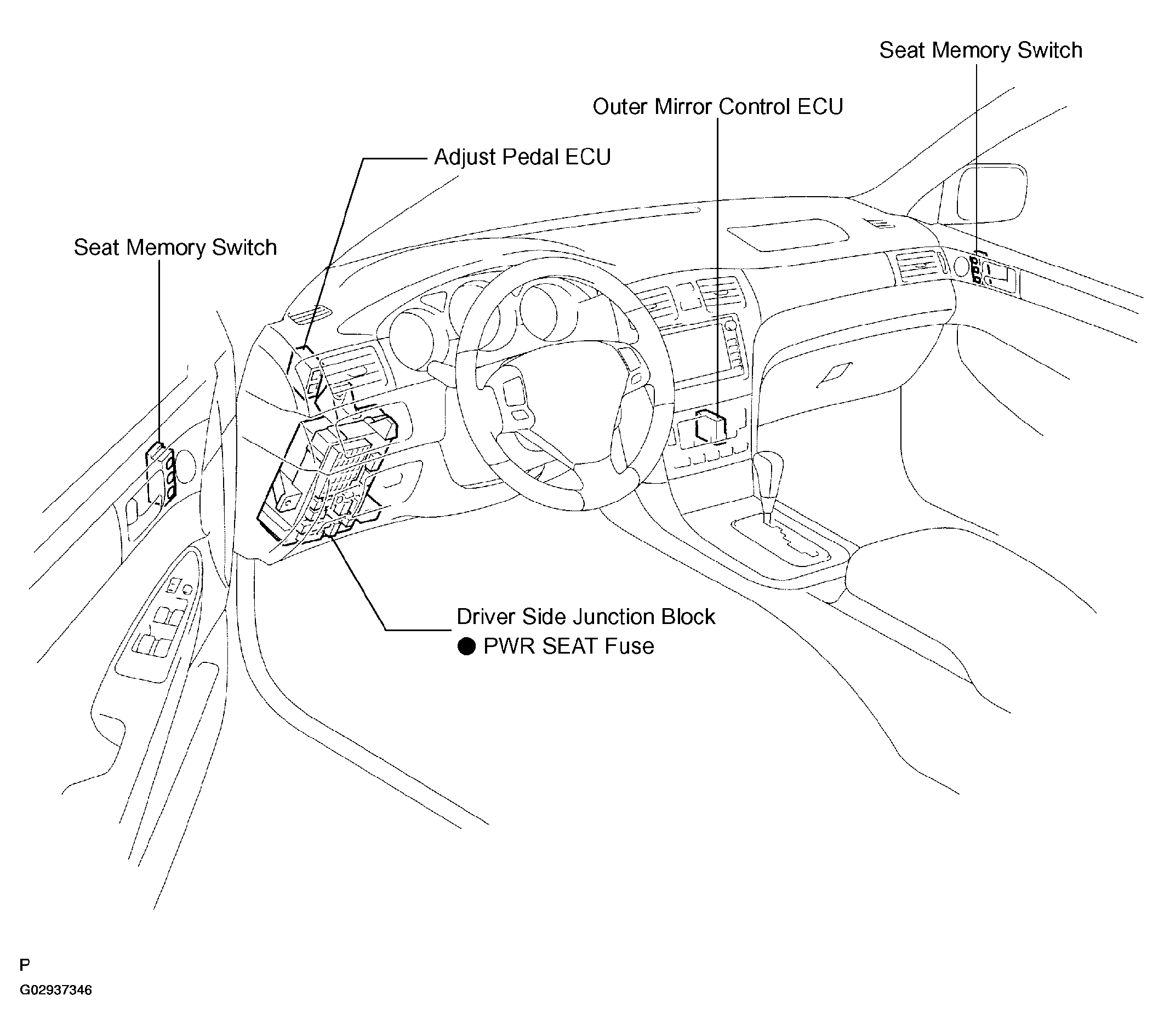

Fig 2: Identifying Front Power Seat Control System Components (1 Of 2)
G02937346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

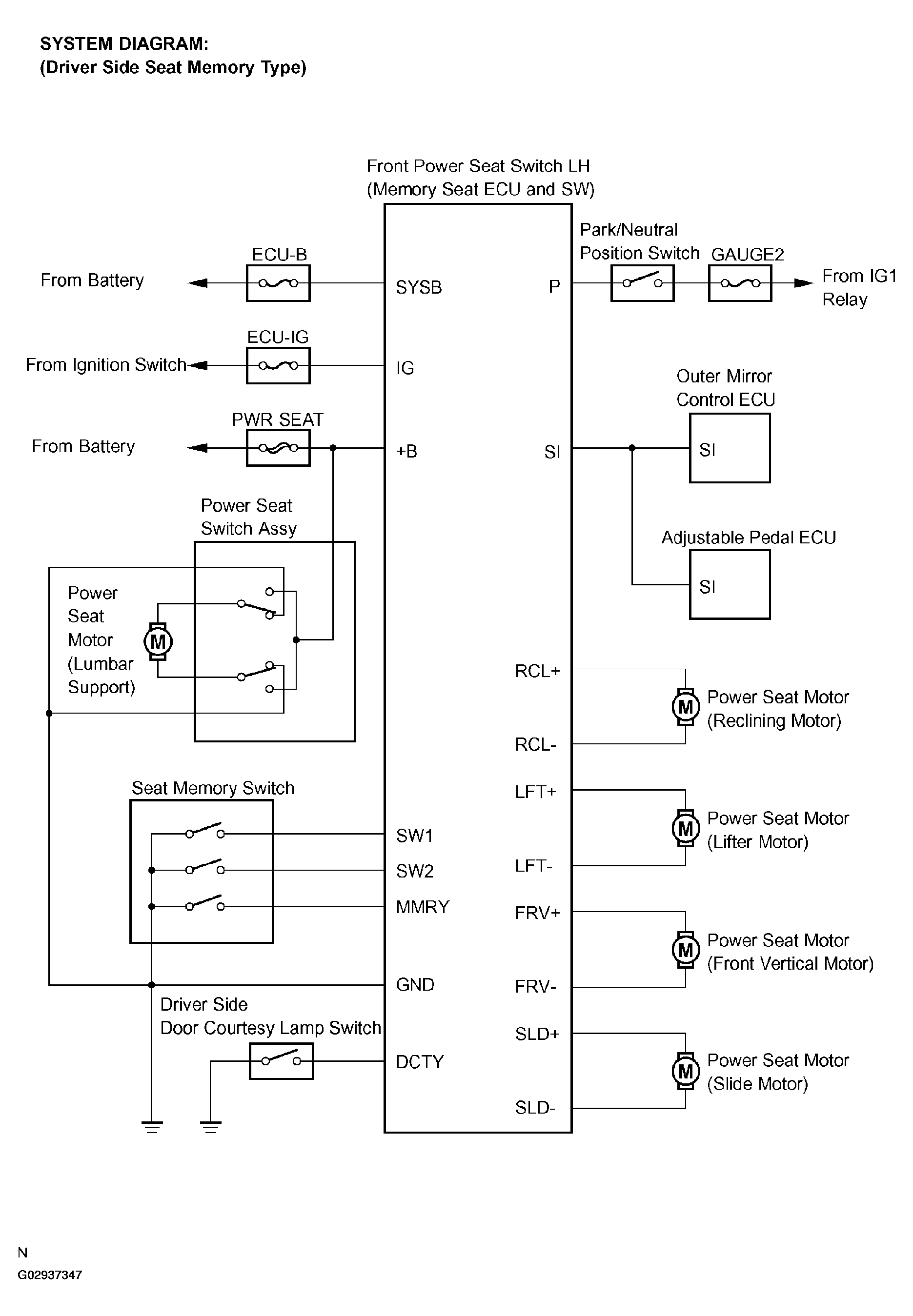

Fig 3: Driver Side Seat Memory Type - System Diagram
G02937347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

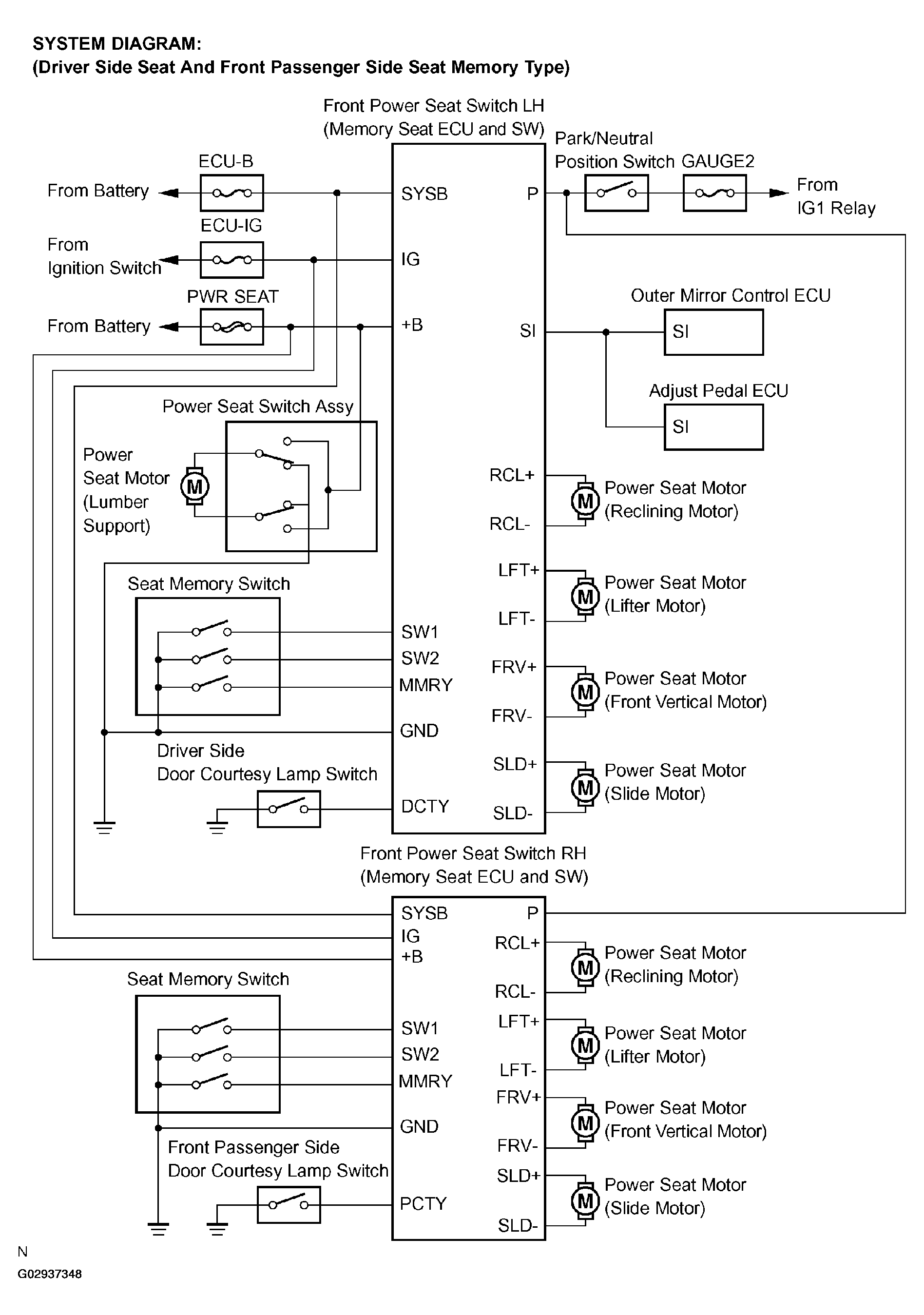

Fig 4: Driver Side Seat And Front Passenger Side Seat Memory Type - System Diagram
G02937348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
