Control Module HVAC: Testing and Inspection

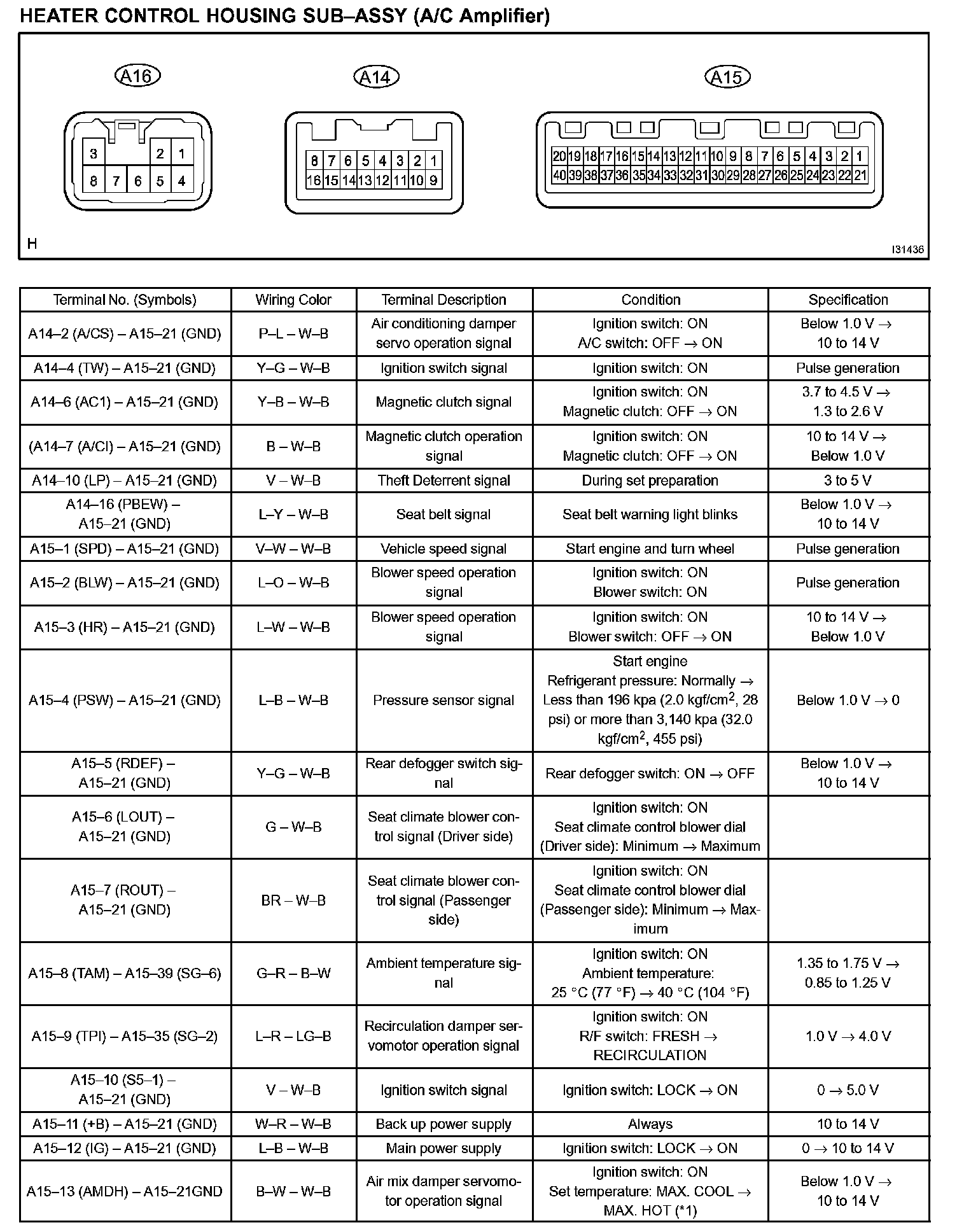

Terminals Of Control Module/Pinouts Part 1:

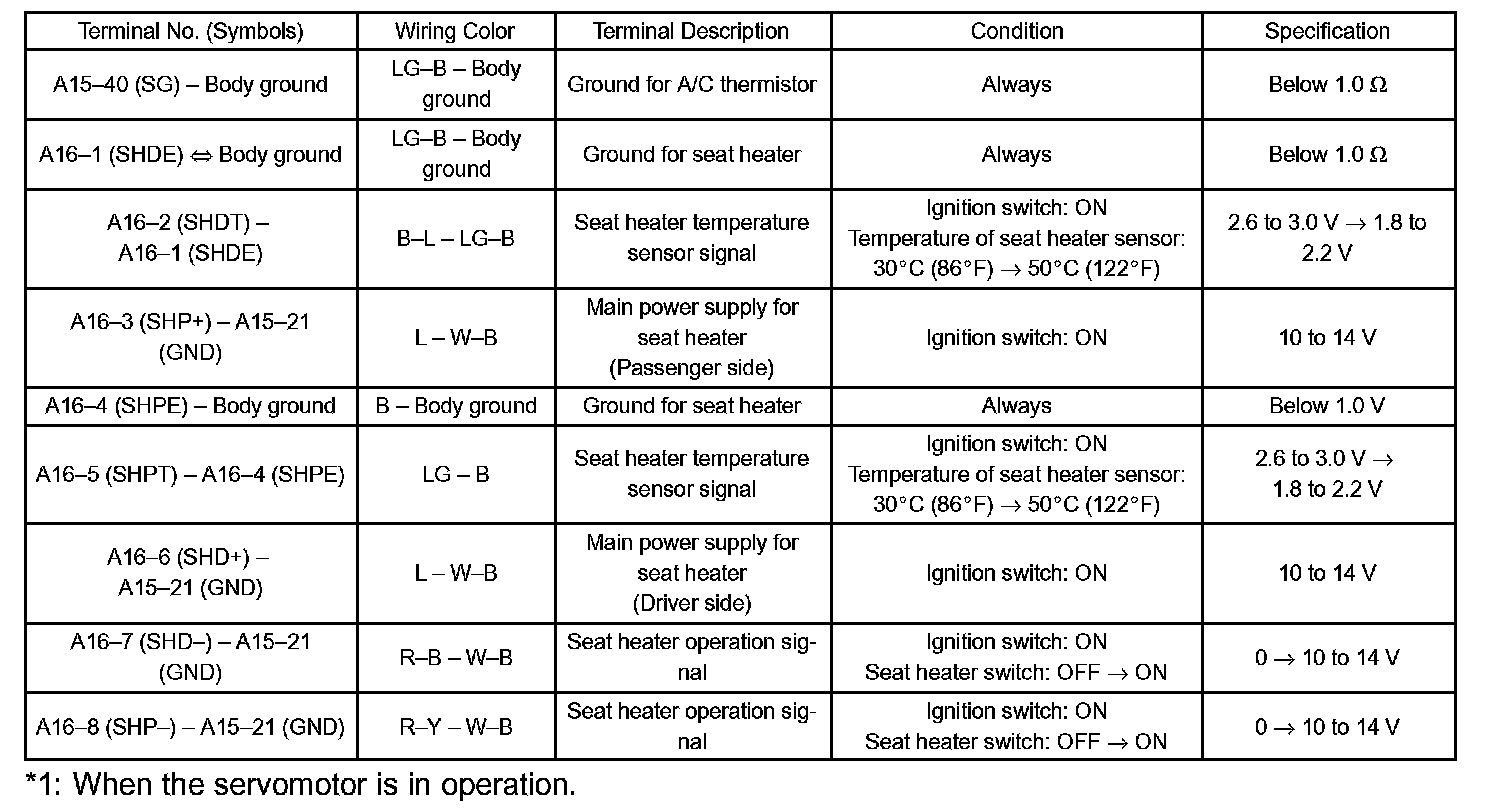

Terminals Of Control Module/Pinouts Part 2:

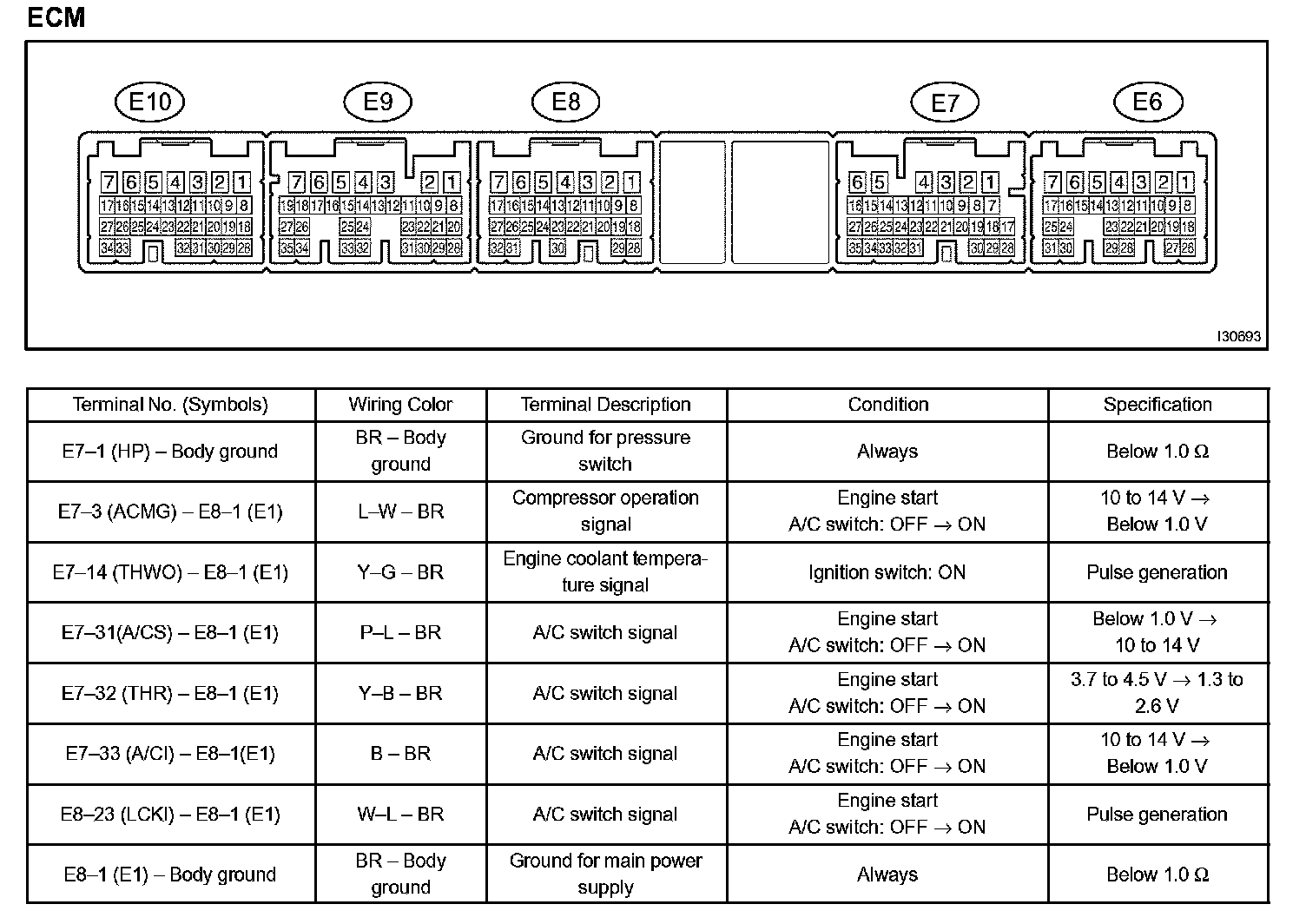

Terminals Of Control Module/Pinouts Part 3:

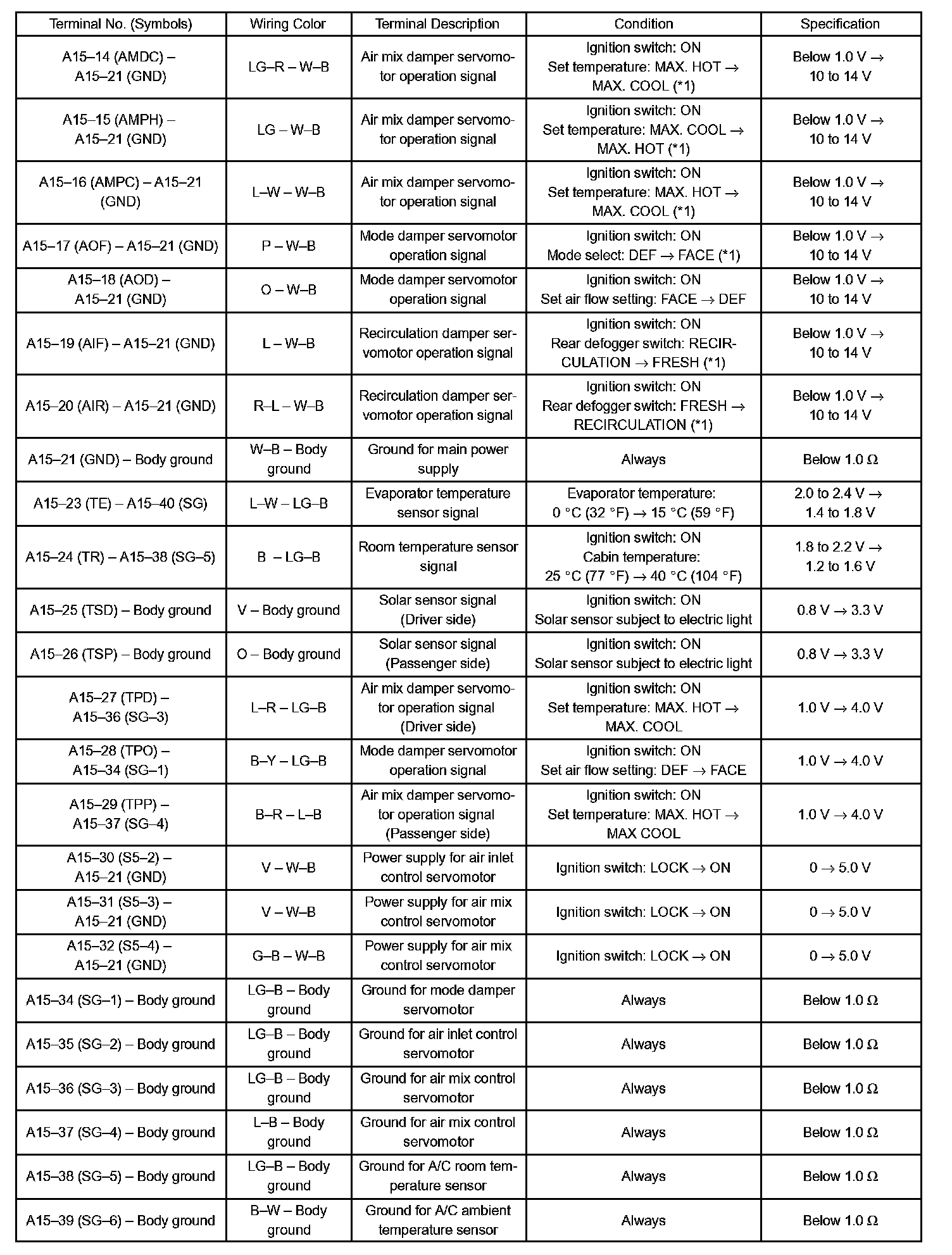

Terminals Of Control Module/Pinouts:
