Oil Pump, Engine

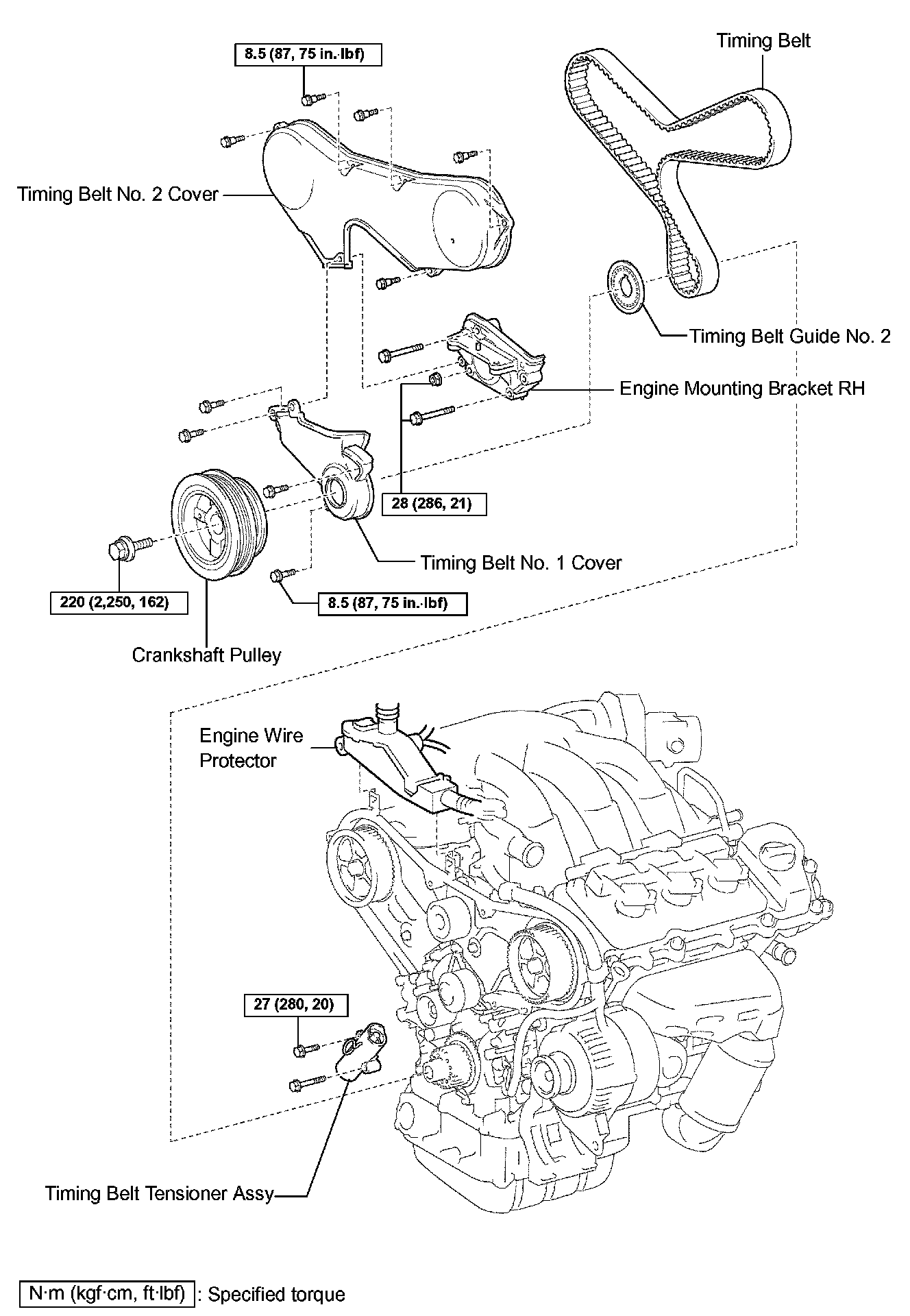

Part 1:

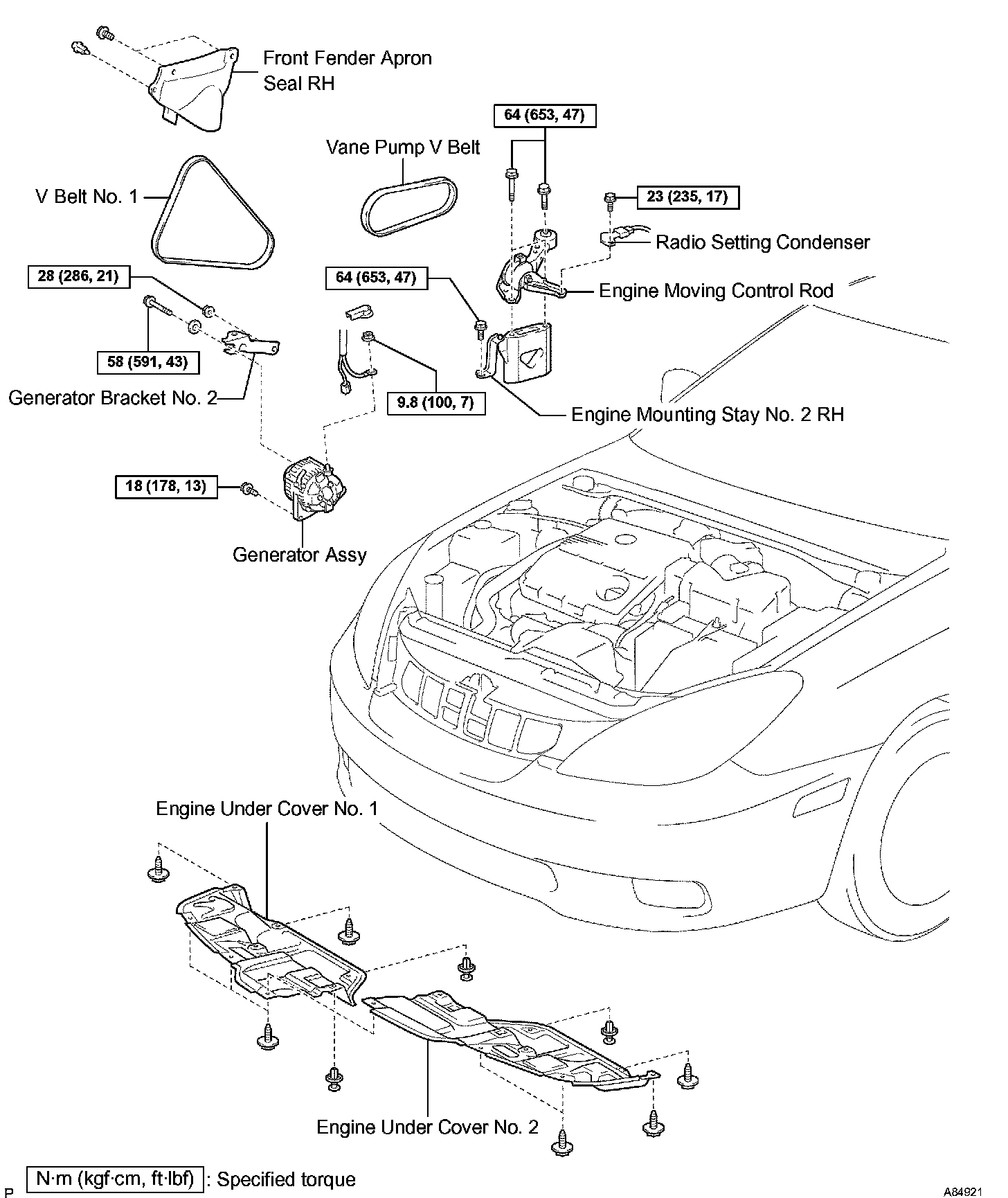

Part 2:

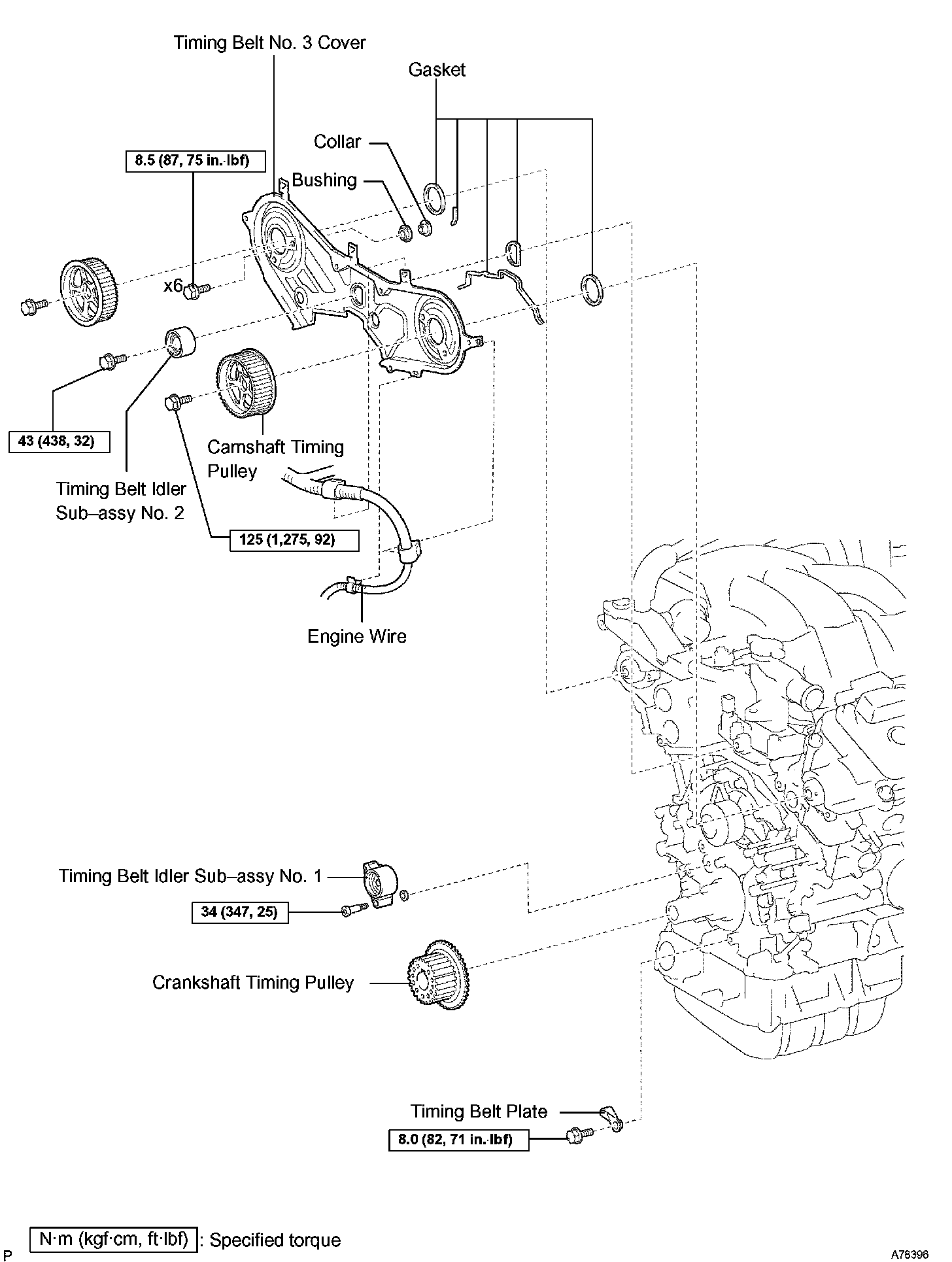

Part 3:

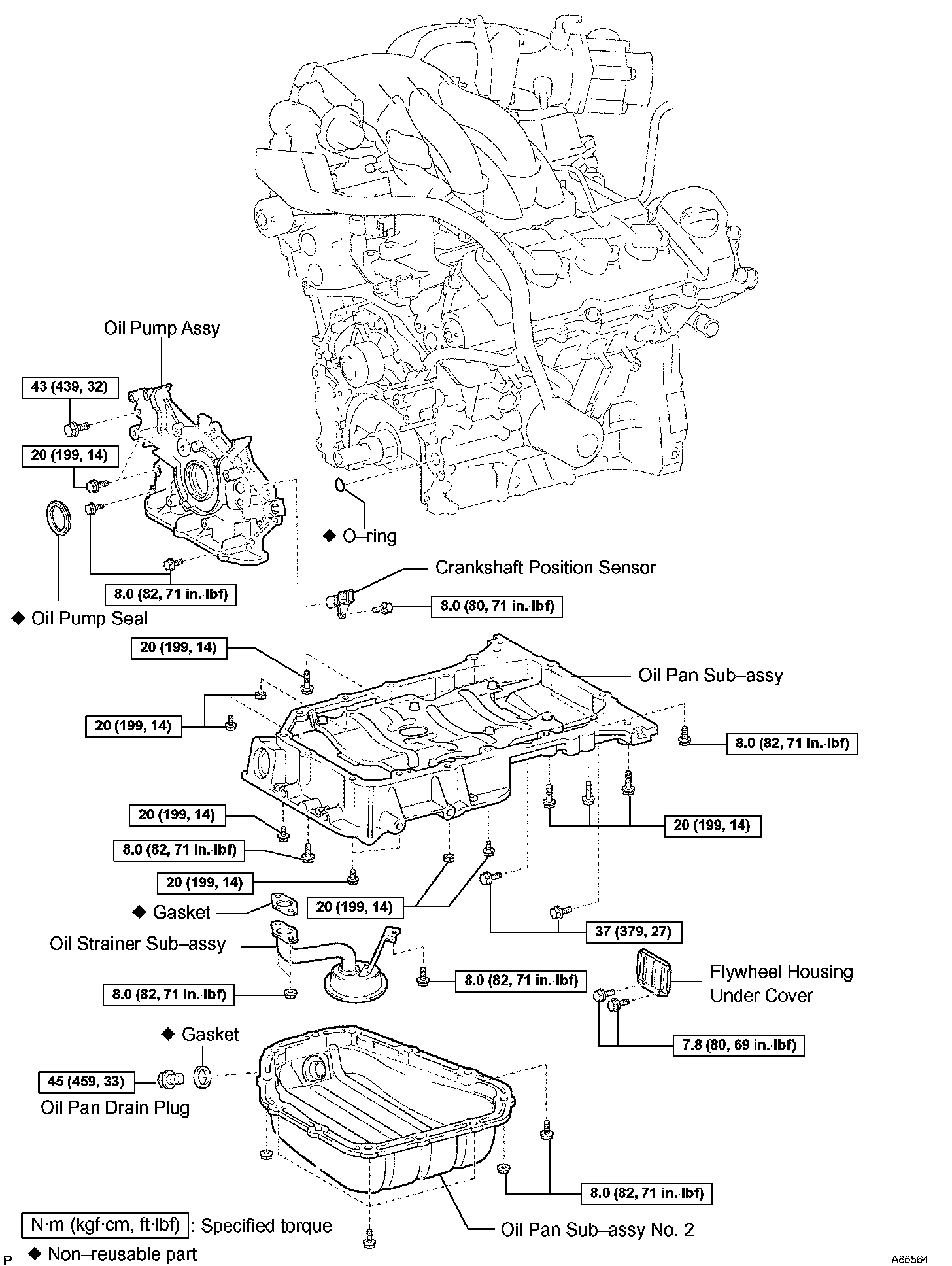

Part 4:

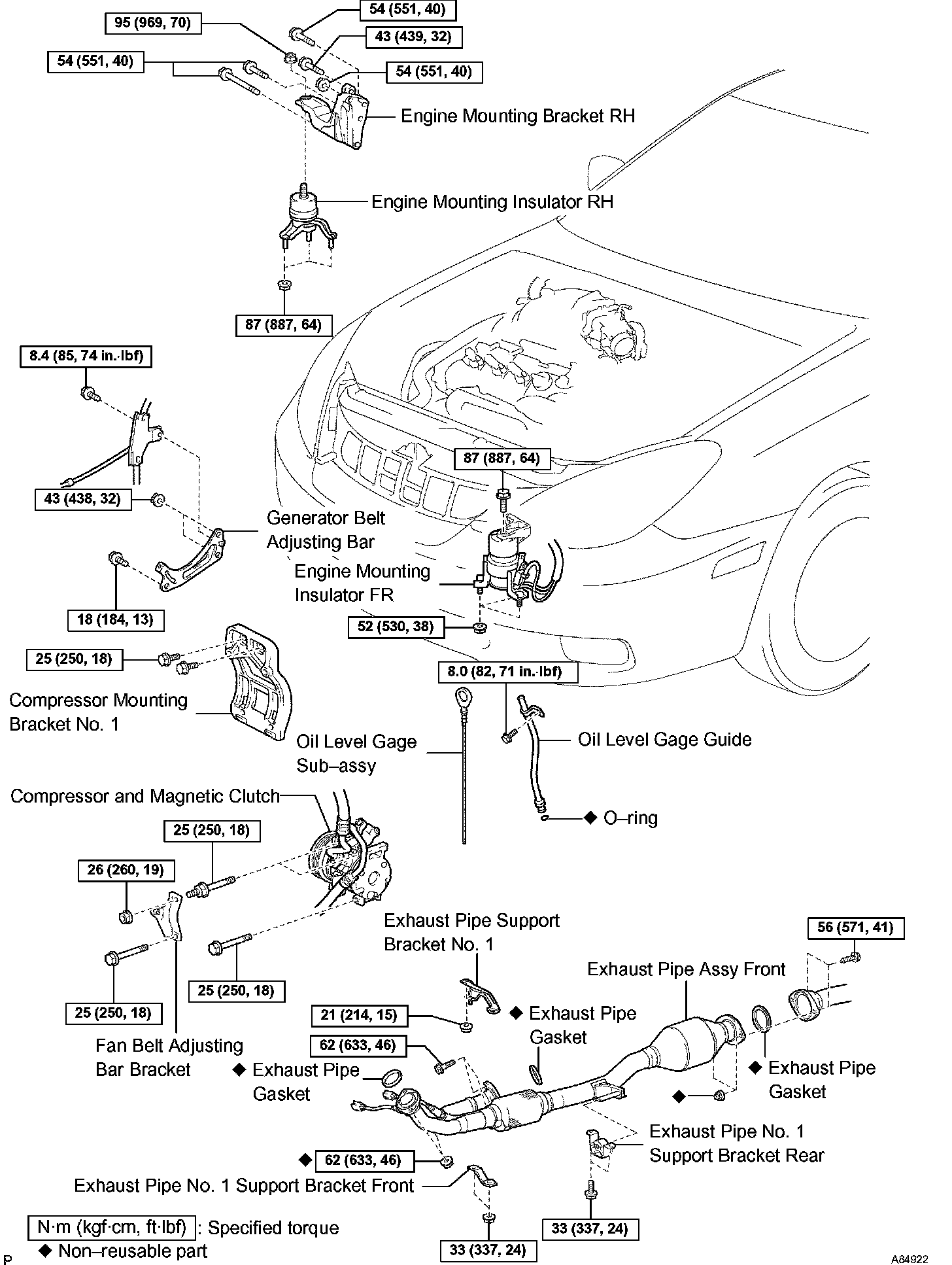

Part 5:

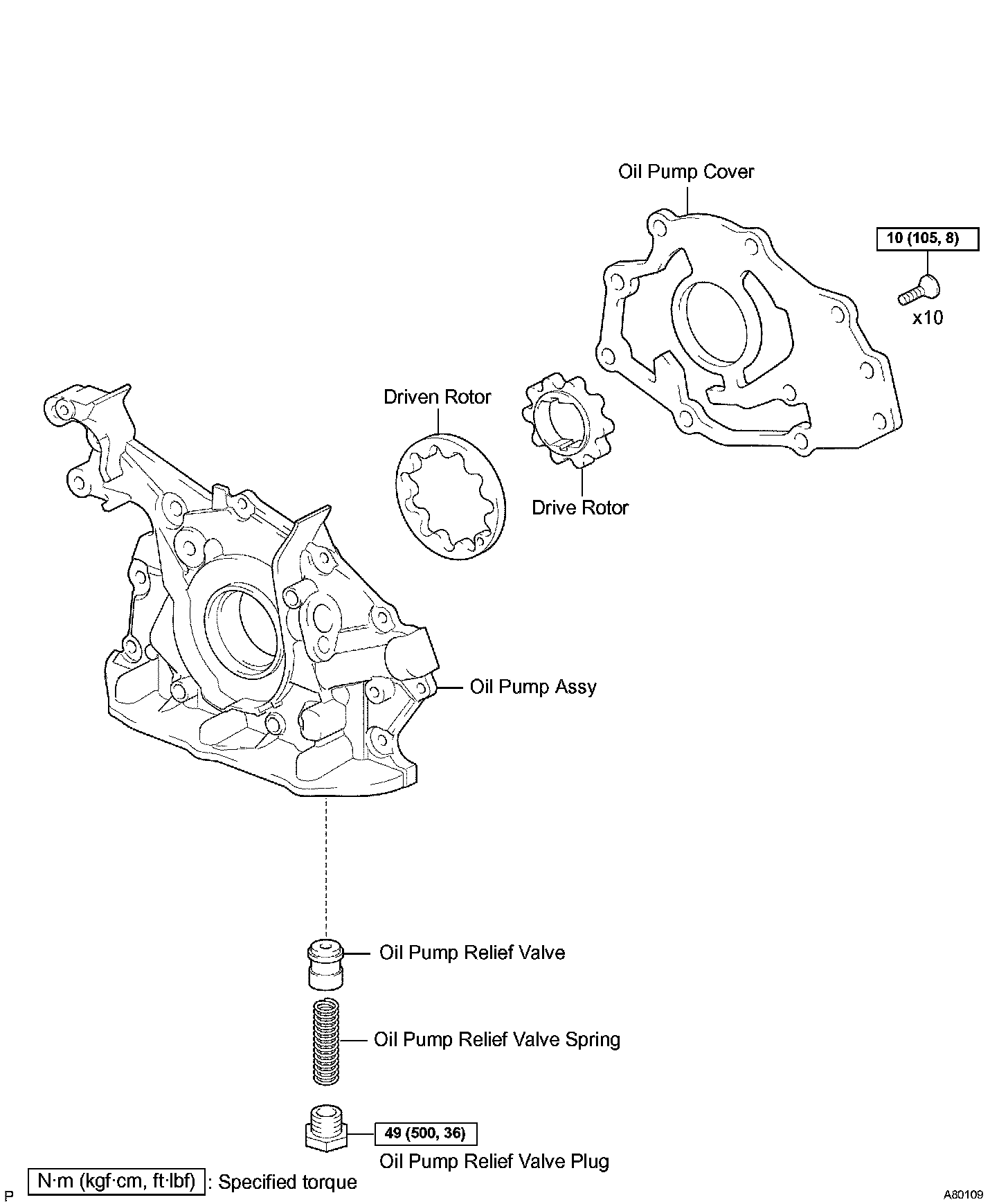

Part 6:





OIL PUMP ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
