Section 285 (Thermostat): Removal

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Removal of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.

DRAIN ENGINE COOLANT

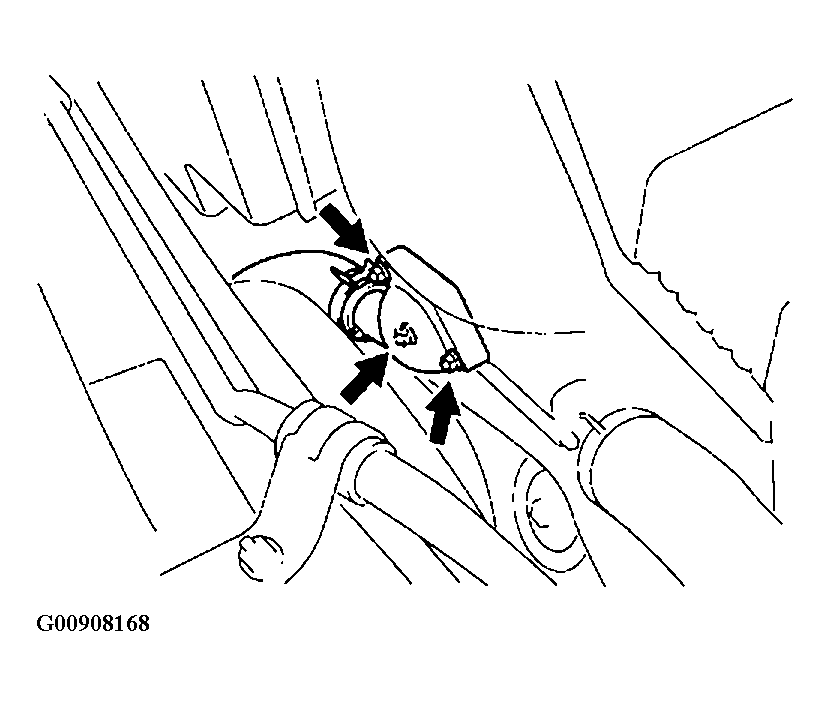

Fig 1: Disconnecting Water Inlet From Water Inlet Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WATER INLET FROM WATER INLET HOUSING
Remove the 3 nuts, and disconnect the water inlet from the water inlet housing.
REMOVE THERMOSTAT
1. Remove the thermostat.
2. Remove the gasket from the thermostat.
