Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

BODY ECU (Main)

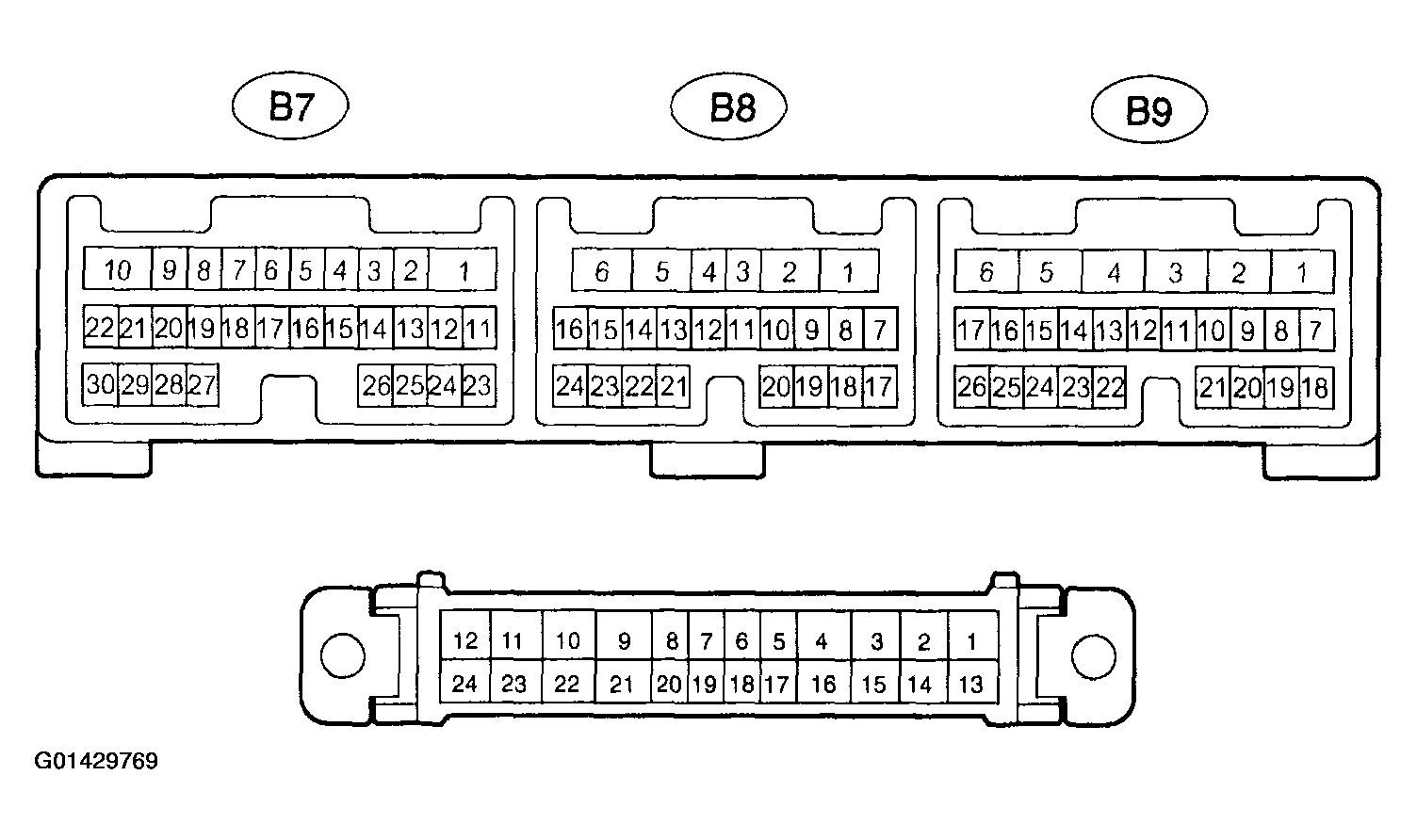

Fig 1: Identifying BODY ECU (Main) Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

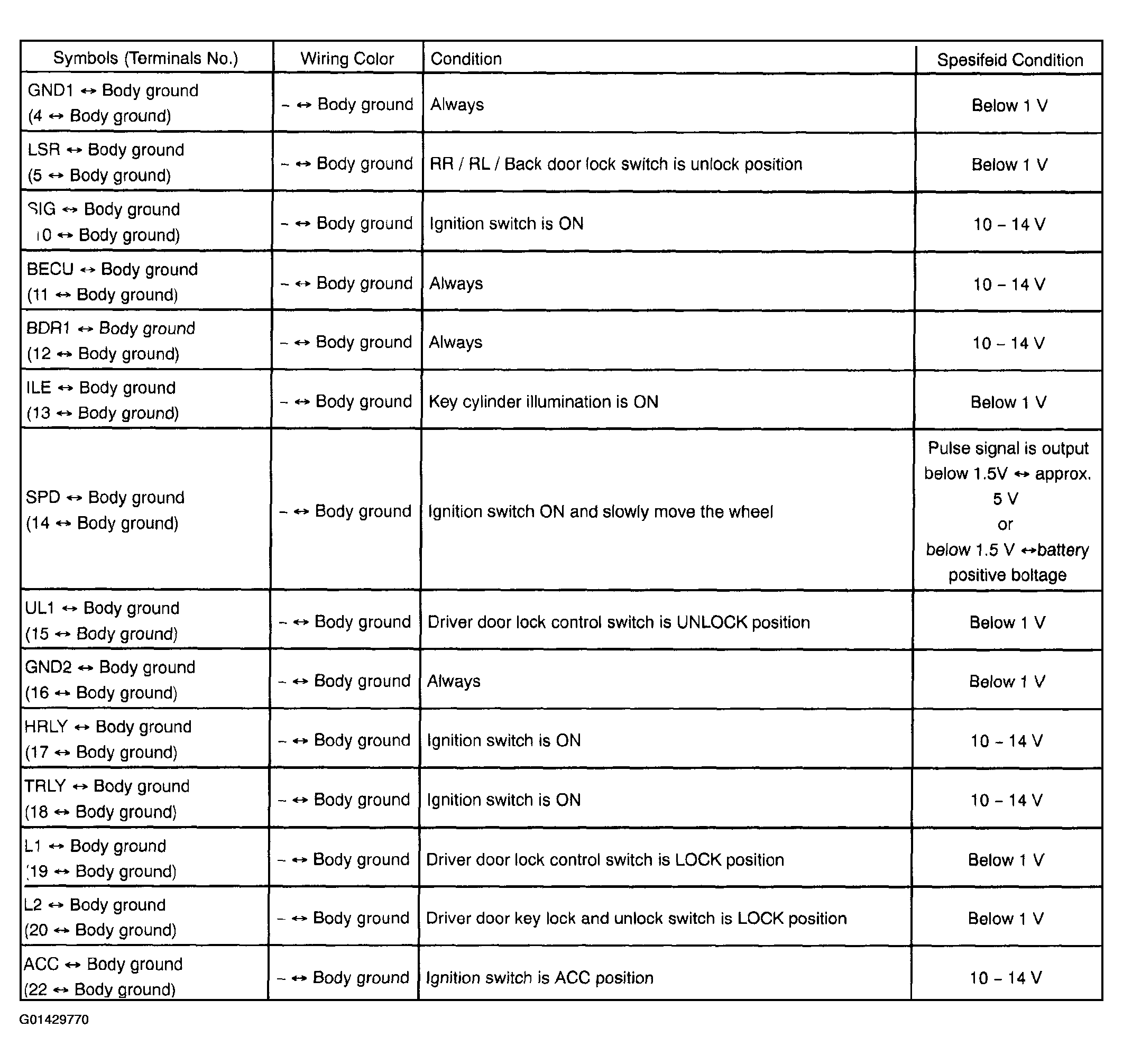

Fig 2: BODY ECU (Main) Terminals Reference Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

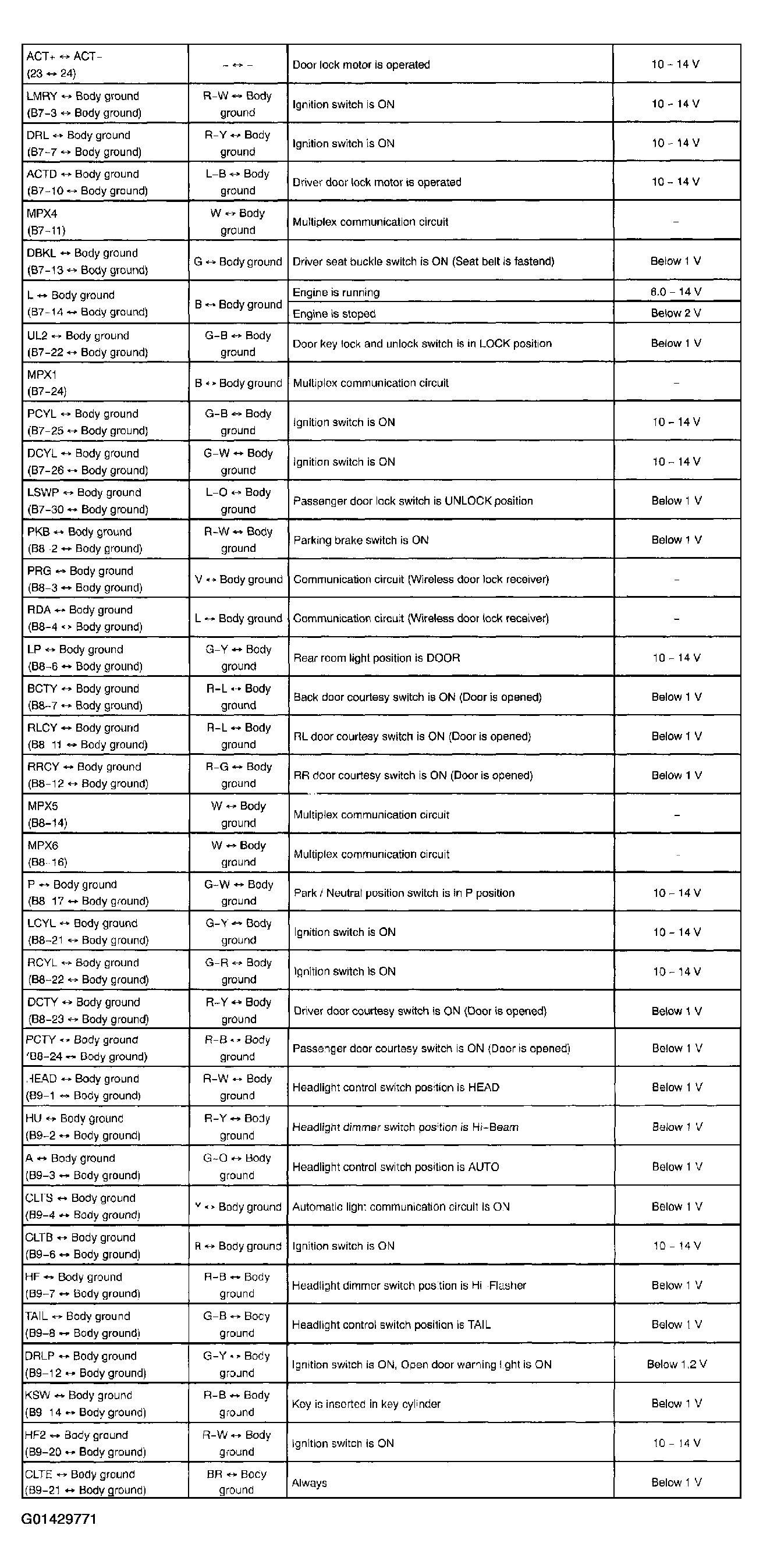

Fig 3: BODY ECU (Main) Terminals Reference Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BODY ECU (Sub)

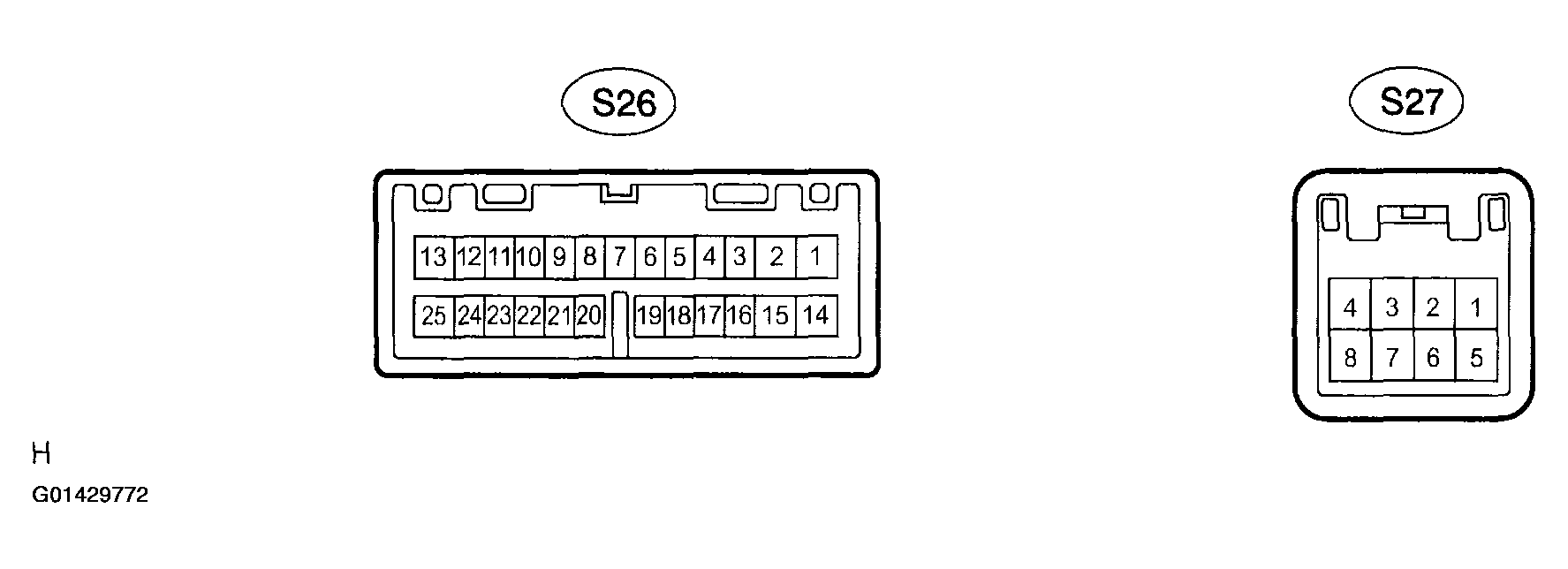

Fig 4: Identifying BODY ECU (Sub) Terminals

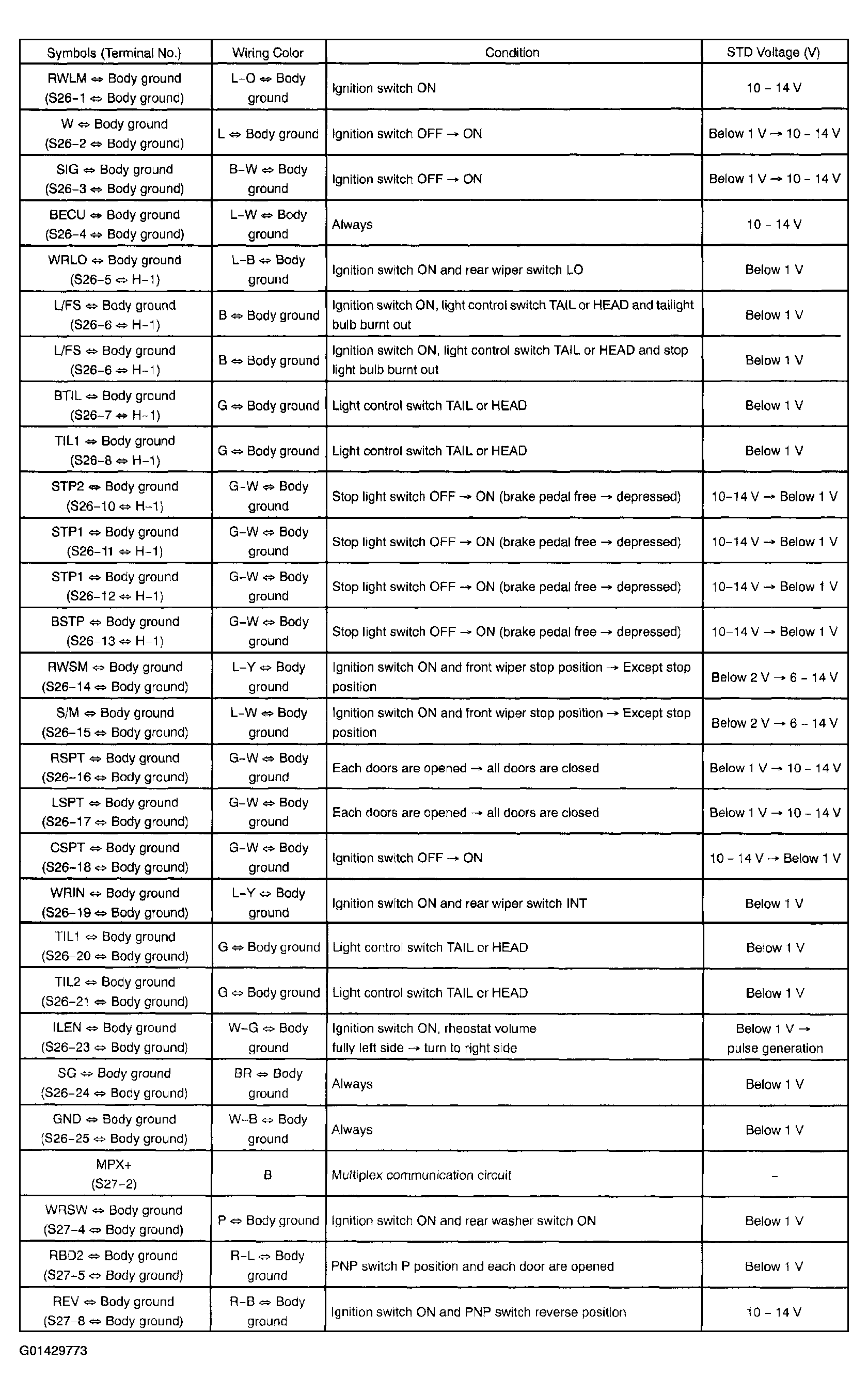

Fig 5: BODY ECU (Sub) Terminals Reference Table
