Position Cannot Be Memorized: Wiring Diagram

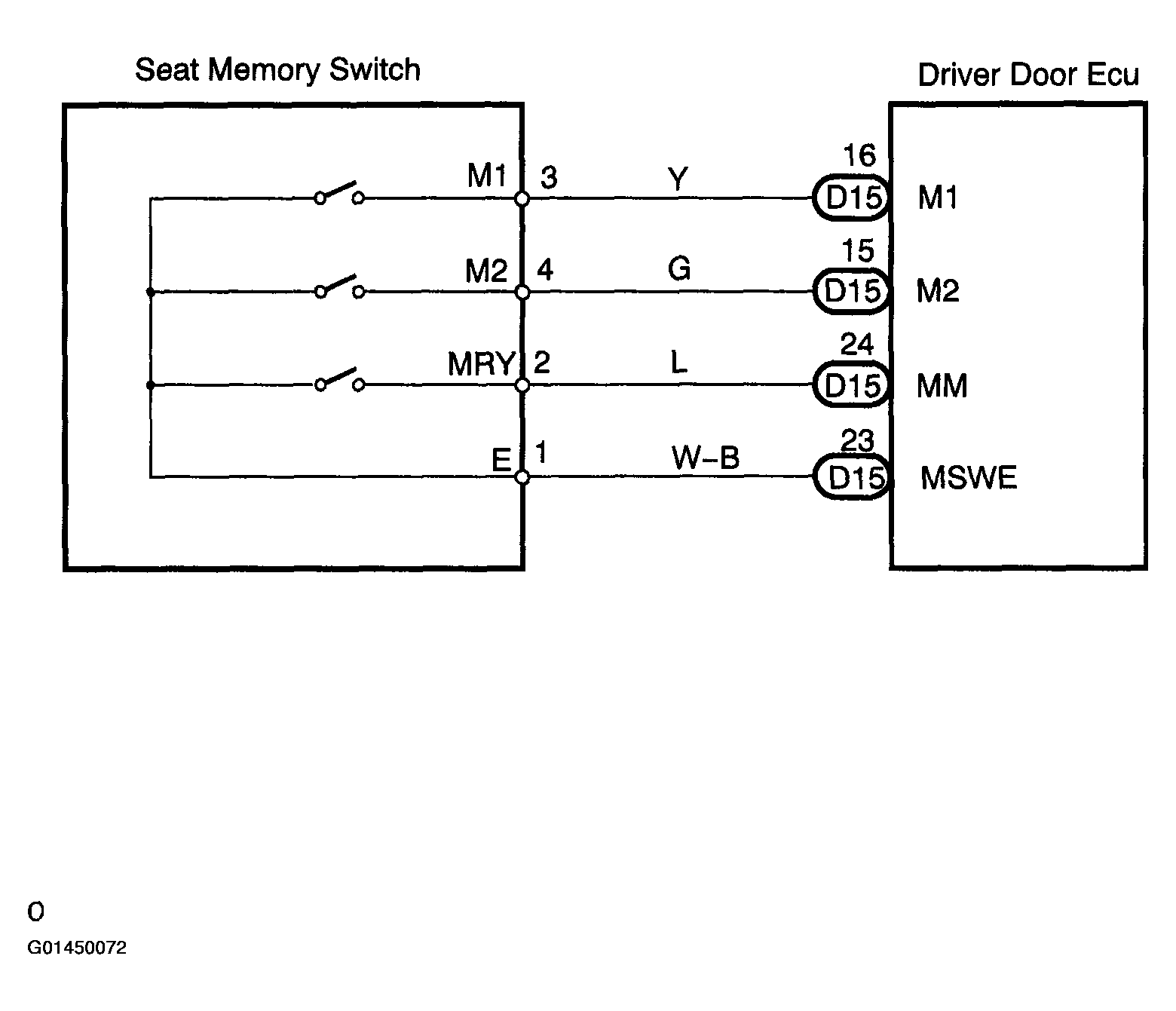

Fig 1: Wiring Diagram - Position Cannot Be Memorized
G01450072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
