ECM Power Source Circuit: Wiring Diagram

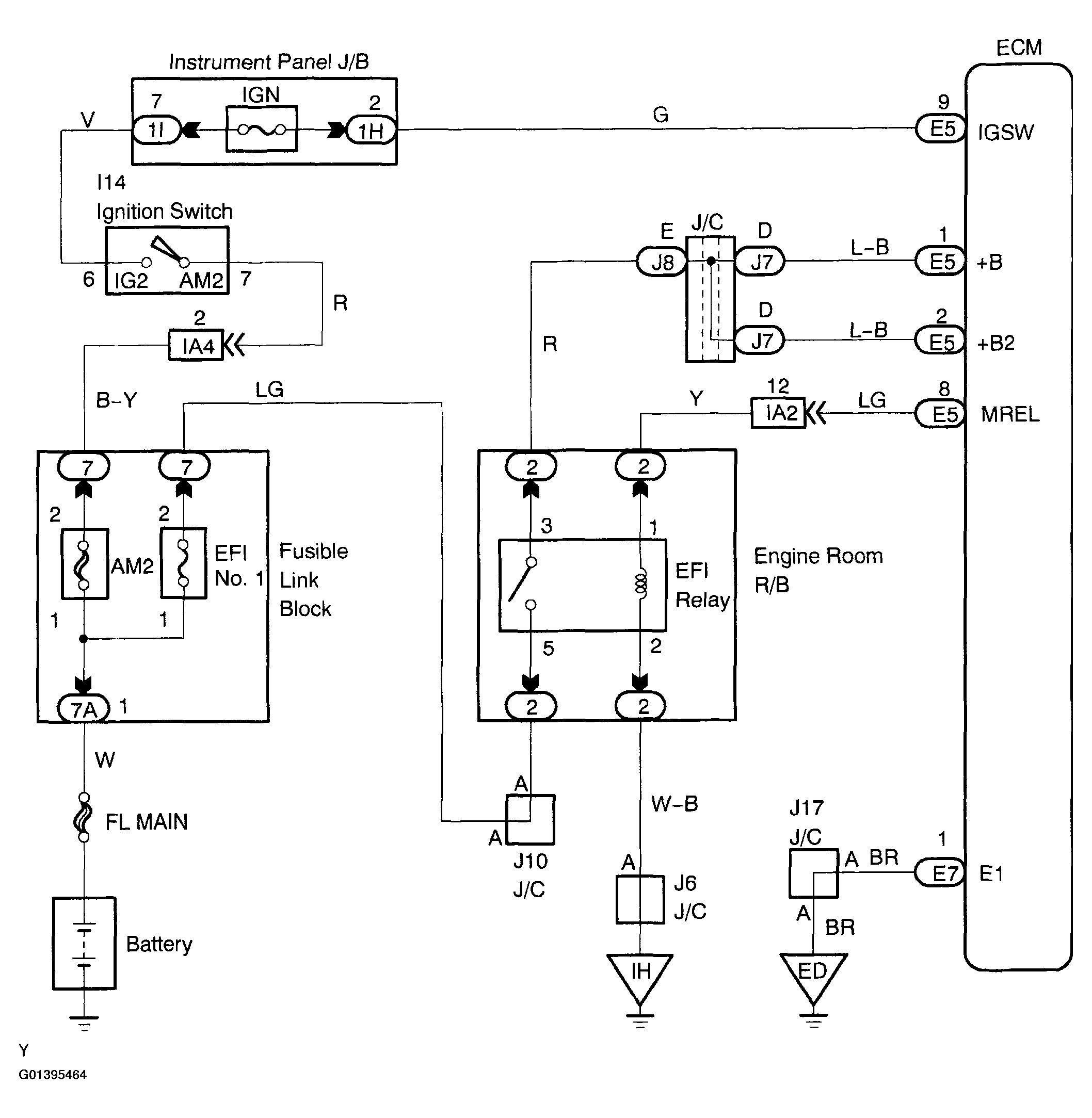

Fig 1: ECM Power Source Circuit
G01395464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
