Active Control Engine Mount: Wiring Diagram

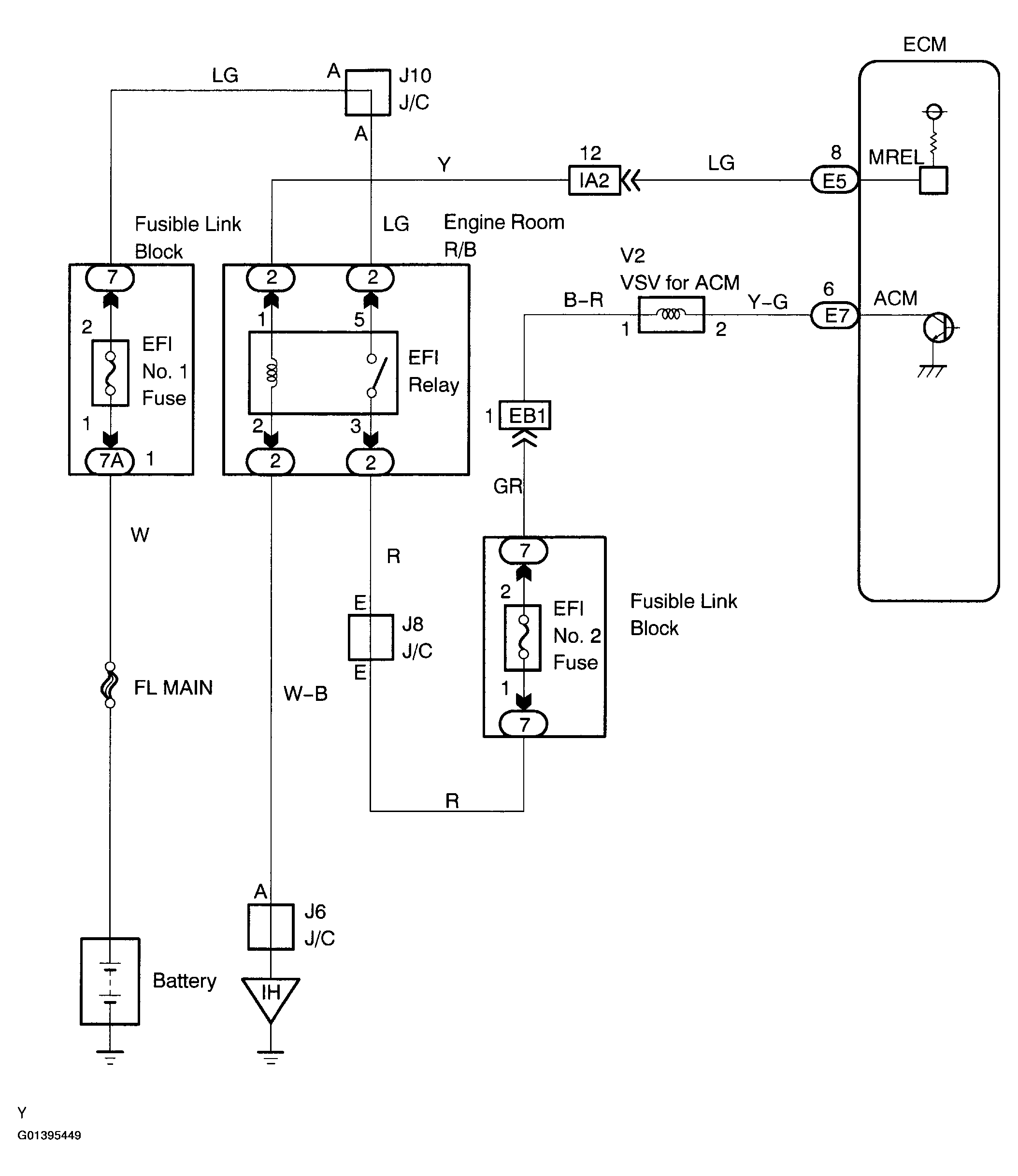

Fig 1: Active Control Engine Mount Circuit
G01395449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
