Inspection Procedure

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SURROUNDING CONDITIONS
1. Check if a call can be made from the cellular phone in a certain place.
  OK: A call can be made from the cellular phone.
1. NG: END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS
2. OK: Go to next step.
CHECK SURROUNDING CONDITIONS
1. Check if the reception level is the same on the cellular phone and the multi-display.
  OK: The reception level is different.

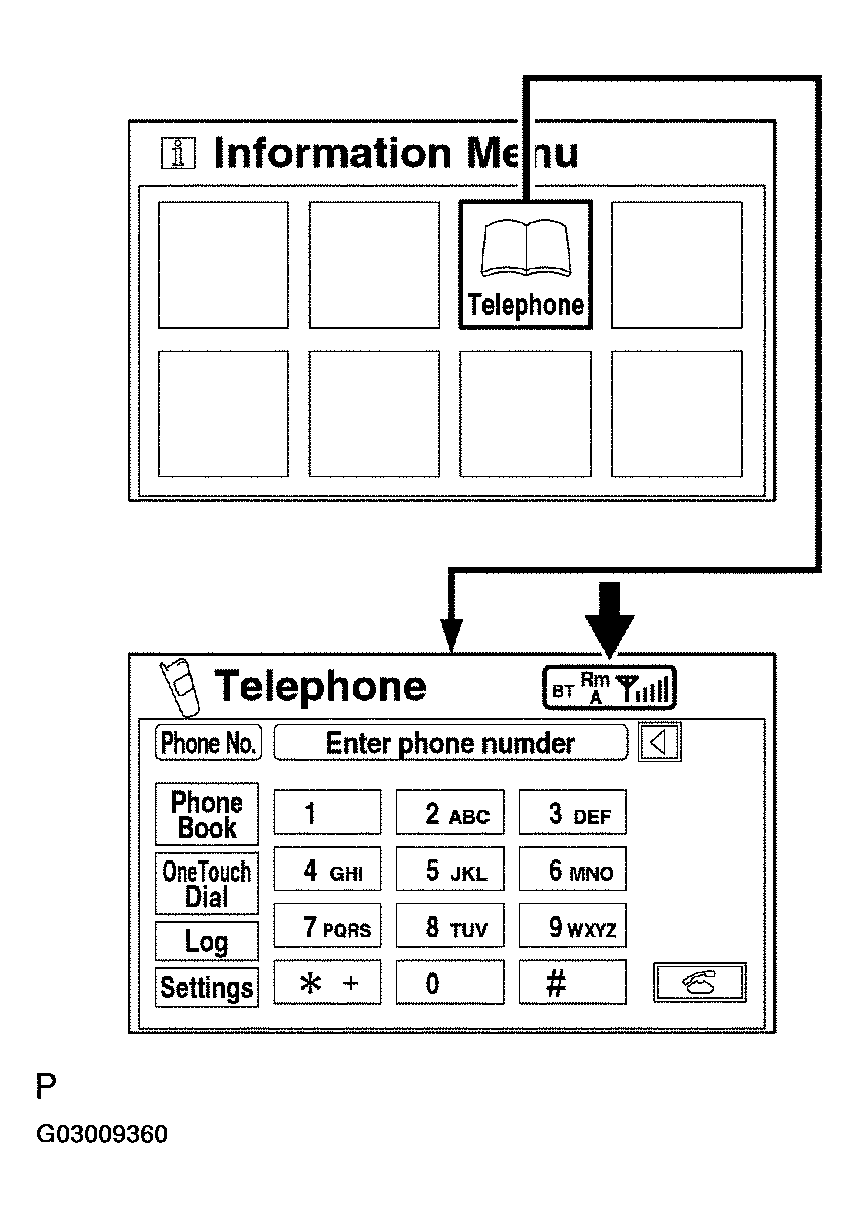

  Fig 1: Display Information Menu And Telephone Screen (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MULTI-DISPLAY (SEE MULTI-DISPLAY ASSY )
2. OK: Go to next step.
CHECK RECEPTION
1. Place a cellular phone close to the multi-display.
2. Check if the reception level becomes the same on the cellular phone and the multi-display.
  OK: The reception level does not become the same.

  Fig 2: Display Information Menu And Telephone Screen (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MULTI-DISPLAY (SEE MULTI-DISPLAY ASSY )
2. OK: END (MULTI-DISPLAY RECEIVES RADIO WAVE OF DIFFERENT STRENGTH DEPENDING ON RADIO WAVES STRENGTH TRANSMITTED BY CELLULAR PHONE)
