SFI System - Diagnosis: Location

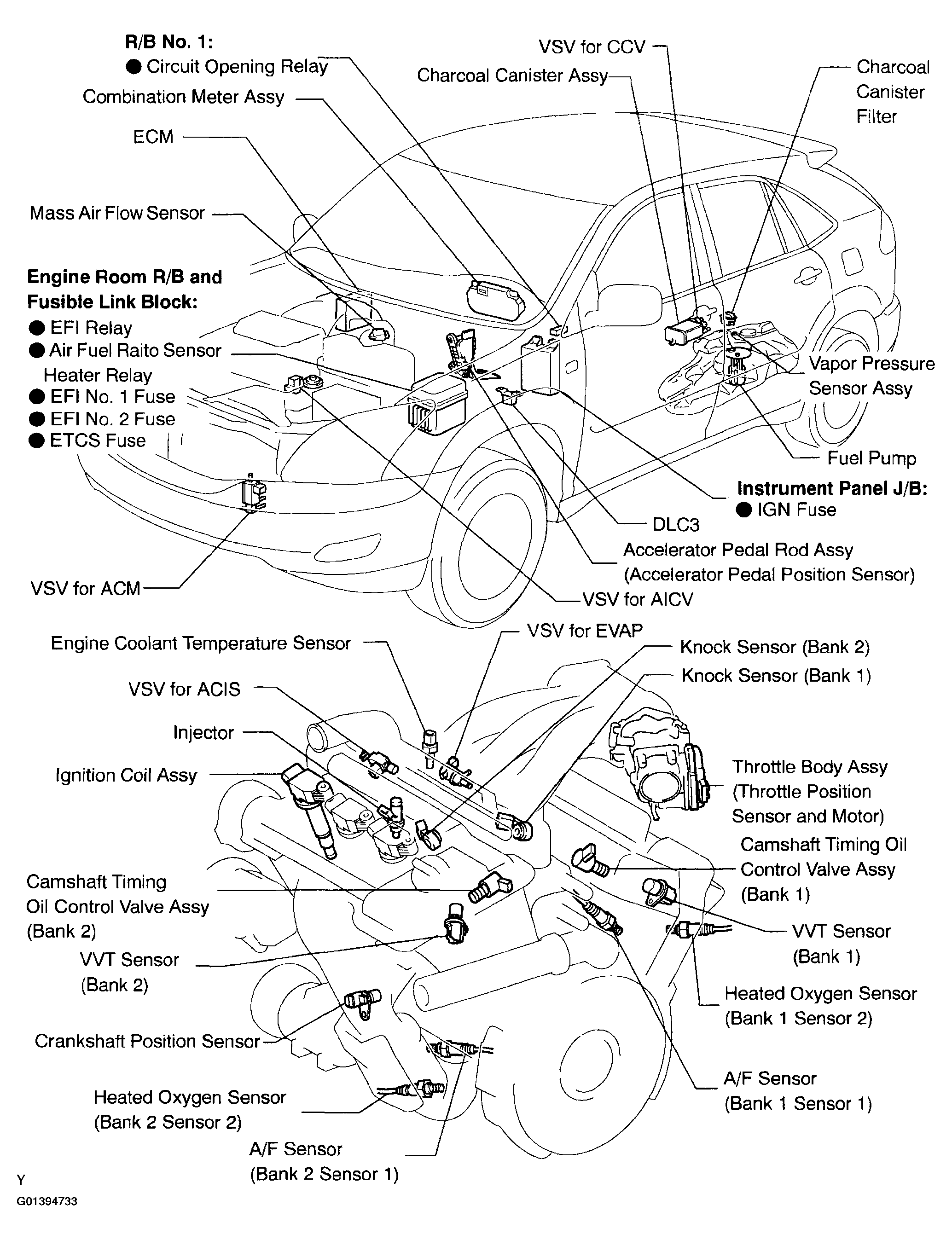

Fig 1: Identifying SFI System Component Locations
G01394733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
