Service Data

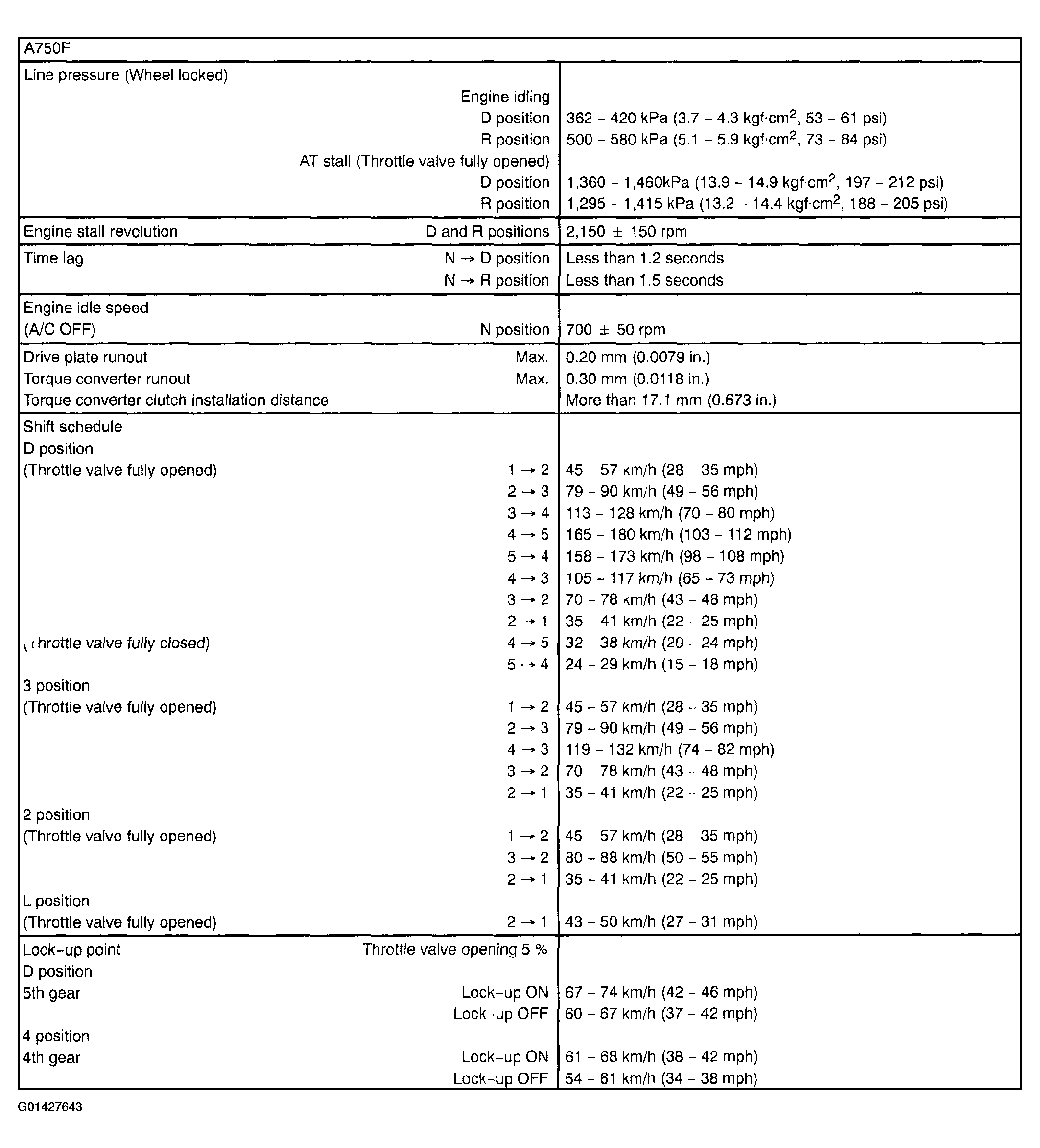

Fig 1: Automatic Transmission Service Specifications

G01427643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
