Control Valve Assembly: Components

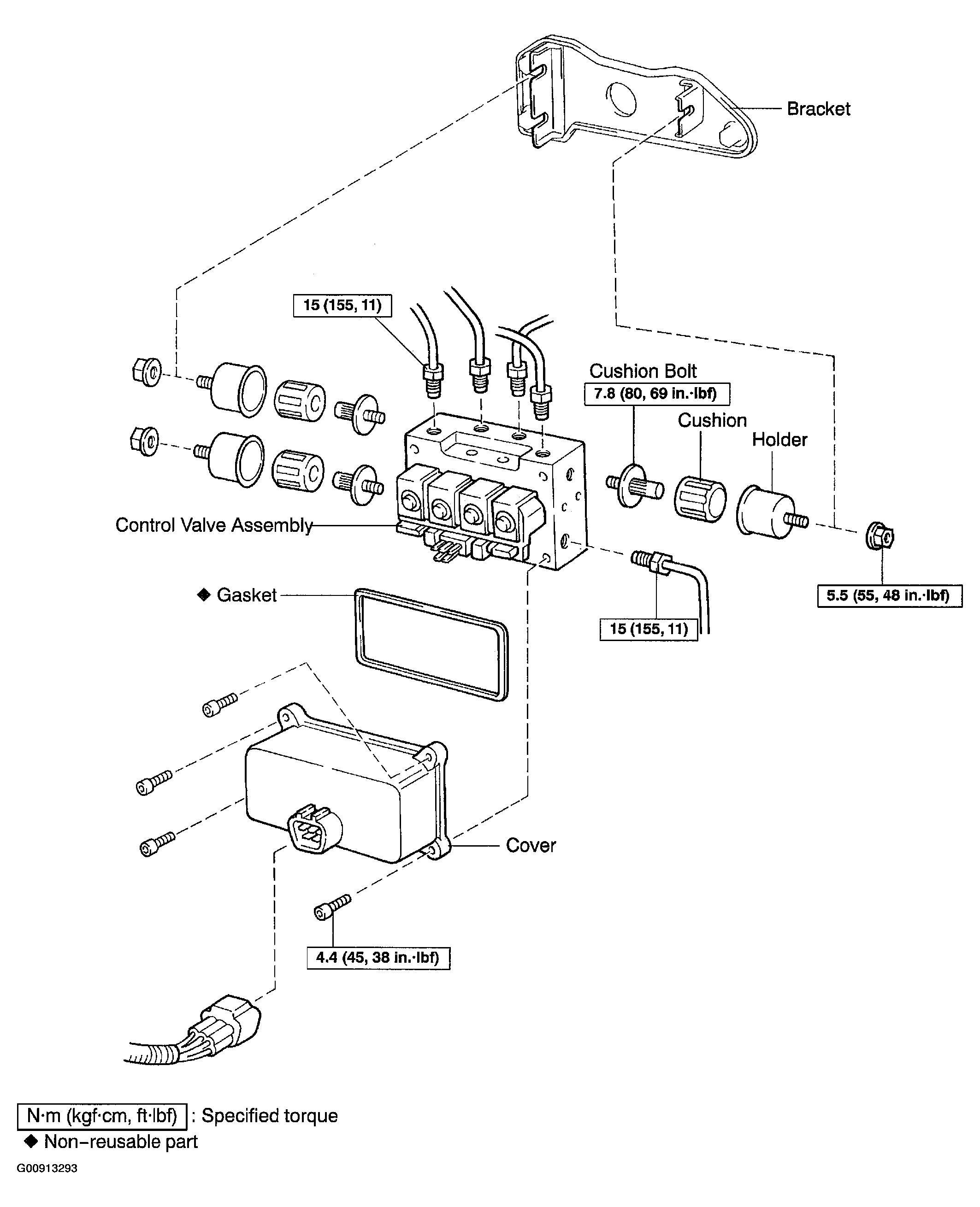

Fig 1: Identifying Control Valve Assembly
G00913293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
