Position Sensor Power Source Circuit: Wiring Diagram

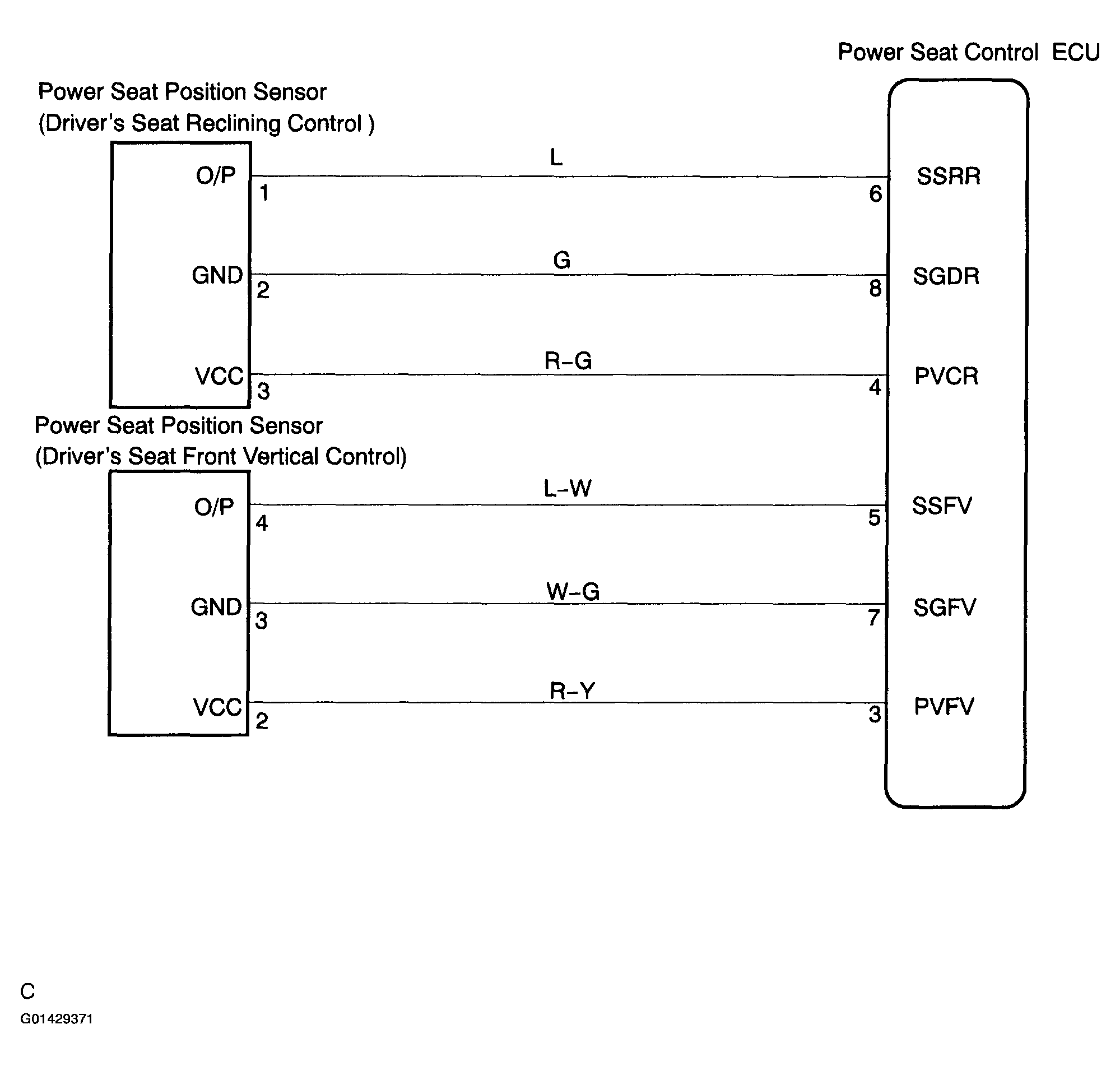

Fig 1: Wiring Diagram - Position Sensor Power Source Circuit
G01429371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
