System Specifications

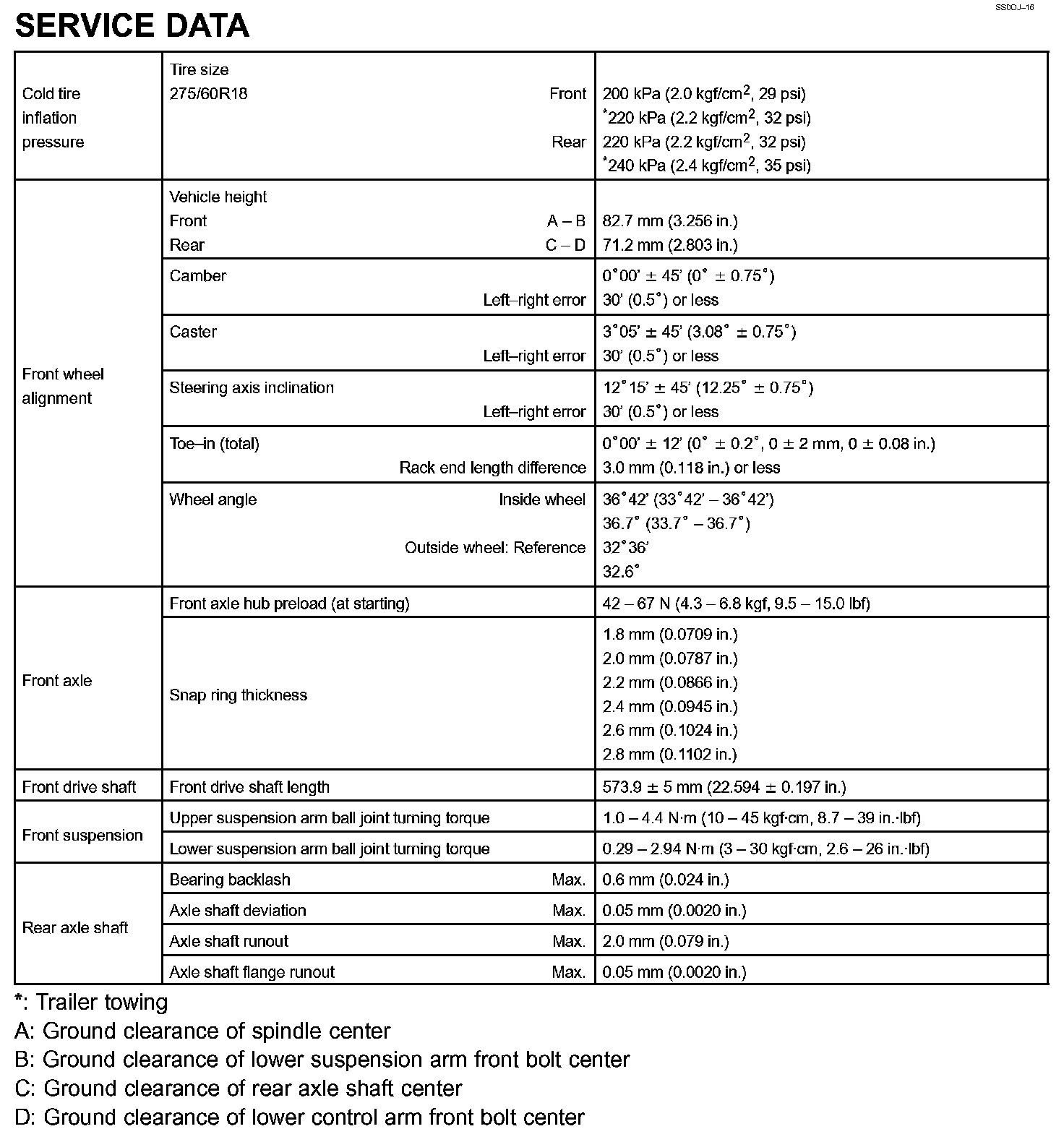

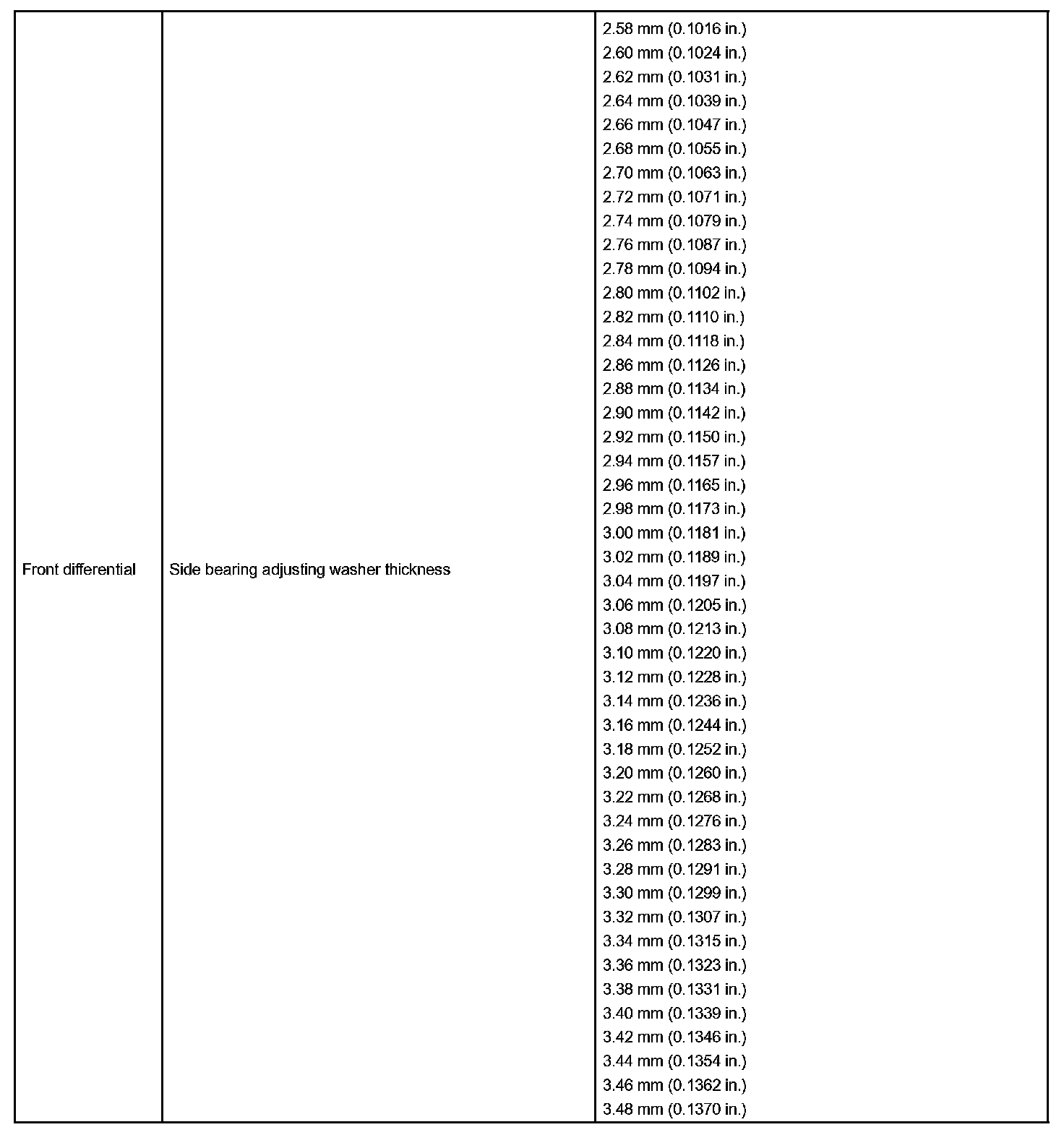

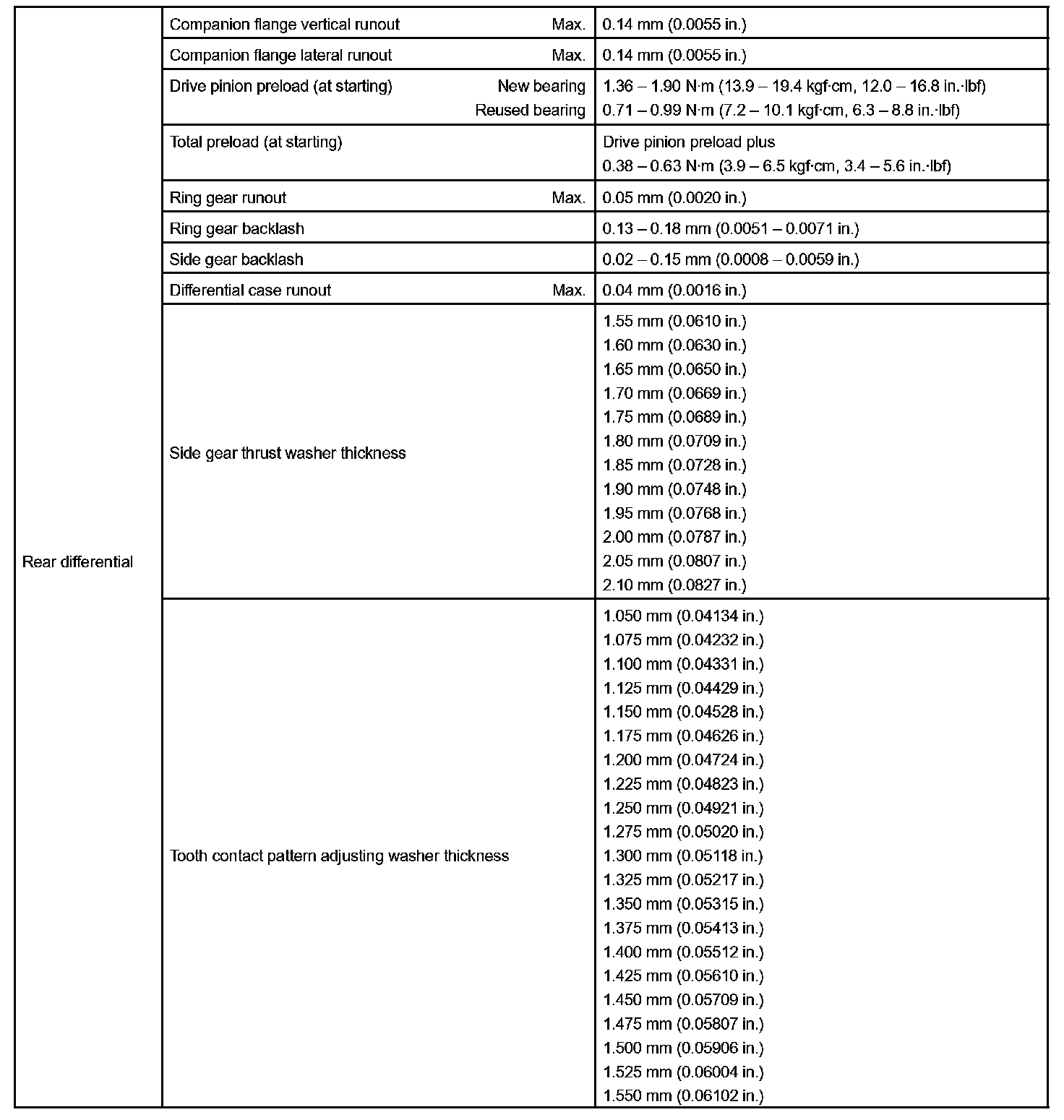

Suspension And Axle - Service Data Part 1:




Suspension And Axle - Service Data Part 2:




Suspension And Axle - Service Data Part 3:




Suspension And Axle - Service Data Part 4:




Suspension And Axle - Service Data Part 5:

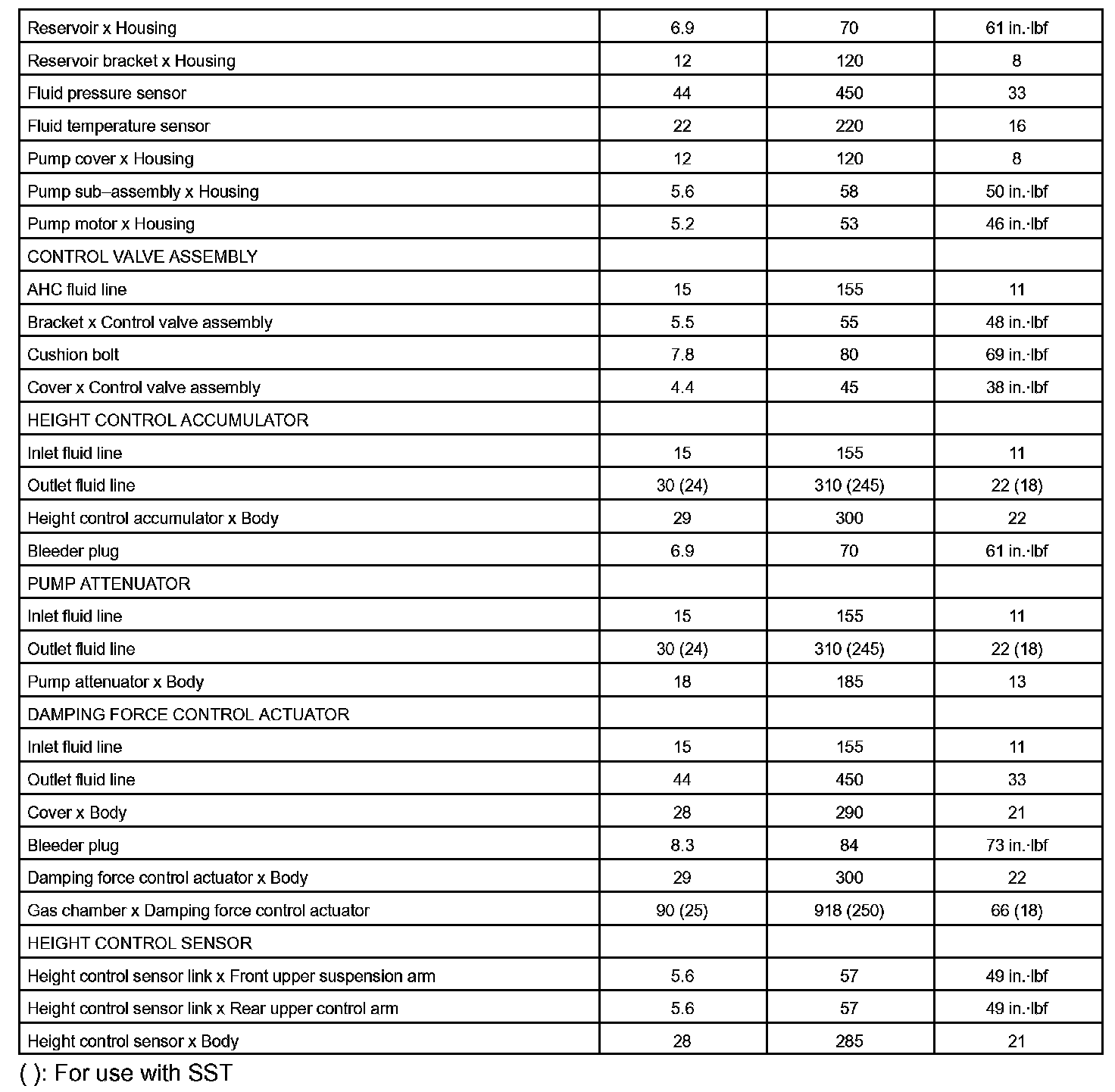

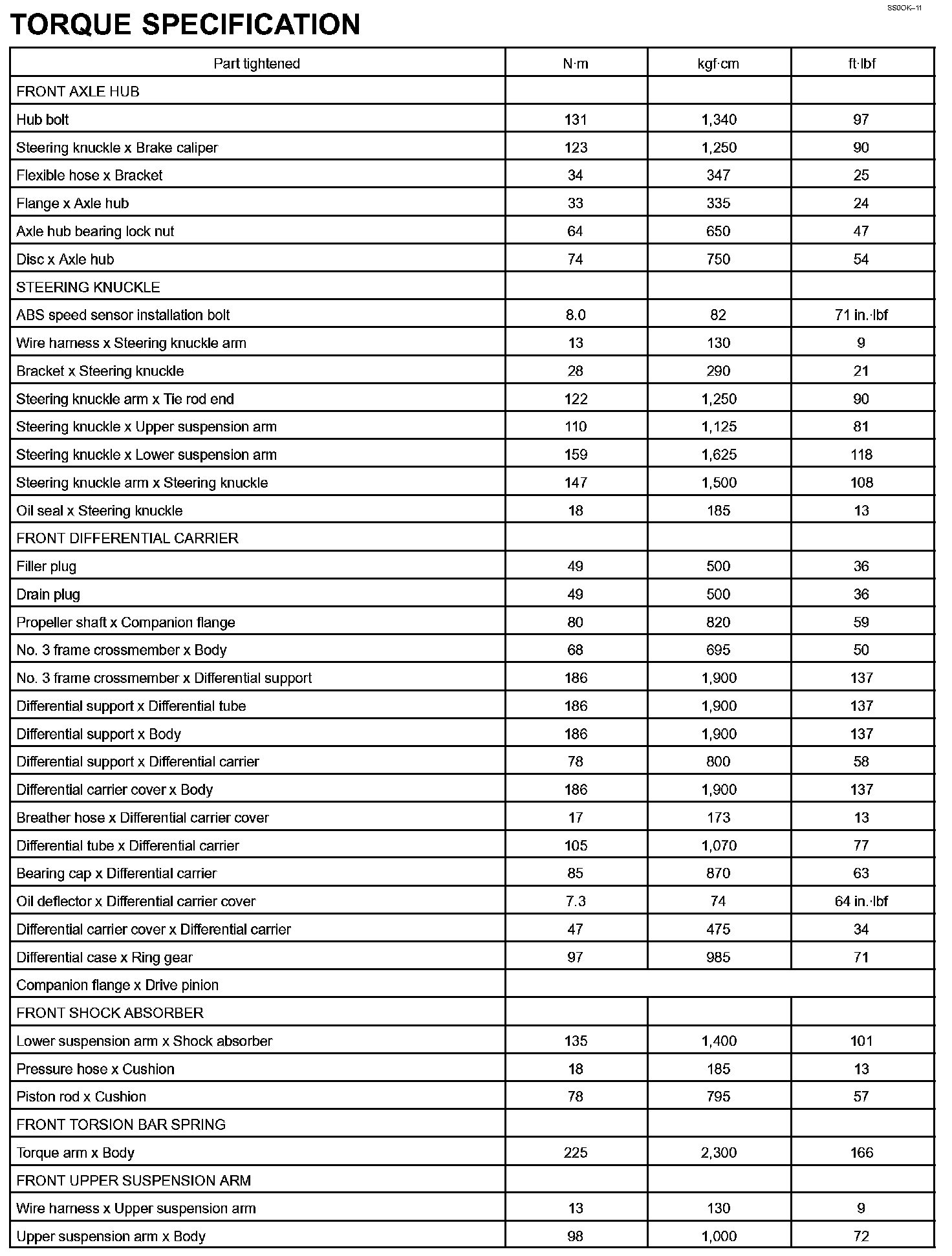

Suspension And Axle - Torque Specification Part 1:

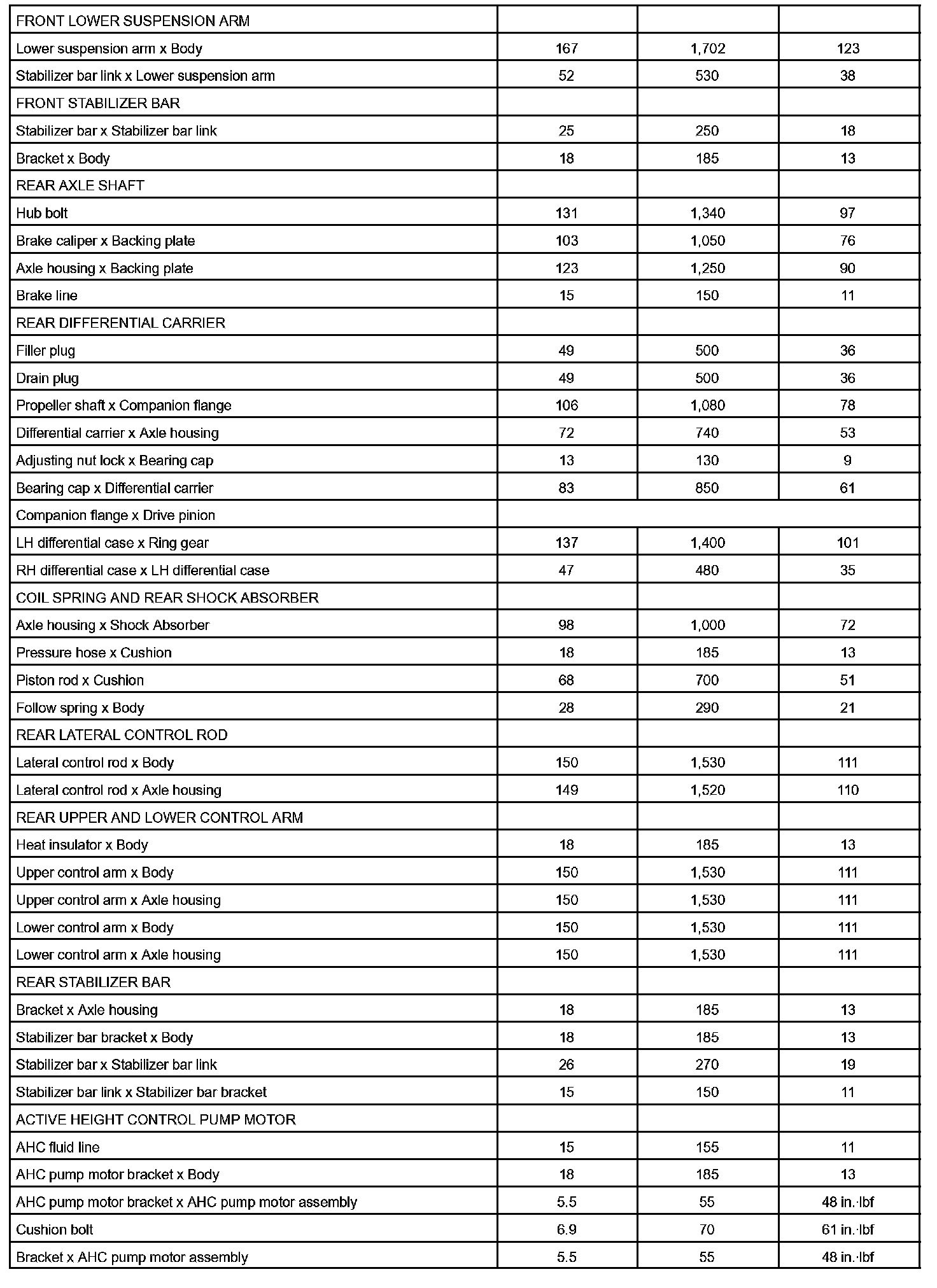

Suspension And Axle - Torque Specification Part 2:




Suspension And Axle - Torque Specification Part 3:
