System Specifications

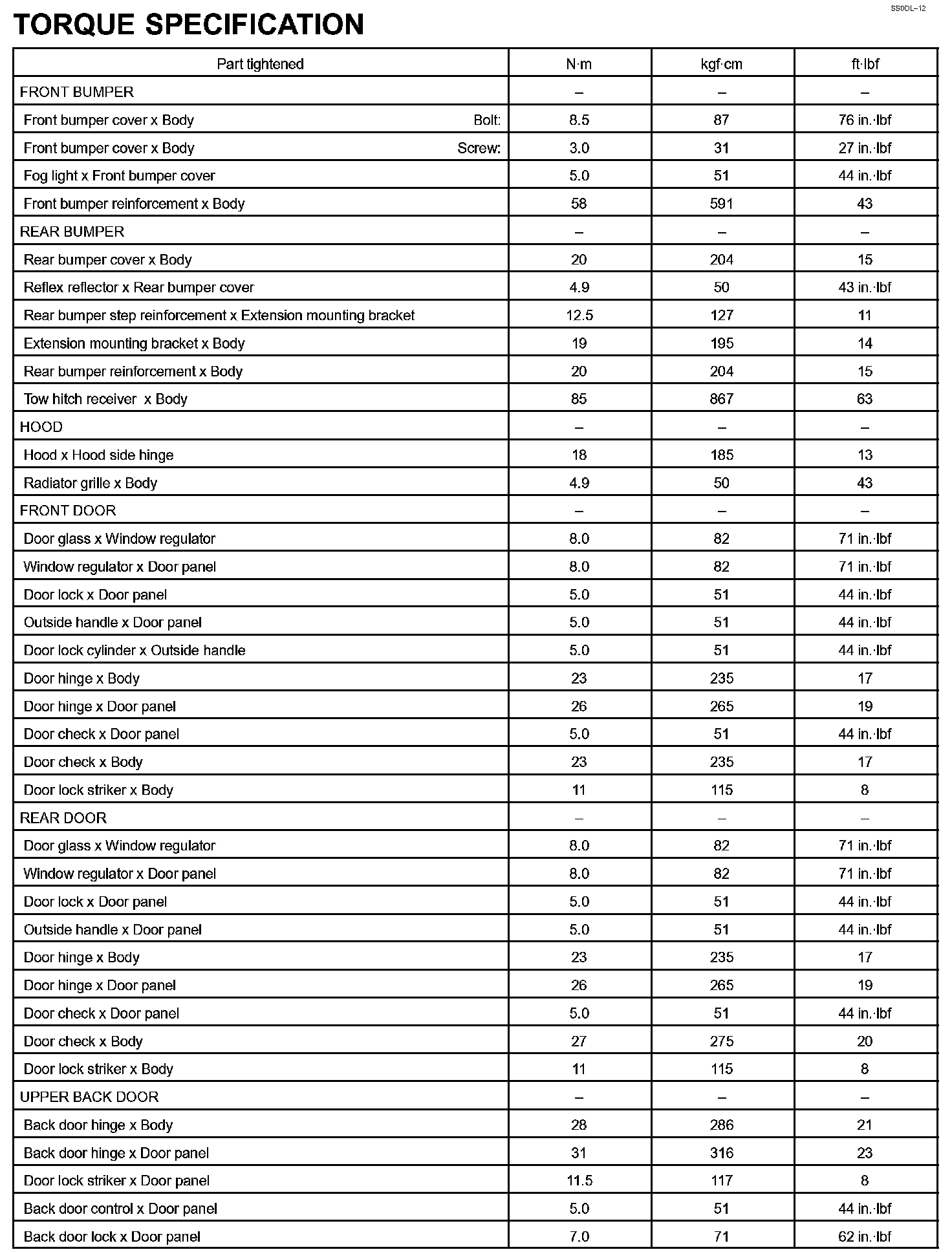

Body - Torque Specification Part 1:

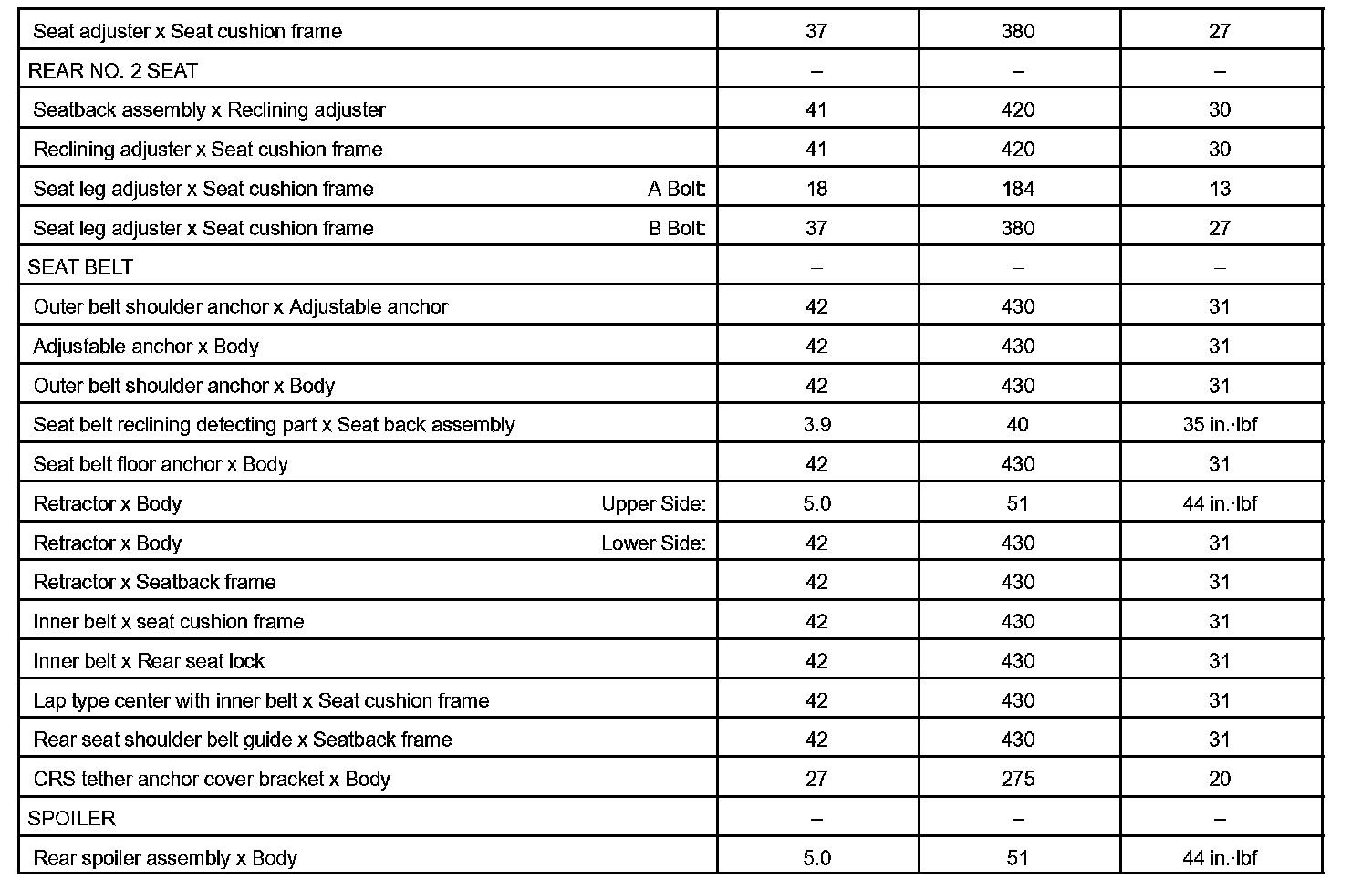

Body - Torque Specification Part 2:

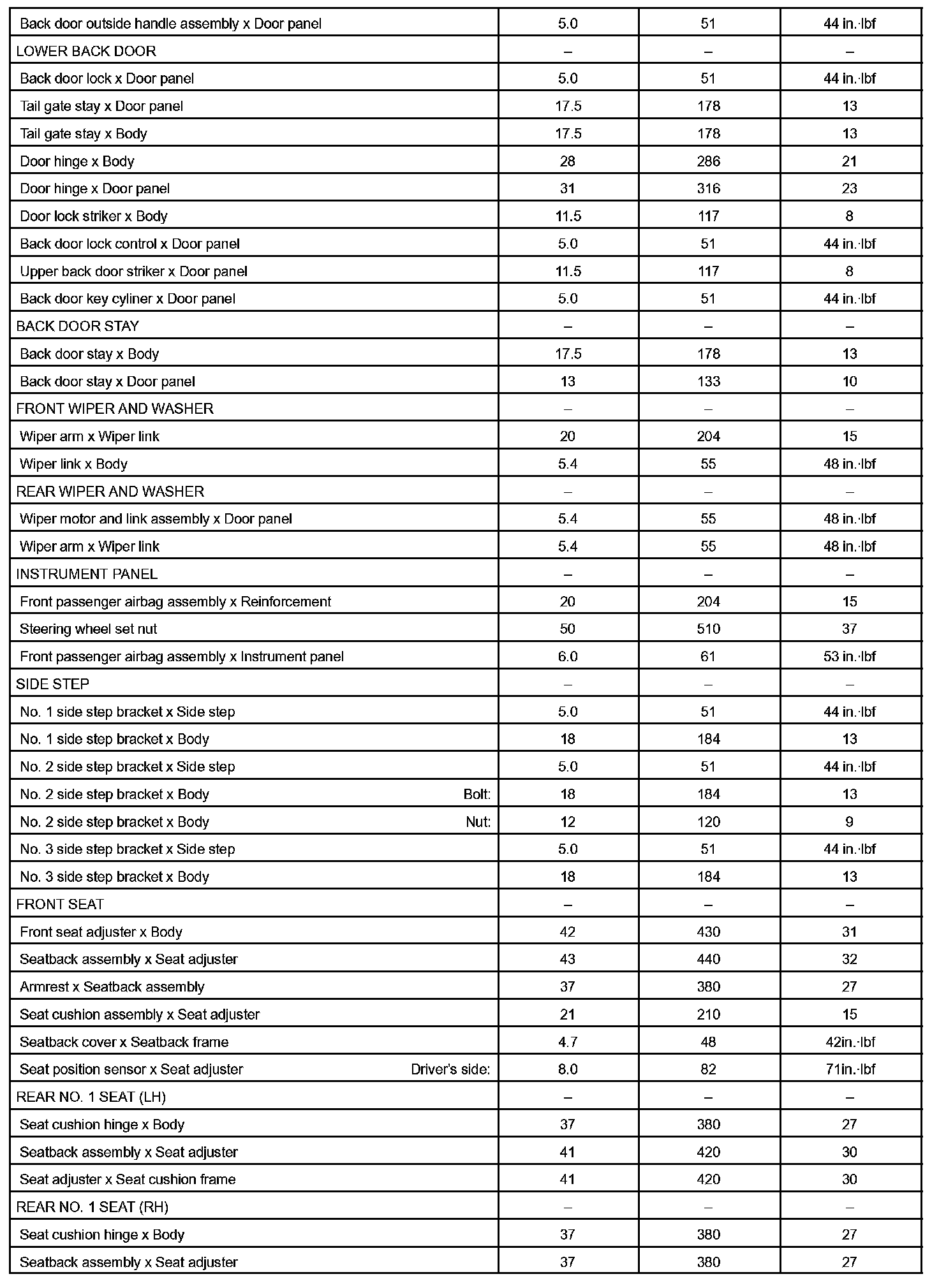

Body - Torque Specification Part 3:
