System Diagram

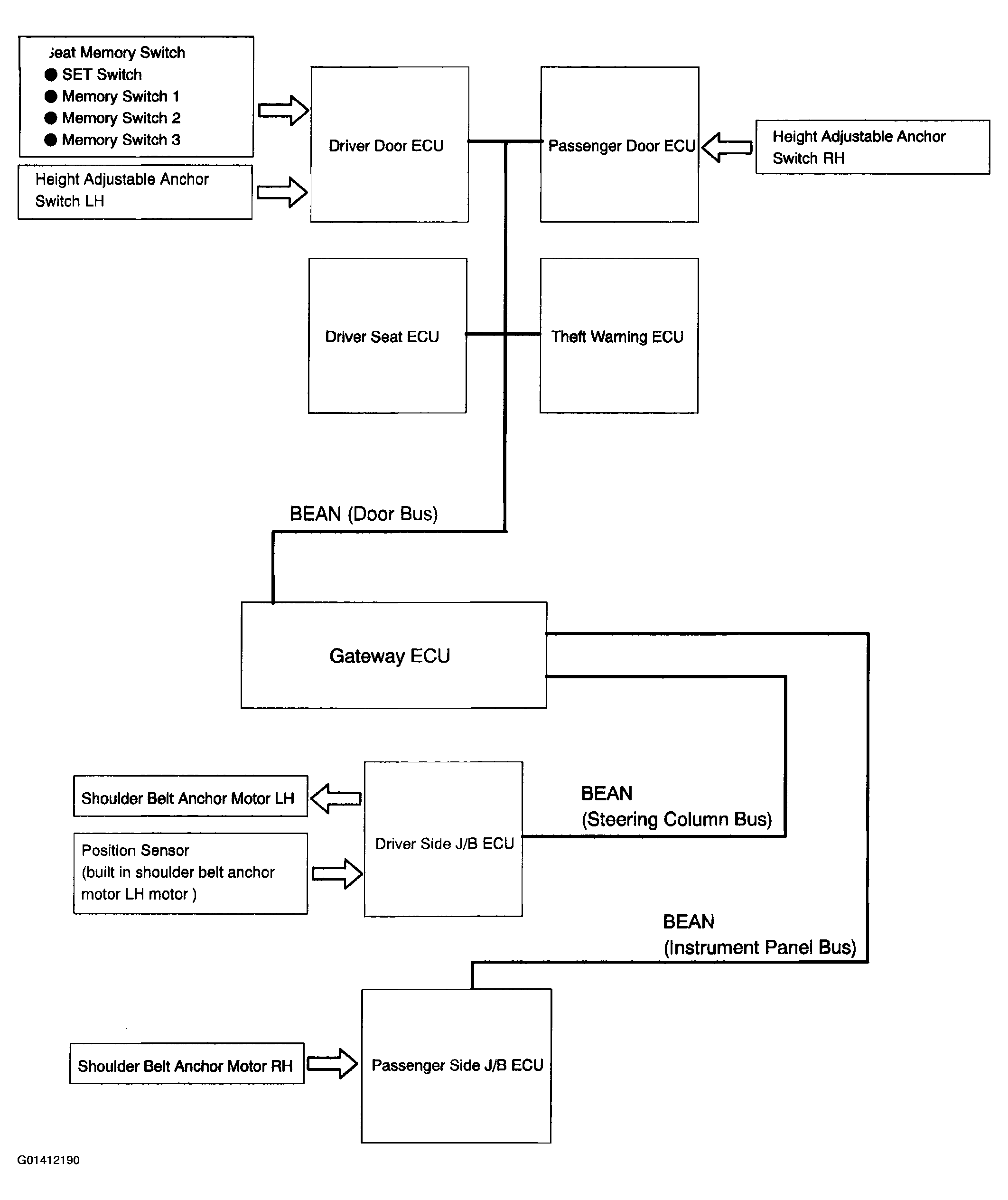

Fig 1: System Diagram
G01412190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

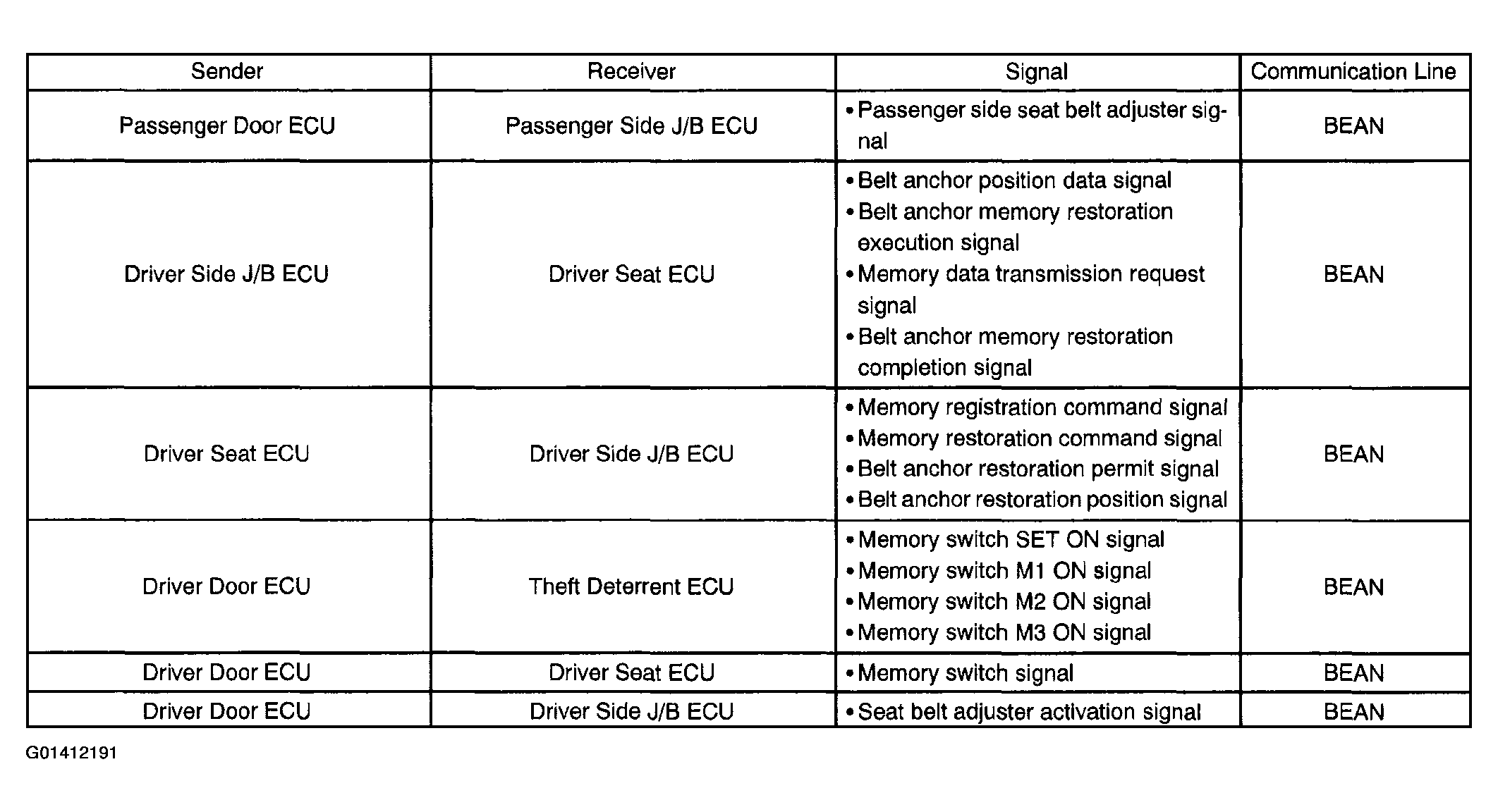

Fig 2: Power Shoulder Belt Anchorage System Description
G01412191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
