Torque Specifications

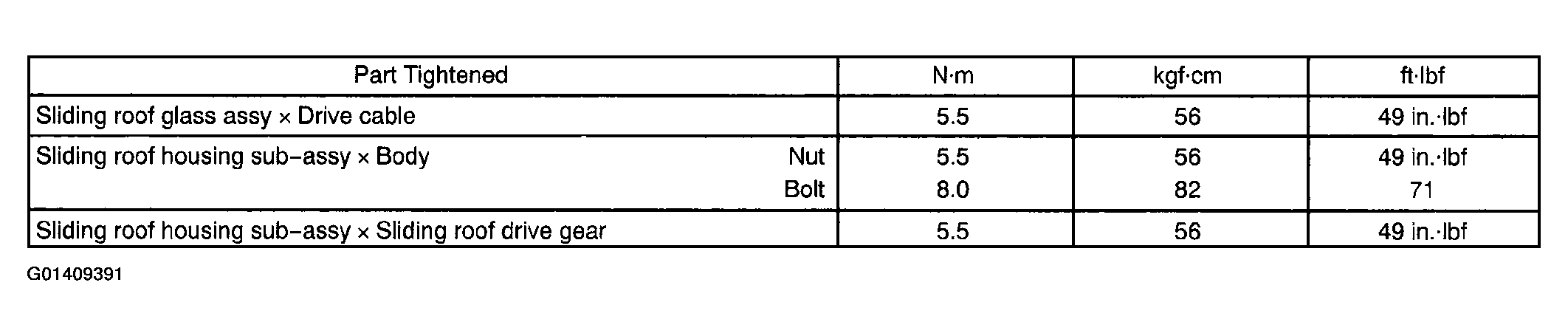

Fig 1: Sliding Roof/Convertible Torque Specifications Table
G01409391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
