System Diagram

REAR POWER SEAT
1. W/O Memory

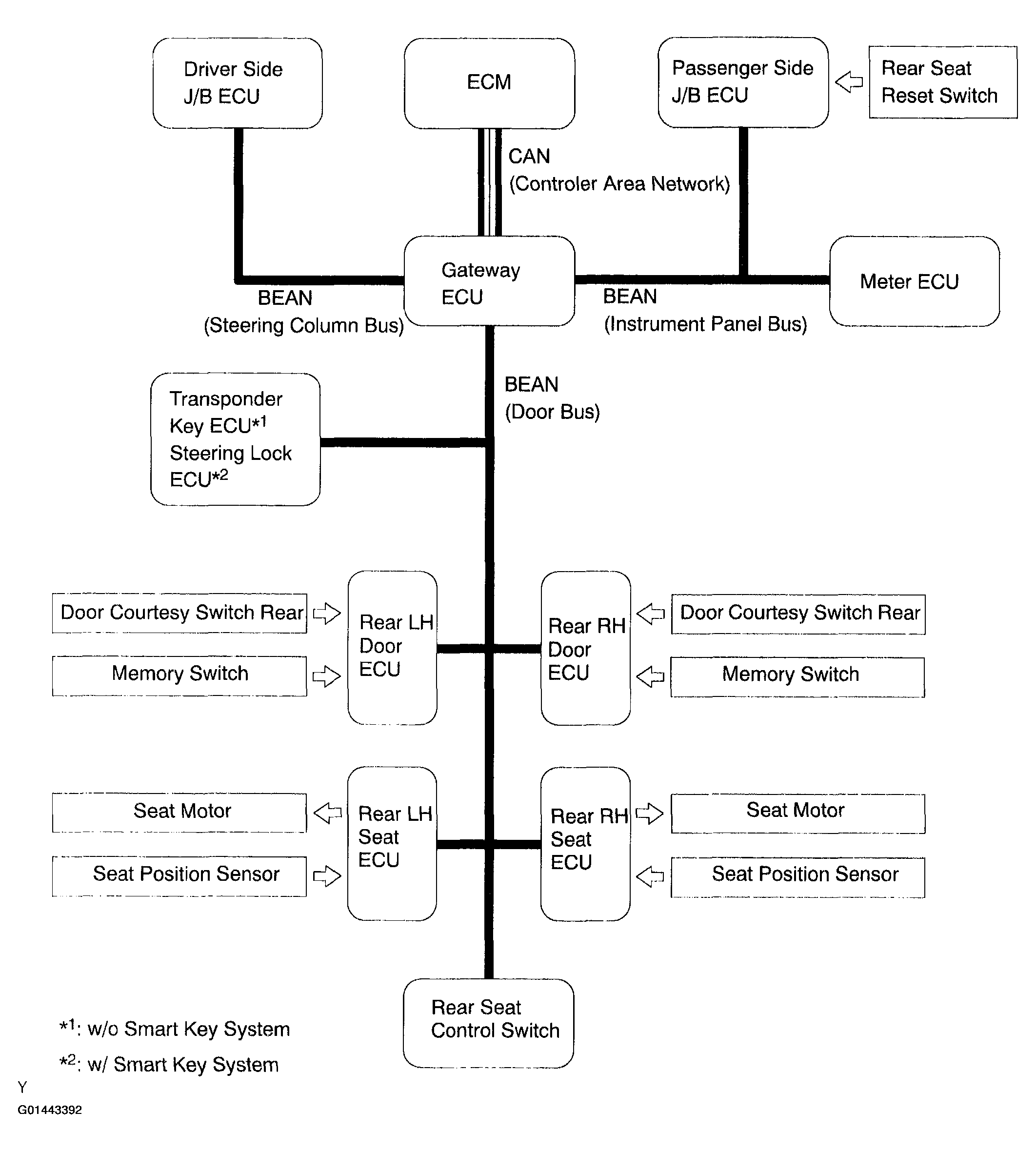

  Fig 1: System Diagram (W/O Memory)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Communication Table

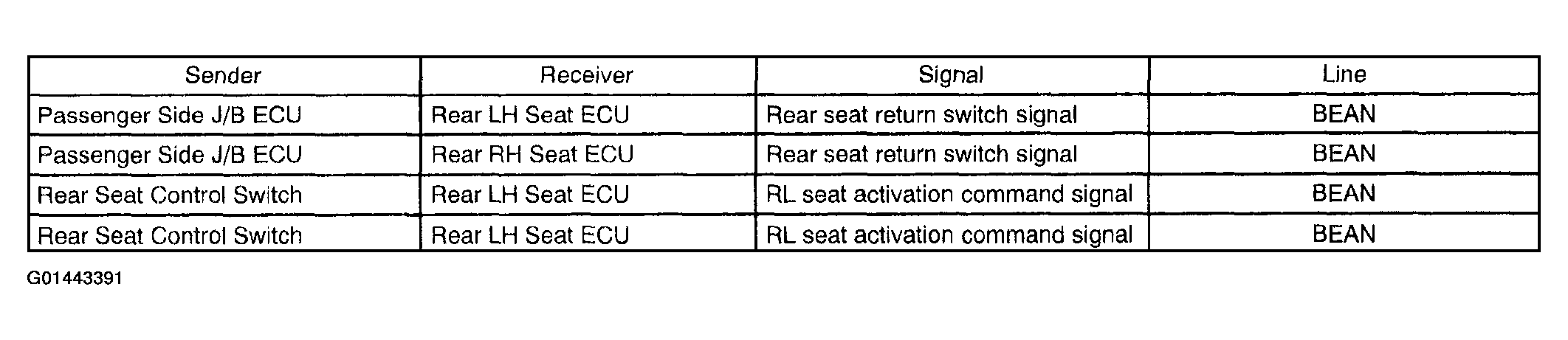

  Fig 2: Communication Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Memory

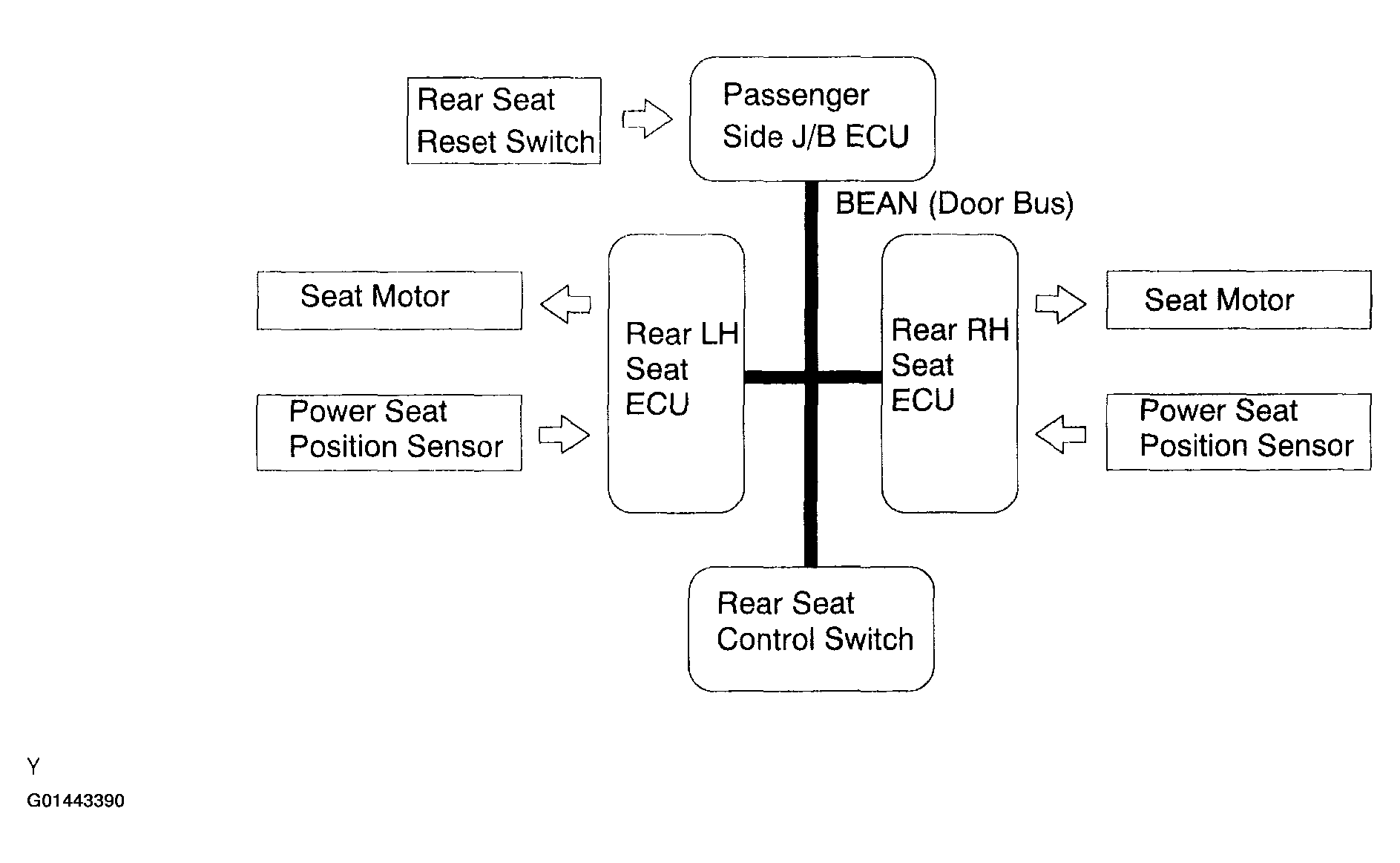

  Fig 3: System Diagram (W/ Memory)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

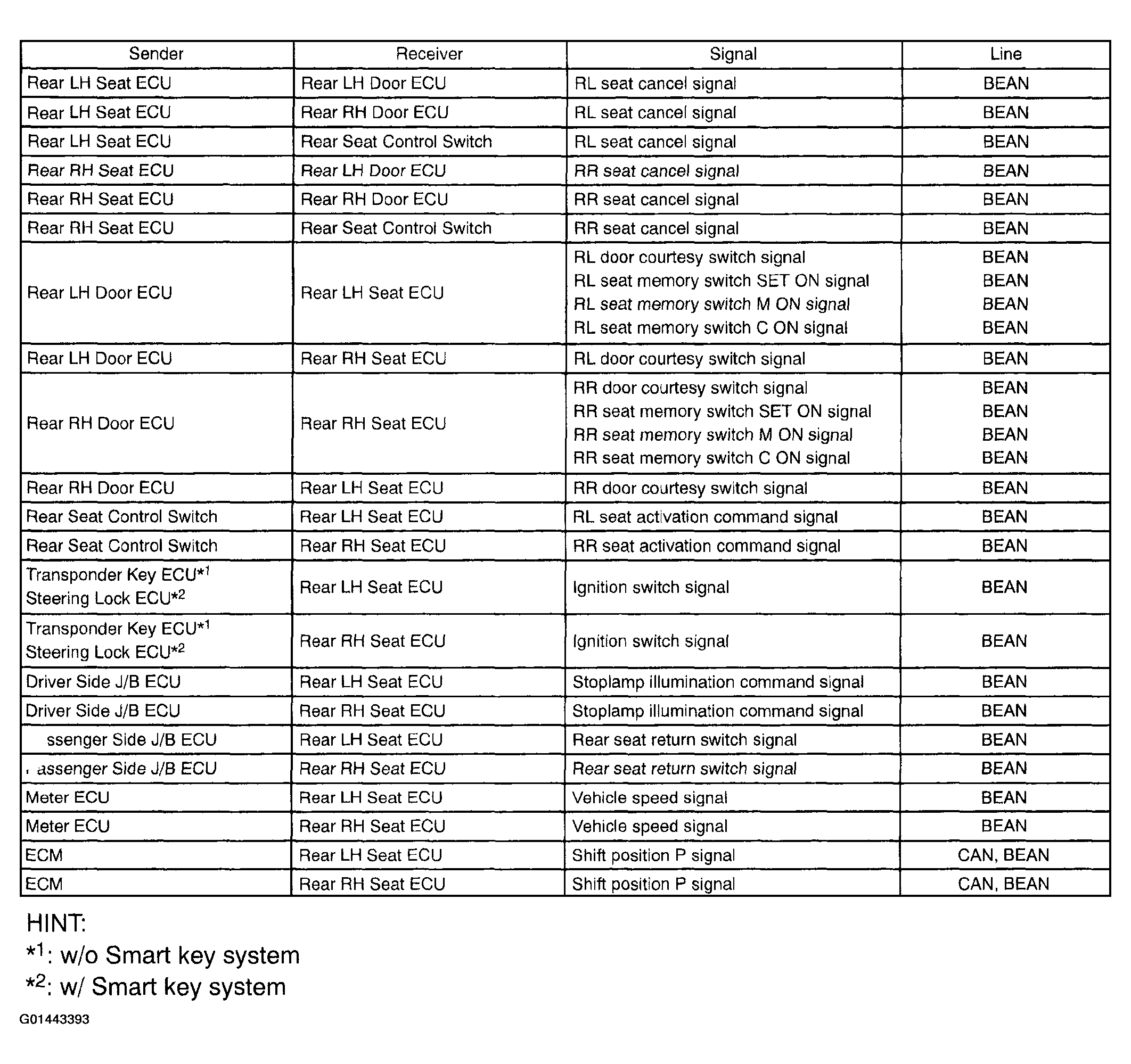

Fig 4: Communication Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEAT VIBRATOR

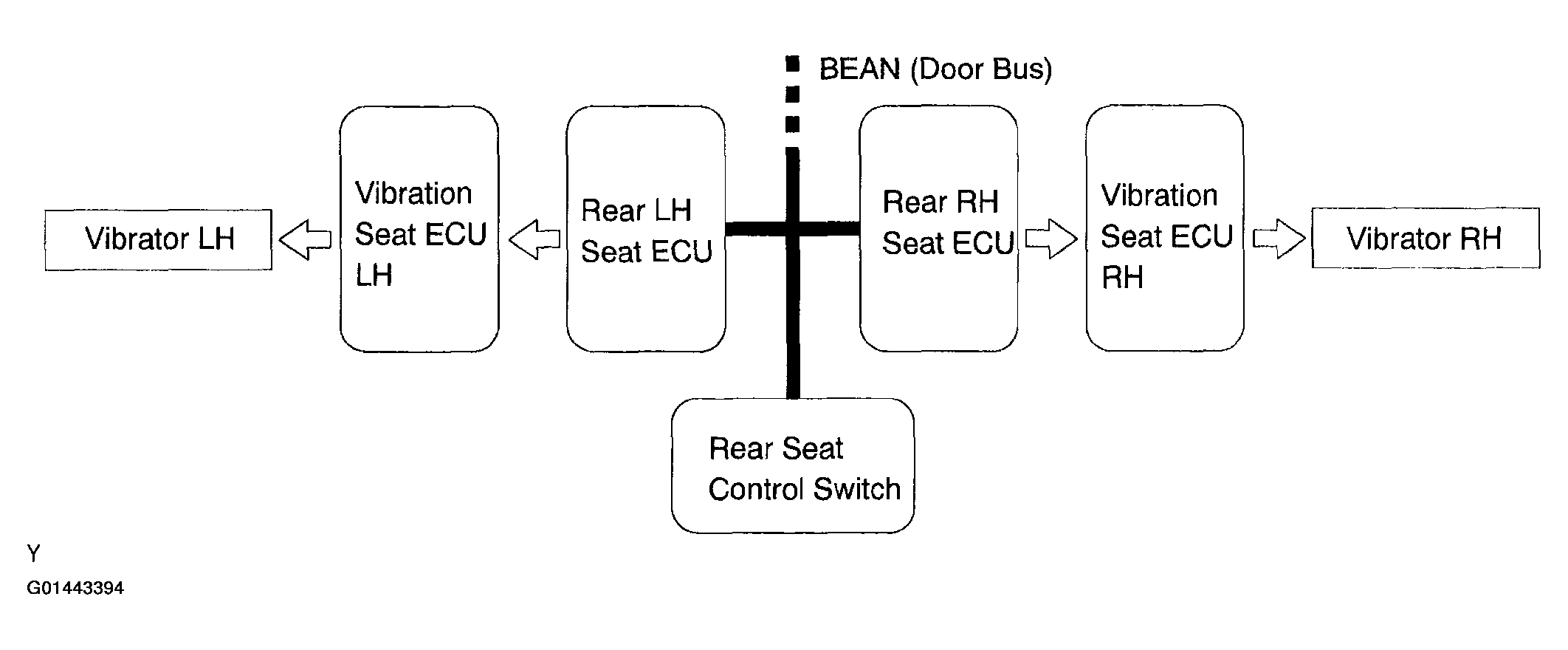

Fig 5: Seat Vibrator System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

Fig 6: Communication Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
