Position Sensor Circuit: Wiring Diagram

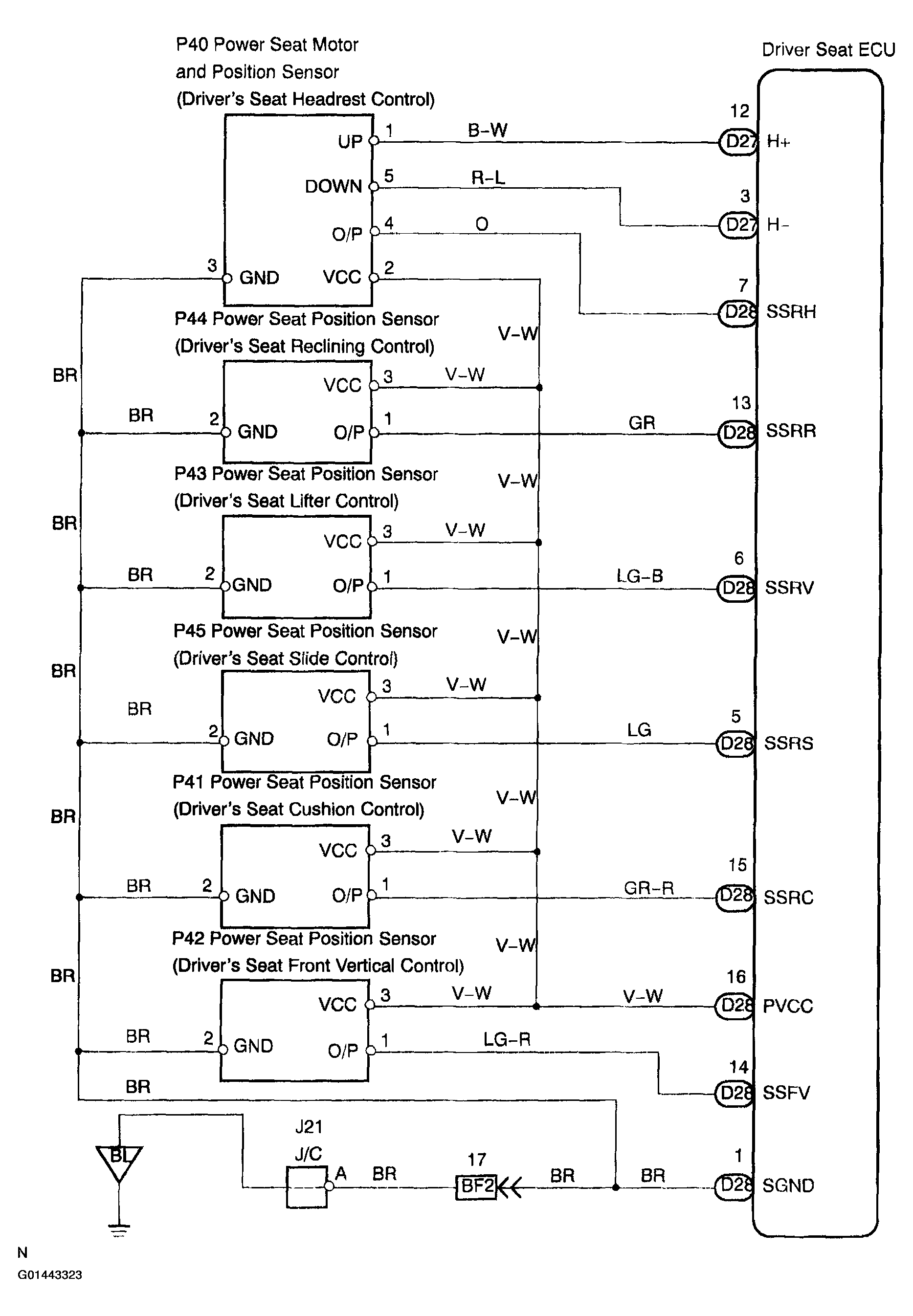

Fig 1: Position Sensor Circuit - Wiring Diagram
G01443323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
