Torque Specifications

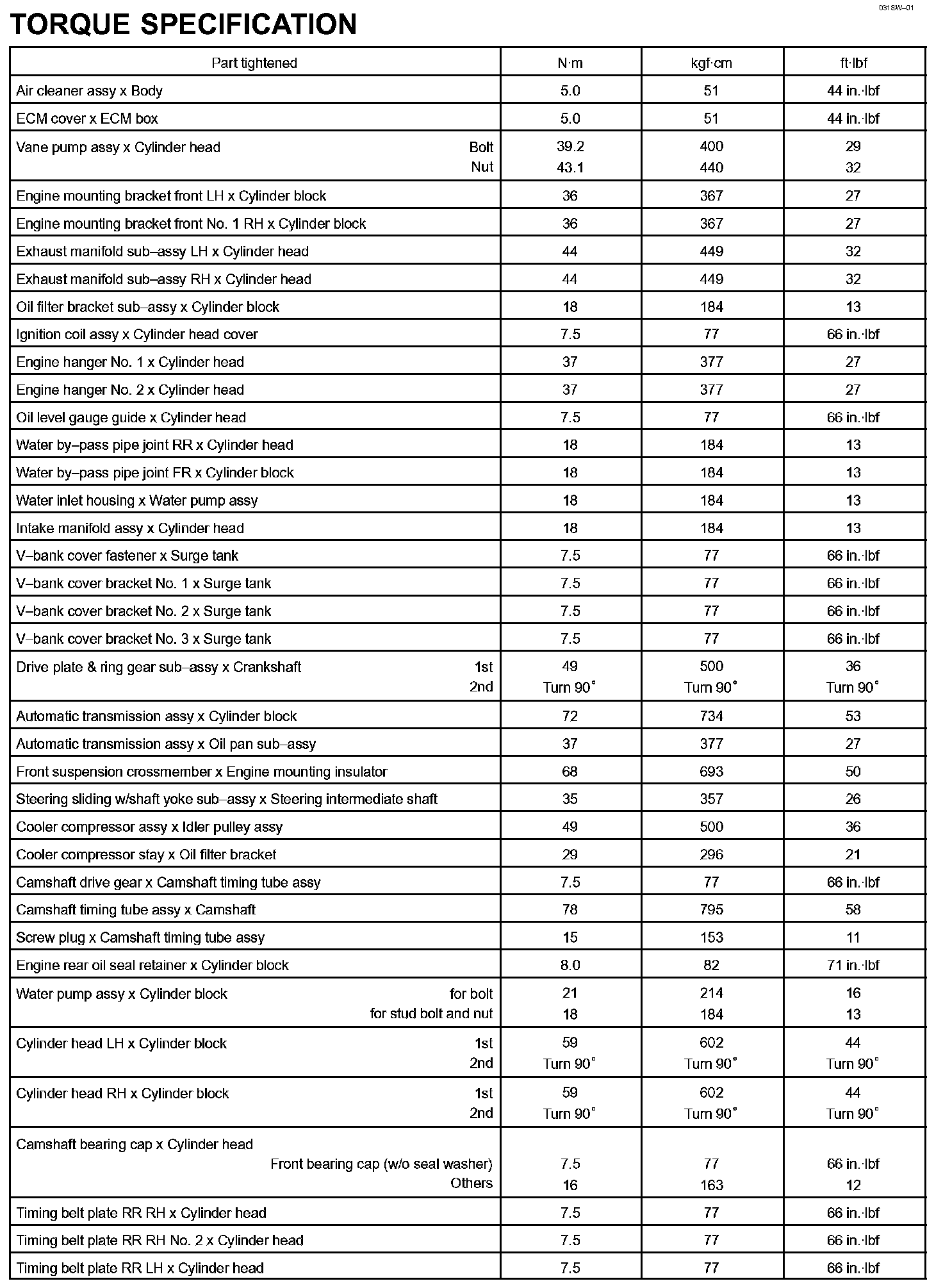

Engine Mechanical - Torque Specification Part 1:

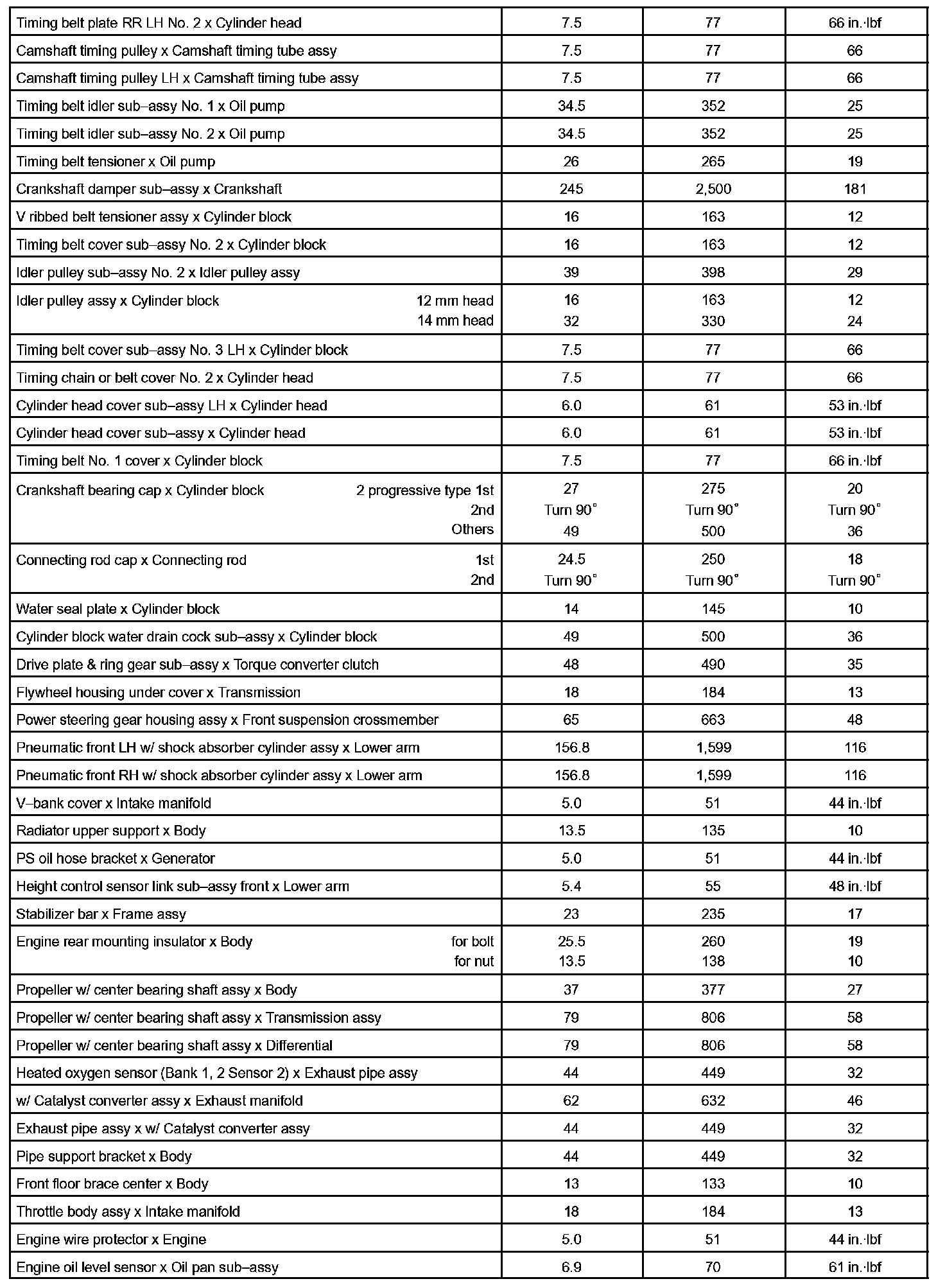

Engine Mechanical - Torque Specification Part 2:




Engine Mechanical - Torque Specification Part 3:




Intake - Torque Specification:
