Multiplex Communication System

TERMINALS OF ECU

Terminals Of ECU/Pinouts:

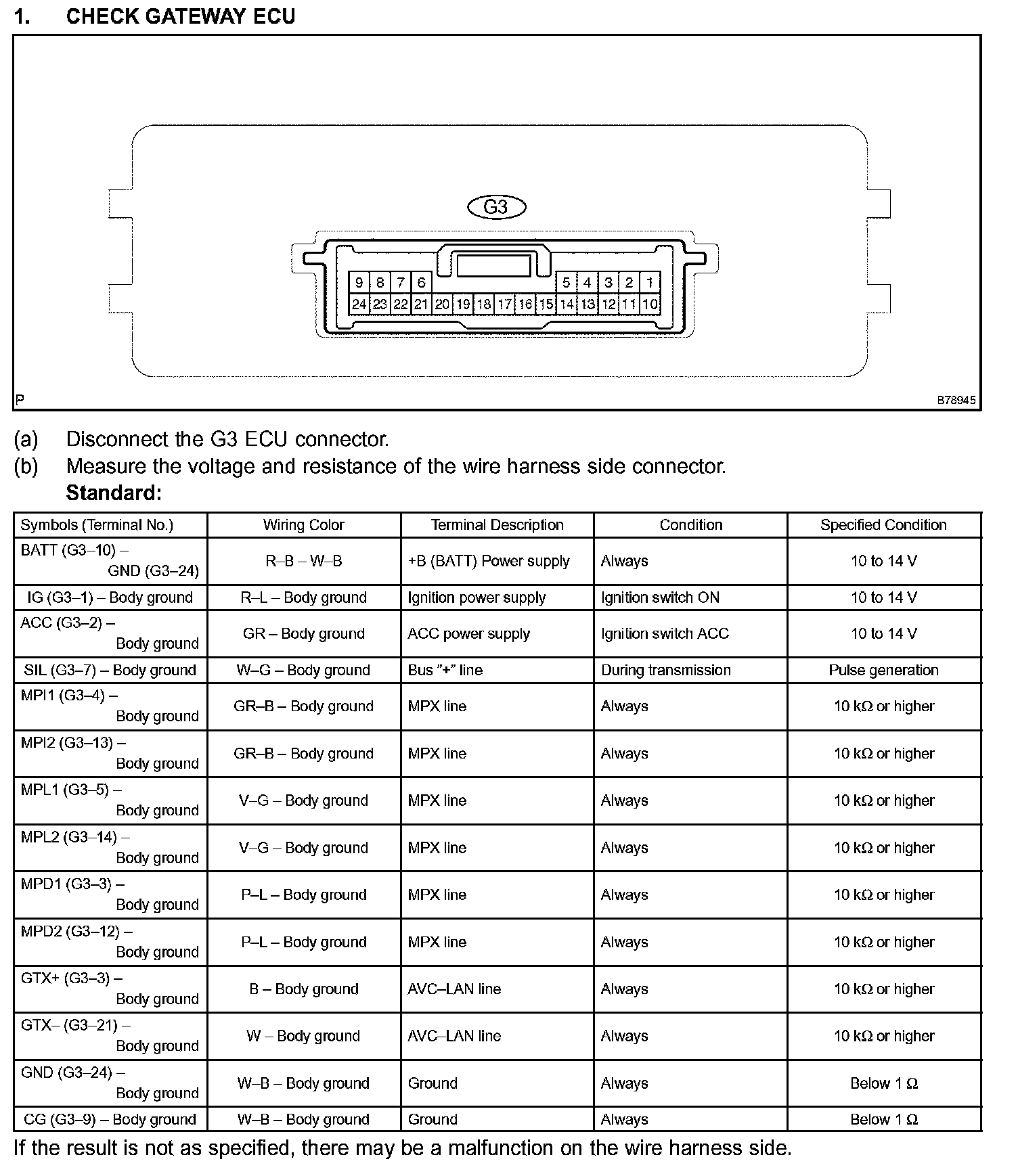

1. CHECK GATEWAY ECU

Terminals Of ECU/Pinouts:

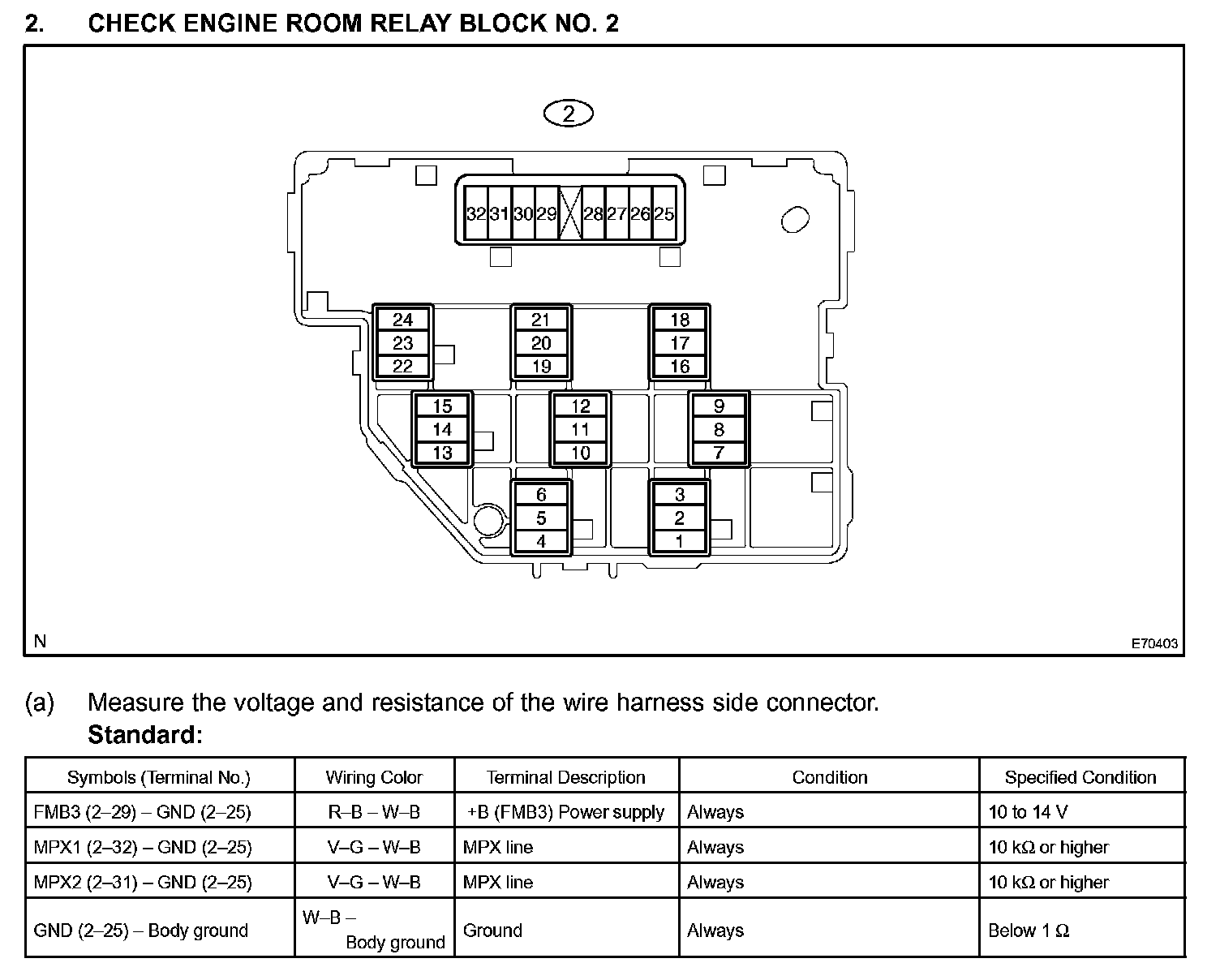

2. CHECK ENGINE ROOM RELAY BLOCK NO. 2

Terminals Of ECU/Pinouts:

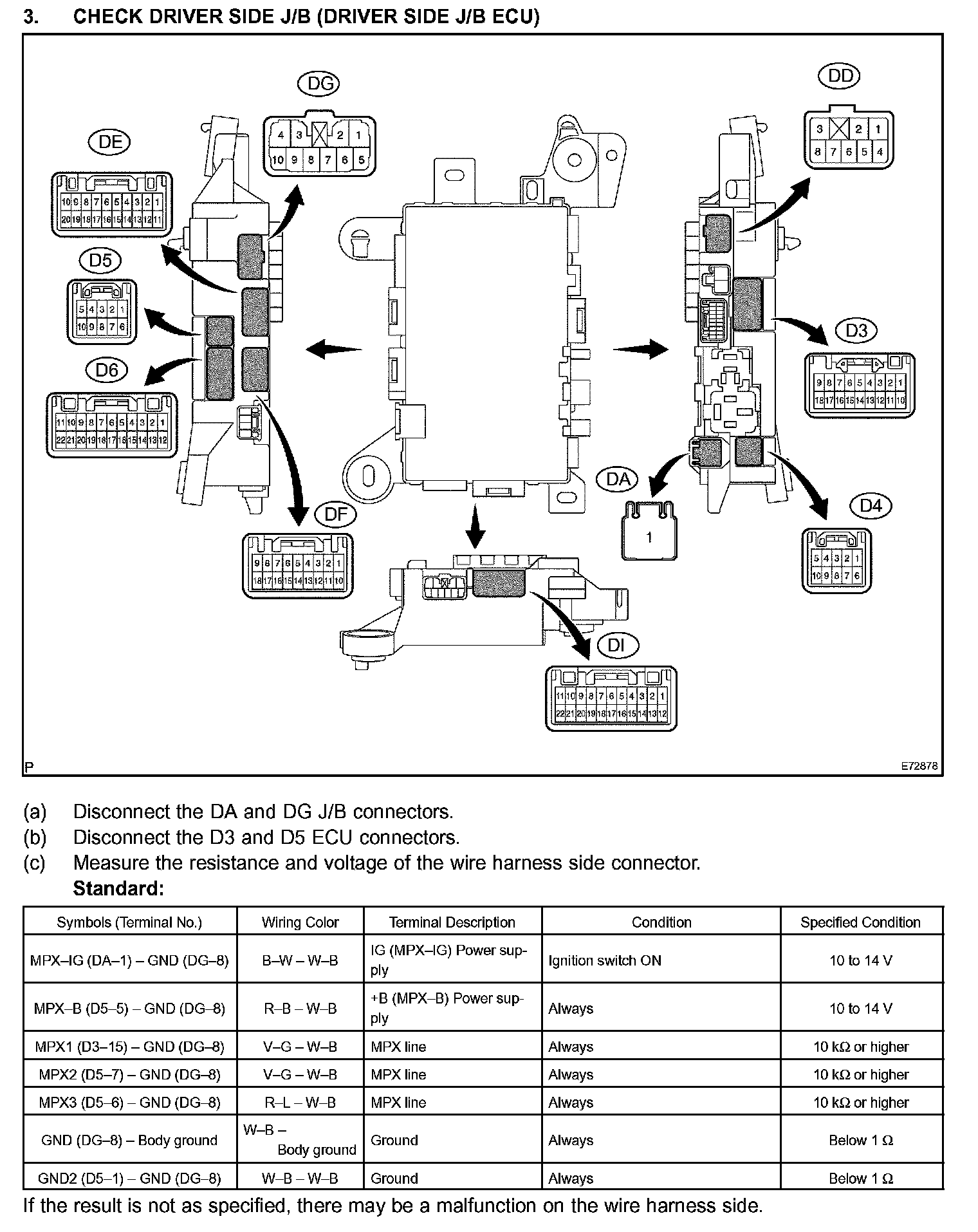

3. CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

Terminals Of ECU/Pinouts:

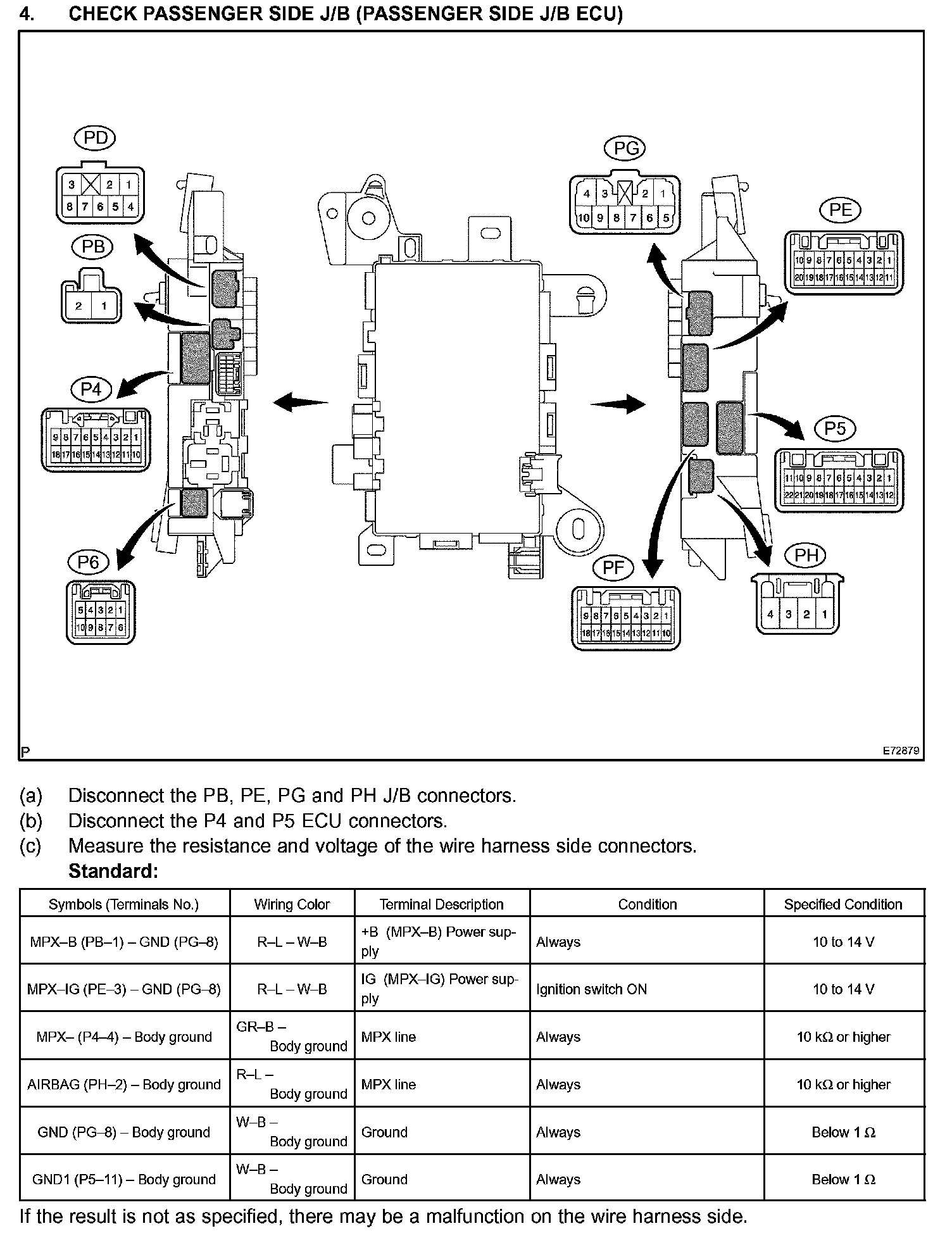

4. CHECK PASSENGER SIDE J/B (PASSENGER SIDE J/B ECU)

Terminals Of ECU/Pinouts:

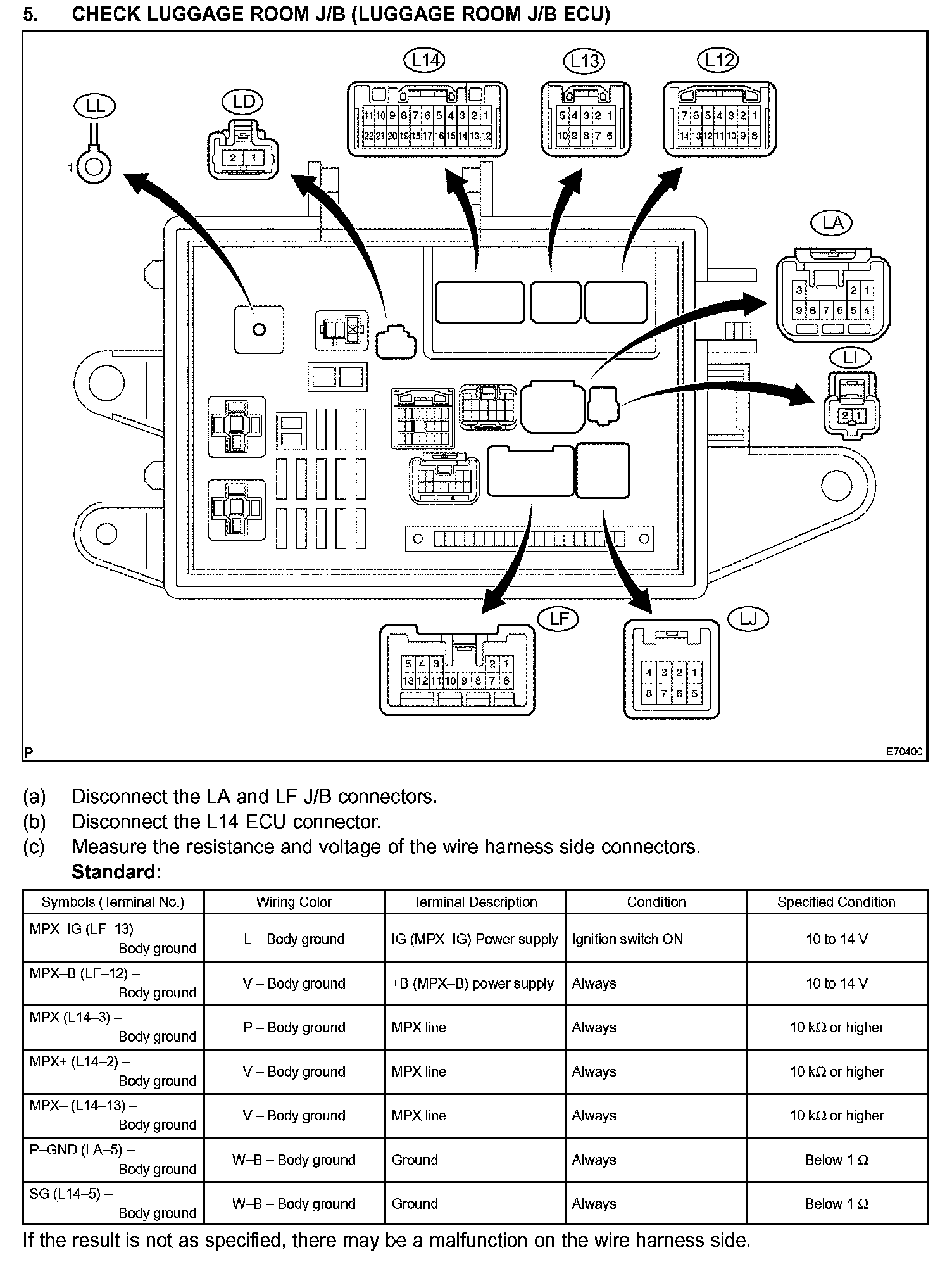

5. CHECK LUGGAGE ROOM J/B (LUGGAGE ROOM J/B ECU)

Terminals Of ECU/Pinouts:

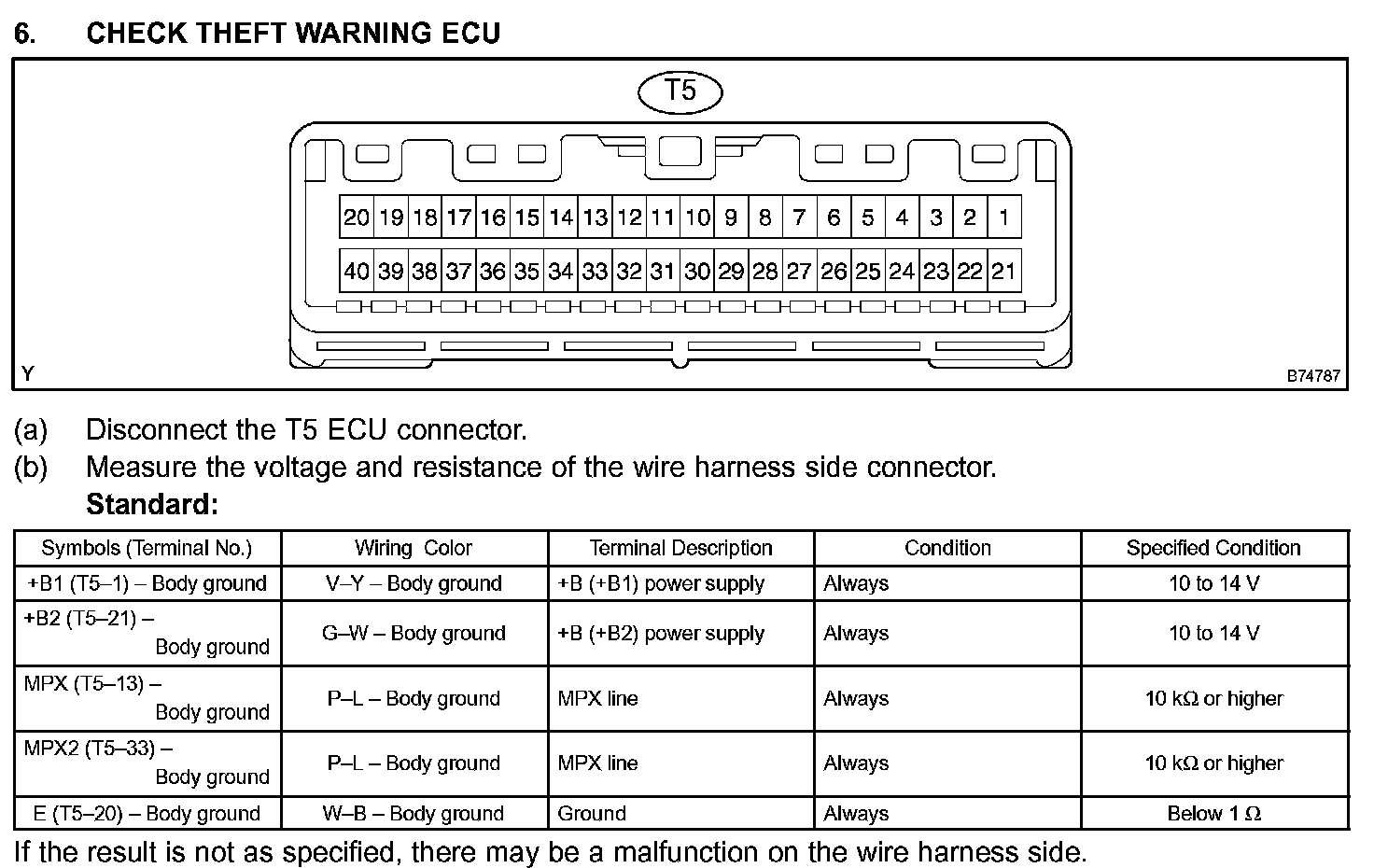

6. CHECK THEFT WARNING ECU

Terminals Of ECU/Pinouts Part 1:

Terminals Of ECU/Pinouts Part 2:

7. CHECK TRANSPONDER KEY ECU (WITHOUT SMART KEY SYSTEM)

Terminals Of ECU/Pinouts:

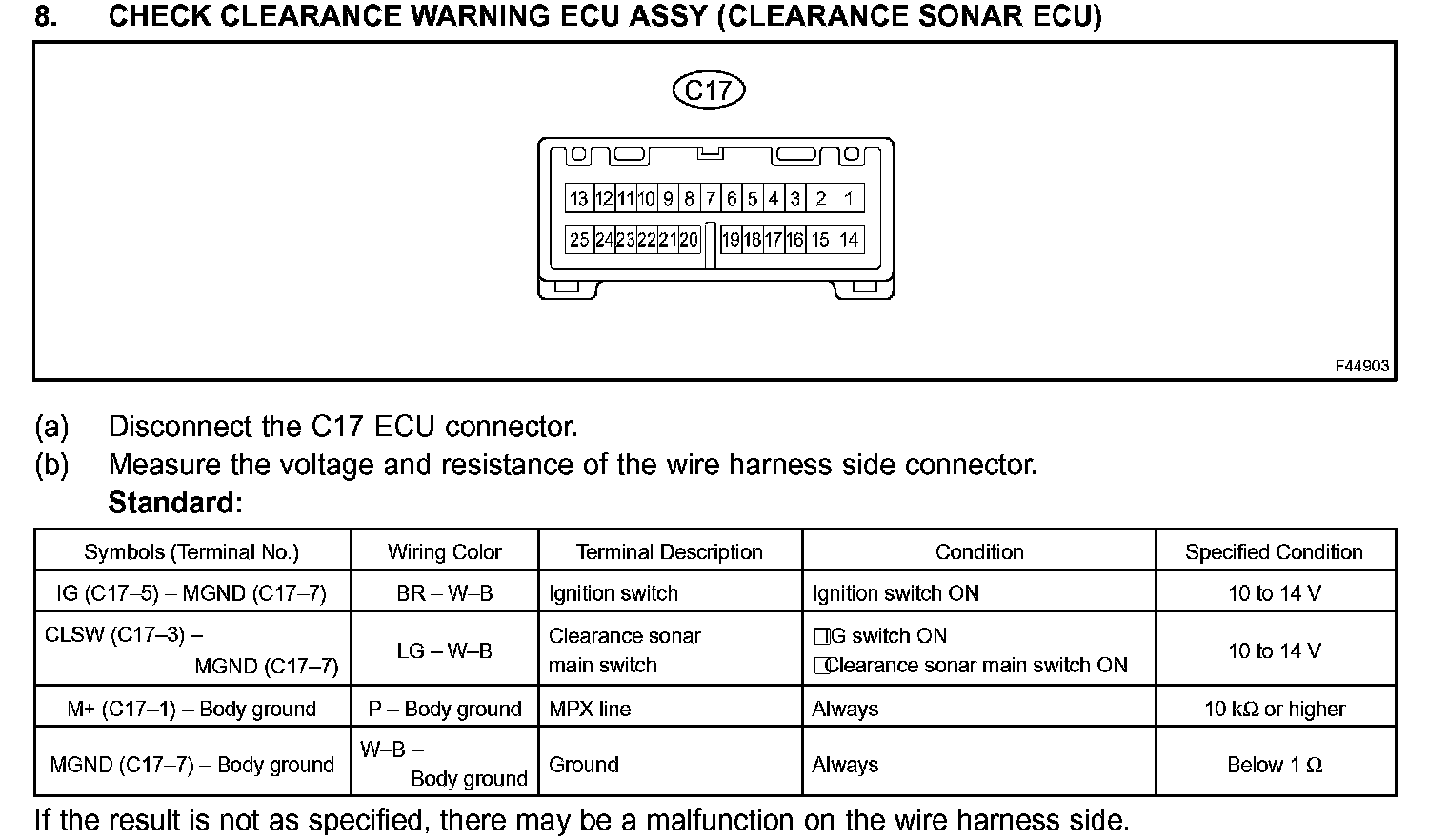

8. CHECK CLEARANCE WARNING ECU ASSY (CLEARANCE SONAR ECU)

Terminals Of ECU/Pinouts:

9. CHECK ACCESSORY BUS BUFFER

Terminals Of ECU/Pinouts:

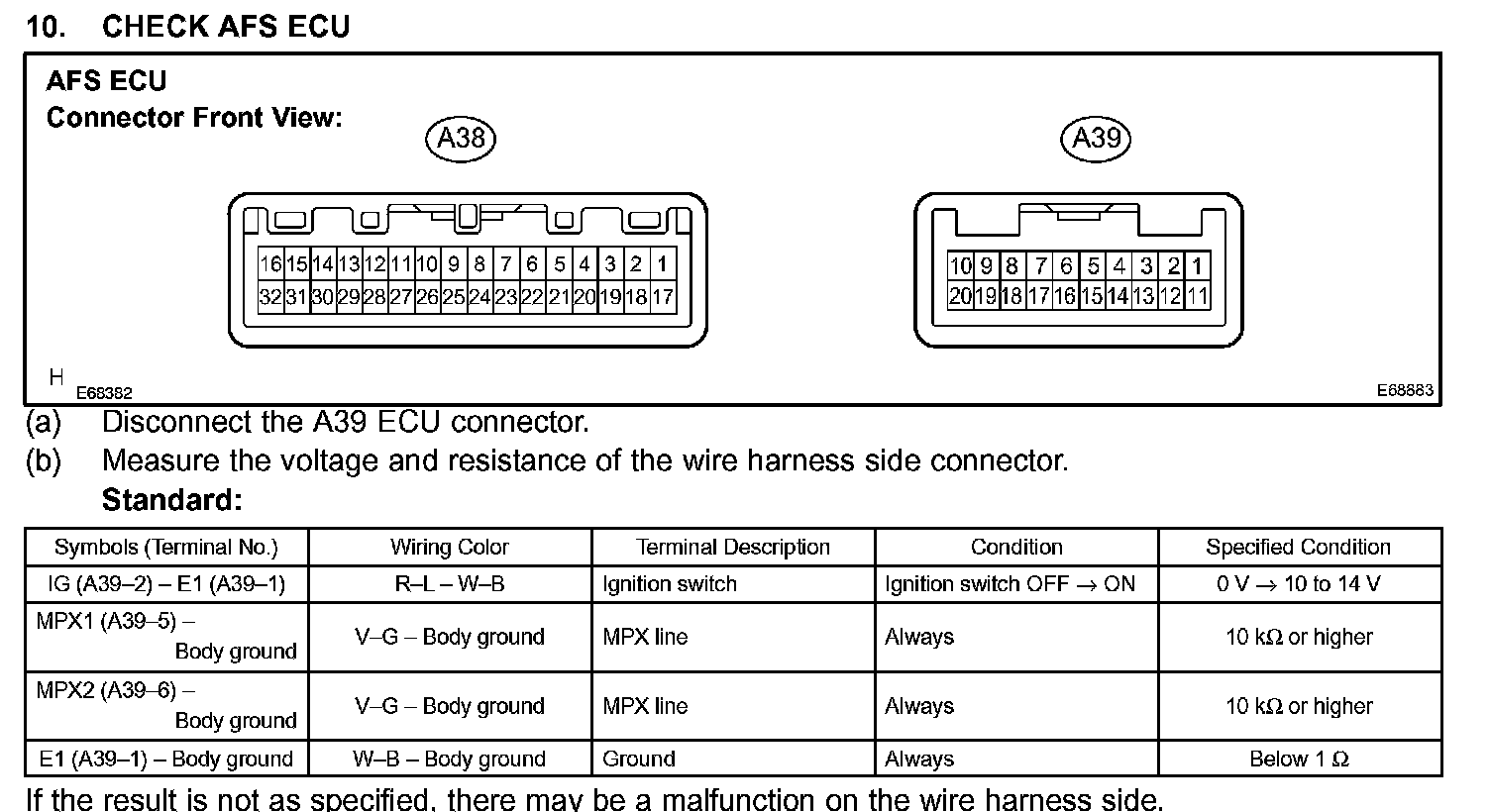

10. CHECK AFS ECU

Terminals Of ECU/Pinouts:

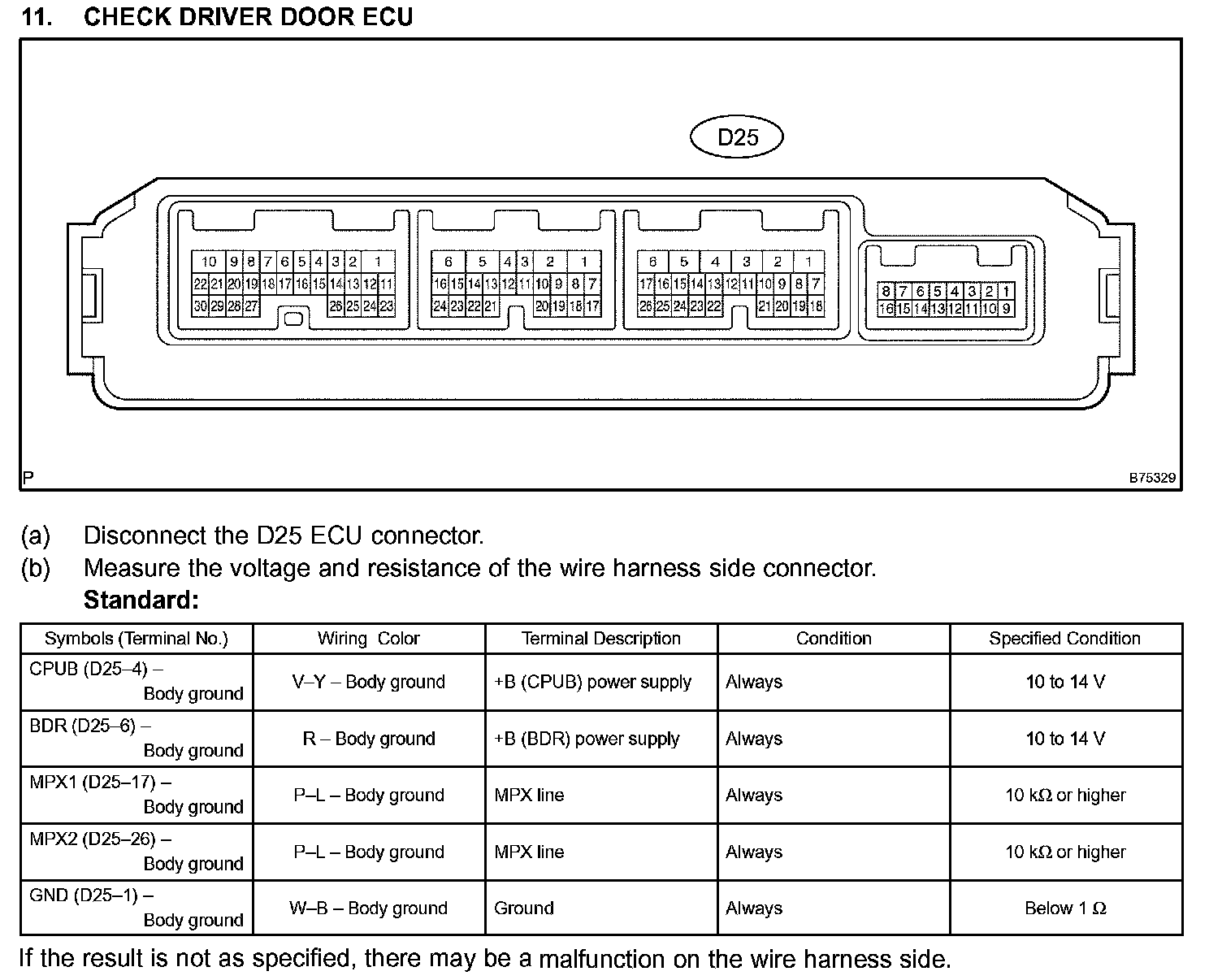

11. CHECK DRIVER DOOR ECU

Terminals Of ECU/Pinouts:

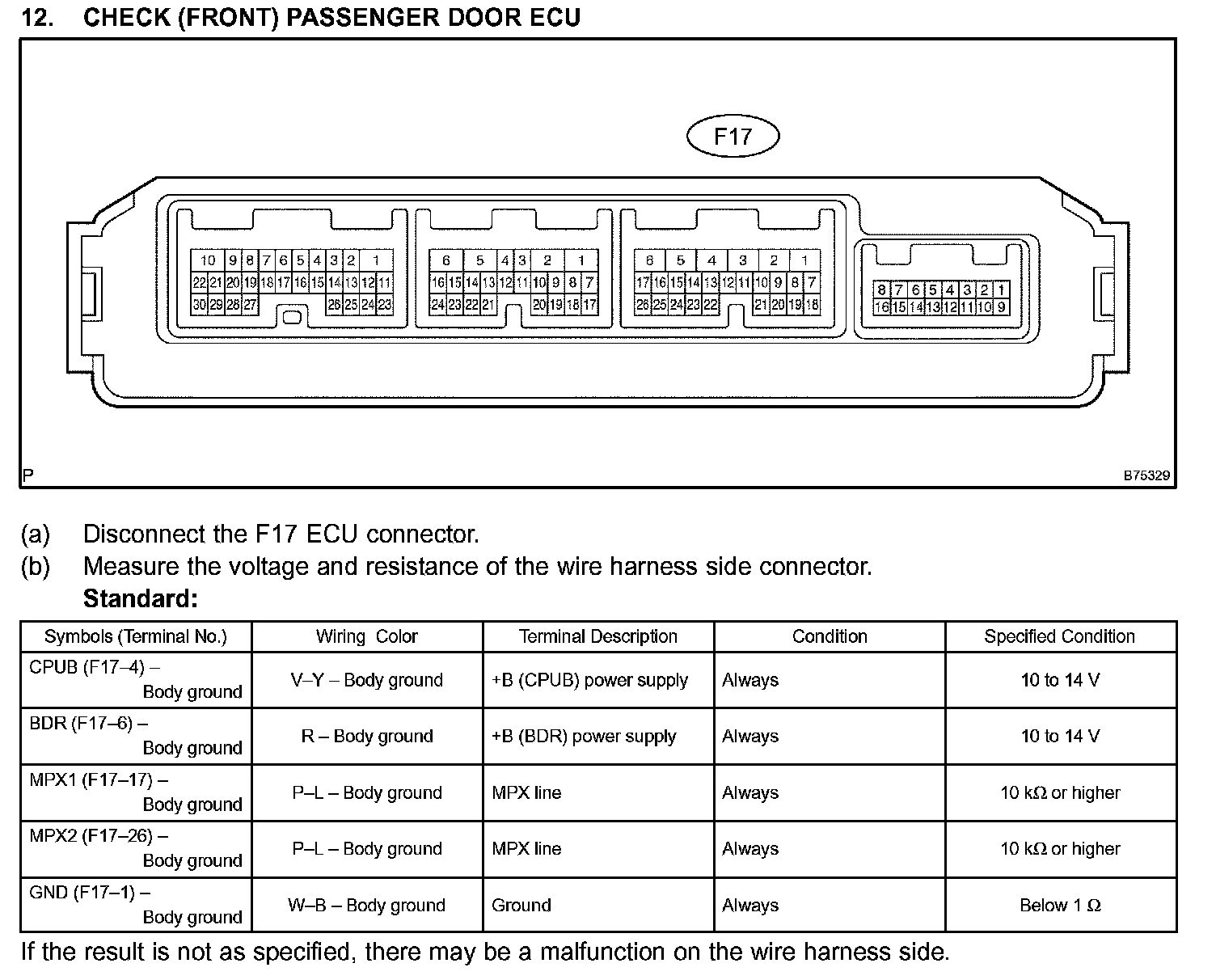

12. CHECK (FRONT) PASSENGER DOOR ECU

Terminals Of ECU/Pinouts:

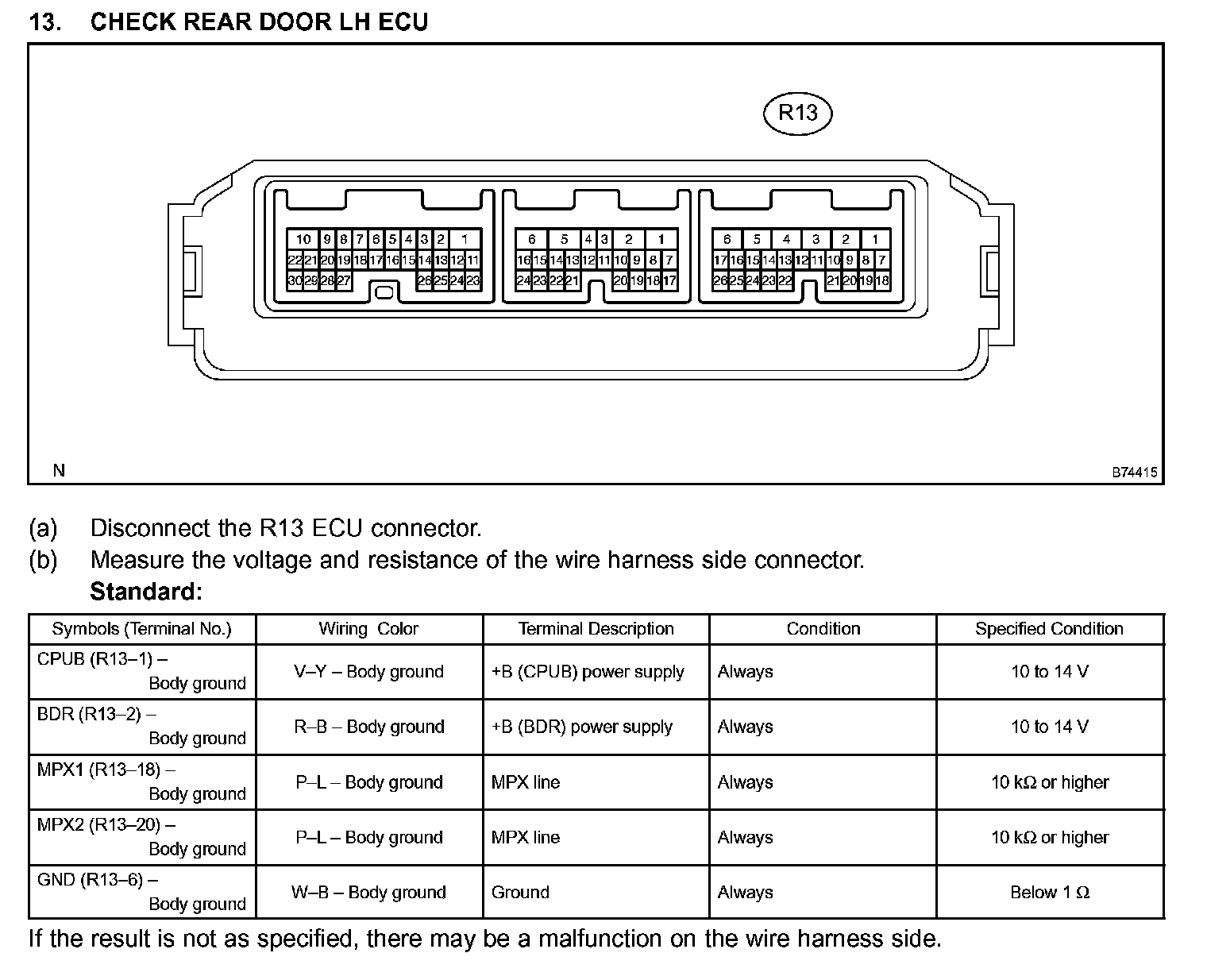

13. CHECK REAR DOOR LH ECU

Terminals Of ECU/Pinouts:

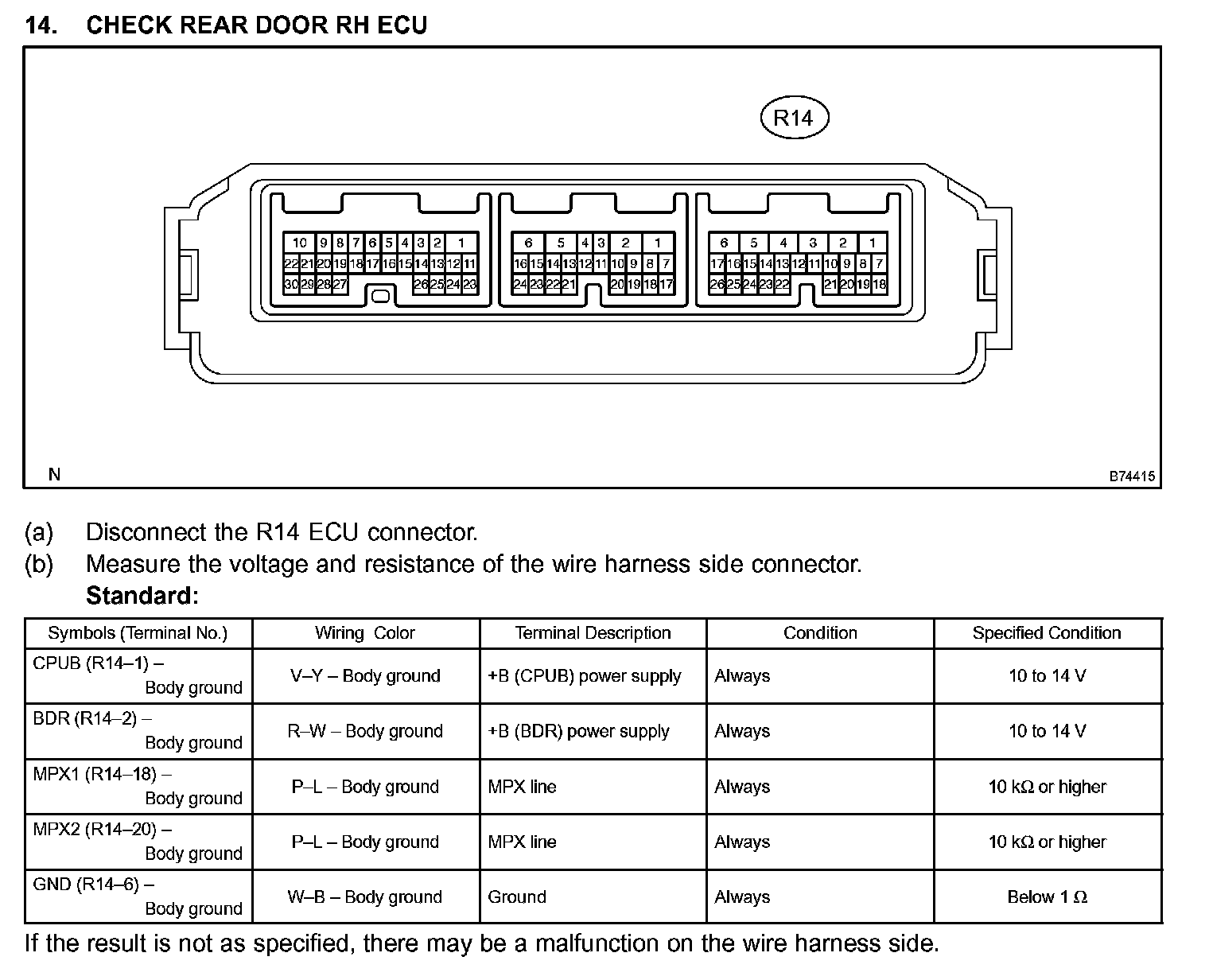

14. CHECK REAR DOOR RH ECU

Terminals Of ECU/Pinouts:

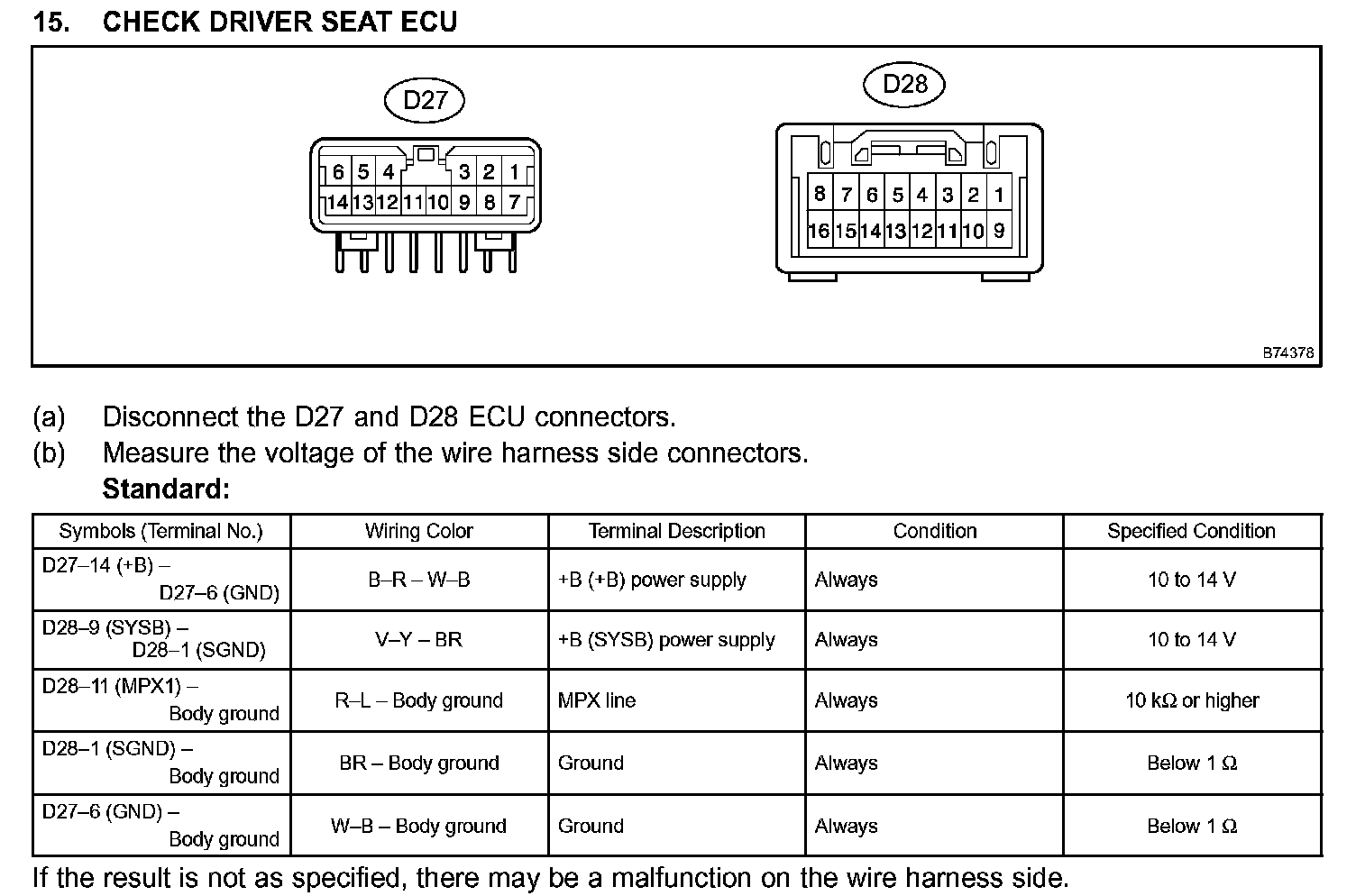

15. CHECK DRIVER SEAT ECU

Terminals Of ECU/Pinouts Part 1:

Terminals Of ECU/Pinouts Part 2:

16. CHECK REAR LH SEAT ECU

Terminals Of ECU/Pinouts:

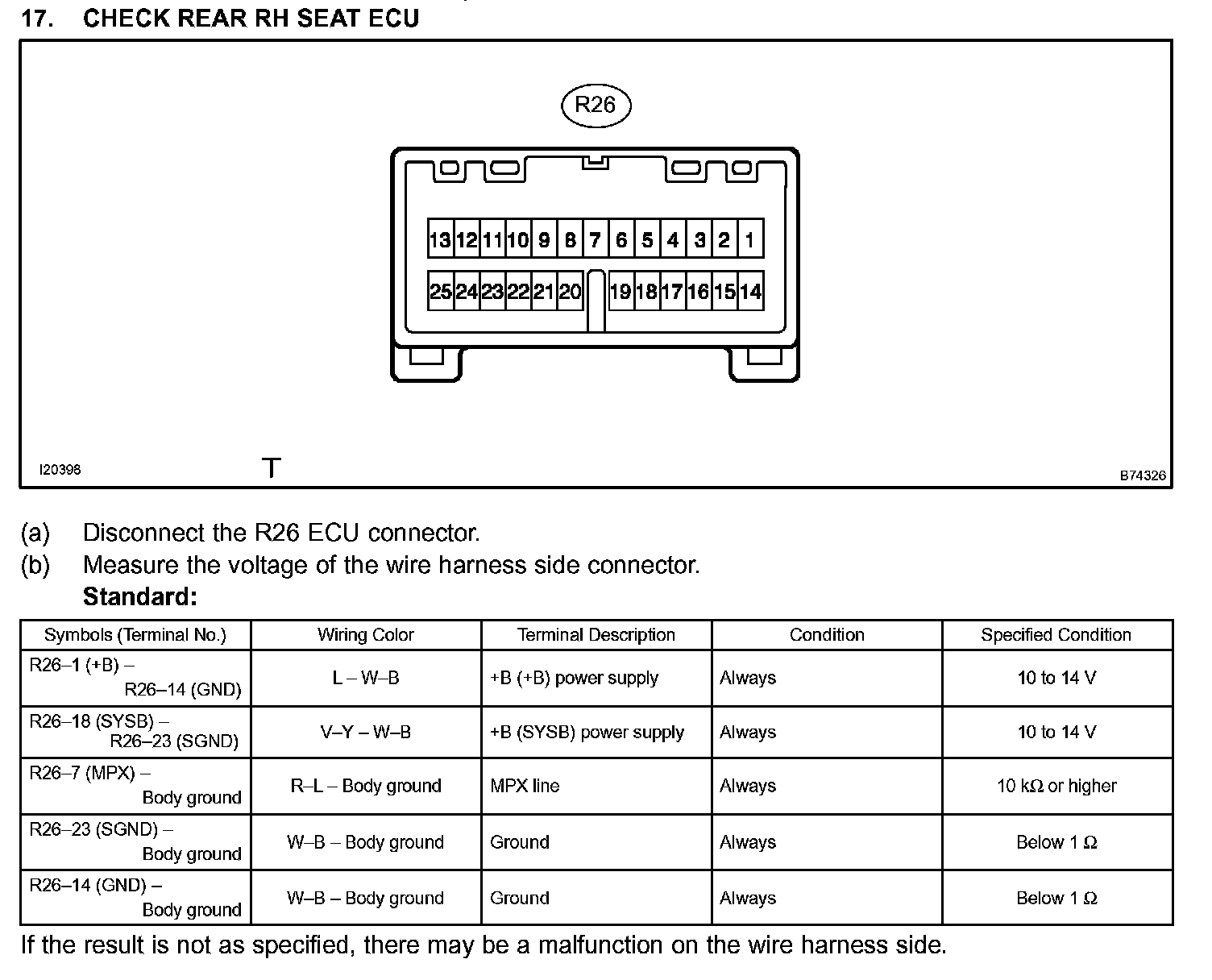

17. CHECK REAR RH SEAT ECU

Terminals Of ECU/Pinouts:

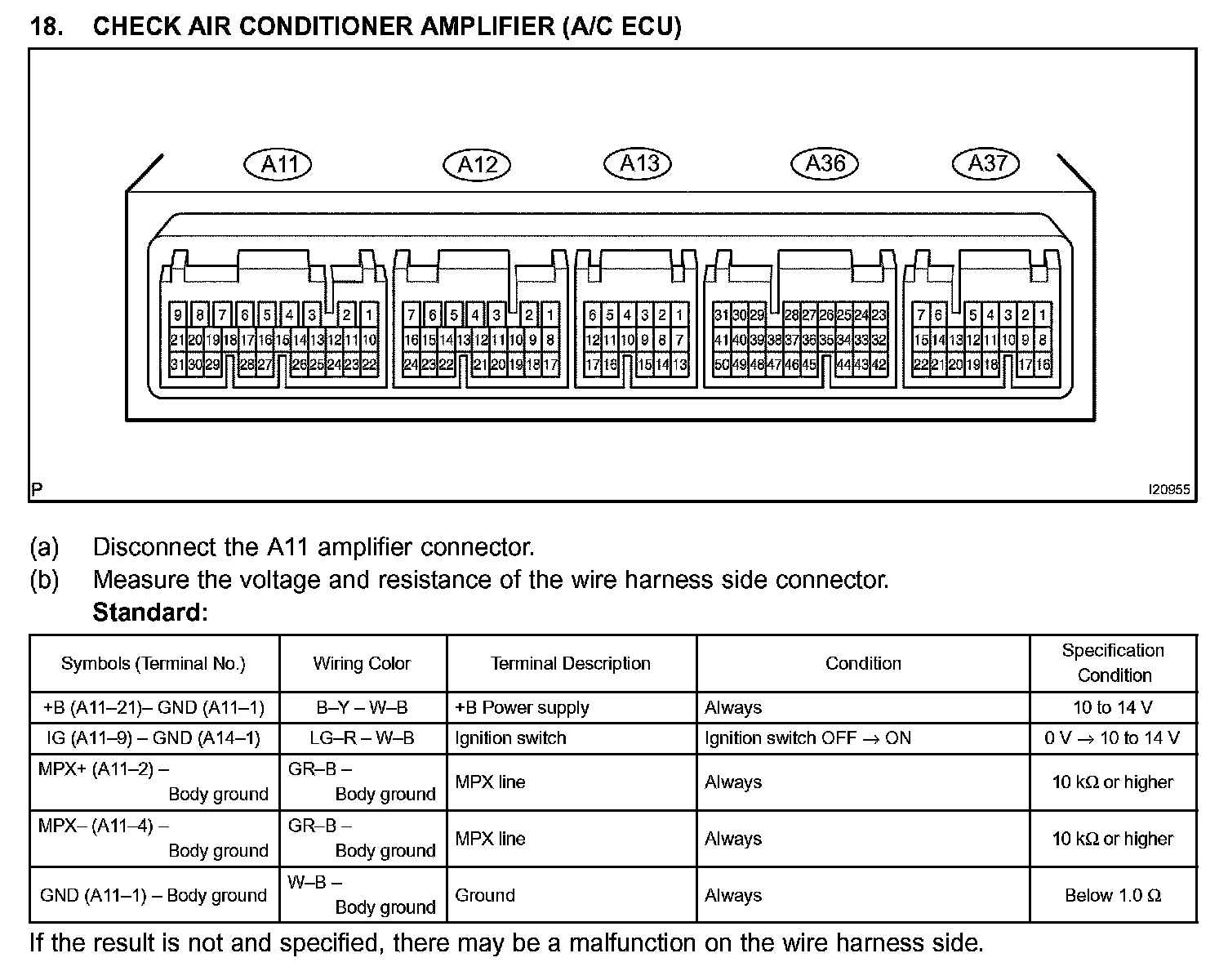

18. CHECK AIR CONDITIONER AMPLIFIER (A/C ECU)

Terminals Of ECU/Pinouts:

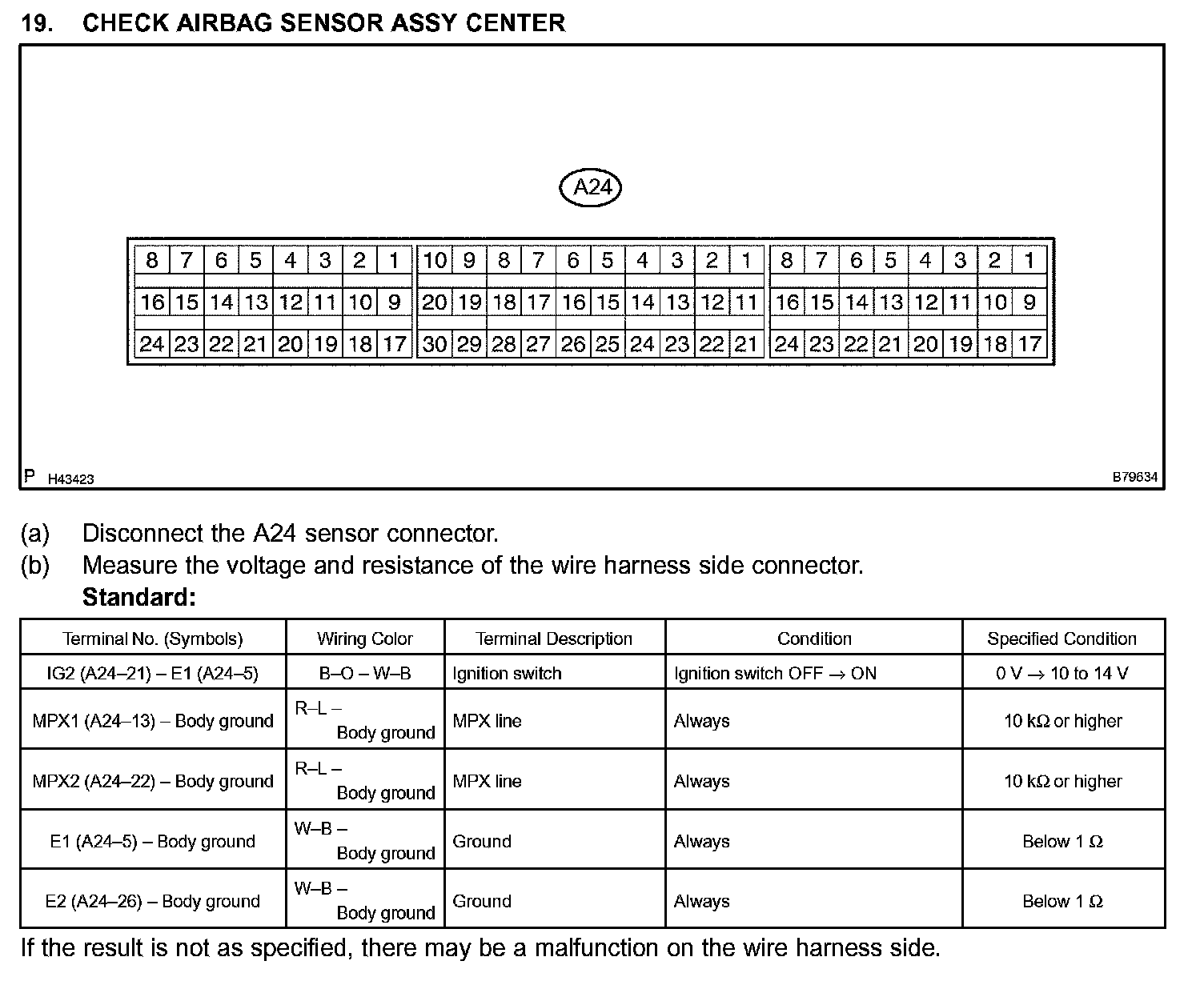

19. CHECK AIRBAG SENSOR ASSY CENTER

Terminals Of ECU/Pinouts:

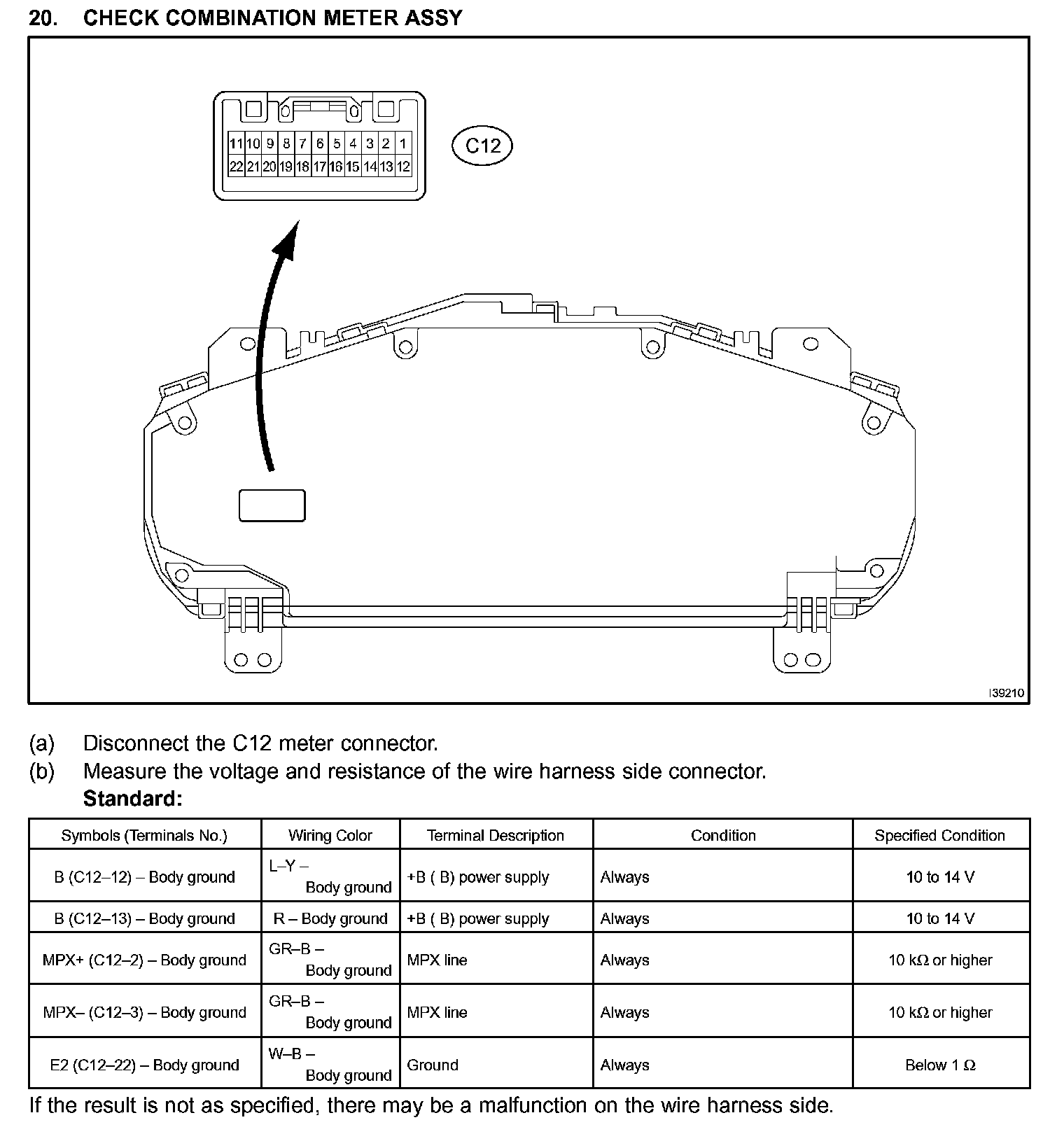

20. CHECK COMBINATION METER ASSY

Terminals Of ECU/Pinouts:

21. CHECK SLIDING ROOF DRIVE GEAR ASSY (MOON ROOF CONTROL ECU)

Terminals Of ECU/Pinouts:

22. CHECK RAIN SENSOR

Terminals Of ECU/Pinouts:

23. CHECK STEERING PAD SWITCH

Terminals Of ECU/Pinouts:

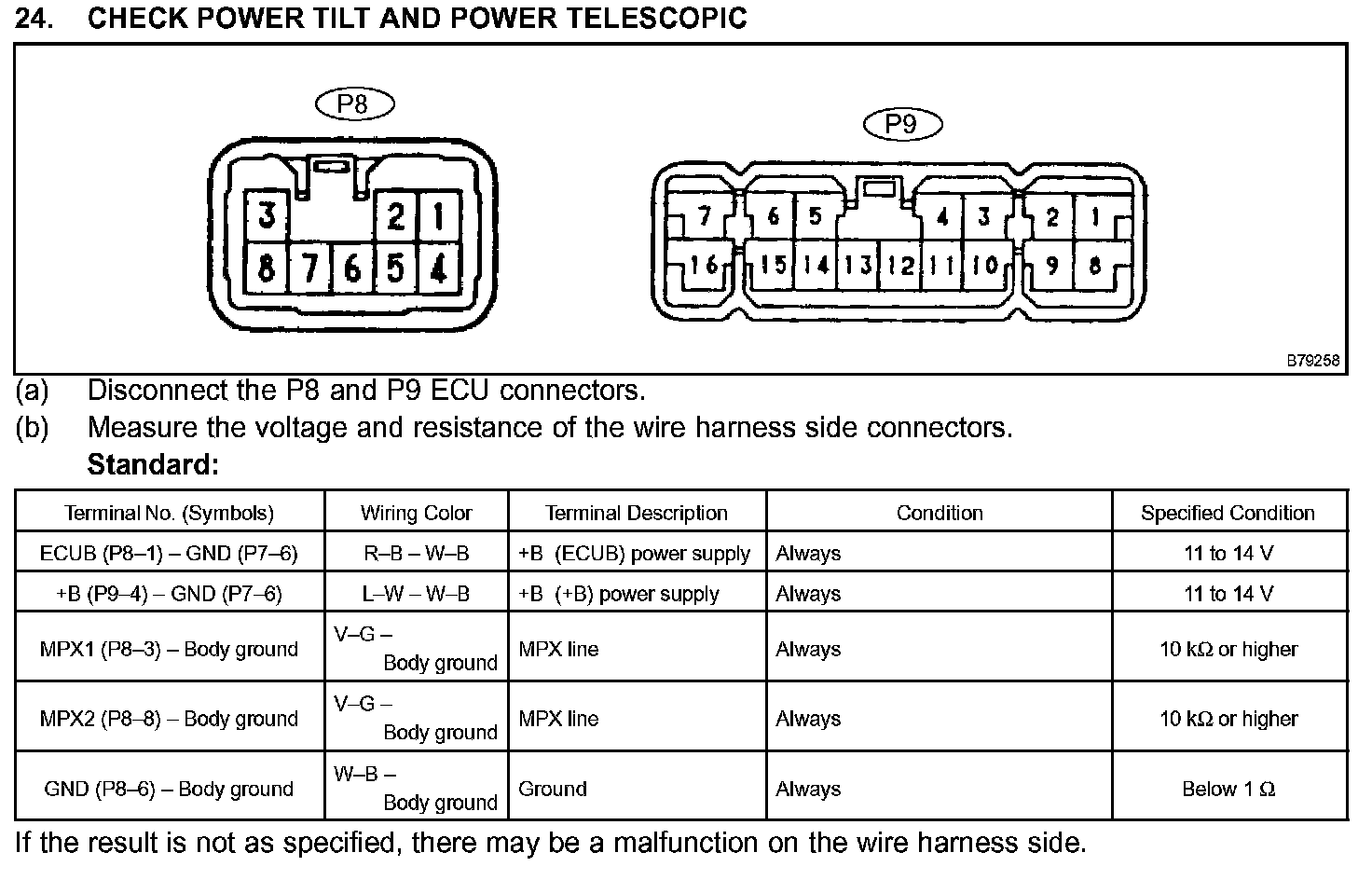

24. CHECK POWER TILT AND POWER TELESCOPIC

Terminals Of ECU/Pinouts:

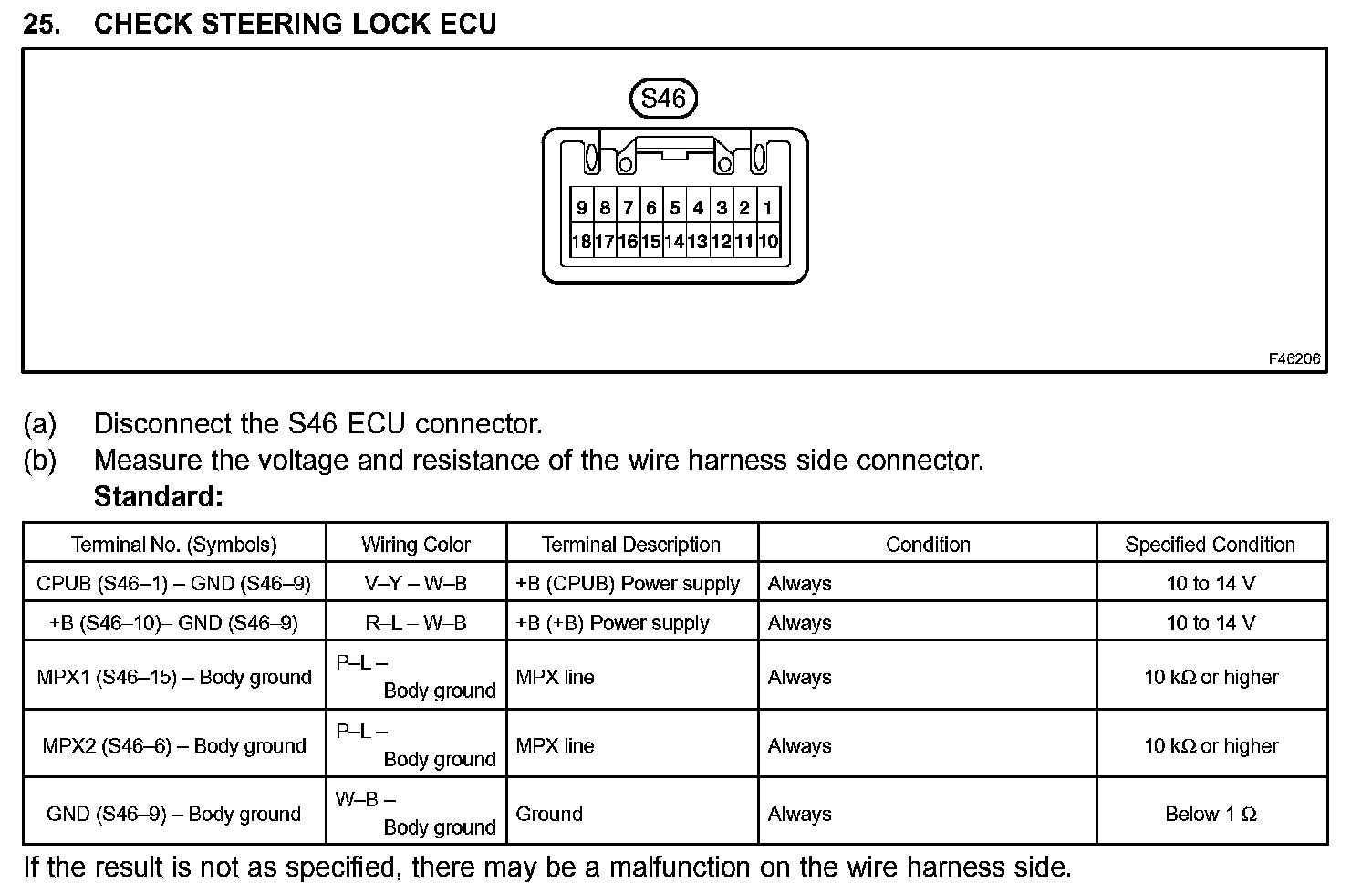

25. CHECK STEERING LOCK ECU

Terminals Of ECU/Pinouts:

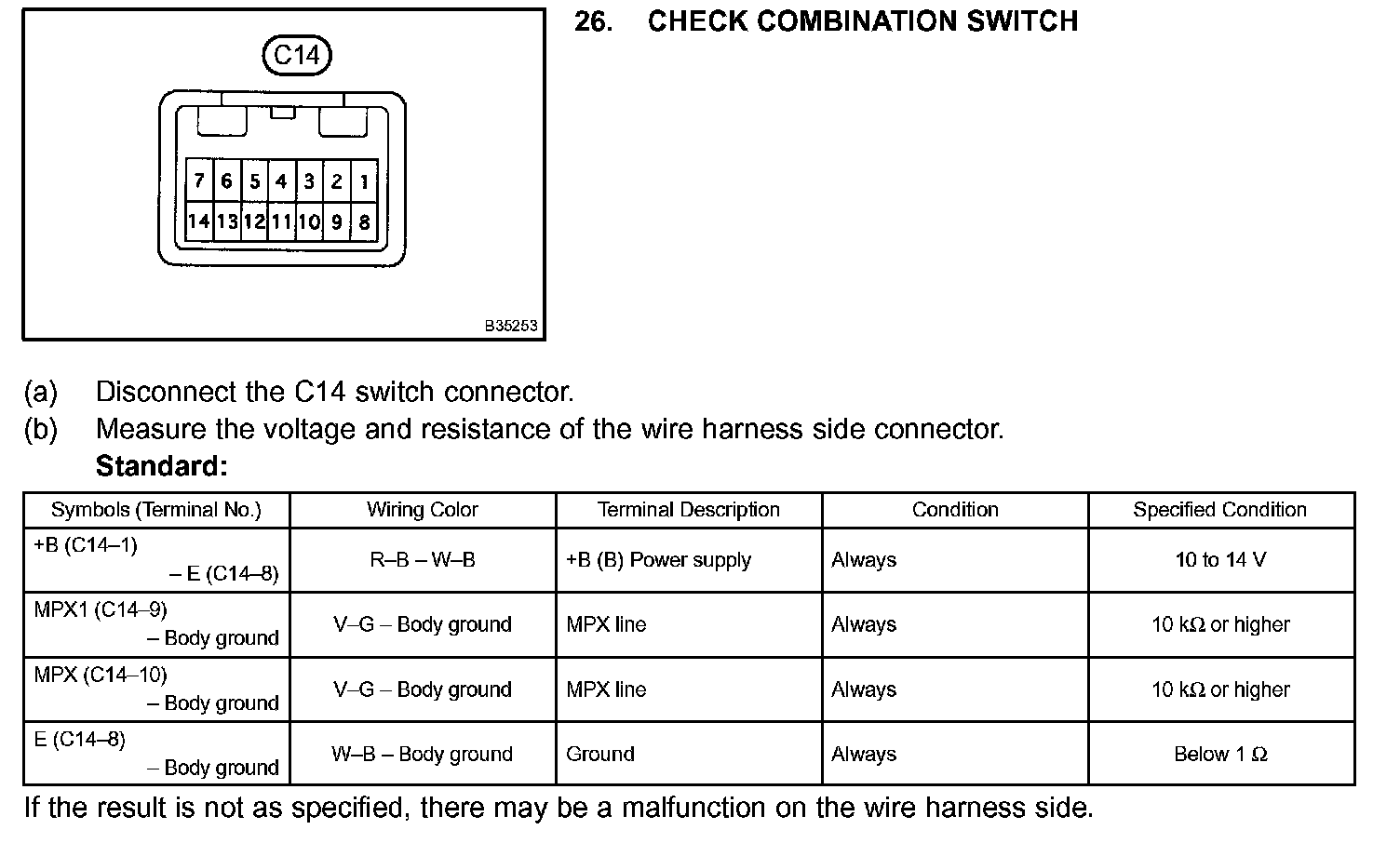

26. CHECK COMBINATION SWITCH
