Fail-Safe Chart

FAIL-SAFE FUNCTION

Fail-Safe Chart:

a. When communication fails in any of the CAN bus lines (communication lines) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.

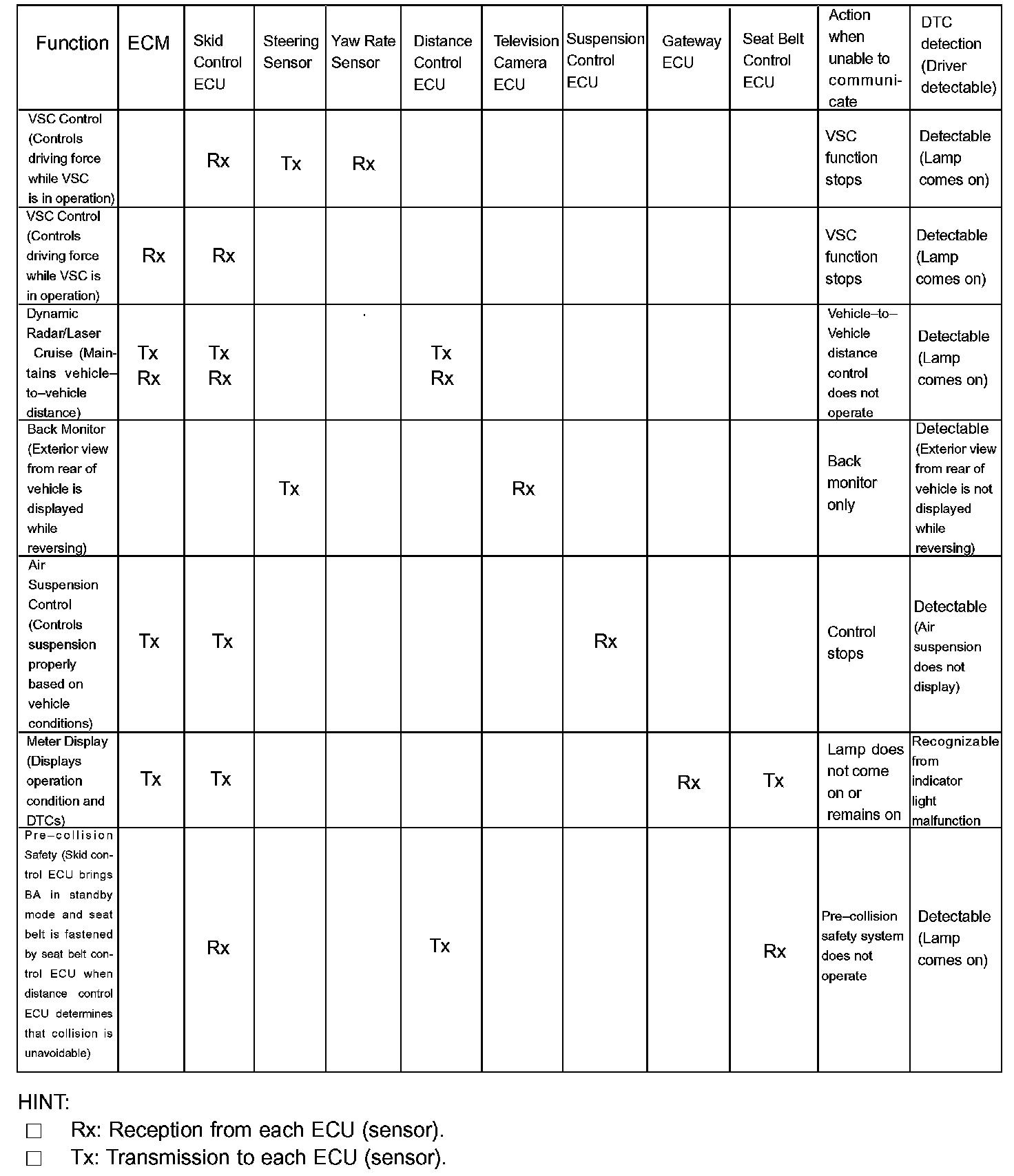

b. Effects on each system when communication is impossible. (For further details, see the image for each system.)
