Control Module HVAC: Testing and Inspection

TERMINALS OF ECU

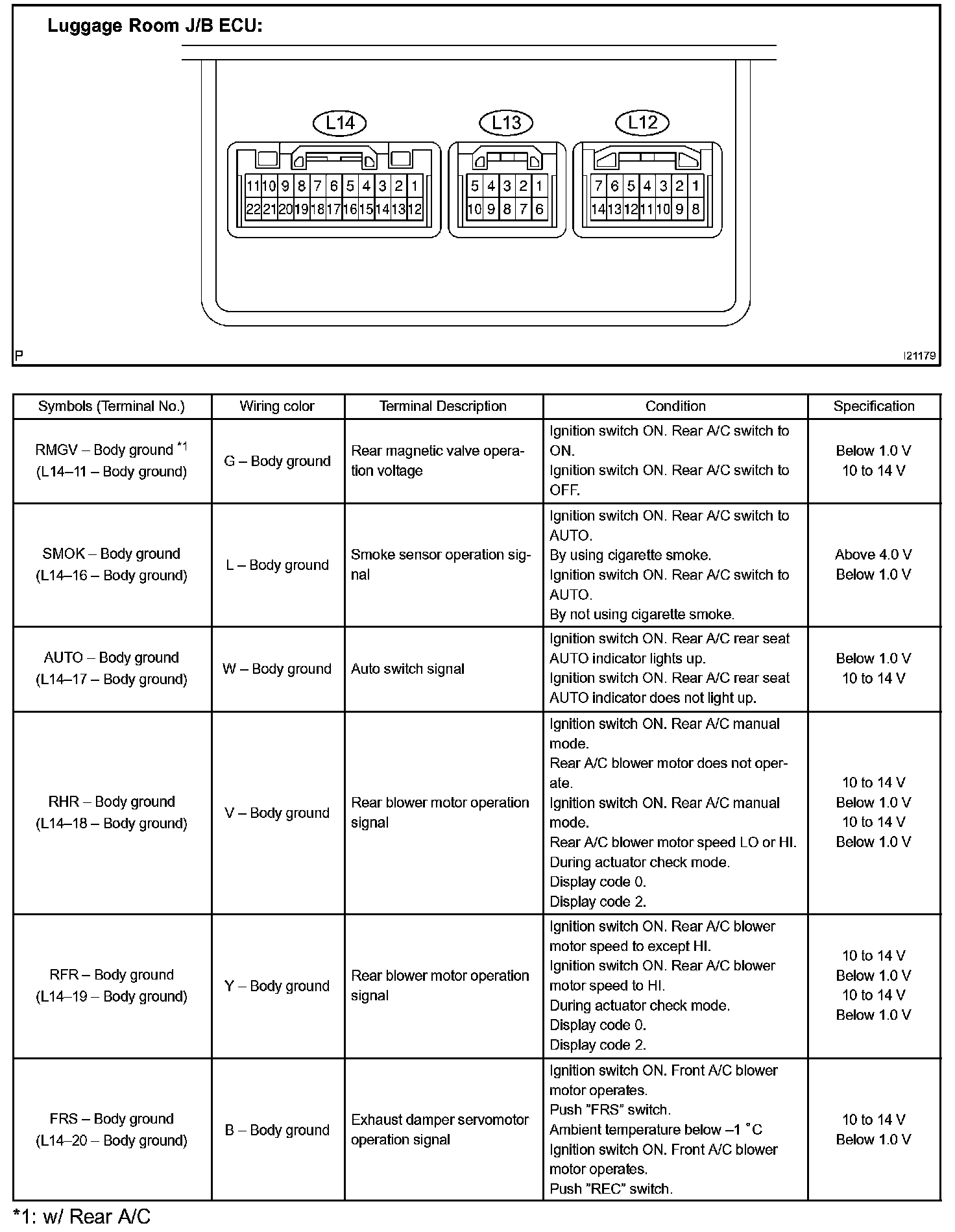

Terminals Of ECU/Pinouts Part 1:

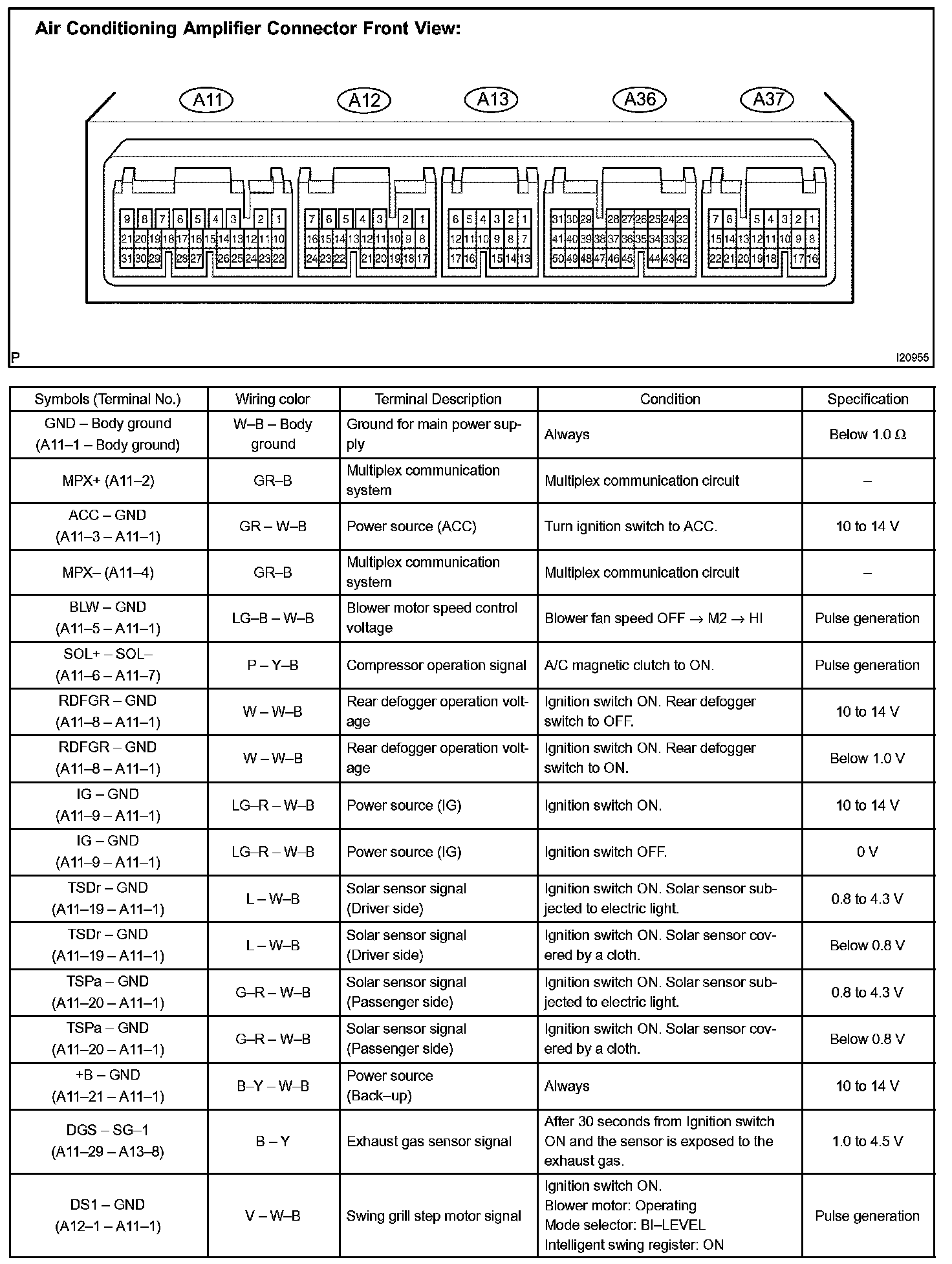

Terminals Of ECU/Pinouts Part 2:

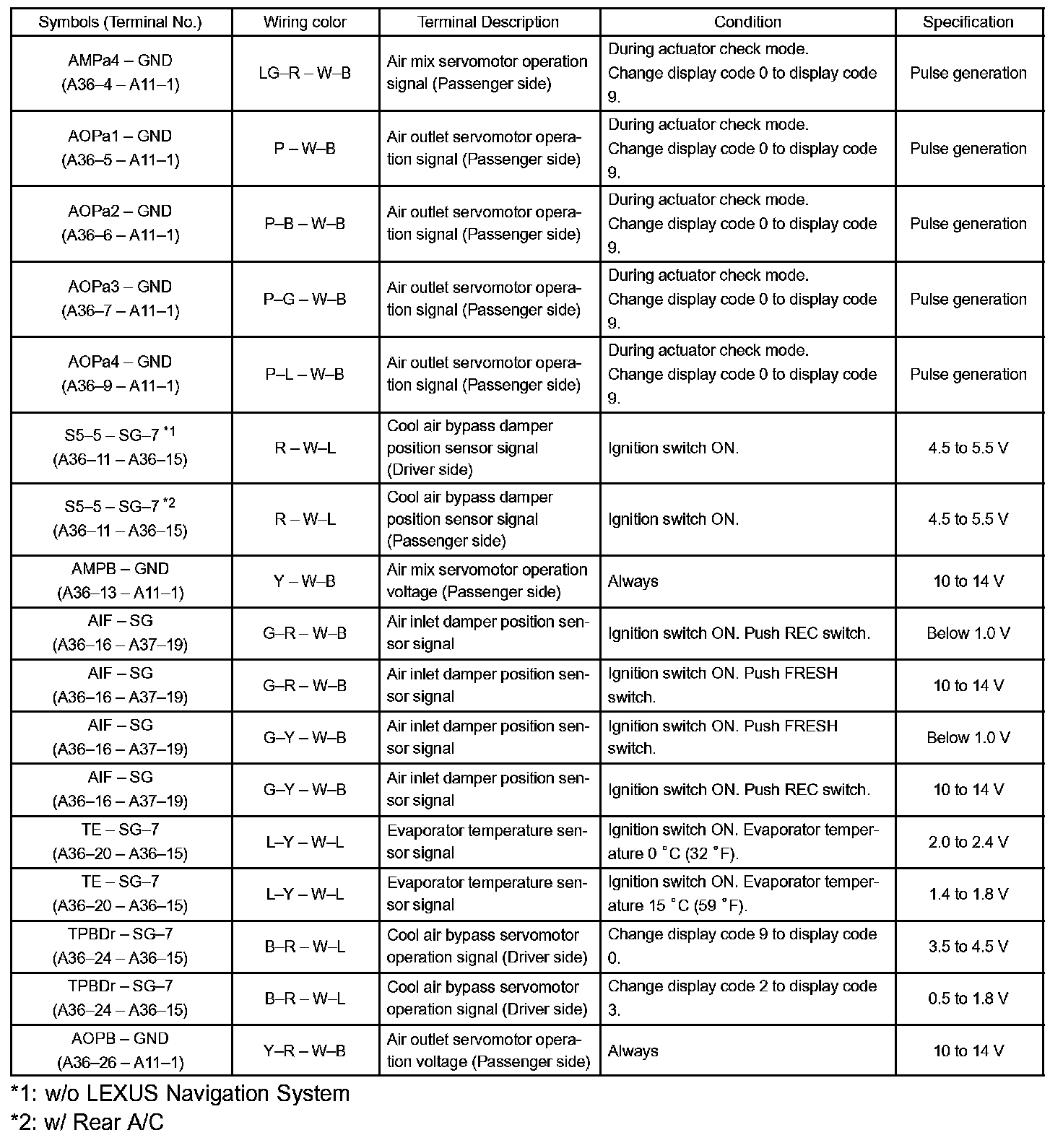

Terminals Of ECU/Pinouts Part 3:

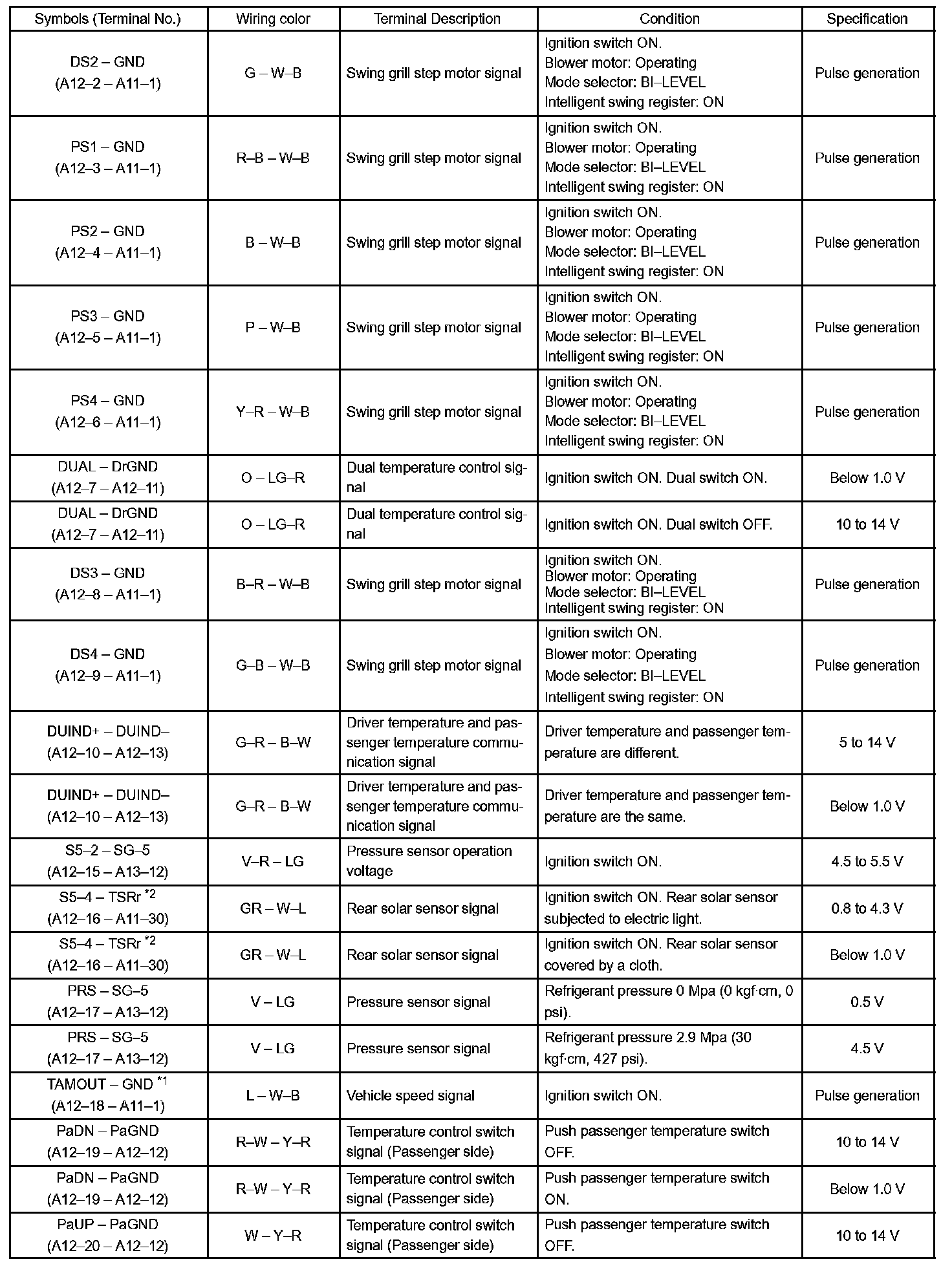

Terminals Of ECU/Pinouts Part 4:

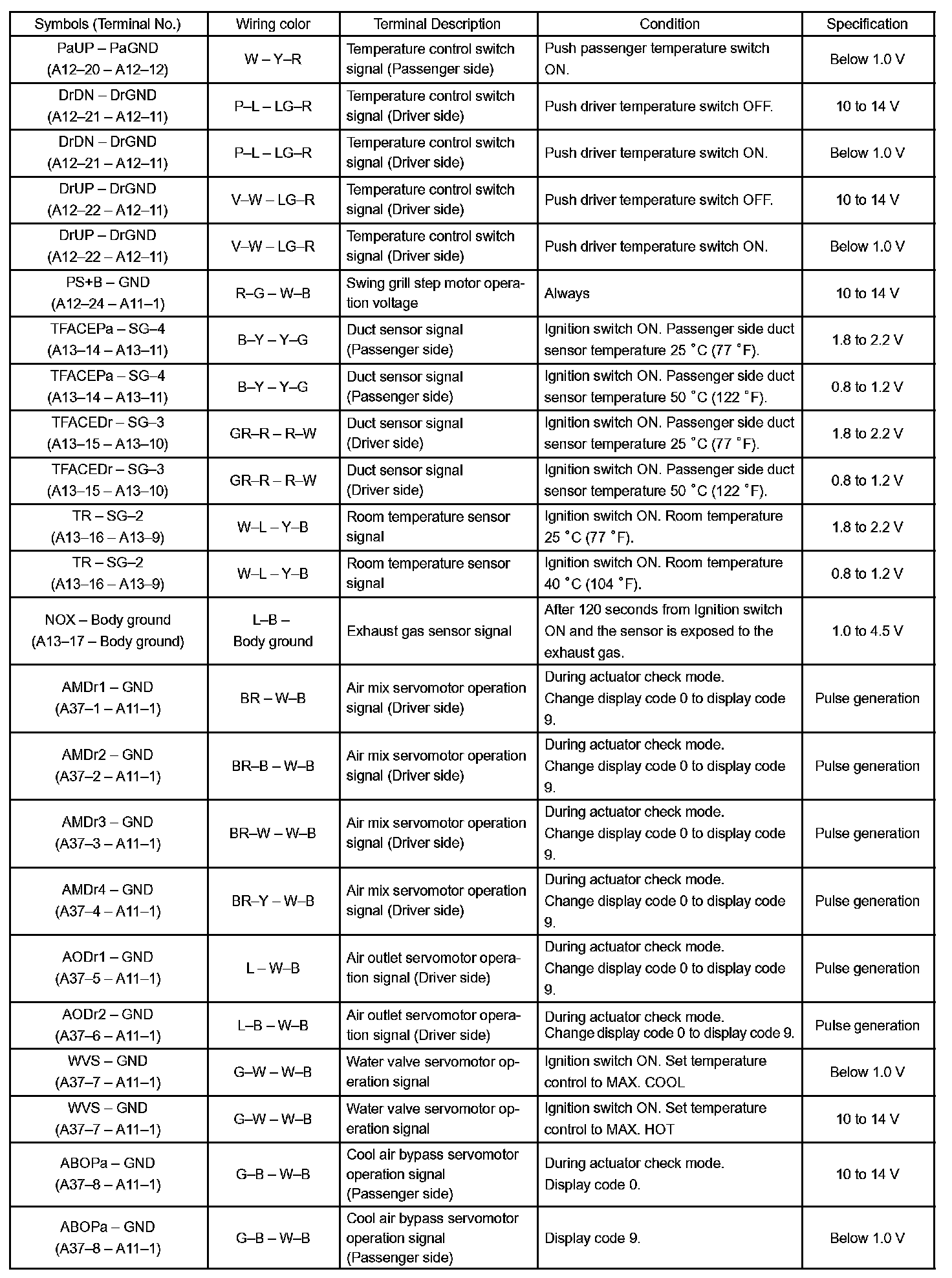

Terminals Of ECU/Pinouts Part 5:

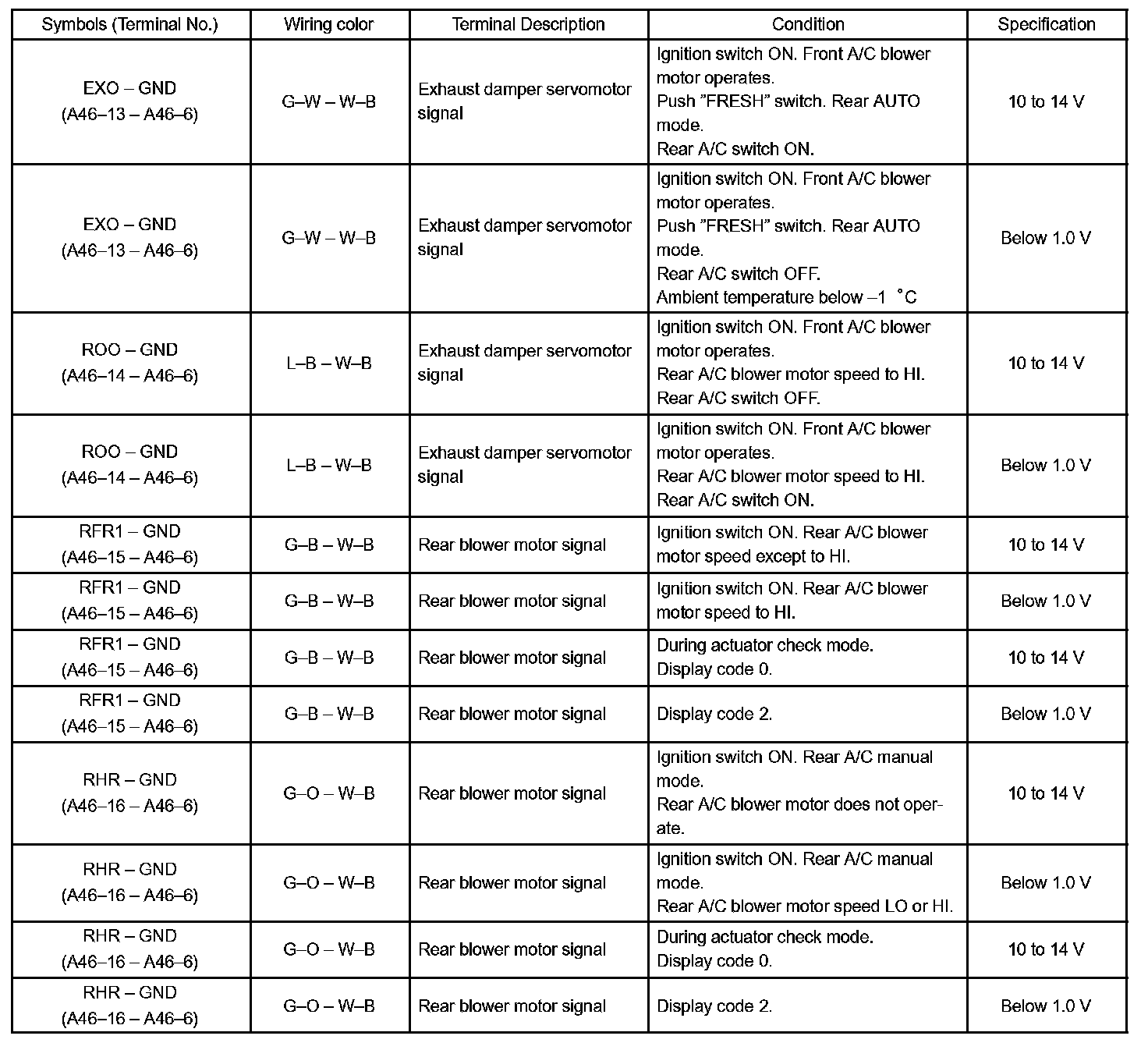

Terminals Of ECU/Pinouts Part 1:

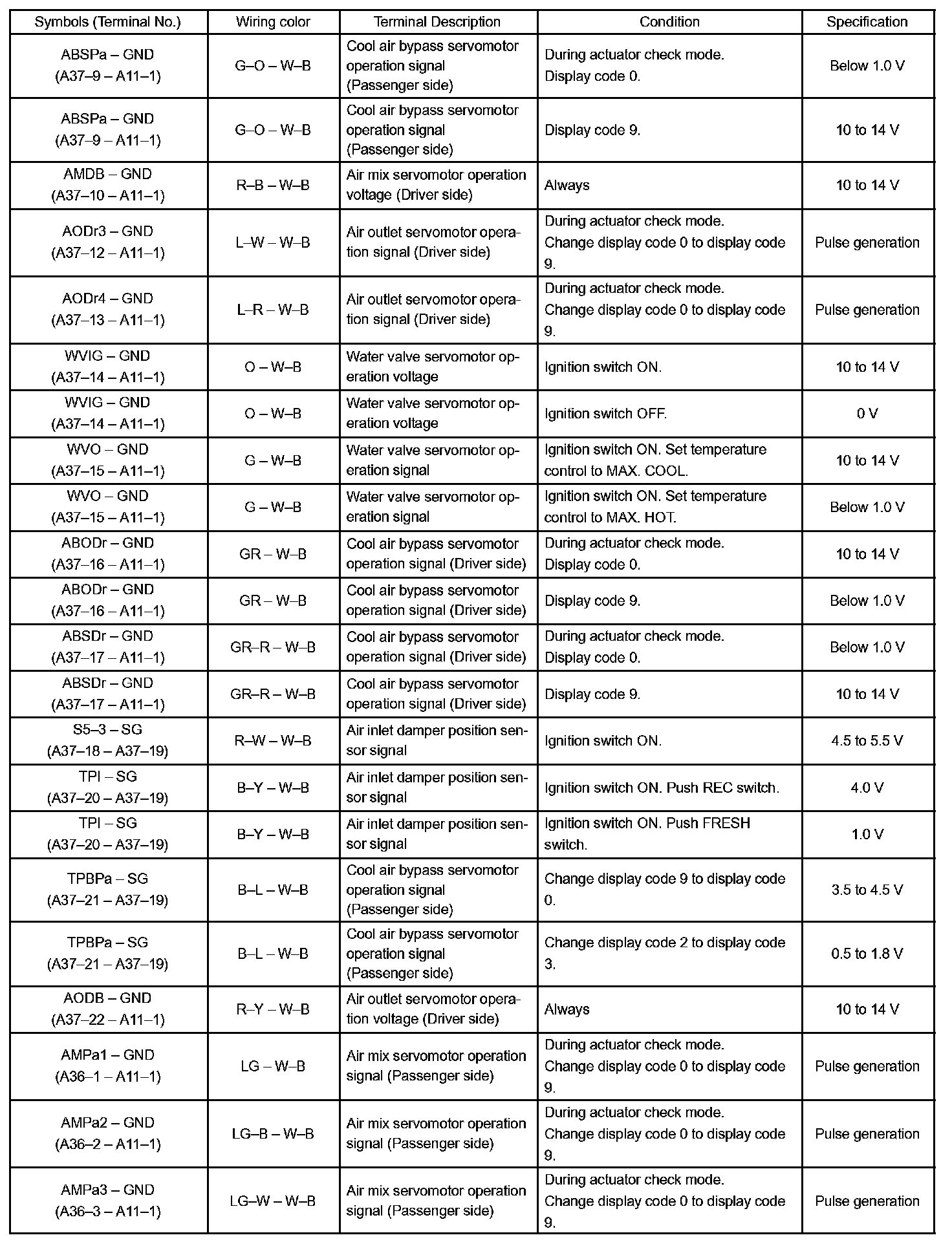

Terminals Of ECU/Pinouts Part 2:

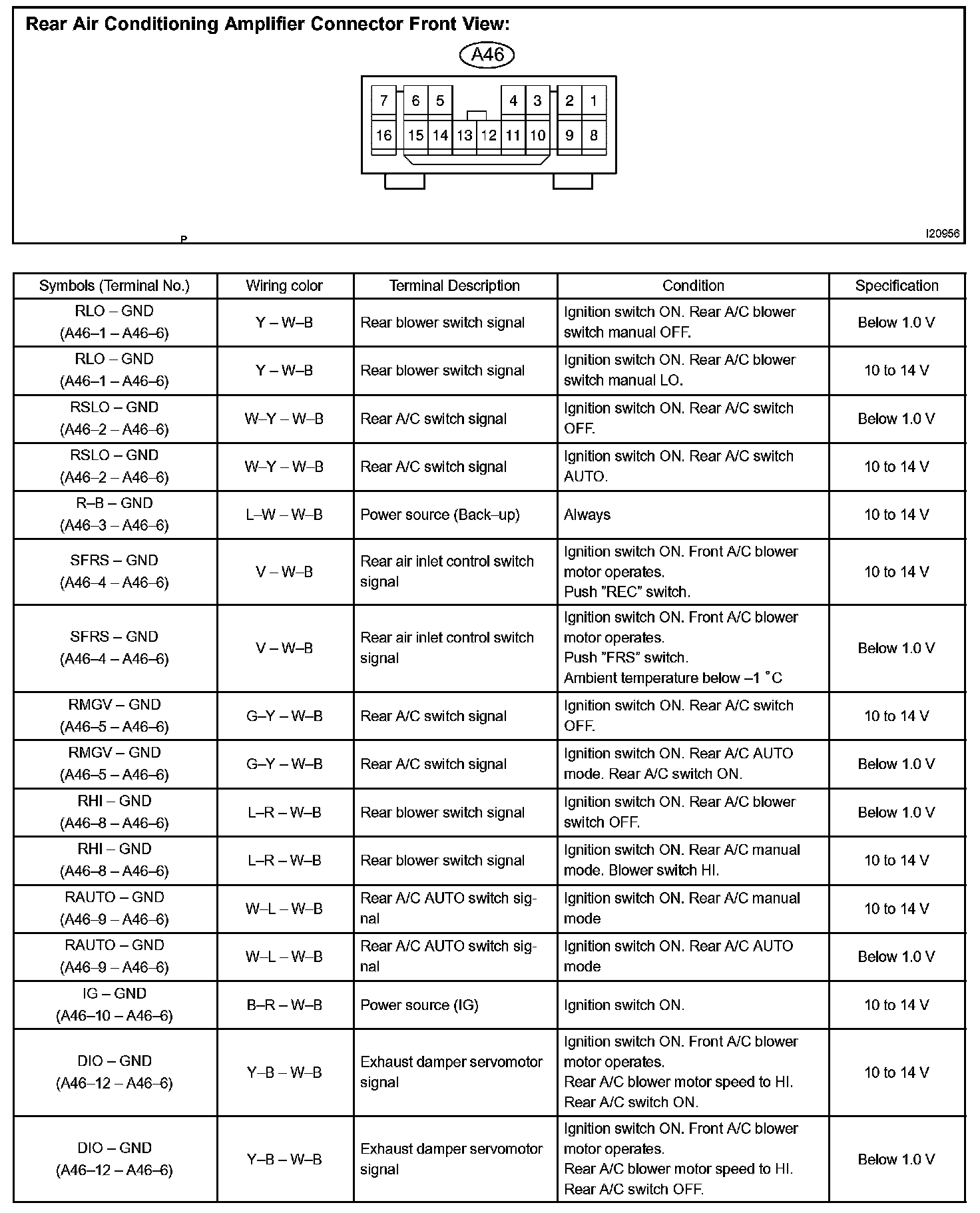

Terminals Of ECU/Pinouts:
