Sunroof / Moonroof Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Sunroof / Moonroof Module

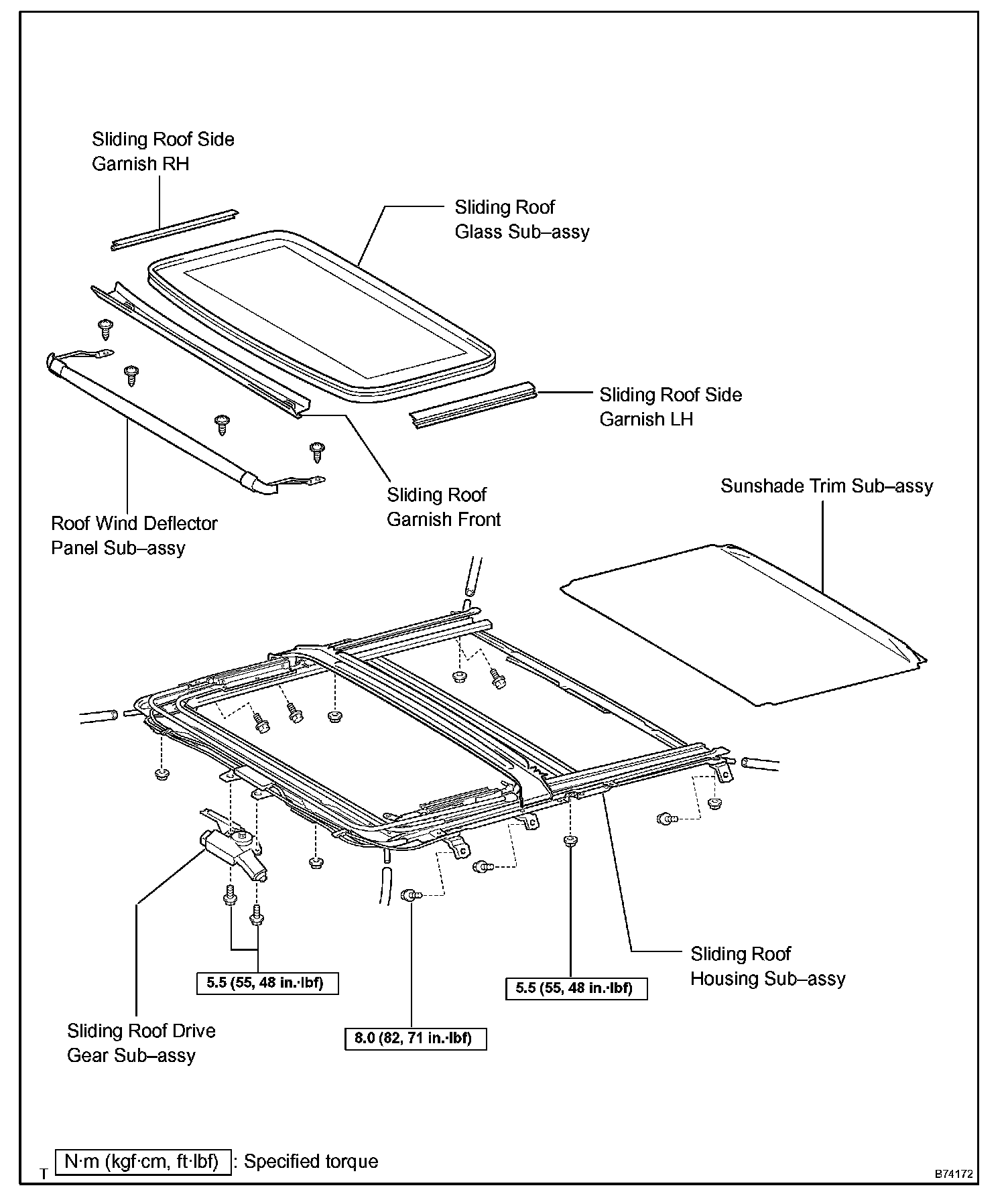

Sliding Roof Part 1:
Sliding Roof Part 2:
Sliding Roof Part 3:
