Data List

DATA LIST

HINT: Using the hand held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

Multiplex Network Body ECU (Driver Door ECU):

Multiplex Network Body ECU (Passenger Door ECU):

Multiplex Network Body ECU (Rear Door LH ECU):

Multiplex Network Body ECU (Rear Door RH ECU):

Luggage Room J/B ECU:

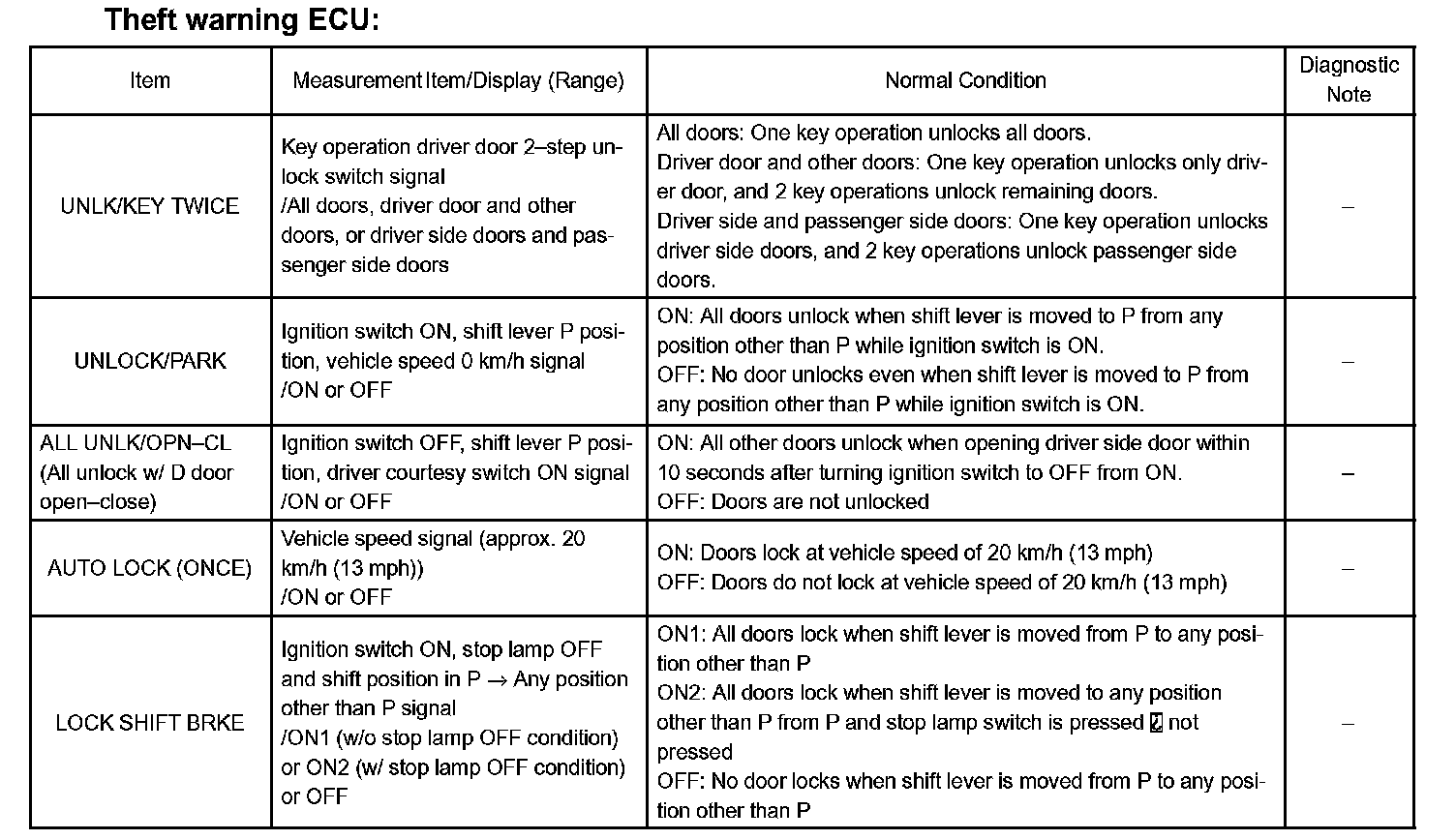

Theft warning ECU:

a. Connect the hand-held tester (with CAN VIM) to the DLC3.
b. Turn the ignition switch ON.
c. Read the DATA LIST on the tester's screen.
