Navigation Module: Locations

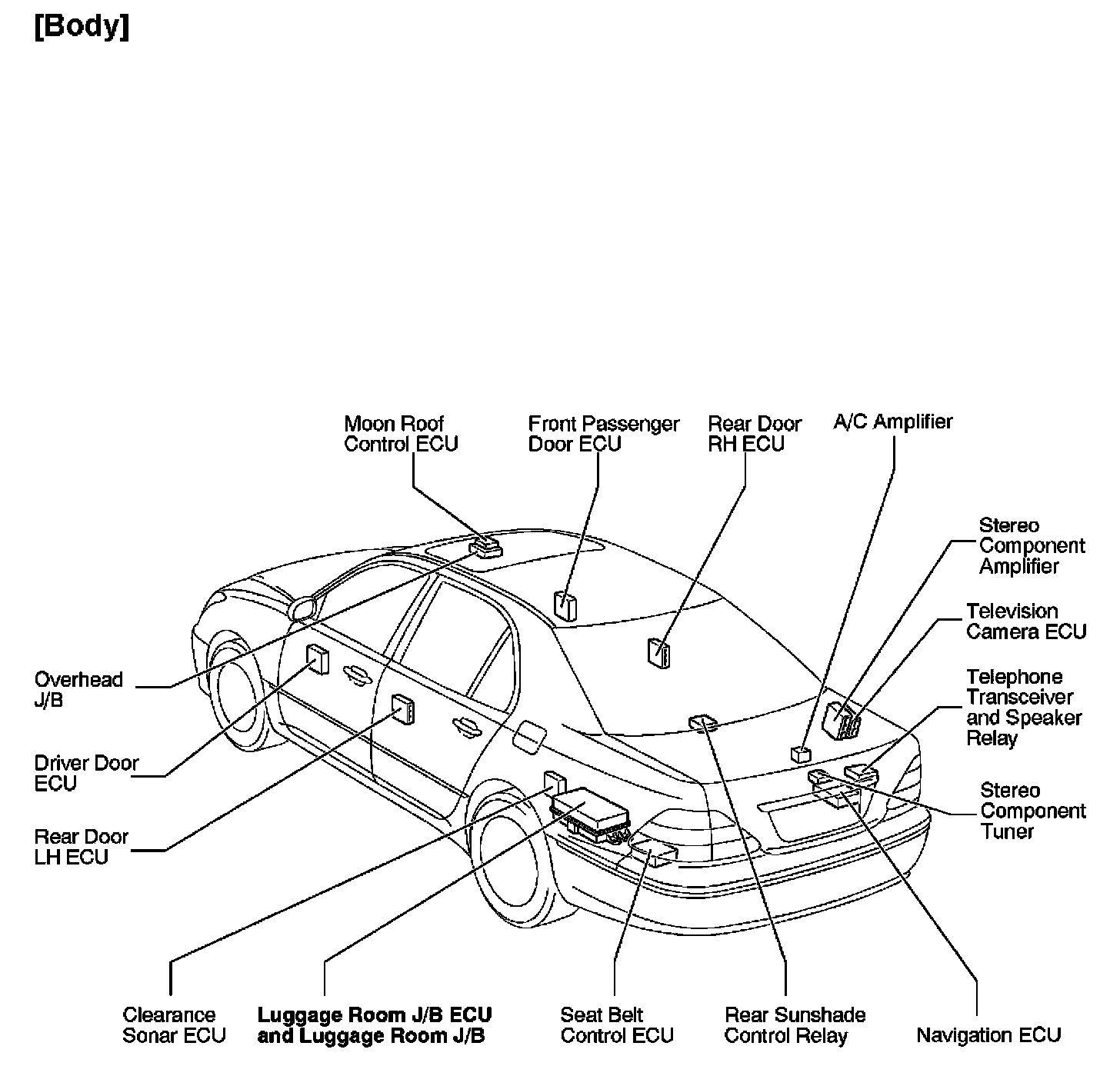

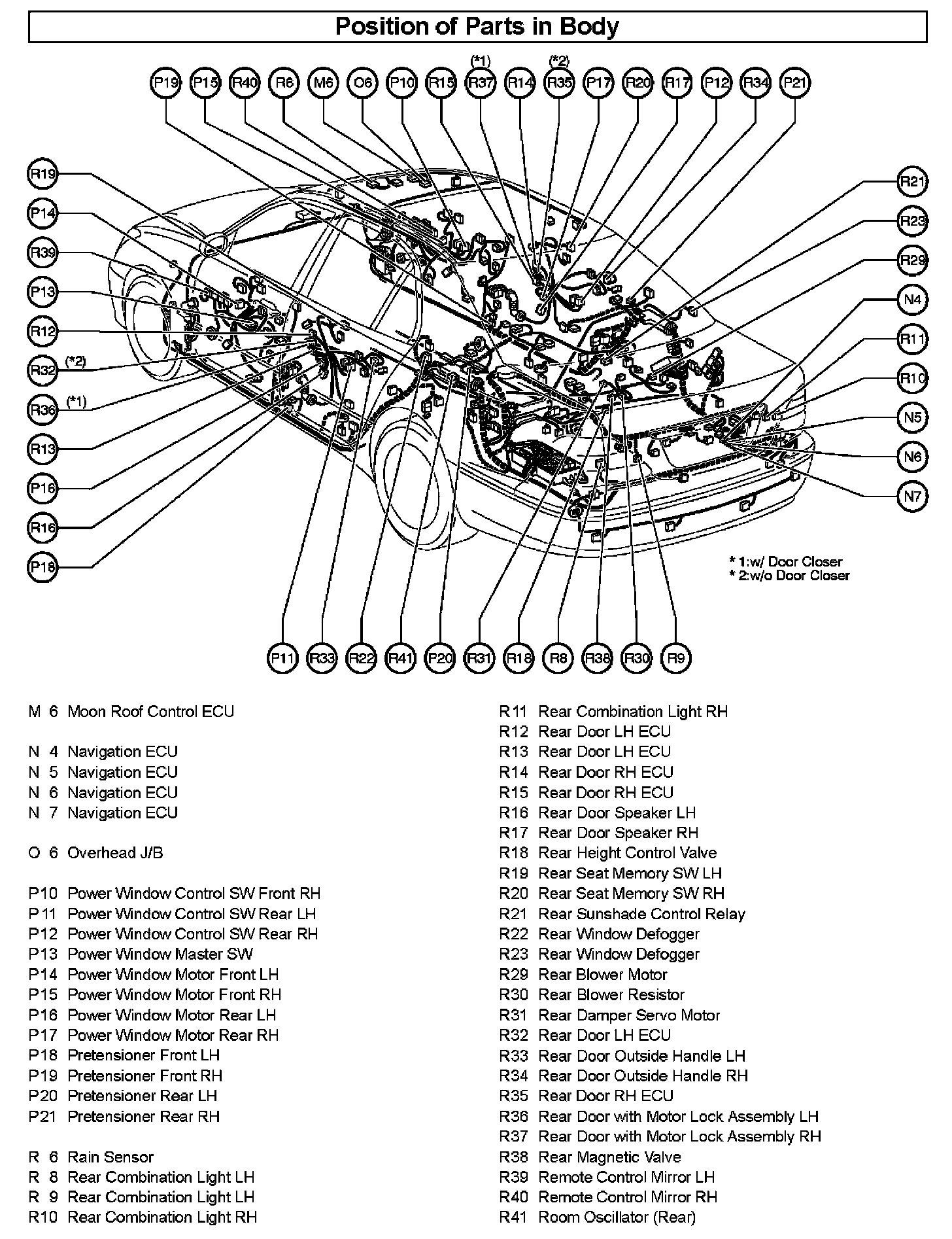

Body:

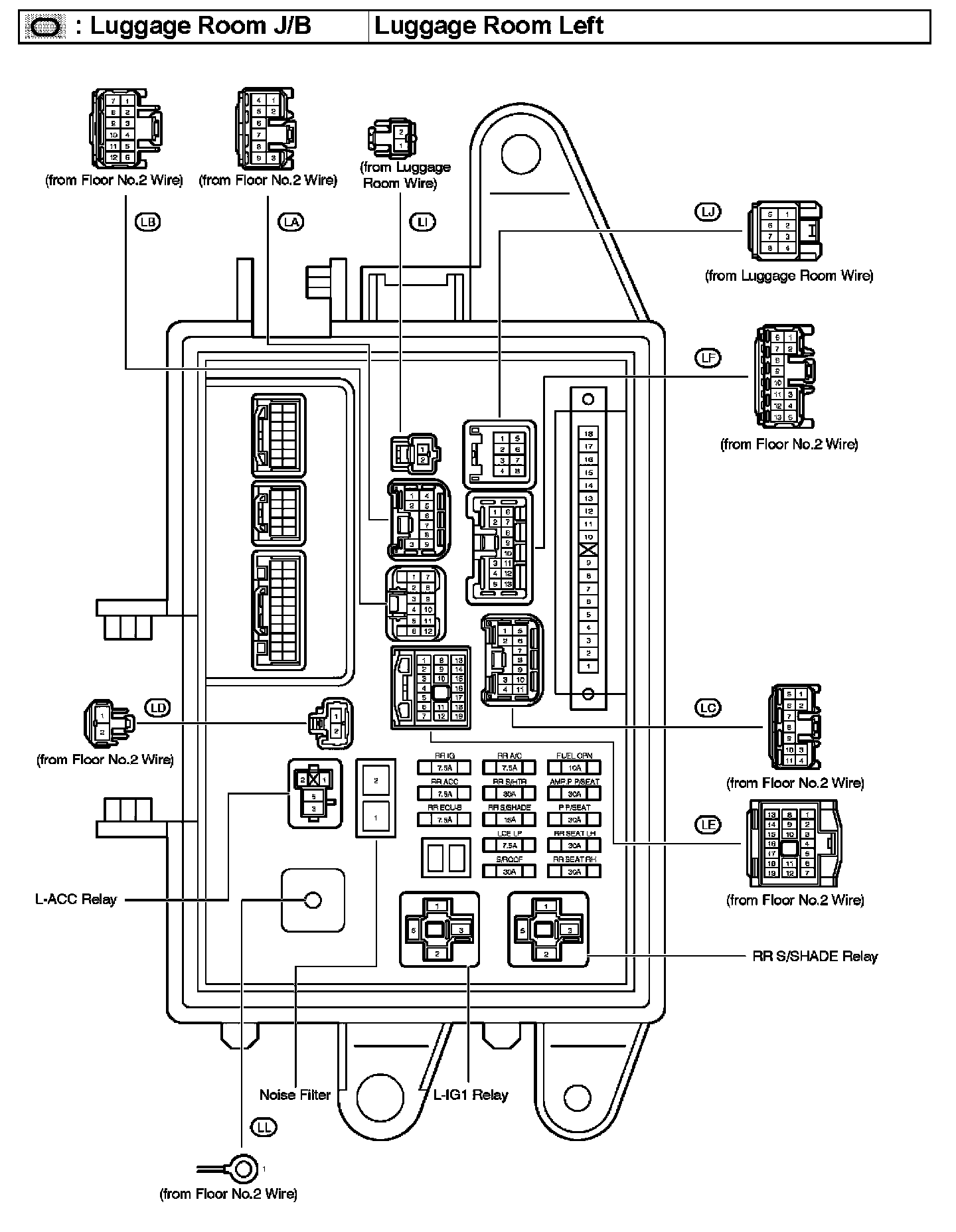

Luggage Room J/B - Luggage Room Left:



Mo - Ro:



Au - Vi:

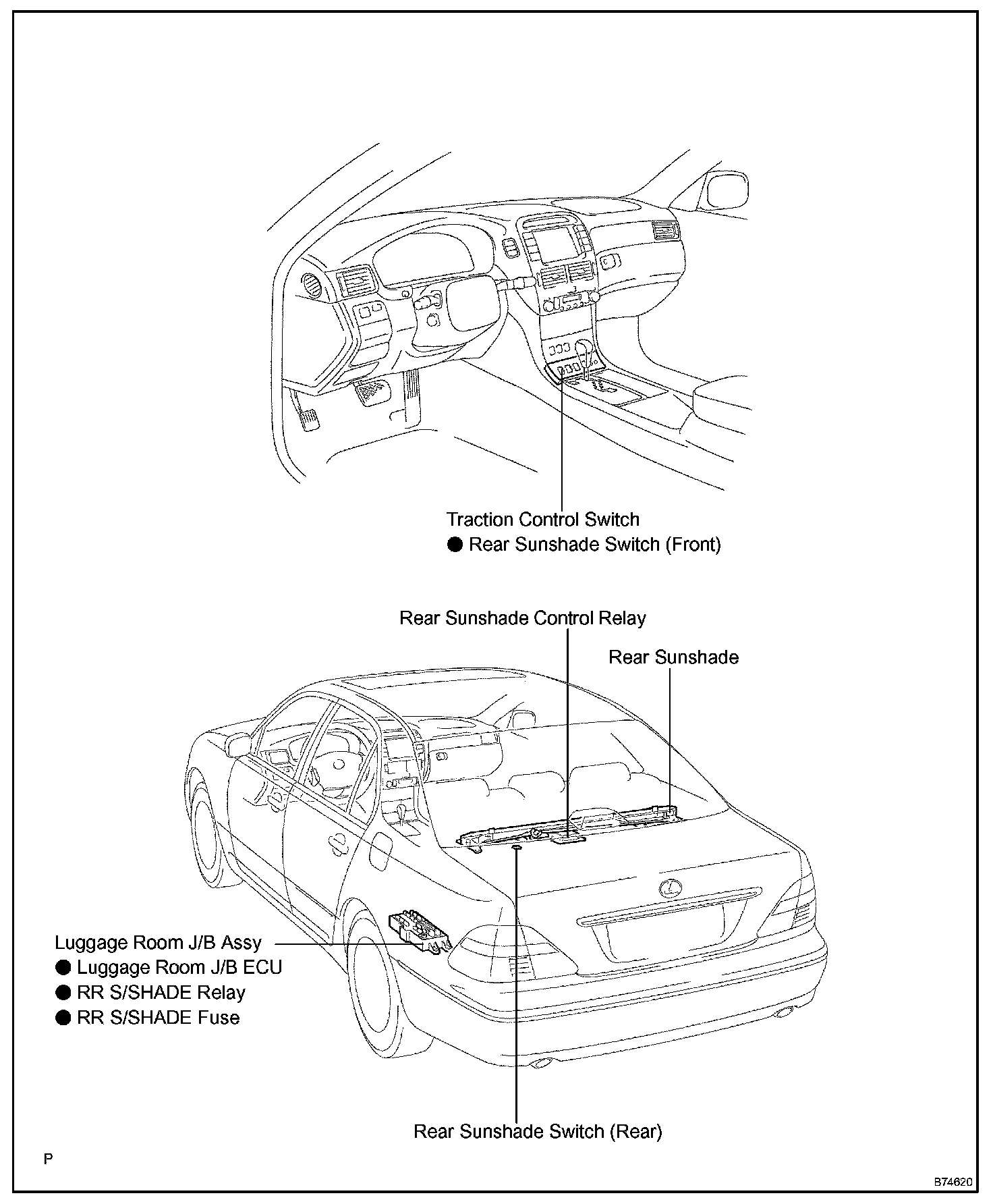

Rear Sunshade System:
