Control Switch Circuit (Cruise Control Switch)

Cruise Control Switch Circuit

CIRCUIT DESCRIPTION

This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signal (each voltage) to the ECM.

Wiring Diagram:

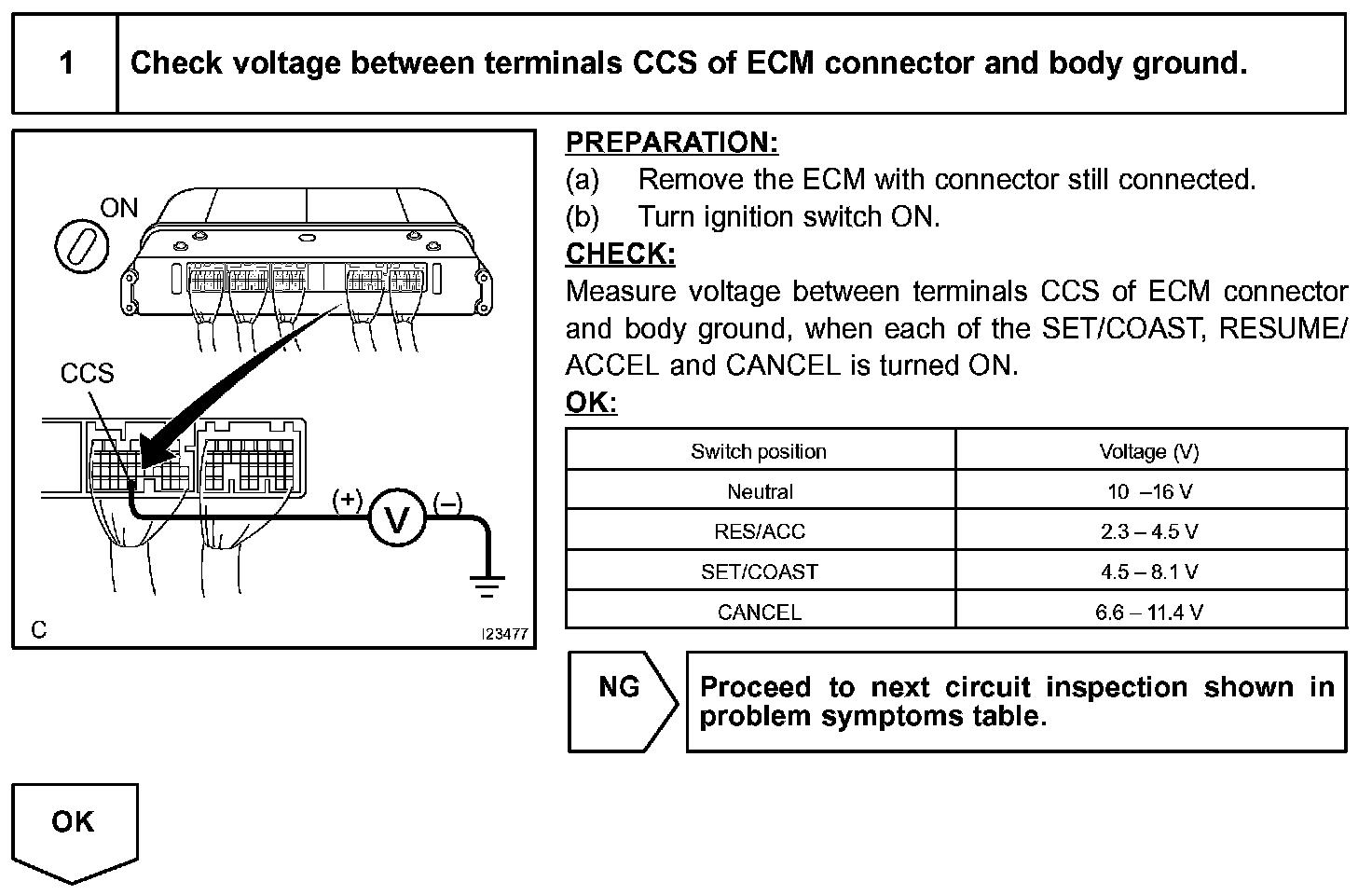

Step 1:

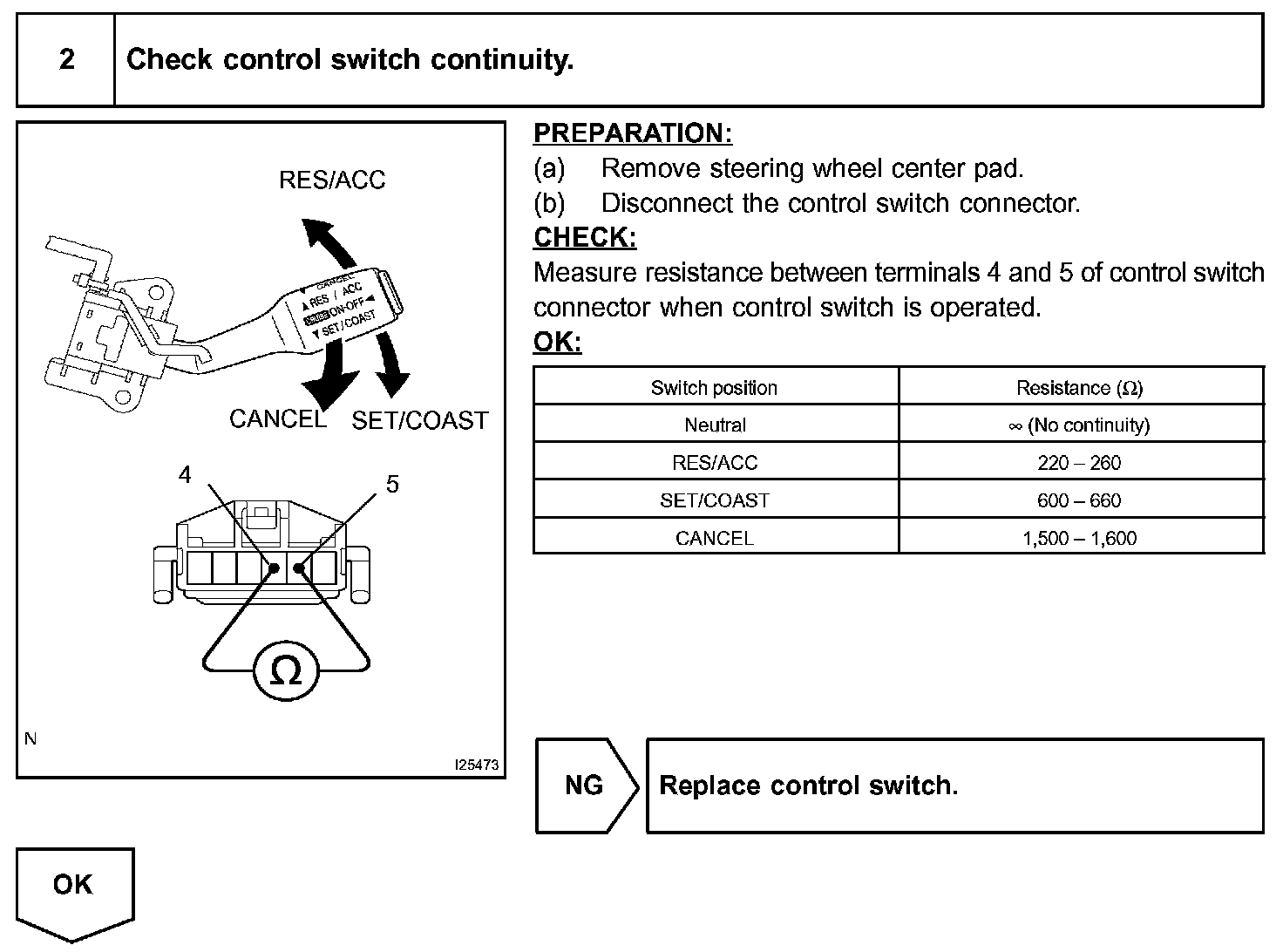

Step 2:

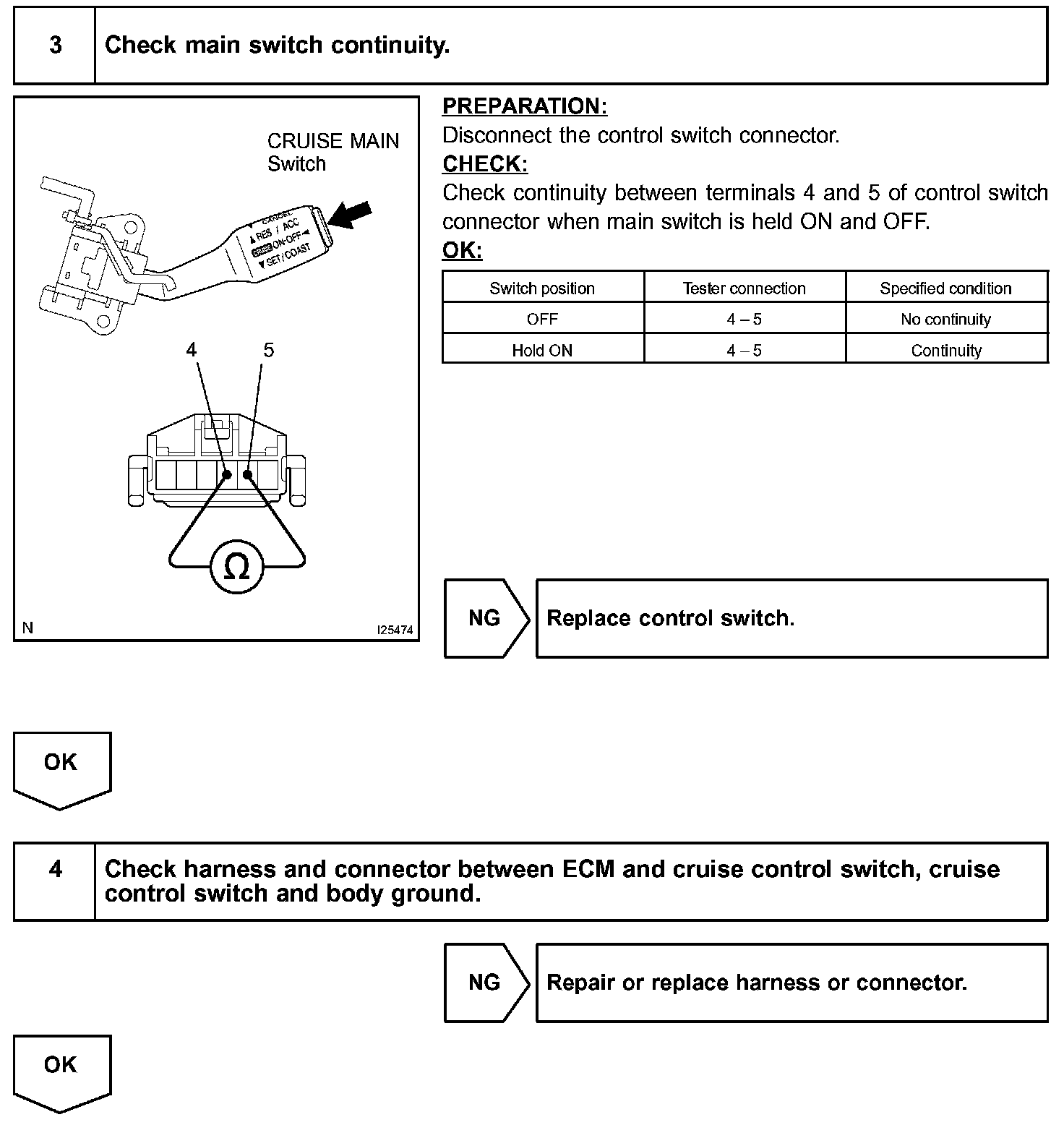

Step 3 - 4:

Step 5:

INSPECTION PROCEDURE
