Chapter 2: Chapter On-Vehicle Repair

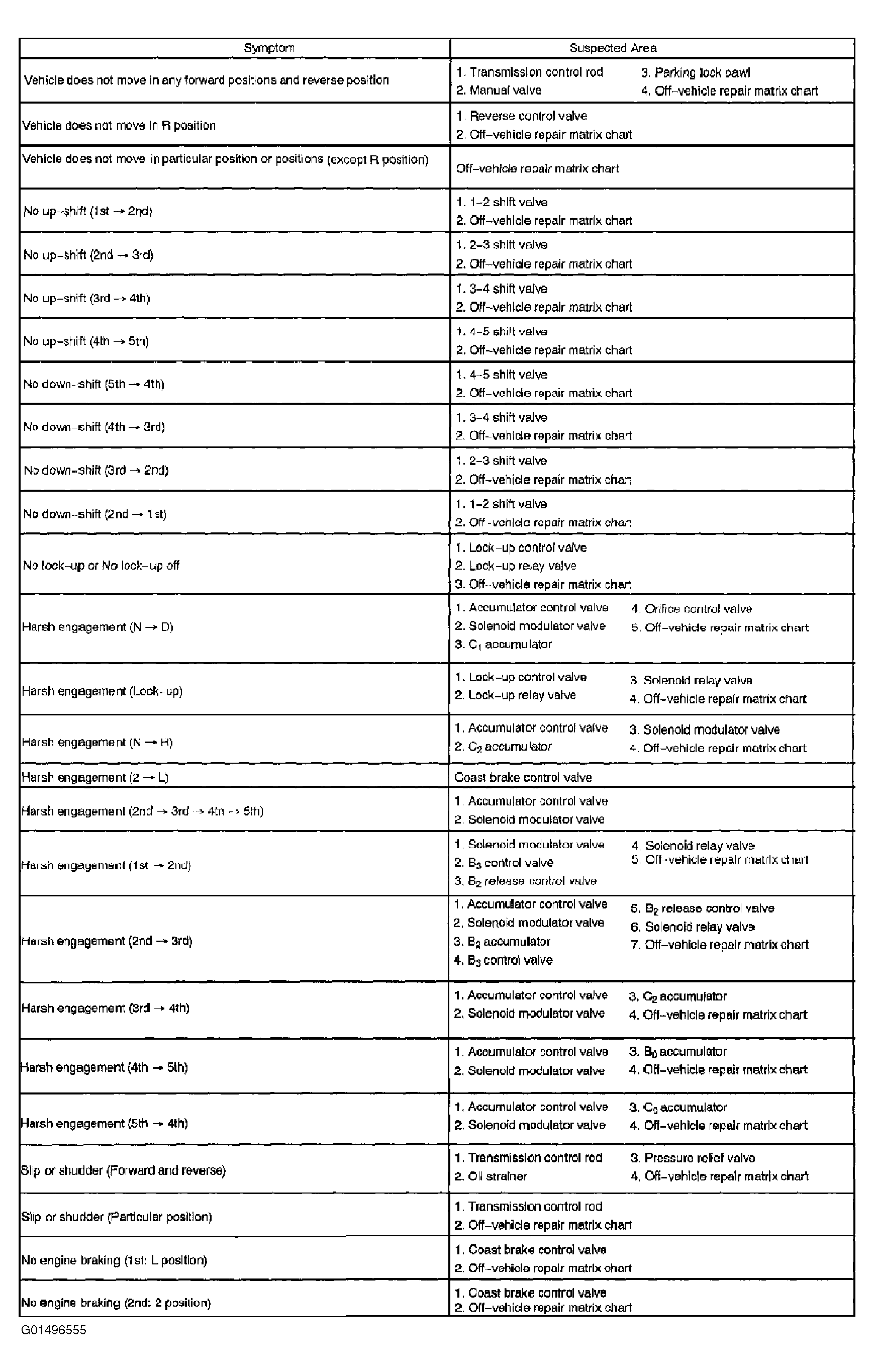

Fig 1: Chapter 2: Chapter On-Vehicle Repair Chart
G01496555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
