How To Proceed With Troubleshooting

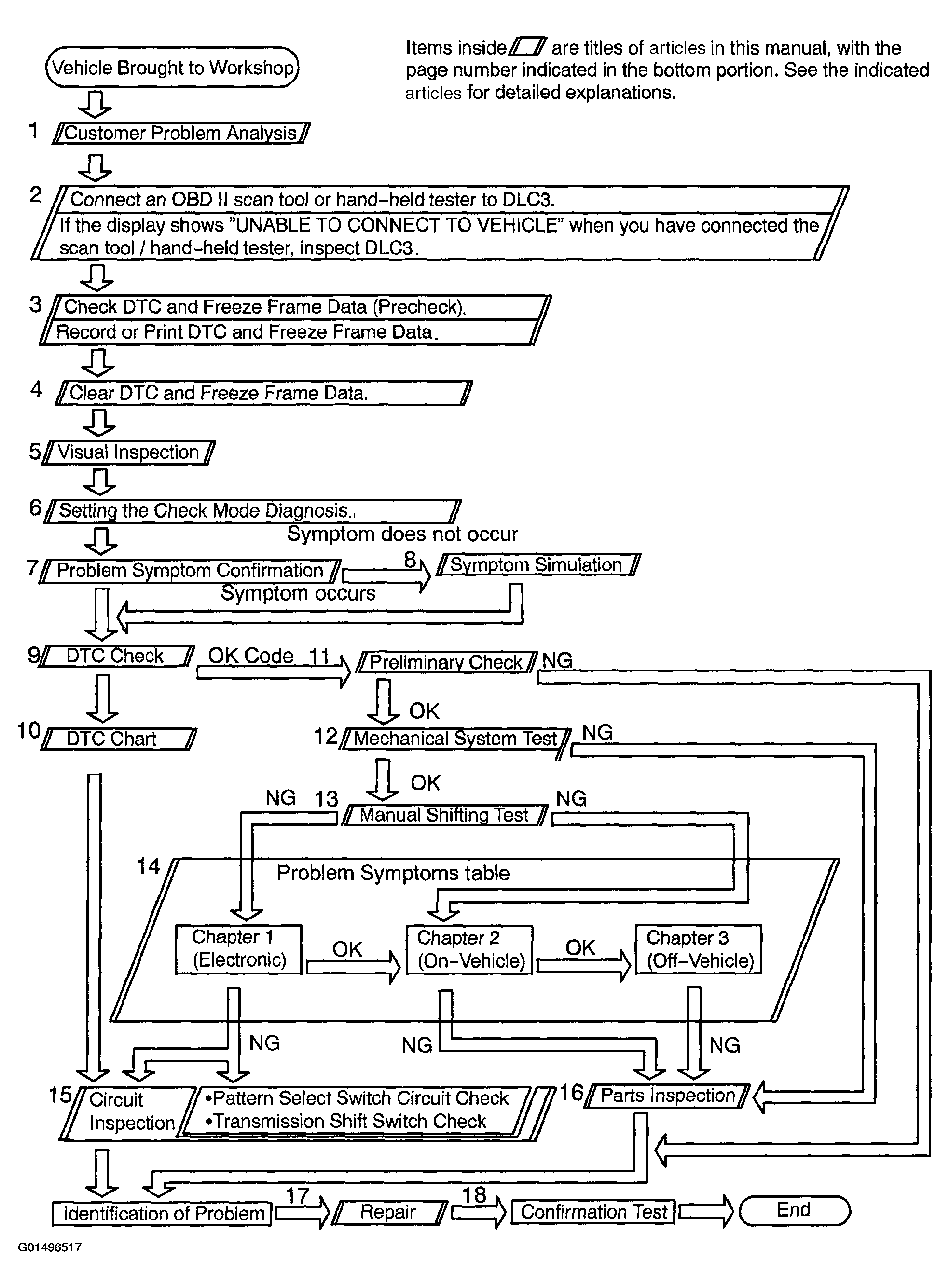

Fig 1: Automatic Transmission Troubleshooting Flow Chart
G01496517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
