Front Seat Belt Components

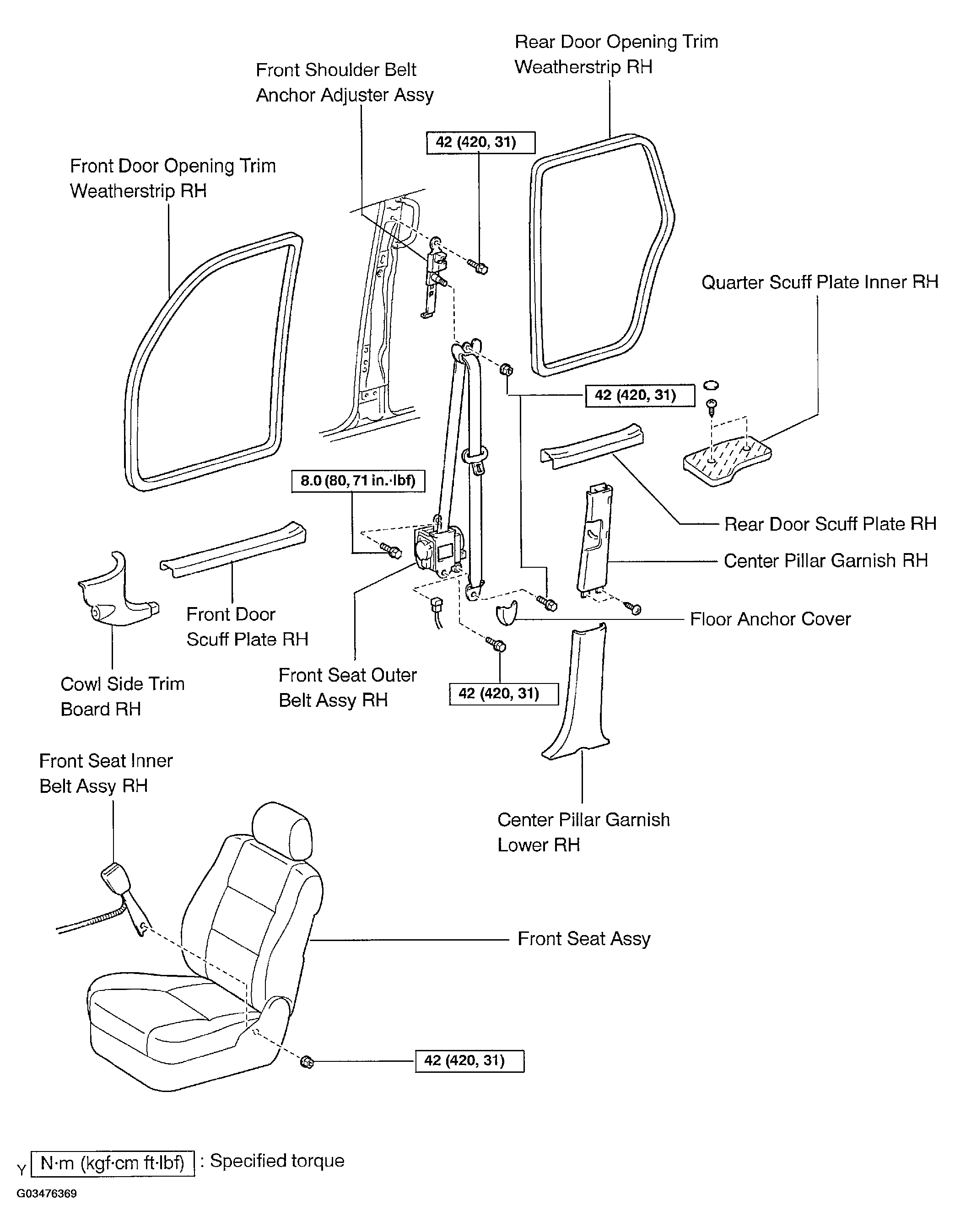

Fig 1: Identifying Front Seat Belt Components
G03476369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
