Impact Sensor

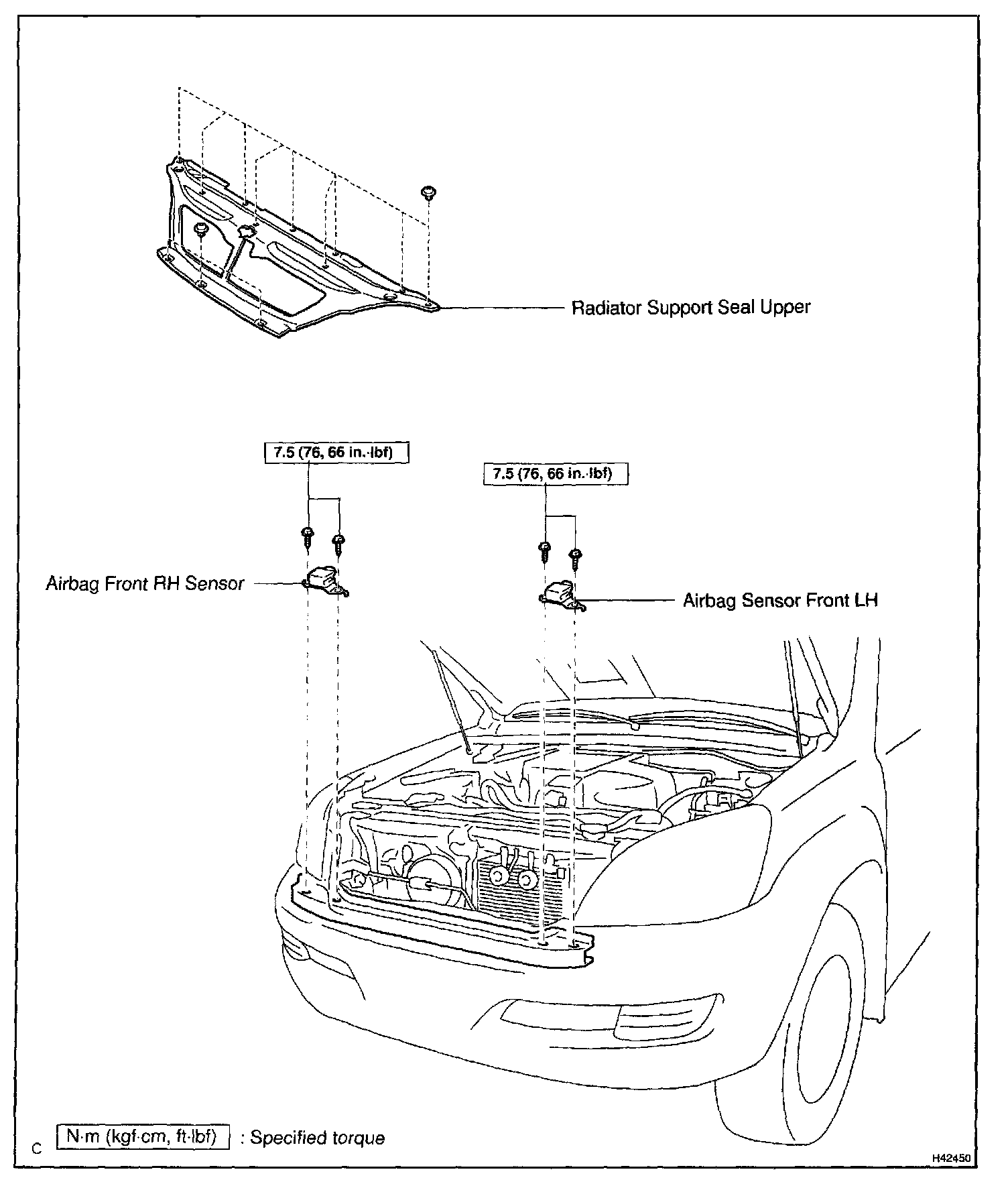

Airbag Front RH Sensor Components:

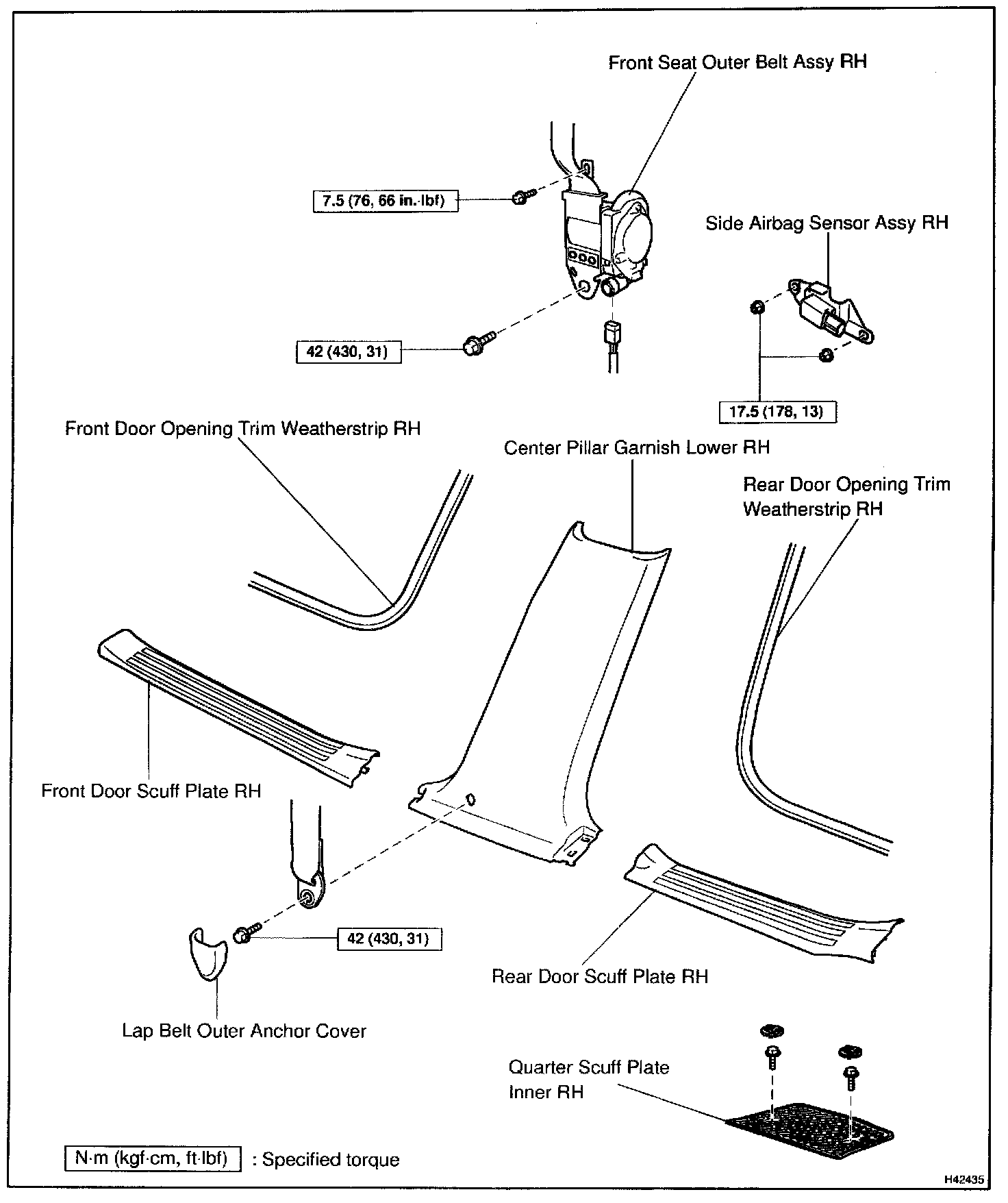

Side Airbag Sensor Assy RH Components:

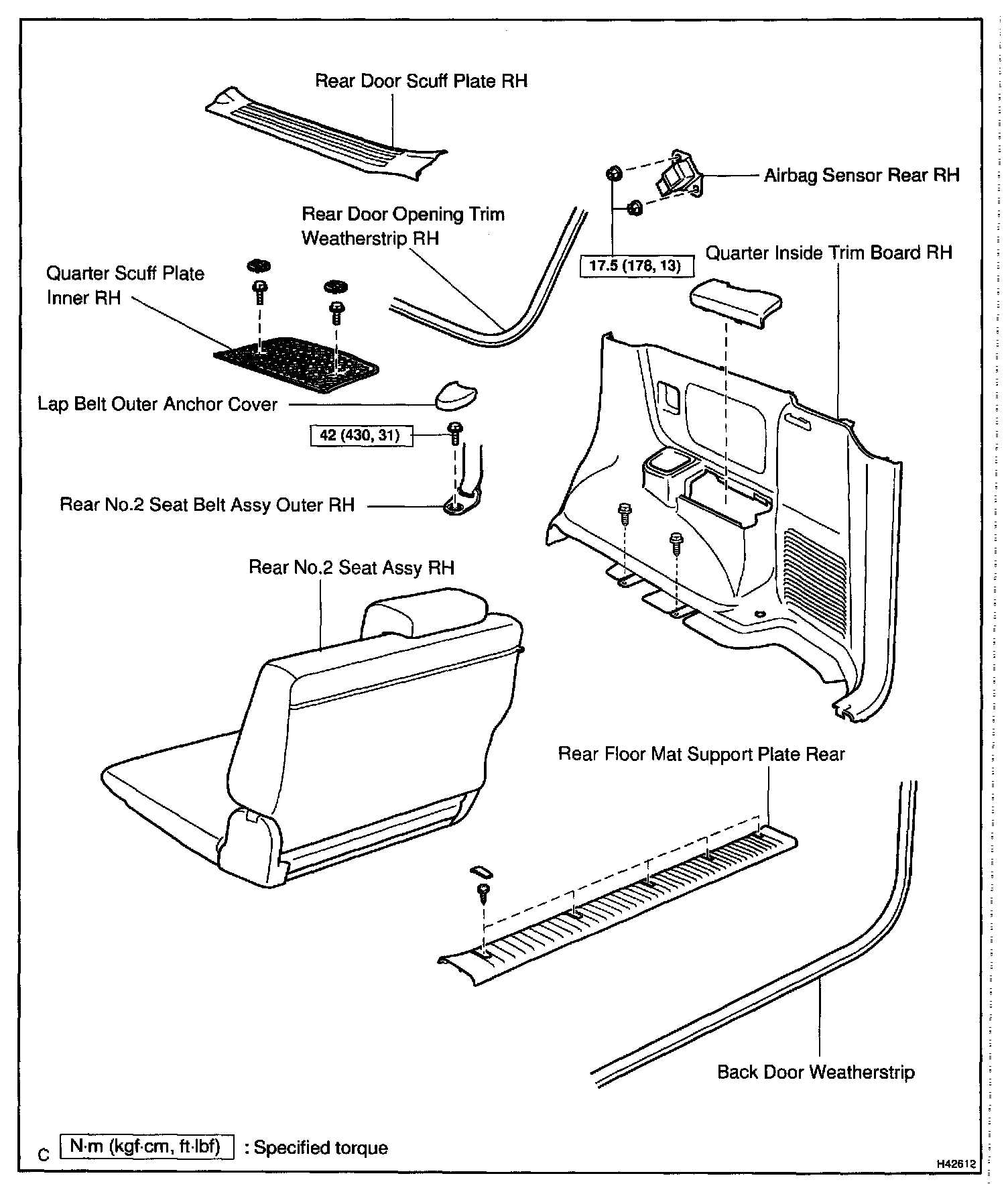

Airbag Sensor Rear RH Components:

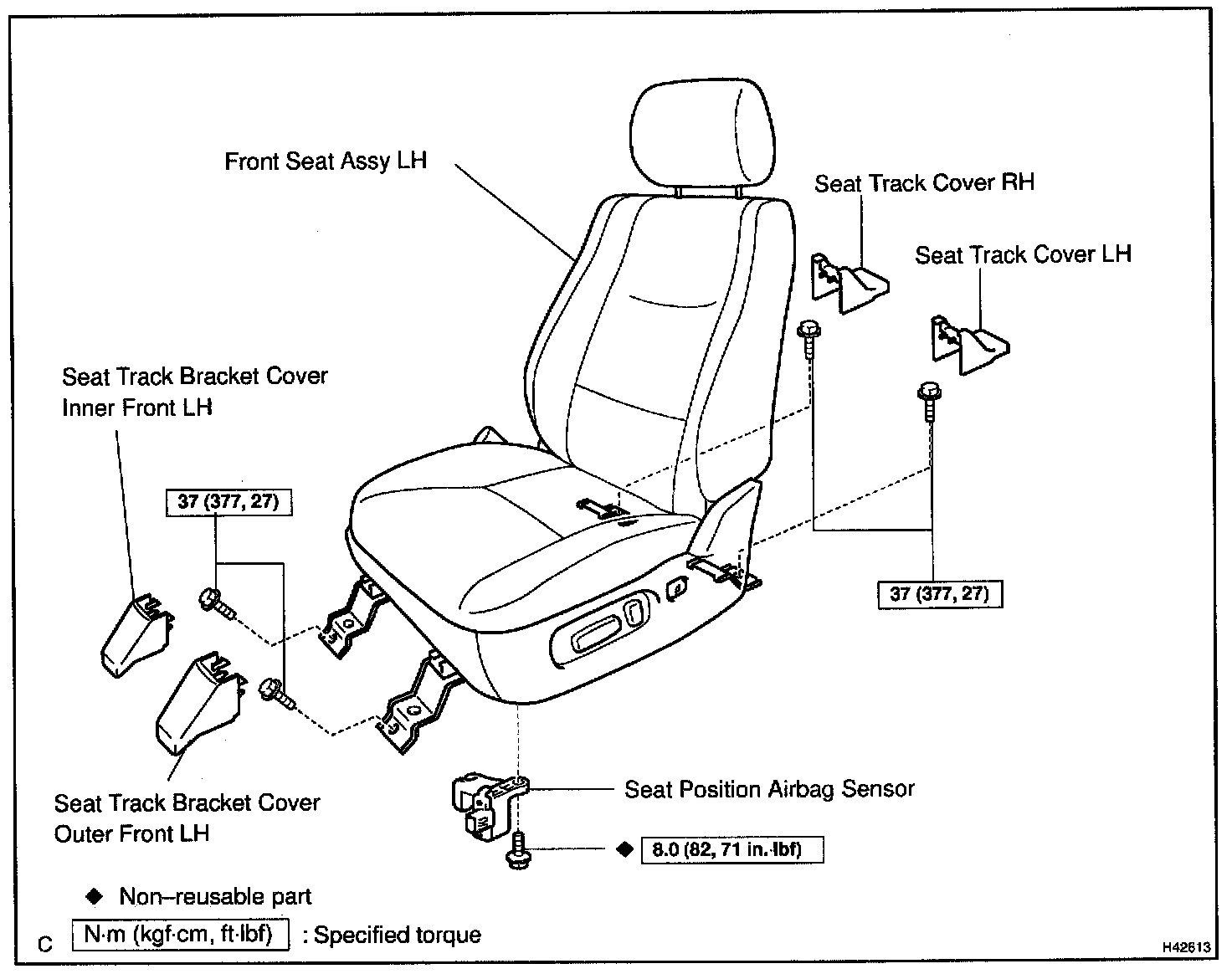

Seat Position Airbag Sensor Components:
