Terminals Of ECM
WARNING: This page is about a different car, the 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

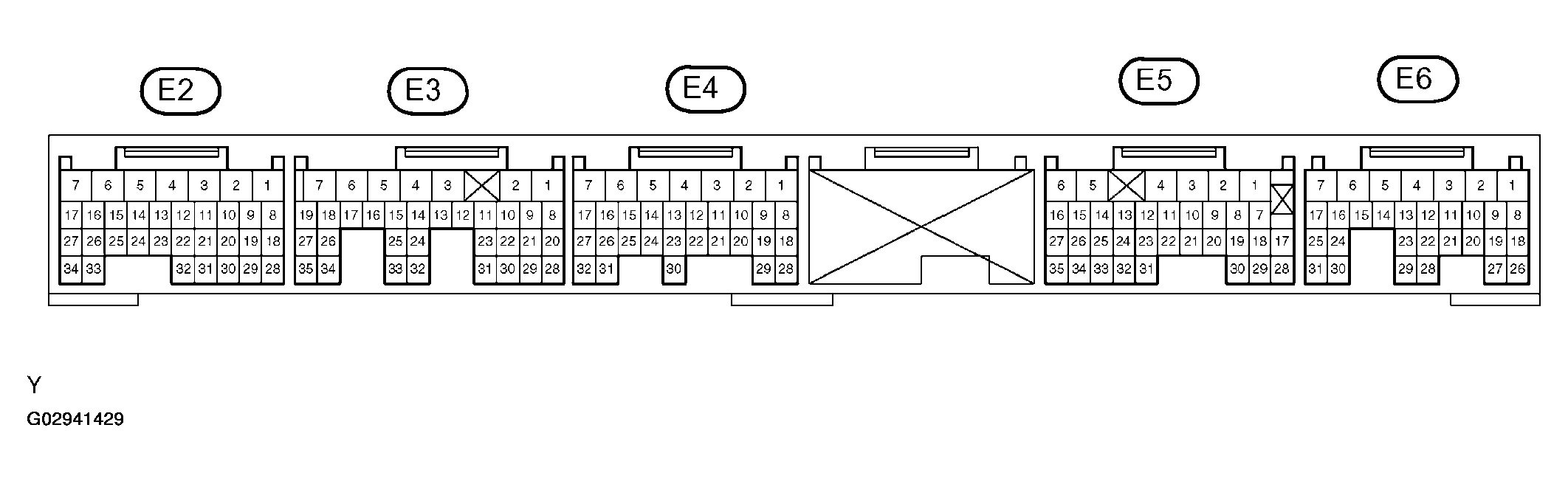

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TERMINAL STD VOLTAGE
| Symbols (Terminals No.) |
Wiring Color |
Condition |
STD Voltage (V) |
| CODE - E1 (E6 - 31 ohms E3 - 7) |
G-B -> BR |
Ignition Switch ON |
10 - 14 |
| TXCT - E1 (E5 - 23 ohms E3 - 7) |
L-R -> BR |
Ignition Switch ON |
10 - 14 |
| RXCK - E1 (E5 - 24 ohms E3 - 7) |
B-W -> BR |
Ignition Switch ON |
10 - 14 |
