Rear Combination Lamp Lens LH Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR COMBINATION Lamp ASSY LH
    1. Remove the 2 bolts and release the 2 claws.
    2. Disconnect the connector and remove the rear combination lamp assy LH.

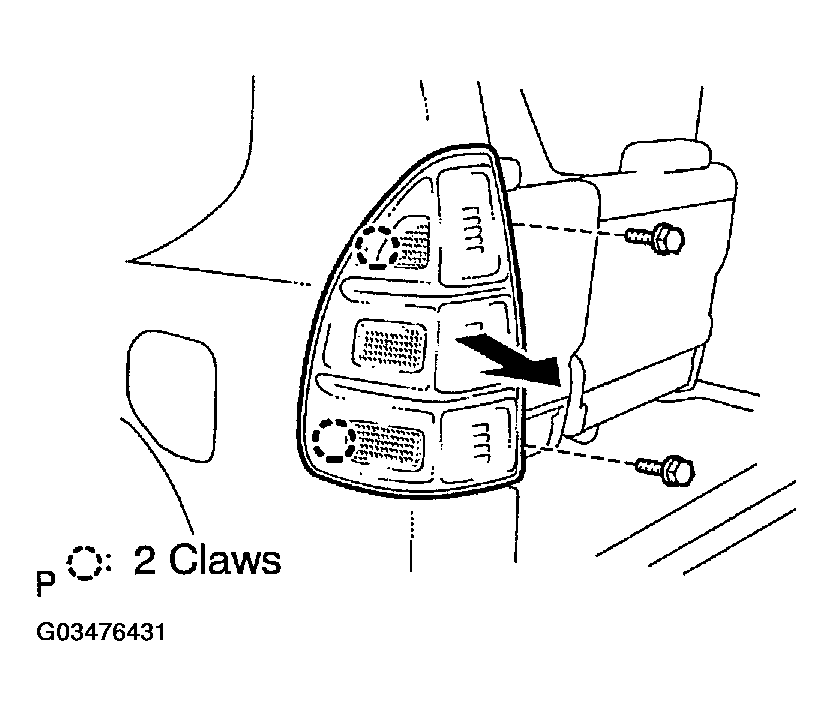

    Fig 1: Removing Rear Combination Lamp Assembly
    G03476431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR COMBINATION Lamp LENS LH
    1. Remove the 3 sockets with 3 bulbs.
